iC60N 3P C16 Acti9 Breaker by Schneider Electric, Buy iC60N 3P C16

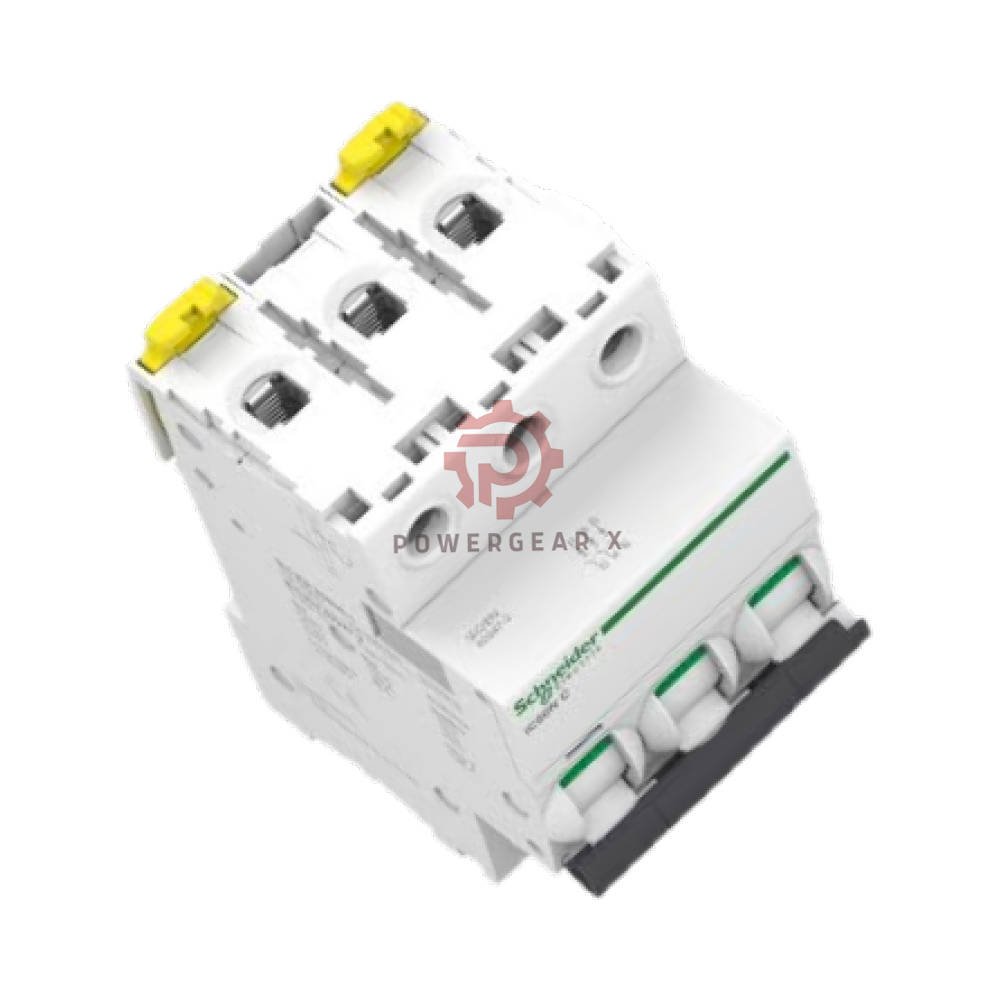

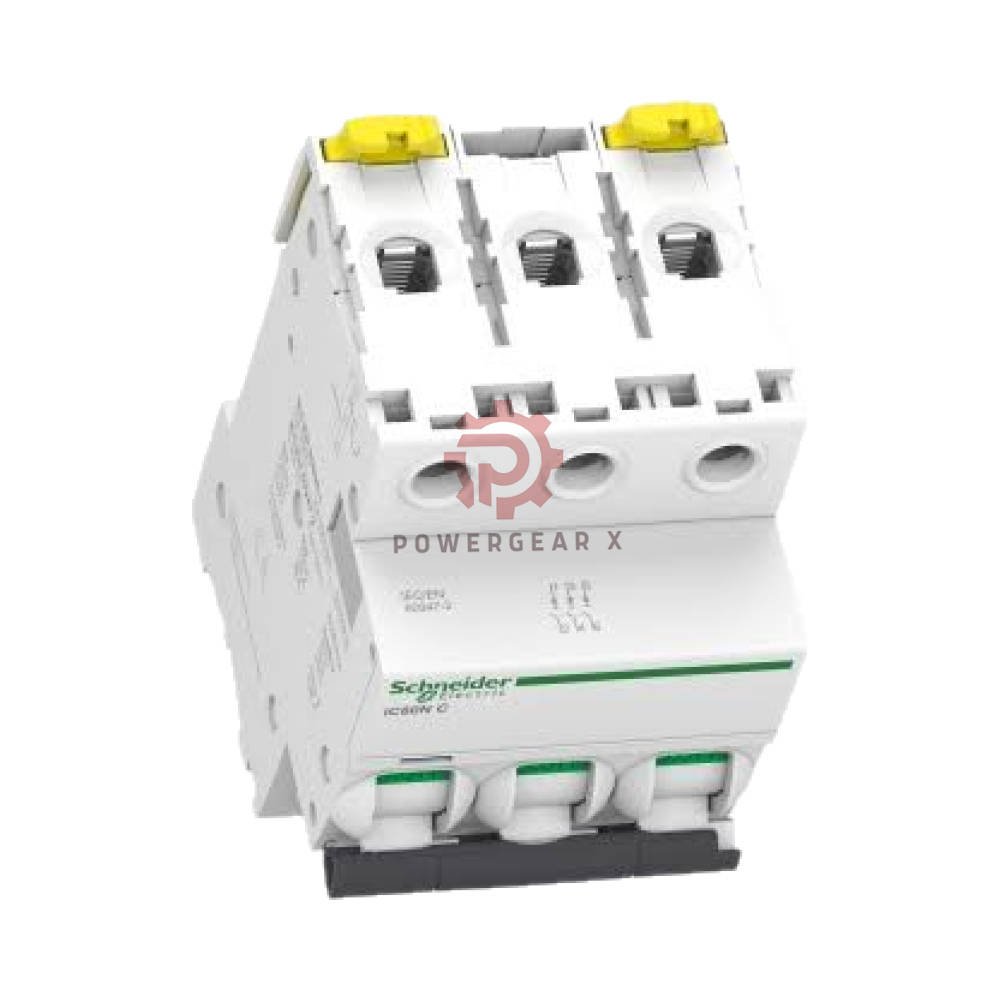

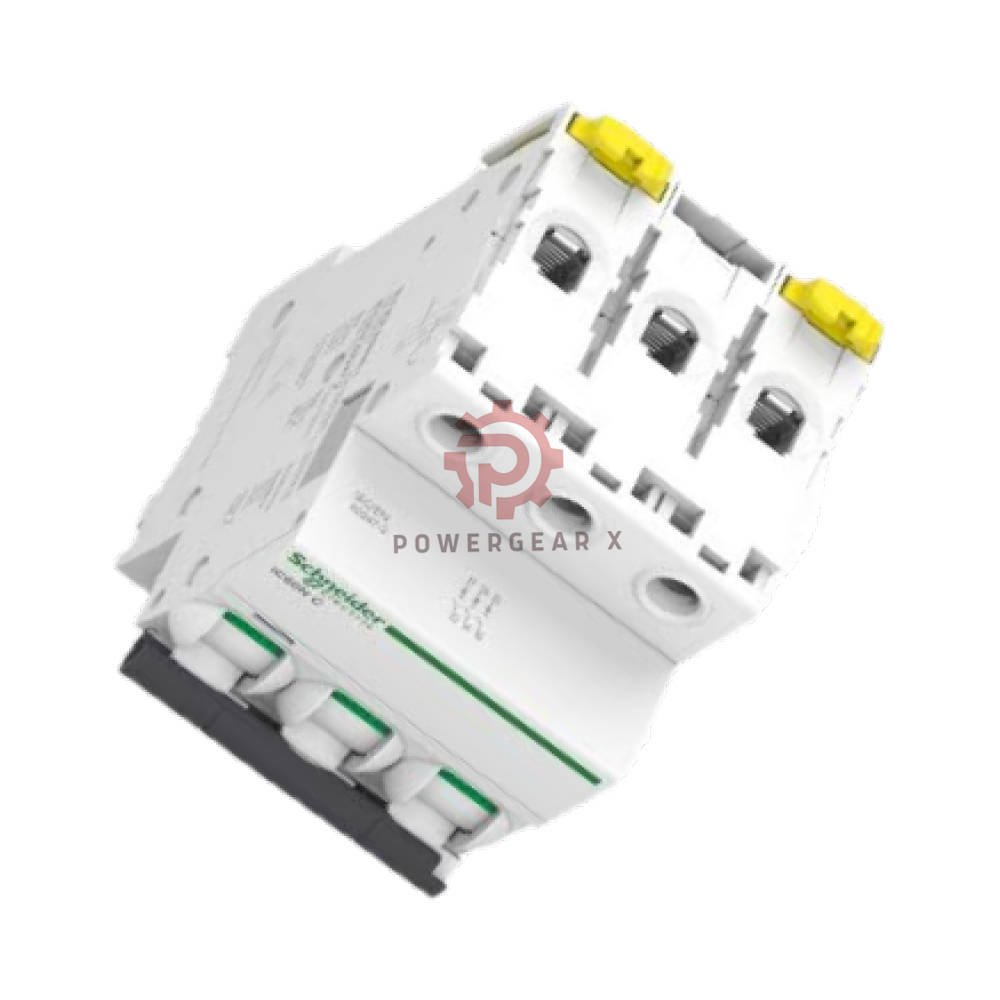

iC60N 3P C16 Acti9 Miniature Circuit Breaker by Schneider Electric

Looking for a breaker that guards machines and panels with ease? Meet the iC60N 3P C16 from Schneider Electric. It is part of the trusted Acti9 iC60 series. This miniature circuit breaker handles 16 A per pole with a C-curve trip. It fits standard 35 mm DIN rail. So, installers save time and panels stay tidy.

Product Snapshot

• Type: Miniature circuit breaker
• Poles: 3P
• Rated current: 16 A
• Trip curve: C
• Brand: Schneider Electric
• Model: iC60N 3P C16
• Series: Acti9 iC60

Technical Tree

• Electrical
  • Poles: 3P
  • Rated current: 16 A
  • Trip curve: C (thermal-magnetic)
  • Magnetic trip: 8×In ±20%
  • Breaking capacity: 6 kA @ 230/400 V
  • Rated voltage: 400 V AC
• Standards
  • EN/IEC 60898-1
  • EN/IEC 60947-2
• Environment
  • Operating temperature: -35 to 70 °C
• Physical
  • Mounting: 35 mm DIN rail
  • Mechanical life: 20,000 cycles
  • Electrical life: 10,000 cycles
  • Dimensions H×W×D: 85 × 54 × 78.5 mm
  • Weight: 0.375 kg
• Lifecycle
  • Status: Active, in production
  • Range: Acti9
  • Last verified: 2026-09

Why Pick This Breaker

• C-curve trips handle motor and transformer inrush well.
• 6 kA breaking capacity stops short-circuit faults fast.
• 3P design protects three-phase loads at once.
• Wide -35 to 70 °C range suits tough rooms.
• Long 20,000-cycle mechanical life cuts replacements.

Expert Review

The iC60N 3P C16 is a solid pick for daily industrial work. The C-curve gives extra headroom on start-up. So, motors and pumps trip less often. The 6 kA rating covers most panel feeds. The 3P layout saves rail space. The DIN clip snaps on fast. In short, this breaker does its job without fuss.

Manager’s Insight

Stock this breaker for three-phase panels. It is active in the Acti9 range, so supply stays steady. One part covers many jobs. That cuts inventory cost. The 12-month warranty keeps risk low. Orders ship in 12 to 24 hours by FedEx, UPS, or DHL. For busy sites, keep two or three on the shelf.

Best Fit Devices and Uses

• Three-phase motor starters
• Small pumps and fans
• Machine control panels
• Lighting and power circuits
• Workshops and plant rooms
• Retrofit jobs on DIN rail

FAQ

Q: What does the C-curve mean on this breaker?

A: The C-curve trips at 5 to 10 times the rated current. Therefore, it rides through motor start-up surges. Then it still clears real faults.

Q: Can I use it on a single-phase line?

A: It is a 3P breaker, so it suits three-phase loads. For one-phase work, pick a 1P or 2P unit instead.

Q: Is the 6 kA rating enough for my panel?

A: Check the fault level at your point of supply. If it sits below 6 kA, this breaker fits. If not, step up to a higher rating.

Q: What warranty comes with it?

A: Every unit carries a 12-month warranty. If a defect appears, contact the team. Replacements ship fast.

Q: How fast do you send orders?

A: Most orders leave in 12 to 24 hours. We use FedEx, UPS, or DHL. So, you get tracking and quick delivery.

Q: How do I choose the right breaker size?

A: Match the rated current to the cable and load. Then pick the curve that suits the start-up current. Finally, check the breaking capacity against the fault level.
