Product details

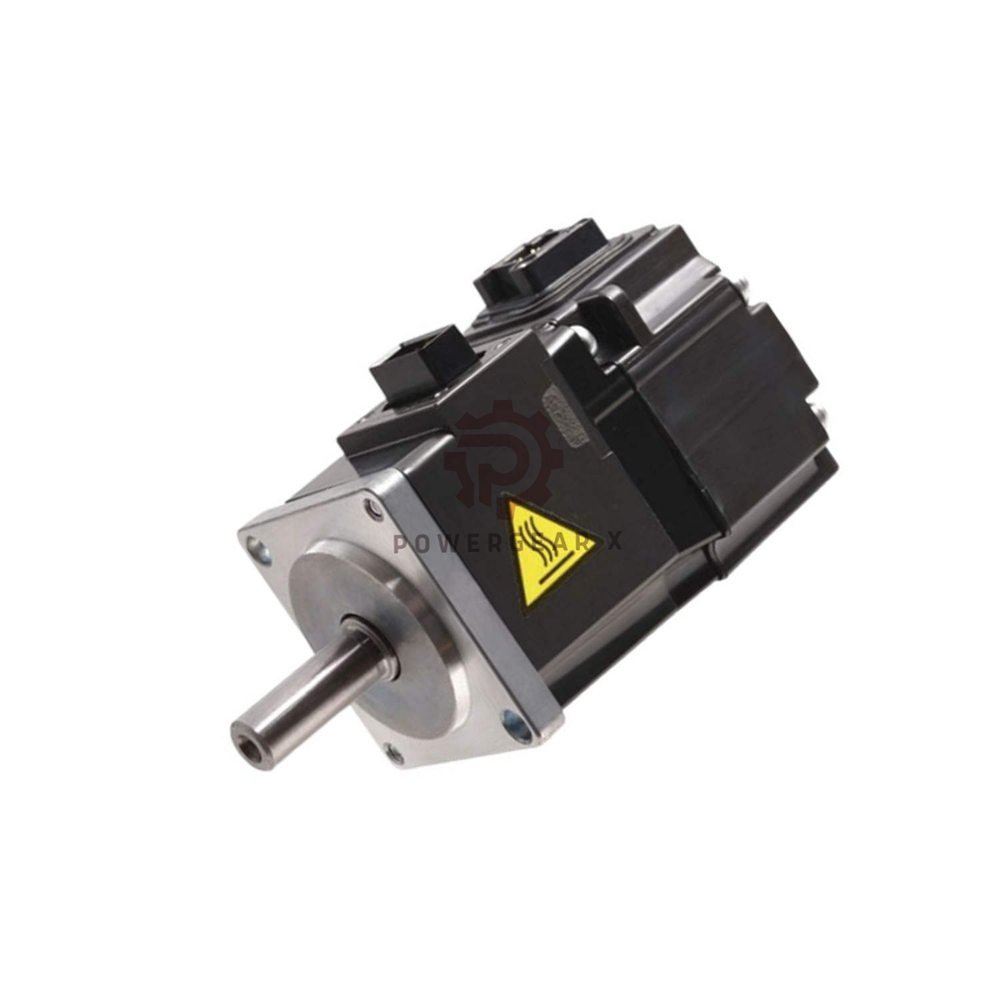

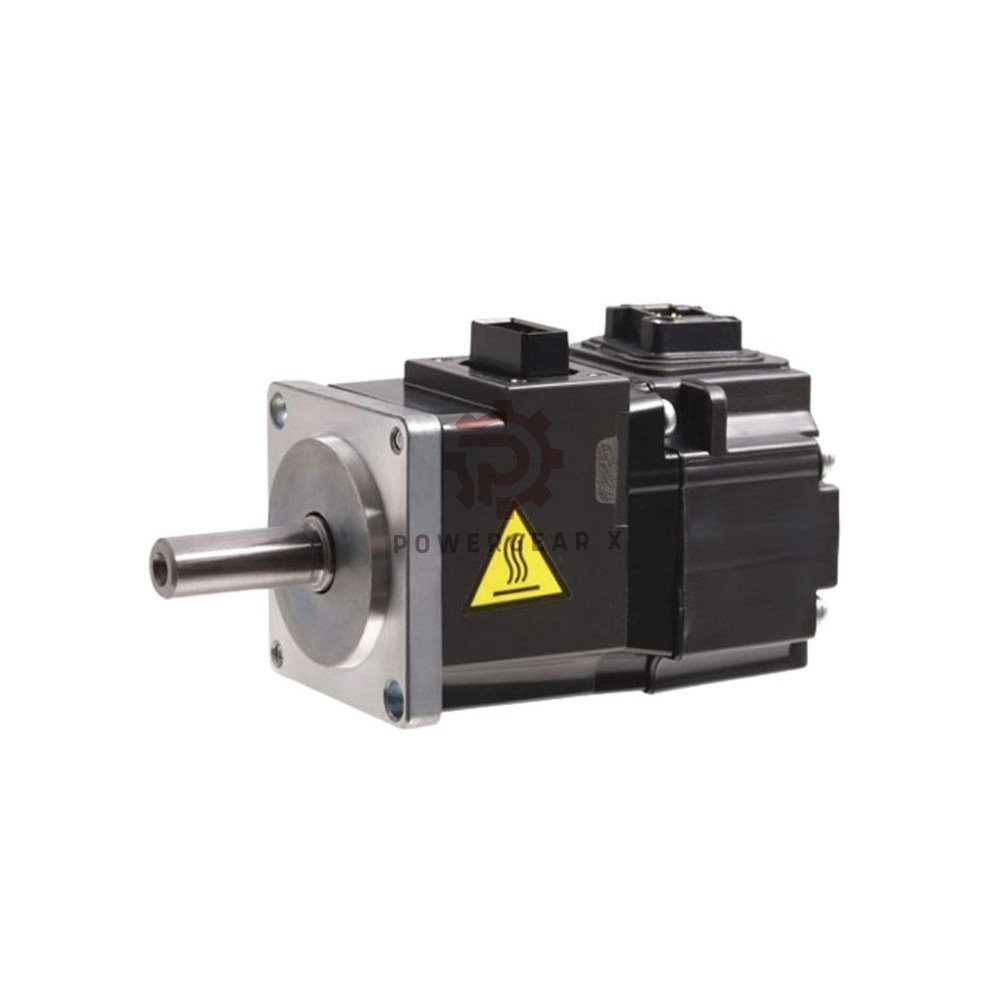

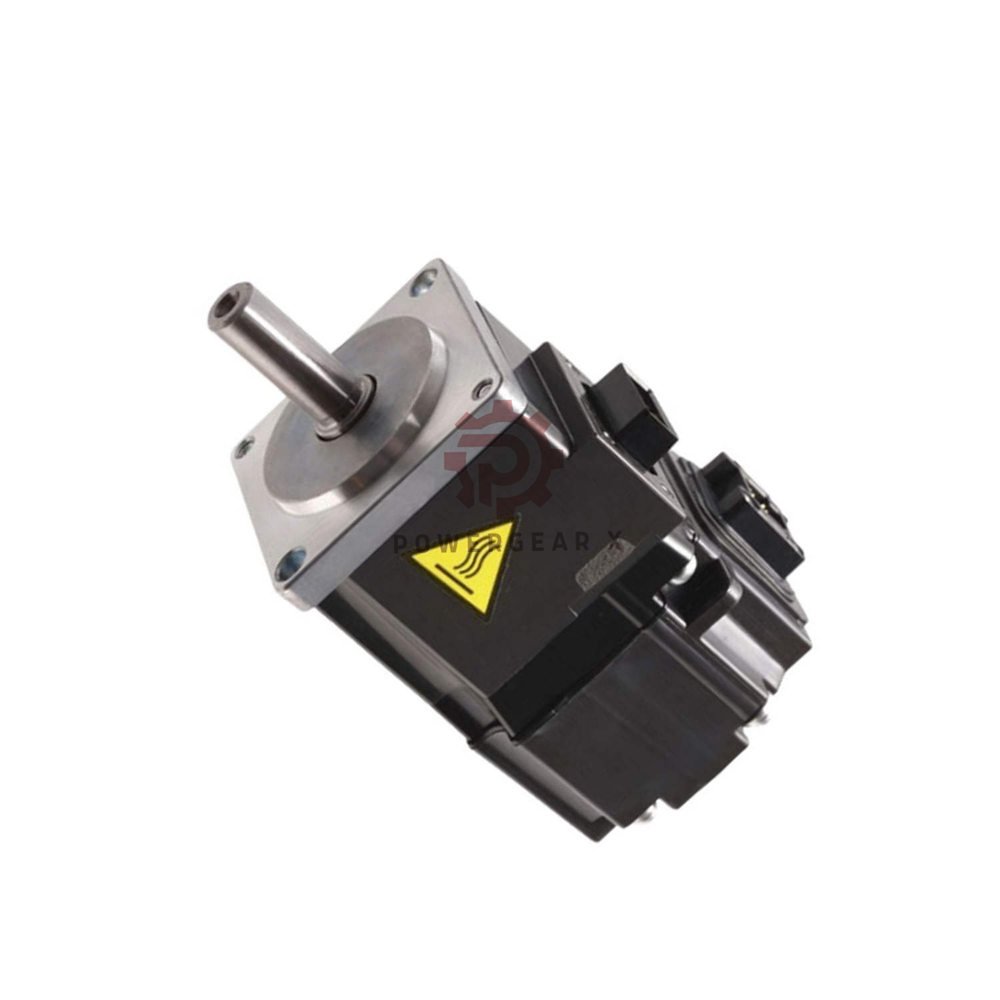

HG-SR352J Mitsubishi Brushless Servo Motor – 3.5kW, IP67, Medium Inertia
Product Introduction
- HG-SR352J is a reliable brushless servo motor from Mitsubishi HG Series.
- Delivers 3.5 kW output power for medium capacity tasks.
- Features medium inertia design for smooth and stable operation.
- Rated speed: 2000 RPM | Maximum speed: 3000 RPM.
- Provides 16.7 Nm rated torque and 50.1 Nm peak torque.
- Includes oil seal for longer life in tough conditions.
- Works in 0°C to 40°C ambient temperature range.
Technical Specifications (Tree Structure)
- General Identification
- Brand: Mitsubishi
- Product Line: HG Series
- Model: HG-SR352J
- Motor Type: Brushless Servo Motor
- Motor Capacity: Medium Capacity
- Model: HG-SR352J
- Product Line: HG Series
- Brand: Mitsubishi
- Electrical Ratings
- Output Power: 3.5 kW
- Voltage Class: 200VAC Class
- Output Power: 3.5 kW
- Speed & Torque
- Rated Speed: 2000 RPM
- Maximum Speed: 3000 RPM
- Rated Torque: 16.7 Nm
- Maximum Torque: 50.1 Nm
- Rated Torque: 16.7 Nm
- Maximum Speed: 3000 RPM
- Rated Speed: 2000 RPM
- Mechanical & Environmental
- Inertia Type: Medium Inertia
- Protection Rating: IP67 (dust-tight and waterproof)
- Oil Seal: Included
- Operating Temperature: 0°C to 40°C
- Oil Seal: Included
- Protection Rating: IP67 (dust-tight and waterproof)
- Inertia Type: Medium Inertia
- Physical Attributes
- Weight: 12.00 lbs (5.44 kg)
Expert Review – Manager’s Insight
- “Tough and reliable for wet or dusty factories.”
- Senior Automation Manager comment
- IP67 rating means no extra enclosure needed.
- Saves cost and space on machine design
- Oil seal prevents lubricant damage.
- Ideal for gearboxes or leaky machines
- Medium inertia handles load changes smoothly.
- Less vibration than low-inertia types
- Best choice for conveyors and mixers.
- Where steady torque matters most
Suitable Equipment & Applications
- Conveyor systems
- Steady movement with variable load
- Mixers and agitators
- Handles thick fluids without stalling
- Packaging machinery
- Reliable start/stop in dusty areas
- Food processing equipment
- IP67 allows washdown cleaning
- Textile machines
- Smooth speed control for fabric lines
- Material handling lifts
- High torque at low speeds
FAQ – Professional Answers
- What makes IP67 better than IP54 for my factory?
- IP67 survives temporary immersion in water.
- IP54 only resists splashes and dust.
- Choose IP67 if you wash machines with hoses.
- Can I run this motor at 3000 RPM all day?
- No, 3000 RPM is the maximum speed.
- Continuous use above rated speed (2000 RPM) reduces torque.
- Check your duty cycle before ordering.
- Does the oil seal need replacement over time?
- Yes, oil seals wear after 2-3 years in oily environments.
- Inspect yearly for leaks around the shaft.
- Replacement is simple and low cost.
- Which Mitsubishi drive works best with HG-SR352J?
- Use MR-J4-350A or MR-J5-350A servo amplifier.
- Match drive power (3.5kW or higher).
- Older MR-J3 drives also work with adapter cables.
- What is the warranty and shipping policy?
- 12-month warranty covers manufacturing defects.
- We ship within 12-24 hours after order.
- Carriers: FedEx, UPS, DHL with tracking.
Buying Guide – Real Experience Tips
- Check your load type first.
- Medium inertia suits loads that change slowly.
- For fast start/stop, pick low inertia instead.
- Measure your shaft height carefully.
- This motor is heavier than 750W types.
- Reinforce your mounting plate if needed.
- Add a fan if running near 40°C all day.
- Motor stays cooler and lasts longer.
- Order cables at the same time.
- Use genuine Mitsubishi HG series cables.
- Third-party cables may fail IP67 seal.
- Keep spare oil seals in stock.
- Downtime is expensive.
- Seal part number is in the manual.
