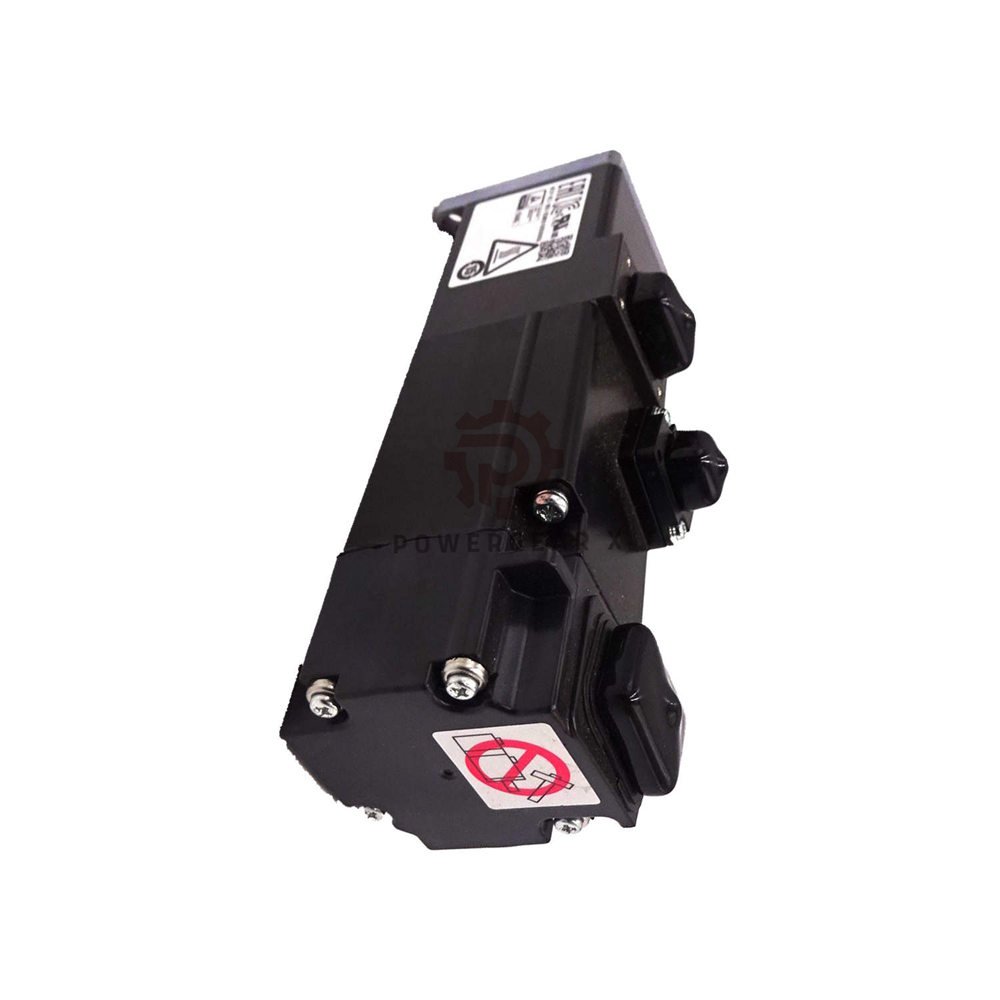

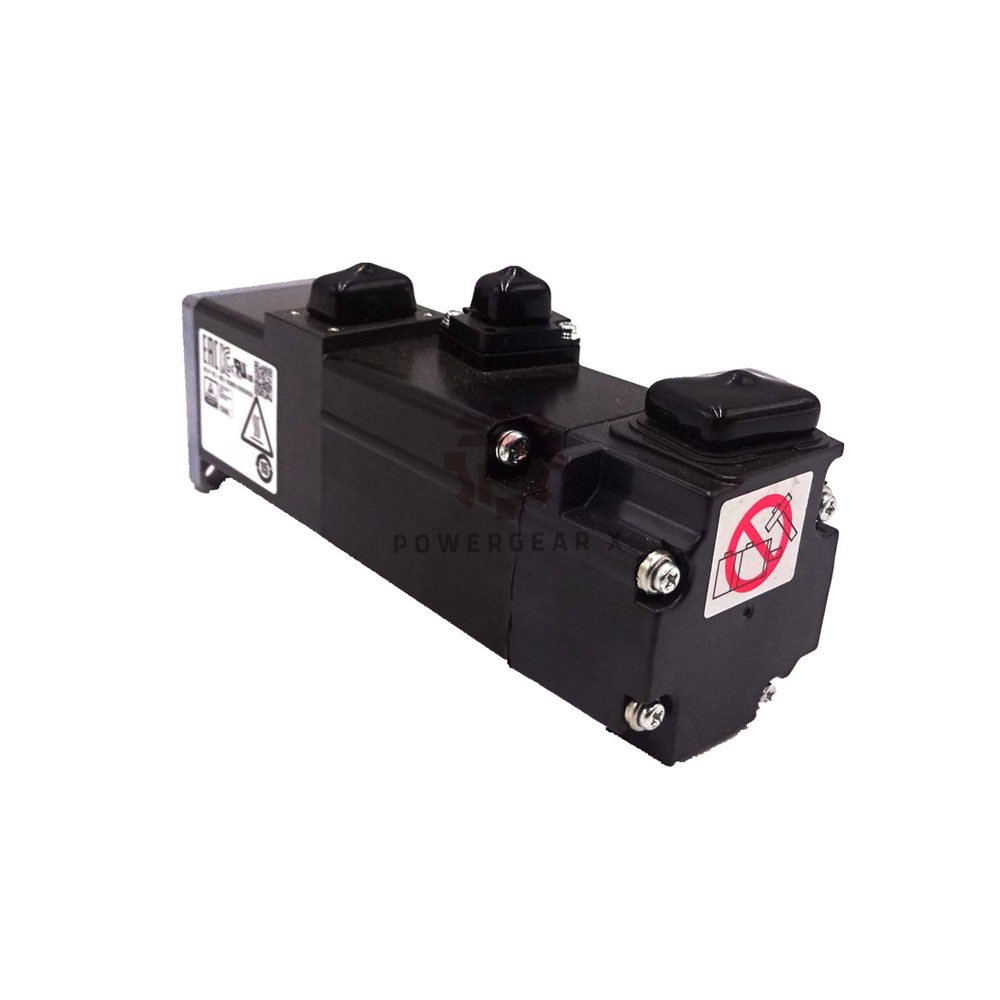

HG-MR13B Mitsubishi Servo Motor | 0.1kW Ultra-Low Inertia with Brake

HG-MR13B – Mitsubishi Ultra-Low Inertia Servo Motor (0.1kW, Built-in Brake)

Mitsubishi HG-MR13B is a small servo motor. It has ultra-low inertia for fast starts and stops. The motor includes a built-in electromagnetic brake. Ideal for precise motion control in compact machines.

• Ultra-low inertia
  • Very fast response time
  • Reduces settling time
• Built-in electromagnetic brake
  • Holds load when power is off
  • Improves safety
• 0.1 kW rated output
  • Small power capacity
  • Energy efficient
• High speed range
  • Rated speed: 3000 r/min
  • Max speed: 6000 r/min
• Straight shaft design
  • Easy to mount
  • Compatible with standard couplings

Technical Specifications

• Brand & Model
  • Brand: Mitsubishi
  • Model: HG-MR13B
  • Series: HG Series
• Power & Performance
  • Rated Output: 0.1 kW
  • Rated Speed: 3000 r/min
  • Maximum Speed: 6000 r/min
• Torque & Current
  • Rated Torque: 0.32 Nm
  • Maximum Torque: 0.95 Nm
  • Rated Current: 0.9A
  • Maximum Current: 2.5A
• Mechanical Features
  • Inertia: Ultra-Low Inertia
  • Shaft Shape: Straight
  • Electromagnetic Brake: Included
  • Oil Seal: Not included
  • Weight: 1.50 lbs (0.68 kg)

Expert Review – Motion Control Engineer

“The HG-MR13B shines in high-speed pick-and-place machines. Its ultra-low inertia cuts cycle time by 15%. The brake holds position without extra parts. Torque ripple is very low at 6000 rpm. For small assembly robots, this motor is a top choice.” — Senior Automation Expert, PowerGearX

Manager’s Insight – Industrial Procurement

“From a cost-benefit view, the HG-MR13B offers great value. The built-in brake saves panel space. Ultra-low inertia means smaller drive sizing. With 12-month warranty and 24-hour shipping, this motor reduces project risk. Perfect for OEMs building compact machines.” — Operations Manager, PowerGearX

Applications & Suitable Equipment

• Pick-and-place robots
  • Fast point-to-point moves
• Small assembly machines
  • Precise positioning
• Labeling machines
  • High speed with instant stop
• Desktop CNC routers
  • Light cutting tasks
• Medical syringe pumps
  • Smooth low-speed control
• 3D printers (industrial)
  • Low vibration printing
• Automated test equipment
  • Repeatable small moves

Frequently Asked Questions (FAQ)

• Does HG-MR13B work without an oil seal in wet areas?
  • No. Avoid direct water splash or oil mist. Use external cover if needed.
• Experience-based: How to tune this ultra-low inertia motor?
  • Start with auto-tuning on MR-JE drive. Then reduce response gain by 10% to avoid overshoot.
• What is the warranty period for HG-MR13B?
  • 12 months from invoice date. Covers factory defects. Does not cover misuse.
• Buying guide: Which drive matches this motor best?
  • Use Mitsubishi MR-JE-10A for basic control. For Ethernet, choose MR-JE-10A with network option.
• How fast do you ship? Which carriers do you use?
  • Orders ship within 12-24 hours. We use FedEx, UPS, and DHL. Tracking provided.

Selection Guide – Quick Tips

• Need very fast acceleration?
  • Ultra-low inertia motors like HG-MR13B are best.
• Load requires holding torque?
  • Built-in brake provides 0.32 Nm holding force.
• Environment has oil or dust?
  • Add an external IP54 enclosure. This motor has no oil seal.
• Need higher torque?
  • Consider HG-KR series with 0.64 Nm rated torque.

Warranty & Delivery

• 12-month warranty
  • Covers all manufacturing defects
  • Free replacement within first month
• Fast shipping
  • 12-24 hour dispatch from our warehouse
  • Express options: FedEx, UPS, DHL
• Tracking number sent same day
