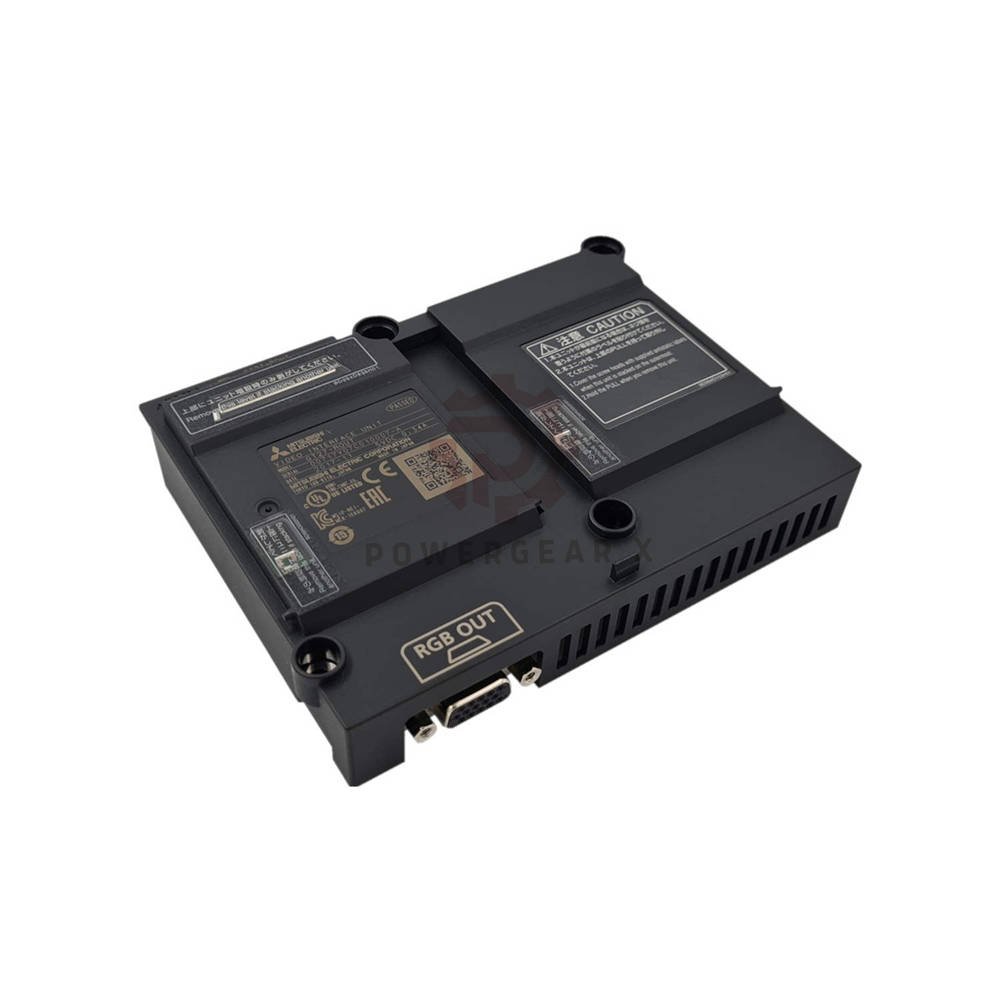

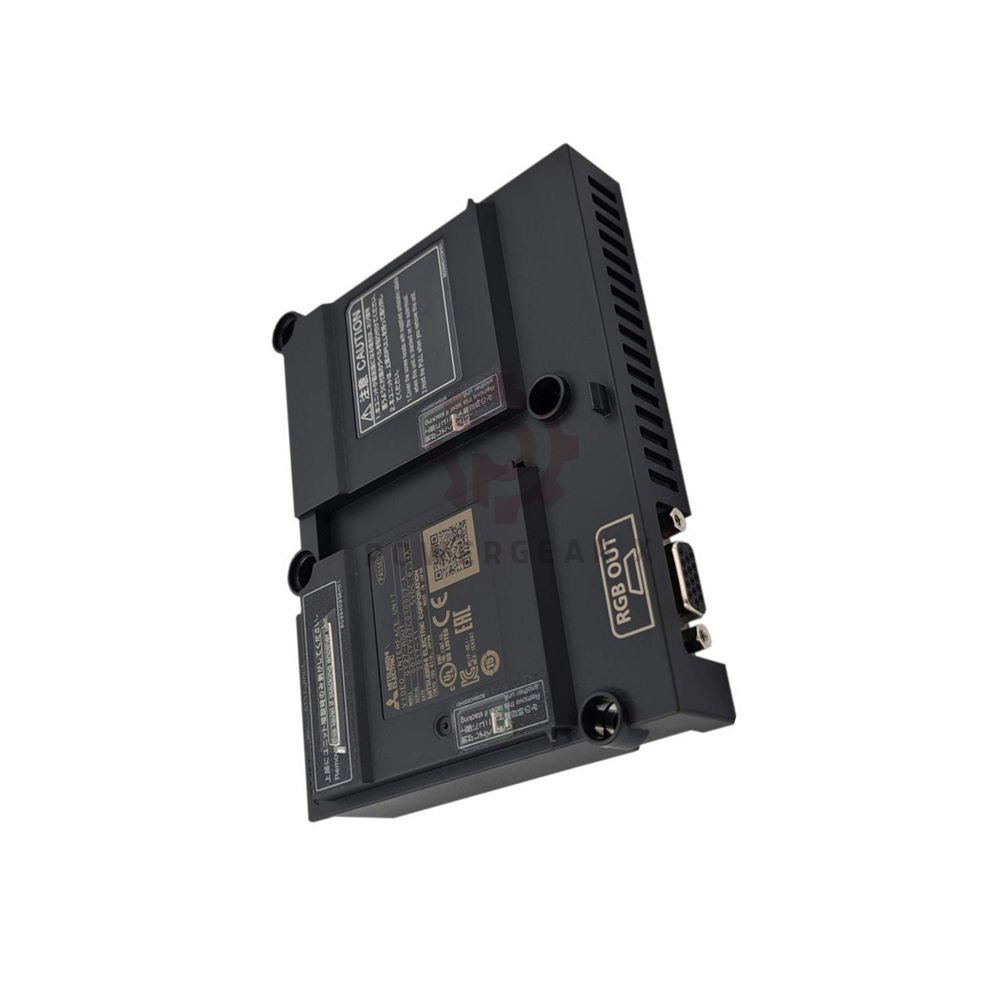

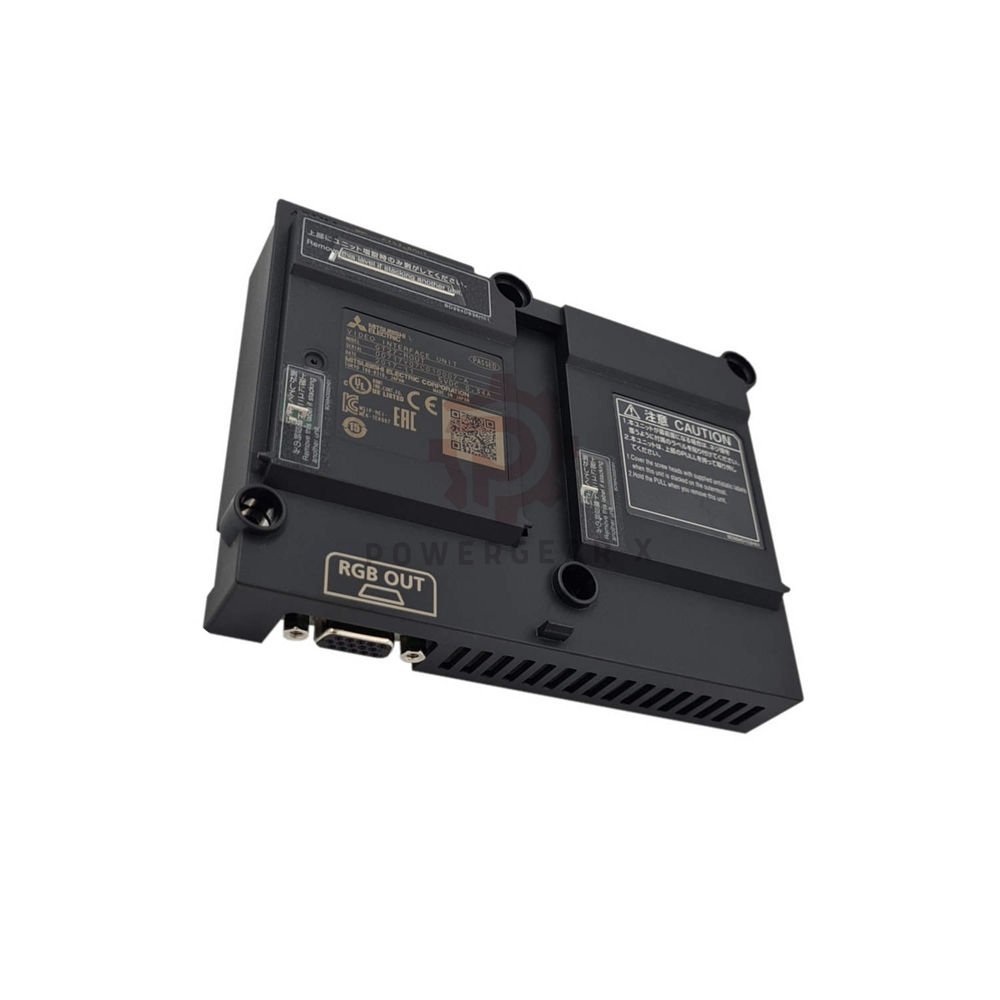

Name: GT27-ROUT-Z RGB Video Output Module Mitsubishi – GOT2000 Series Expansion
SKU: GT27-ROUT-Z RGB
Availability: InStock

Product details

Add an external monitor to your GT27 HMI. Sharp RGB output for XGA, SVGA, VGA displays. Simple plug-and-play expansion.

▶ General Info
- ▪ Brand: Mitsubishi Electric
- ▪ Model: GT27-ROUT-Z
- ▪ Series: GOT2000 Series
- ▪ Type: RGB output unit (external display adapter)
- ▪ Compatibility: GT27 model only
▶ Output Specs
- ▪ Output channels: 1 channel
- ▪ Connector: D-Sub 15-pin female
- ▪ Vertical scan: 60 Hz (fixed)
- ▪ Signal type: Analog RGB
▶ Supported Resolutions & Timing
- ▪ XGA (1024 x 768): horizontal 48.4 kHz, dot clock 65.000 MHz
- ▪ SVGA (800 x 600): horizontal 37.9 kHz, dot clock 40.000 MHz
- ▪ VGA (640 x 480): horizontal 31.5 kHz, dot clock 25.175 MHz
- ▪ Vertical frequency: 60 Hz for all resolutions
▶ Power & Physical
- ▪ Current consumption: approx. 0.34 A at 5.0 V DC
- ▪ Weight: light and compact (approx. 0.2 kg)
- ▪ Installation: Plugs into GT27 rear expansion slot

💡 Expert Review – “Clean & Reliable External Display”
“The GT27-ROUT-Z makes it easy to mirror or extend your HMI screen to a large monitor. Setup takes minutes – just plug the D-Sub cable and select resolution in GT Designer3. Perfect for control rooms where operators need a bigger view.” — Senior Controls Specialist
📊 Manager’s Insight – “Cost-Effective Visibility Upgrade”
Adding a second screen improves team collaboration and remote viewing. No extra PC required; the unit pulls power directly from the GT27. With 12-month warranty and fast global shipping, it’s a low-risk investment for any production floor.

✅ Compatible devices: Mitsubishi GT27 series HMIs (GOT2000 platform).
✅ Ideal applications:
- ▪ Control rooms: show HMI data on a large wall display.
- ▪ Training stations: let trainees watch from a second screen.
- ▪ Operator desks: dual-monitor setup for better workflow.
- ▪ Meeting rooms: project machine status during reviews.
- ▪ Remote viewing: send HMI image to a distant monitor via cable.

Q: Can I run the GT27 HMI screen and the external monitor at the same time?
A: Yes, both displays work simultaneously. The external monitor shows the same content as the HMI screen (mirror mode).
Q: What cable do I need to connect an external monitor?
A: Use a standard VGA cable (D-Sub 15-pin male to male). Most computer monitors and projectors support this connection.
Q: Does the GT27-ROUT-Z require extra software or programming?
A: Simple setup via GT Designer3. Choose the output resolution that matches your monitor. No complex coding needed.
Q: Can I use this unit with a touchscreen monitor?
A: The unit only sends video signal. If your external monitor has touch, you need separate USB connection to the HMI for touch input.
Q: What is the maximum cable length for stable signal?
A: Up to 10 meters (33 ft) with good quality VGA cable. For longer runs, use a VGA extender or active repeater.

📦 What’s included: GT27-ROUT-Z unit, installation screws, quick guide.
🛡️ Warranty: 12 months against defects. Free technical support via email or WhatsApp.
🚚 Fast shipping: Orders ship in 12–24 hours after payment. Carriers: FedEx, UPS, DHL with tracking number.
💡 Expert tip: Before ordering, check your external monitor’s supported resolution. Match it with XGA, SVGA, or VGA for best results. Use a shielded VGA cable to avoid signal noise in industrial environments.
✅ Why choose this unit: Adds professional external display capability without extra power supply or complex wiring. Keep operators informed and increase visibility.
