Product details

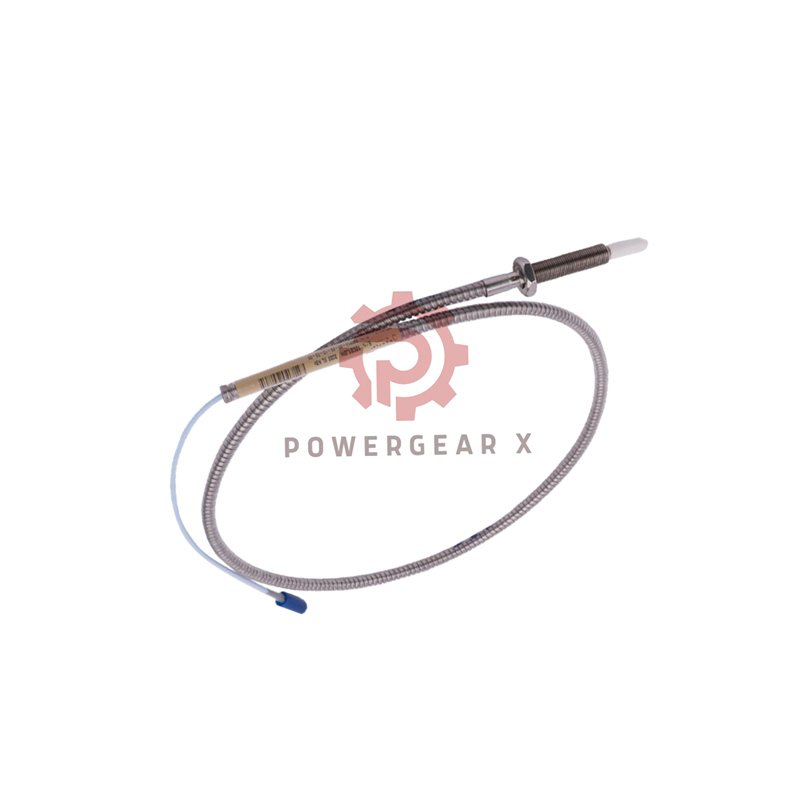

Genuine Bently Nevada Probe: Model 330910-10-22-10-01-CN
This 3300 NSv Proximity Probe is a premium OEM sensor. It is perfect for demanding industrial applications. The product is brand new and 100% original. It comes with a full 12-month manufacturer warranty. Ready for fast global delivery.
Product Highlights
- Long-Reach Design: Features an extended 220 mm stainless steel case for deep mounting.
- Full Protection: Includes stainless steel armor over the cable for maximum durability.
- Global Compliance: Built to country-specific (-CN) agency approval requirements.
- Superior Chemistry Resistance: PPS probe tip handles harsh process environments better than older models.
- Complete Kit: Comes with a connector protector to safeguard the electrical connection.
Complete Technical Specifications
Identification & Configuration
- Brand: Bently Nevada
- Part Number: 330910-10-22-10-01-CN
- Model Family: 3300 NSv Proximity Probe
- Case Thread: M10 x 1.0 mm
- Armor: Yes, Stainless Steel
Physical Dimensions
- Unthreaded Length: 100 mm
- Overall Case Length: 220 mm
- Total Cable Length: 1.0 meter (39 inches)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
Electrical Performance
- Probe DC Resistance: 4.2 ± 0.5 Ohms
- Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm to 1.75 mm from target (1.5 mm total)
- Linearity Error (DSL): < ±0.06 mm
- Frequency Response: 0 to 10,000 Hz (10 kHz), ±3 dB
- Cable Type: 75-ohm coaxial, FEP insulated
- Connector: Miniature Coaxial ClickLoc with protector
Environmental & Materials
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Sealing: Viton O-Ring
- Mounting Torque: Finger tight (Max 0.56 N•m / 5 in-lb)
System Integration
- Target Size: Recommended minimum 13 mm (0.5 in) diameter
- Recommended Gap Setting: 1.0 mm (40 mils)
- Compatibility: Direct replacement for 3300 RAM probes and cables.
- Field Wiring: Up to 305 meters (1000 ft) of shielded cable to monitor.
Package & Warranty
- Includes: One (1) Bently Nevada 330910-10-22-10-01-CN probe in factory packaging.
- Warranty: Backed by a full 12-month factory warranty.
- Shipping: We ship worldwide via FedEx, UPS, and DHL for fast delivery.
Expert FAQs & Guidance
Q: What does the “220 mm” case length option mean for installation?
A: This means the metal probe body is 220mm long from the mounting nut to the cable exit. It is ideal for applications where you need to reach through a thick casing or housing before the sensing tip is exposed to the target.
Q: When should I choose this model over a standard case length?
A> Choose this 330910-10-22-10-01-CN model if your machinery has a deep probe mounting hole or a thick bearing housing. The long case ensures proper thread engagement and positioning.
Q: What is the purpose of the “connector protector” in option -01?
A: The connector protector is a plastic cap. It shields the ClickLoc connector’s contacts from dust, moisture, and physical damage during handling and before installation. It helps ensure a reliable connection.
Q: How does the “-CN” country-specific approval affect my purchase?
A: The -CN suffix indicates the probe is manufactured to meet specific certification requirements for certain countries or regions. This is crucial for regulatory compliance in your local market. Confirm with your project specifications.
Q: What is your process for order fulfillment and support?
A> We process orders quickly. You will receive a tracking number from FedEx, UPS, or DHL. For technical fitment questions before ordering, or for bulk pricing, please contact our sales team directly for personalized support.
Ready to order or need a custom quote? Our team is here to help you get the right part quickly.
