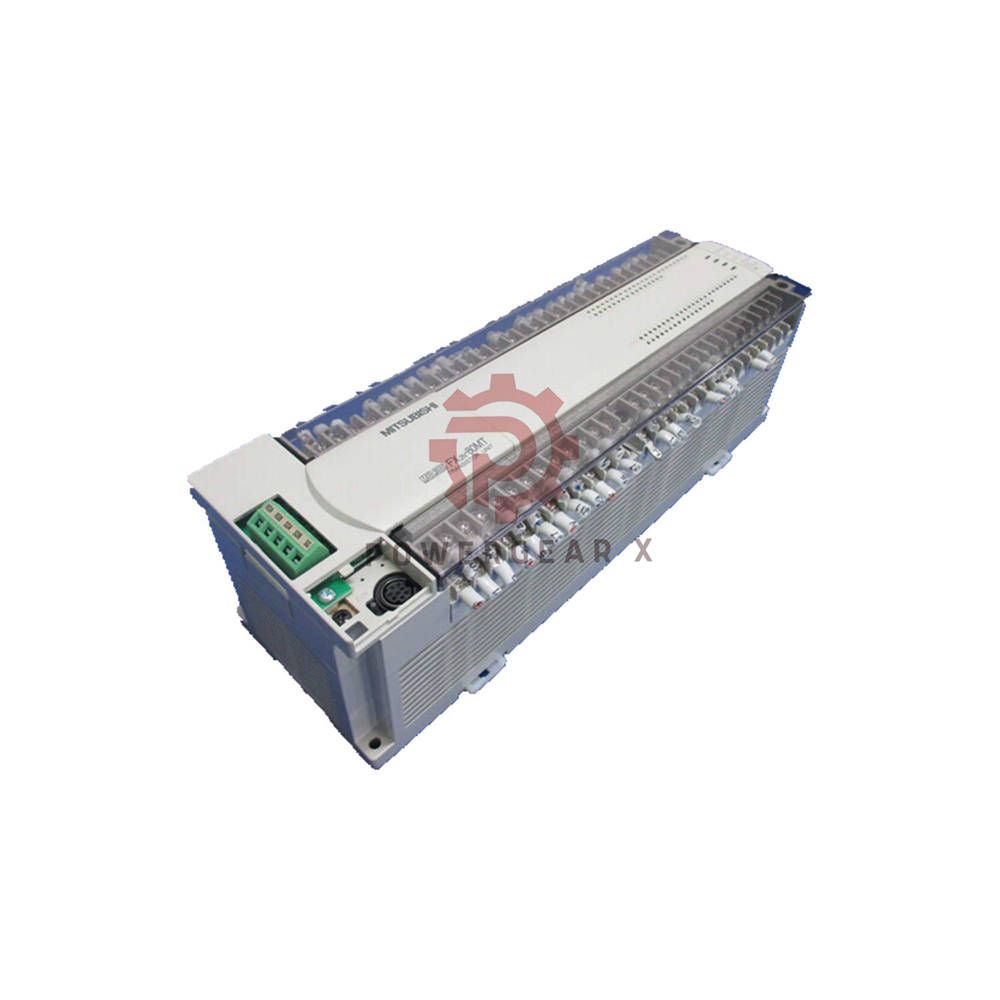

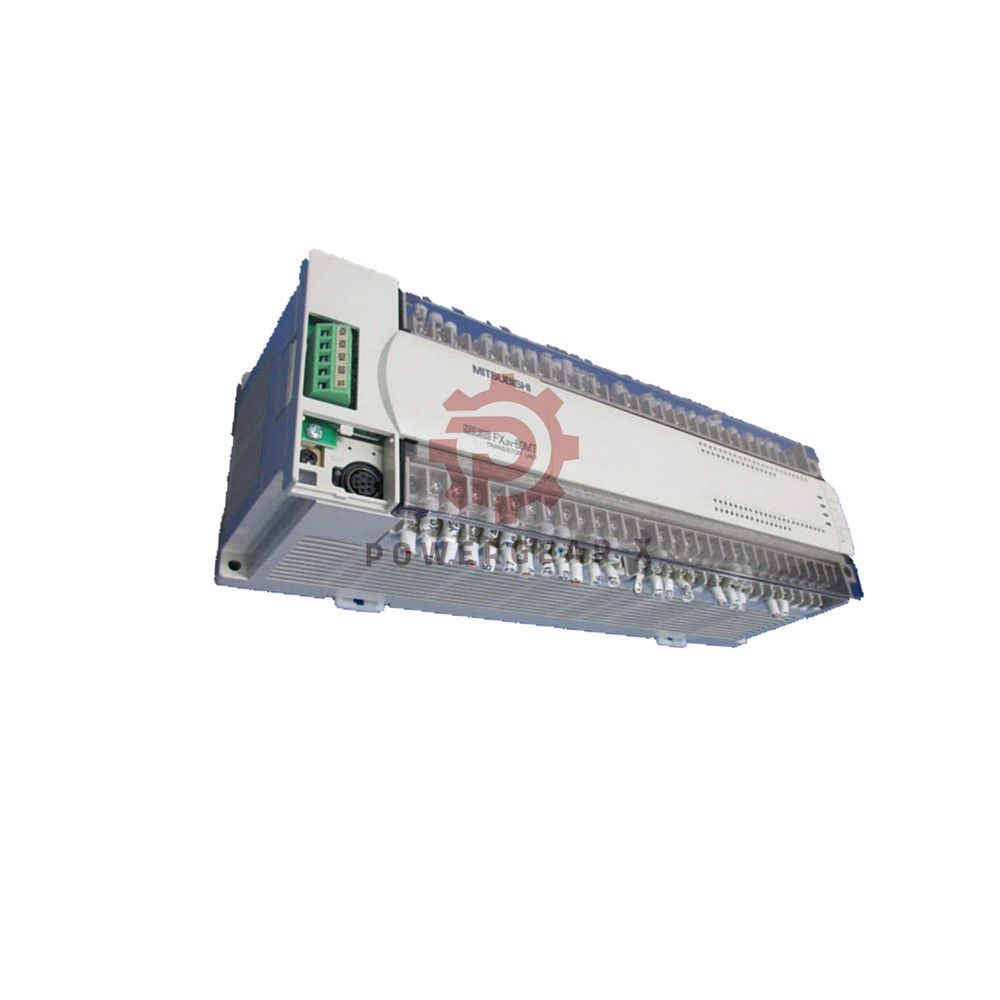

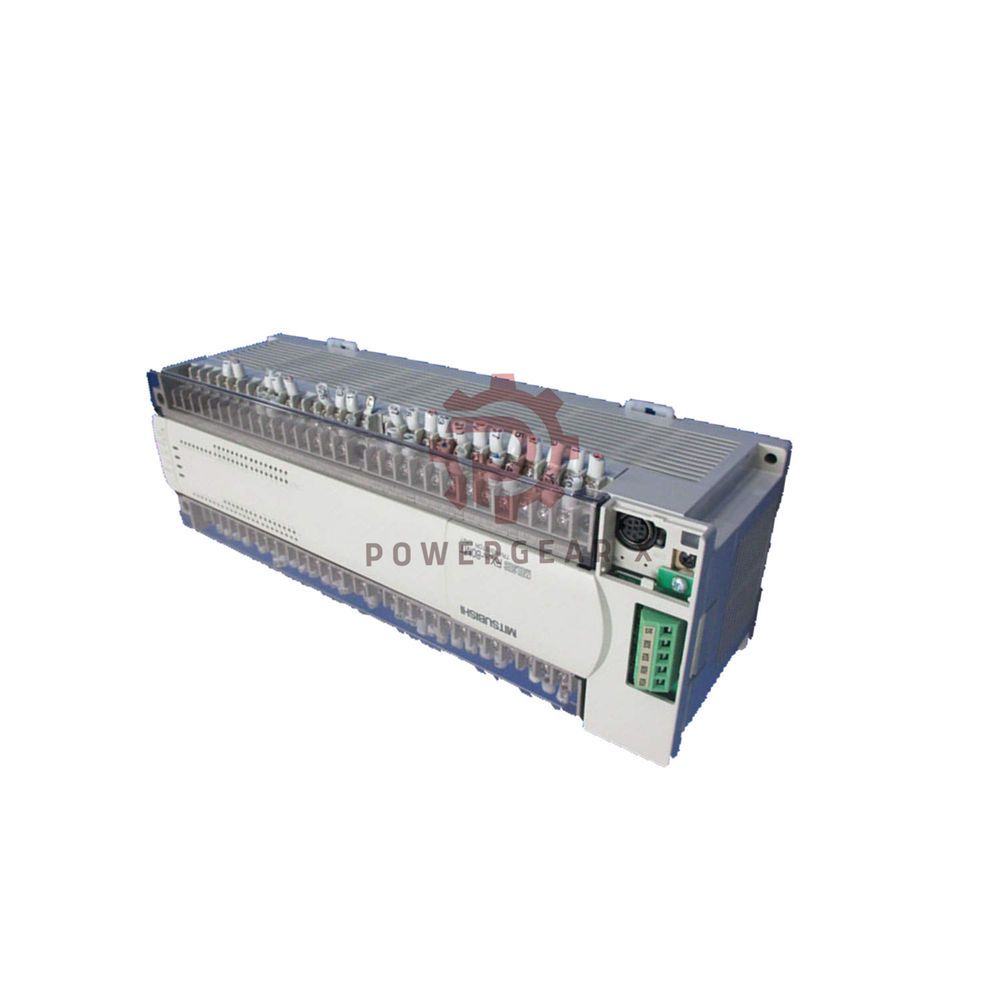

FX2N-80MT-001 Mitsubishi PLC | FX2N Series 80 I/O Transistor Output High Speed

Description & Key Features

• High-speed processing
  • Basic instruction: 0.065 µs
  • Application instruction: 0.642 µs
  • Very fast for demanding automation
• Large capacity memory
  • Program memory: 64K steps (built-in)
  • Flash memory cartridge for program transfer
  • No battery needed for program storage
• I/O configuration
  • Total I/O: 80 points
  • Inputs: 40 (DC24V, sink/source)
  • Outputs: 40 transistor (sink type)
  • Fast switching for servo and stepper control
• Built-in positioning
  • 2-axis independent positioning
  • Max speed: 20 kHz per axis
  • Ideal for simple motion control
• Expandable design
  • Control from 16 to 256 points
  • Use CC-Link remote I/O for up to 384 points
  • Connect I/O and special modules on right side
• Maintenance friendly
  • Quick-disconnect terminal block
  • Easy cable replacement without rewiring
  • LED indicators for all I/O status

Technical Specifications

• Brand & Model
  • Manufacturer: Mitsubishi Electric
  • Product No.: FX2N-80MT-001
  • Series: FX2N Series
  • Type: Programmable Controller / CPU Module
• Power Supply
  • Voltage: AC 100–240 V
  • Power consumption: 70 VA
  • DC5V internal supply: 1100 mA
  • DC24V service supply: 600 mA (for sensors)
• I/O Details
  • Max I/O points: 80 (built-in)
  • Input points: 40 (DC24V, sink/source configurable)
  • Output points: 40
  • Output type: Transistor (sink / drain type)
  • Output current: 0.5A per point (resistive load)
• Memory
  • Program memory: 64K steps (built-in)
  • Memory type: Flash memory / RAM with battery option
  • Expandable with memory cartridge
• Performance
  • Basic instruction speed: 0.065 µs
  • Application instruction: 0.642 µs
  • Built-in 2-axis positioning: 20 kHz max
• Communication
  • Built-in RS-422 programming port
  • Supports CC-Link, Ethernet, Modbus via modules
  • Function extension board for additional ports
• Expandability
  • Control range: 16 to 256 I/O points (local)
  • With CC-Link remote I/O: up to 384 points
  • Right-side expansion: I/O modules, special function modules
  • Analog, temperature, high-speed counter modules available
• Physical specs
  • Dimensions: 285 mm (W) x 90 mm (H) x 87 mm (D)
  • Weight: 1.2 kg
  • Protection: IP10 (open type)
  • Operating temp: 0°C to 55°C
• Certifications
  • CE Marked
  • UL / cUL certified
  • RoHS compliant

Installation & Maintenance

• Mounting
  • DIN rail (35 mm) or direct screw mounting
  • Fits standard industrial cabinets
• Wiring
  • Quick-disconnect terminal block
  • Replace cables without removing all wires
  • Inputs accept both sink and source sensors
  • Transistor outputs for high-speed switching
• Maintenance
  • LED indicators for power, run, error, I/O status
  • Self-diagnostic functions built-in
  • Easy program upload via RS-422

Compatibility & System Integration

• Expansion modules
  • FX2N series I/O modules (inputs, outputs, mixed)
  • Special function modules: analog, temperature, positioning, high-speed counter
  • CC-Link master/local modules for distributed I/O
• Extension options
  • Input expansion board (DC24V, 4 points)
  • Function extension board for RS-422, RS-485
  • Special adapters for analog and communication
• Software support
  • GX Works2 (recommended)
  • GX Developer compatible
  • Programming via RS-422 cable (SC-09 or USB adapter)

Expert Review – High-Speed Performance with 80 I/O

“The FX2N-80MT-001 delivers exceptional speed at 0.065 µs per instruction. With 40 transistor outputs and built-in 2-axis positioning, it handles motion control without extra modules. 64K steps memory provides plenty of space for complex programs. Great for packaging and assembly machines.” — Senior Controls Engineer

Manager’s Insight – Scalable & Cost-Effective

“This unit gives you 80 I/O right out of the box. Expand to 256 local points or 384 with CC-Link. Transistor outputs are perfect for fast switching and servo control. Quick-disconnect terminals save time during installation and maintenance. A reliable choice for high-density control.” — Product Manager, Powergear X

Applications & Suitable Equipment

• Common industries
  • Packaging machinery – high-speed counting and positioning
  • Assembly lines – pick-and-place, indexing tables
  • Printing equipment – synchronized motion control
  • Textile machines – speed regulation and tension control
  • Material handling – conveyors with positioning
• Compatible devices
  • Stepper motor drivers (sink input type)
  • Servo drives with pulse train control
  • NPN sensors (proximity, photoelectric)
  • Solenoid valves and relays (use external for high current)
  • HMI panels via RS-422 or Ethernet modules

Frequently Asked Questions (FAQ)

• Q1: Does the FX2N-80MT-001 support high-speed positioning without extra modules?
  A: Yes. Built-in 2-axis positioning up to 20 kHz. Use transistor outputs for pulse train to stepper or servo drives.
• Q2: What is the difference between this and the relay output version?
  A: Transistor outputs (this model) switch faster and last longer for high-frequency operations. Ideal for motion control and fast counting.
• Q3: Can I expand beyond 80 I/O points?
  A: Yes. Add FX2N expansion modules on the right side. Max local I/O is 256 points. With CC-Link remote, total reaches 384 points.
• Q4: How much internal power is available for sensors?
  A: DC24V service supply provides 600 mA. Enough to power many sensors without external power supply.
• Q5: Does the program stay after power loss?
  A: Yes. Built-in flash memory retains program without battery. Optional battery keeps clock and device data.

Selection Guide – How to Choose This PLC

• Check I/O requirements
  • FX2N-80MT-001 gives 40 inputs + 40 transistor outputs
  • Perfect for systems needing 60–80 I/O with motion control
• Output type decision
  • Transistor (this model): fast switching, high-frequency, pulse output
  • Choose relay version for mixed AC/DC loads or lower switching frequency
• Positioning needs
  • Built-in 2-axis 20 kHz positioning saves cost on separate modules
  • Ideal for stepper motors and simple servo applications
• Memory capacity
  • 64K steps standard – enough for large ladder programs
  • Supports program transfer via flash cartridge
• Warranty & shipping
  • 12 months warranty against manufacturing defects
  • Dispatch: 12–24 hours on business days
  • Carriers: FedEx, UPS, DHL – express worldwide
  • Tracking provided after shipment

Package Contents

• 1x FX2N-80MT-001 Main Unit
• 1x Quick start guide (multilingual)
• Terminal labels and mounting hardware
• Battery optional (FX2N-32BL)
