FX2N-128MT-001 Mitsubishi PLC | Transistor Output Controller with 128 I/O Fast Positioning

FX2N-128MT-001 – Mitsubishi Electric FX2N Series Programmable Controller

Product Overview

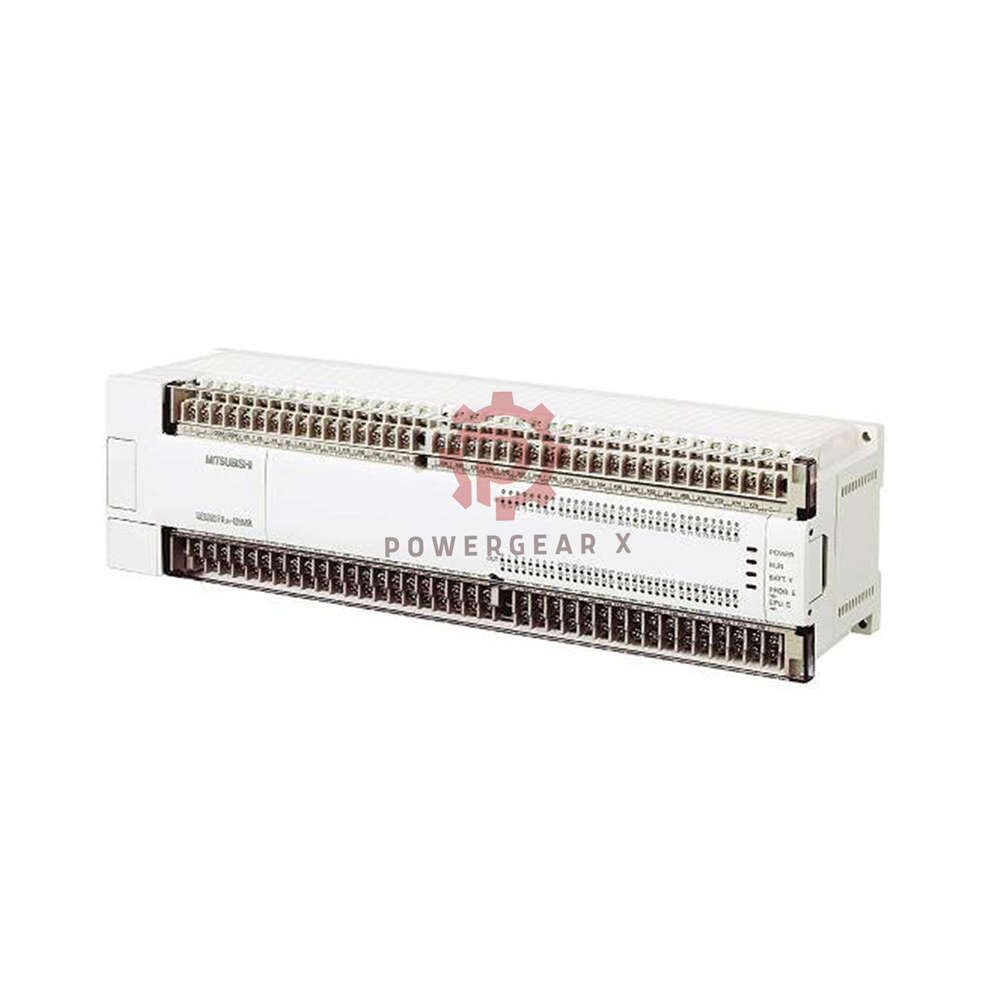

The FX2N-128MT-001 from Mitsubishi Electric is a high-performance PLC main unit. It belongs to the FX2N series. This model gives you 128 total I/O points with fast transistor outputs. It has built-in 2-axis 20 kHz positioning. Great for motion control and high-speed automation.

Technical Specifications

• Brand & Model
  • Brand: Mitsubishi Electric
  • Model: FX2N-128MT-001
  • Series: FX2N Series
  • Type: Programmable Controller (MPU Main Unit)
• I/O Configuration
  • Total I/O channels: 128 points
  • Input points: 64 points (24 V DC)
  • Output points: 64 points
  • Output type: Transistor output (sink type)
• Power & Consumption
  • Supply voltage: 24 V DC
  • Power consumption: 100 VA
• Performance
  • CPU speed: 0.08 µs per basic instruction
  • Built-in memory: 8K steps RAM (expandable to 16K)
  • Supports 16 to 256 control points with expansion
  • Built-in 2-axis independent 20 kHz positioning (transistor output type)
• Physical Details
  • Weight: 1.8 kg
  • Dimensions (WxHxD): 350 x 90 x 87 mm
  • Quick‑disconnect terminal block for easy wiring
• Memory & Registers
  • Auxiliary relays: 7680 points
  • Timers: 512 points
  • Counters: 235 points
  • Data registers: 8000 points
  • Extended registers: 32768 points
  • Extended file registers: 32768 points
• Expansion & Communication
  • Right side connects to I/O expansion modules and special function units
  • Supports analog I/O, high‑speed counters, positioning modules
  • CC‑Link remote I/O expands control up to 256 points (local) or 384 points with CC‑Link
  • Works with FX3 series adapters for analog input/output (0–10V, 4–20mA)
• Environmental & Durability
  • Operating temperature: 0°C to 55°C
  • Storage temperature: -20°C to 70°C
  • Humidity: 10% to 90% RH non‑condensing
  • Certifications: CE, UL/cUL, RoHS compliant

Installation & Maintenance

• Mounting
  • DIN rail (35 mm) or direct screw mount
  • Keep 50 mm space around unit for airflow
• Wiring
  • Quick‑disconnect terminal block – no need to rewire when replacing unit
  • Use 0.75 – 2.0 mm² wire for terminals
  • Separate power and signal lines to reduce noise
• Maintenance
  • Built‑in RAM with battery backup (optional battery FX2N-32BL)
  • EEPROM memory cartridge available for program transfer
  • Self‑diagnostic functions reduce downtime

Compatibility

• Expansion Modules
  • Works with FX2N, FX0N, FX1N, FX3U extension I/O units
  • Accepts analog, temperature, high‑speed counter, and positioning modules
  • Connects to FX3 series adapters via conversion adapter
• Software
  • Program with GX Works2 or GX Developer
  • Supports ladder logic and structured text
• Network Options
  • Add communication modules for RS‑232, RS‑485, CC‑Link, Ethernet
  • CC‑Link remote I/O supports up to 384 points

Certifications

• CE marked
• UL/cUL recognized
• RoHS compliant
• IEC 61131‑2 compliant
• EN standards compliant

Package Contents

• FX2N-128MT-001 main unit ×1
• Quick‑disconnect terminal block (attached)
• DIN rail mounting clips
• User manual (digital version available)
• End cover for expansion port
• Programming cable not included – sold separately

Warranty & Shipping

• 12‑month warranty against defects
• Free technical support during warranty period
• Dispatch within 12–24 hours after order
• Shipping carriers: FedEx, UPS, DHL – worldwide express
• Tracking number sent within 24 hours

Expert Review

“The FX2N-128MT-001 is a powerhouse for motion control. With 64 transistor outputs and built-in 2-axis 20 kHz positioning, it handles multi-axis machines with ease. The 0.08 µs instruction speed keeps cycles short. For high-speed packaging, pick-and-place, or labeling machines, this PLC delivers reliable performance.” — Senior Automation Engineer

Manager’s Insight

“This model offers the best of both worlds: 128 built-in I/O and CC-Link expansion up to 384 points. The transistor outputs support fast switching – perfect for servo drives and solenoid valves. We stock this unit because it fits many mid-to-large automation projects. A solid choice for machine builders.” — Product Operations Manager

Applications & Suitable Equipment

• Pick-and-place machines – high-speed positioning
• Packaging lines – fillers, sealers, carton erectors
• Assembly stations – screwdriving, pressing, testing
• Textile machinery – looms, winding equipment
• Printing & converting machines
• Conveyor systems – sorting, merging, indexing
• Works with servo drives, stepper motors, sensors, HMIs, VFDs
• Add analog modules for temperature, pressure, or flow control

Frequently Asked Questions

• Does the FX2N-128MT-001 support positioning without extra modules?
  • Yes. This model has built-in 2-axis independent 20 kHz positioning. No extra module needed. Use transistor outputs to control stepper or servo drives.
• What power supply does this unit require?
  • It runs on 24V DC. Not AC. Make sure your panel provides stable 24V DC power. Power consumption is 100 VA.
• How many I/O points can I control with CC-Link?
  • Local I/O max is 256 points. With CC-Link remote I/O, total can reach 384 points. Great for large systems.
• What battery does this unit use?
  • Use FX2N-32BL lithium battery. It keeps RAM and real-time clock during power loss. Replace every 3–5 years.
• Can I connect FX3 series analog adapters?
  • Yes. Use a conversion adapter to connect FX3 series analog input/output. Supports 0–10V or 4–20mA signals.

Experience-Based Tips & Selection Guide

• Need fast output switching?
  • Transistor outputs switch much faster than relays. Perfect for PWM, positioning pulses, and high-cycle applications.
• Plan memory usage
  • Built-in 8K steps RAM. Expand to 16K with memory cartridge. Use EEPROM cartridge for program backup.
• Keep a spare battery
  • Battery failure causes program loss. Replace yearly. Use genuine Mitsubishi FX2N-32BL.
• Use quick‑disconnect for fast swap
  • The terminal block removes without unwiring. Great for emergency replacement.
• When to choose this model
  • Choose FX2N-128MT-001 when you need 64 transistor outputs, built-in positioning, and 128 I/O in one unit. Ideal for motion control applications.

How to Choose the Right PLC – Quick Guide

• Count your I/O
  • FX2N-128MT-001 gives 64 inputs + 64 outputs. For larger systems, add CC-Link remote I/O up to 384 points.
• Check output type
  • Transistor outputs (MT) are for fast DC switching, positioning, and high-cycle operations. Use relay outputs (MR) for mixed AC/DC loads.
• Think about speed
  • Basic instruction speed is 0.08 µs. Built-in 20 kHz positioning handles high-speed motion without extra modules.
• Consider expansion needs
  • Add analog, temperature, or communication modules as needed. FX2N series offers wide module selection.
