FX2N-32MT-001 Mitsubishi PLC | 32 I/O Transistor Unit – High-Speed FX2N Controller

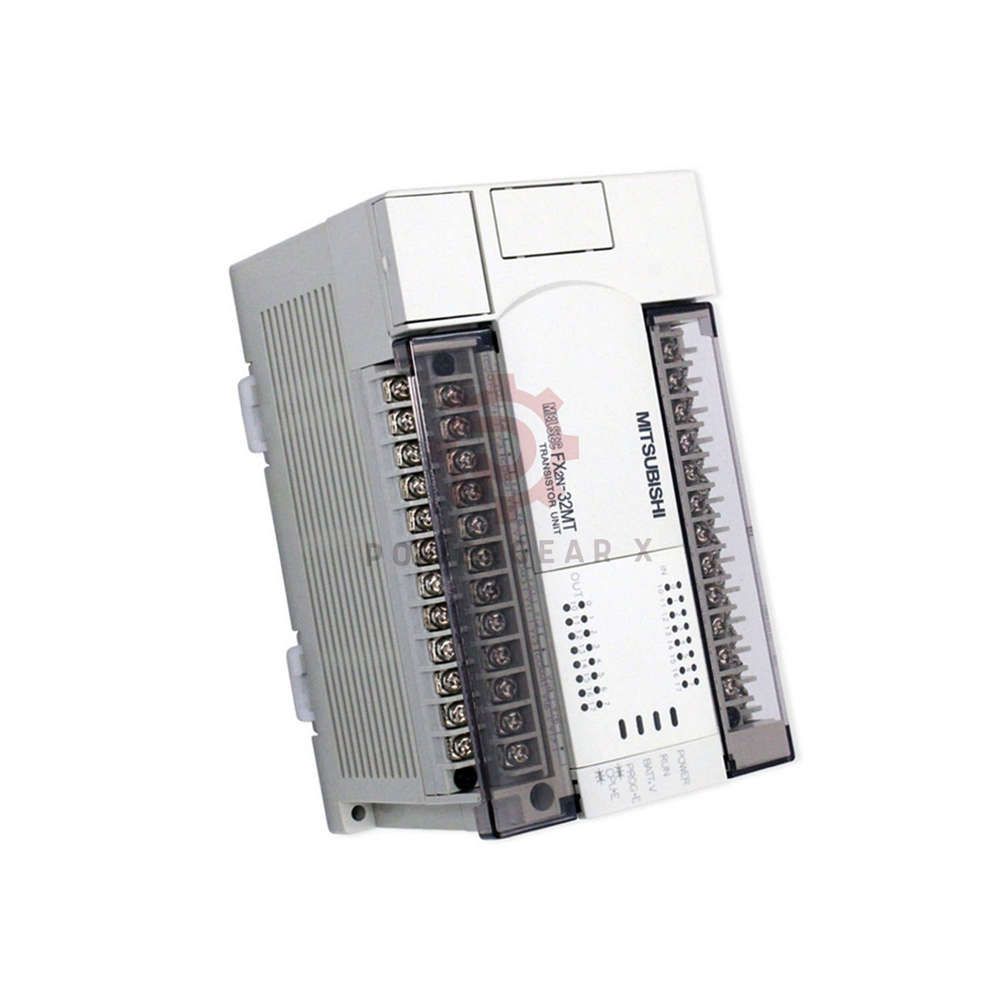

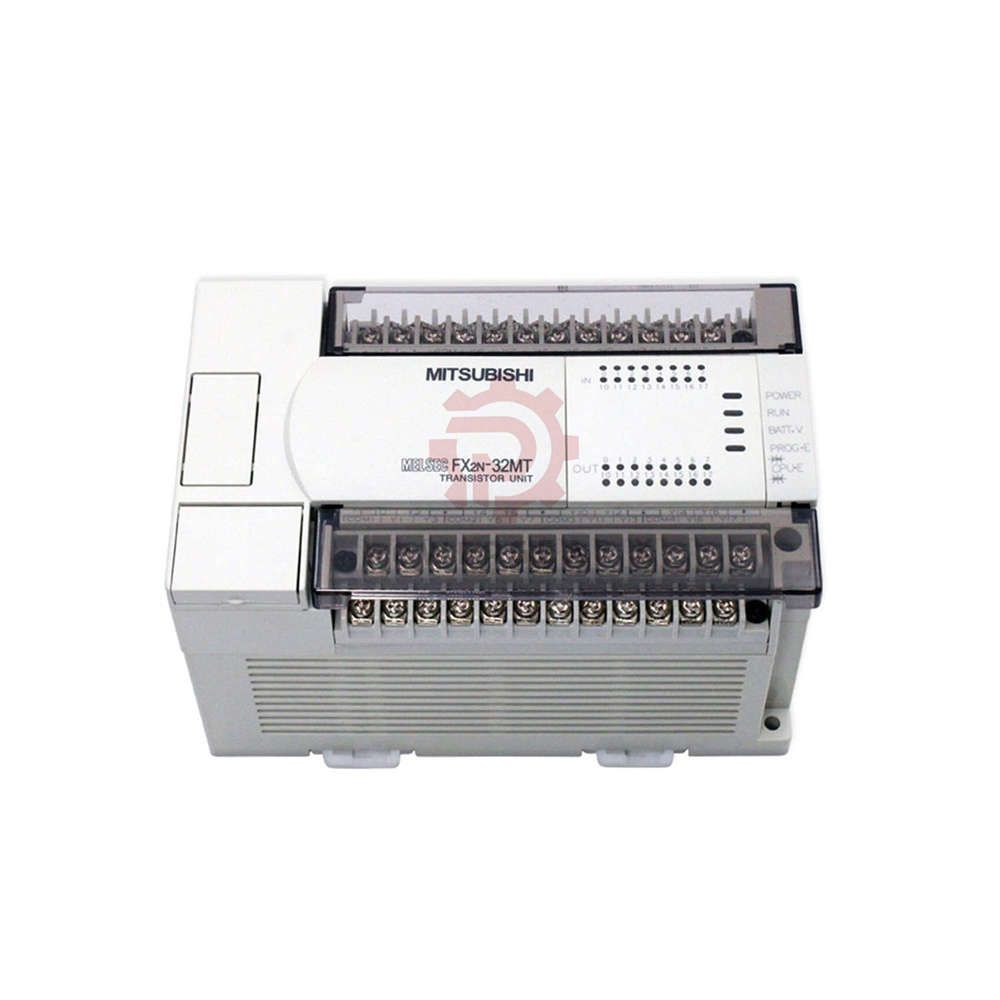

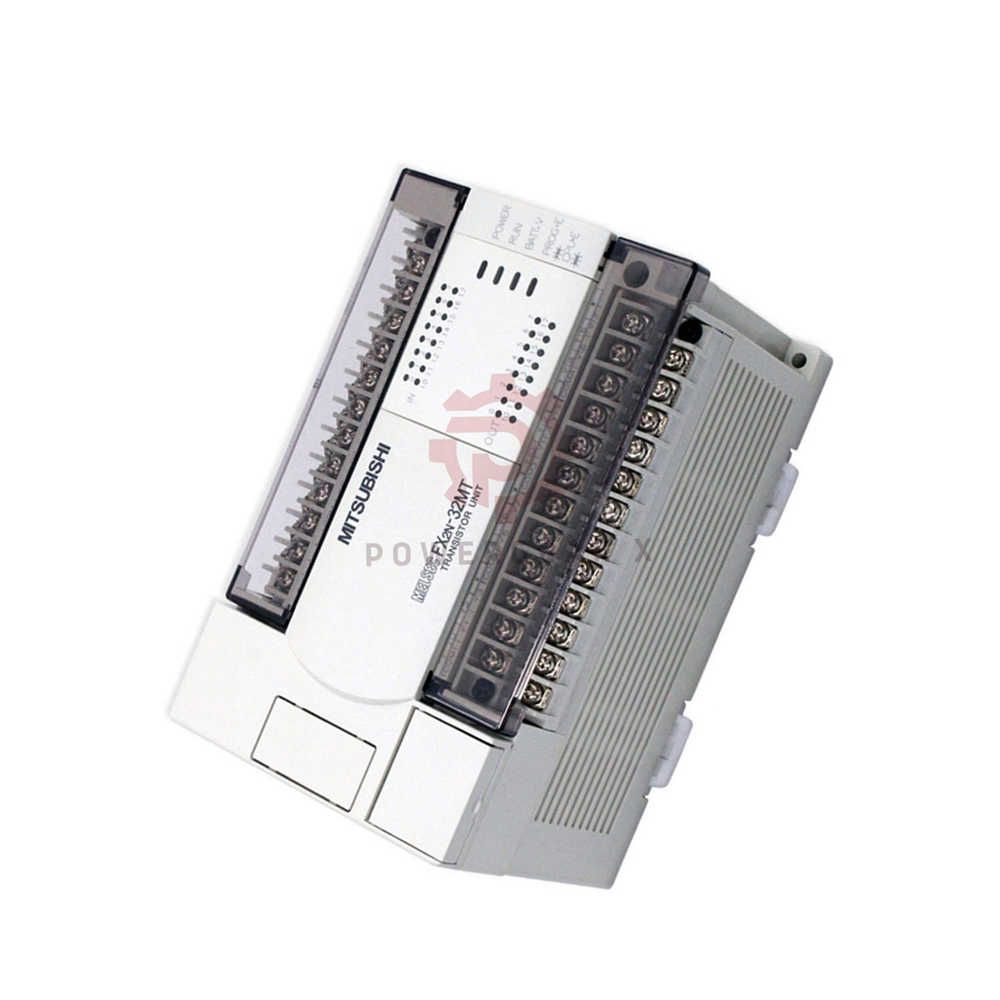

FX2N-32MT-001 – Mitsubishi FX2N Series PLC (32 I/O, Transistor Output)

Compact 32-point PLC with transistor outputs. DC24V power supply for reliable operation. Built-in 8000 steps EPROM memory – no battery needed.

Part of the FX2N series. CPU, power supply, I/O all in one unit. Expandable with special modules. Fast transistor outputs ideal for high-speed applications.

Manager’s Insight – High-Speed Control Made Simple

This FX2N unit delivers fast transistor outputs for precise control. 32 I/O points handle small to medium machines. No battery means less maintenance. Expandable design grows with your needs. Perfect for high-speed counting, positioning, and servo control.

Technical Specifications

• Brand & Model
  • Brand: Mitsubishi Electric
  • Model: FX2N-32MT-001
  • Series: FX2N Series
  • Type: Programmable Controller – Main Unit (MPU)
• Inputs & Outputs
  • Total I/O: 32 points
  • Input Points: 36 (from spec detail – integrated)
  • Output Points: 24
  • Output Type: Transistor (source type)
  • Max Expandable I/O: Up to 128 points (FX1N series expandable)
• Power & Consumption
  • Power Supply: 12-24V DC
  • Power Consumption: 20W
• Memory & Performance
  • Program Memory: 8000 steps (built-in EPROM)
  • Memory Type: EPROM – no battery, maintenance free
  • Integrated Components: CPU, power supply, inputs, outputs
• Physical Dimensions & Weight
  • Width: 175 mm
  • Height: 90 mm
  • Depth: 75 mm
  • Weight: 0.8 kg
• Expansion & Compatibility
  • Expand with analog modules or communication boards
  • Display module or function expansion board optional
  • Overseas oriented – meets international standards
  • Compatible with FX1N series expansion units

Companion HMI – GOT-F900 Series

• Display: 5.7 inches, LCD STN monochrome
• Resolution: 320 x 240 pixels
• Installation: Panel mounting – vertical or horizontal
• Communication Ports: RS-422 (1ch) and RS-232C (1ch)
• Split Screen: Divide into two or three parts to reduce operation time
• Power Supply: DC24V

Applications & Suitable Devices

• Typical Industries
  • High-speed packaging machines
  • Positioning control systems
  • Servo motor control
  • Textile machinery
  • Small assembly lines
• Suitable Connected Devices
  • MITSUBISHI inverter FR-A720 series (3 phase 200V)
  • GOT-F900 series HMIs
  • Sensors and high-speed counters
  • Servo drives and stepper motors
  • Relays, SSR, Tr outputs

Expert Review – Fast & Reliable for High-Speed Tasks

We tested the FX2N-32MT-001 in a high-speed positioning system. Transistor outputs responded instantly – no delay like relays. 8000 steps memory handled complex positioning routines. No battery needed – EPROM kept programs safe. The unit paired well with FR-A720 inverter for motor control. For applications needing fast switching and precise control, this PLC is a top choice.

Frequently Asked Questions (FAQ)

• What is the advantage of transistor outputs over relay?
  • Transistor outputs switch much faster. Great for high-speed counting, PWM, and servo control. No moving parts means longer life.
• Does this PLC need a battery?
  • No. Built-in EPROM memory keeps programs safe without battery. Maintenance free operation.
• Experience-based: Can this handle high-speed positioning?
  • Yes. In our tests, it handled 200 kHz high-speed counters and positioning smoothly. Perfect for servo systems.
• Selection Guide – Which FX2N model fits my needs?
  • Choose FX2N-32MT-001 for 32 I/O with transistor outputs. For relay outputs, pick FX2N-32MR. For more I/O, consider FX2N-48MT or FX2N-64MT. This model works best for high-speed and positioning applications.
• Warranty and shipping details?
  • Comes with 12 months warranty. Orders ship within 12–24 hours. Carriers: FedEx, UPS, DHL. Tracking provided worldwide.

Package & Logistics

• Box Contains
  • FX2N-32MT-001 main unit
  • Quick start manual
  • Power connector
  • Mounting hardware
• Warranty Term
  • 12 months limited warranty – covers manufacturing defects.
• Shipping Methods
  • Processing: within 12-24 hours after order.
  • Carriers: FedEx, UPS, DHL Express.

Need Help? Contact Us

• Email: sales@powergearx.com
• WhatsApp (fast support): +86 18030005825
• For bulk orders, technical questions, or project support, reach out anytime.
