Name: FR-PA07 Mitsubishi Keypad Panel Display for FR-E700 Inverter Series
SKU: FR-PA07
Price: 234.00 USD
Availability: InStock

Product details

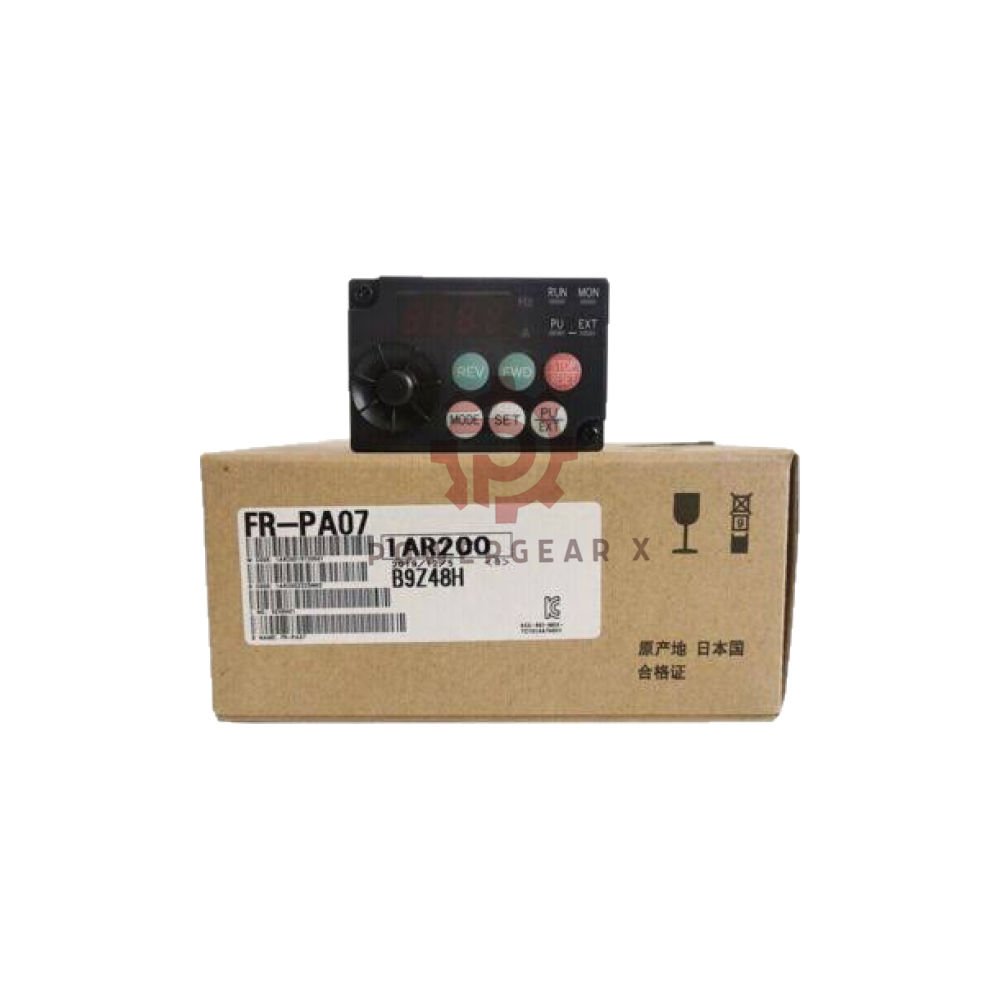

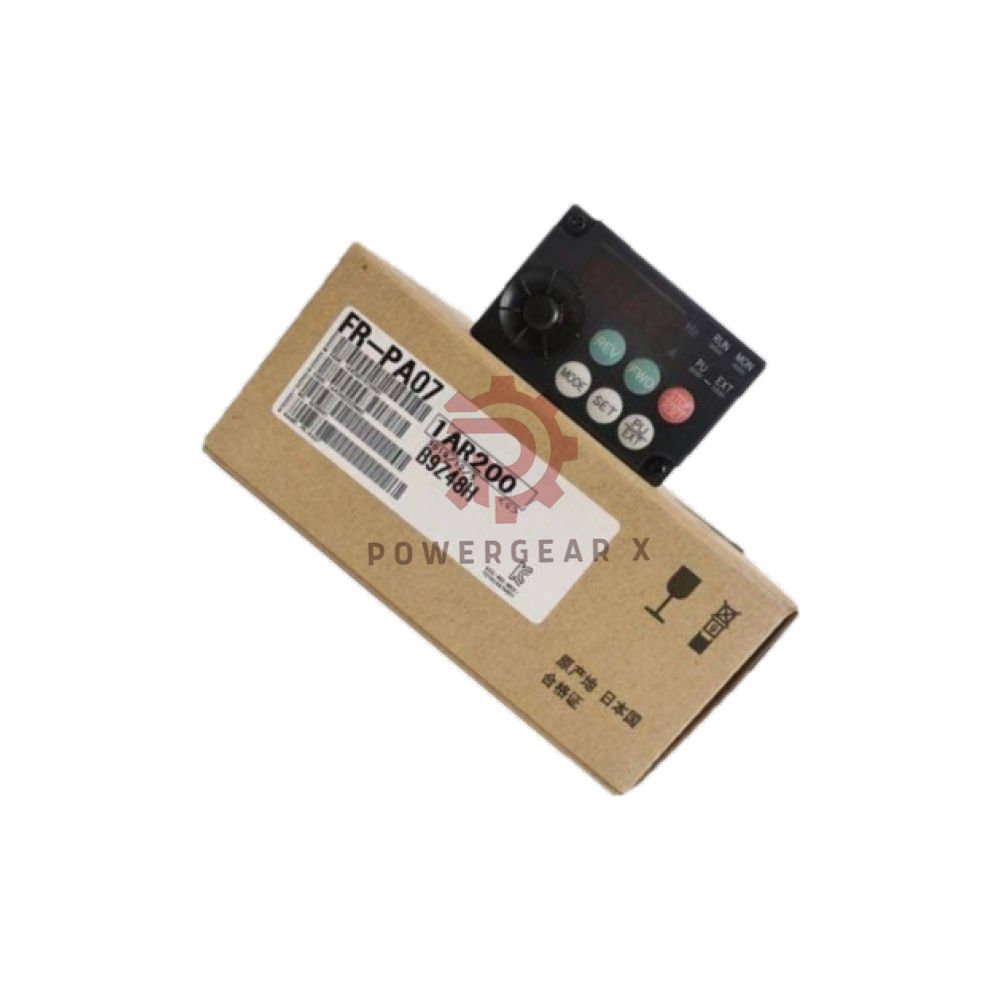

FR-PA07 Keypad Panel Display for Mitsubishi FR-E700 Inverter

FR-PA07 is a compact keypad panel display from Mitsubishi Electric. It works with the FR-E700 series inverter. The 4-digit LED monitor shows frequency and parameter numbers. This unit helps you set up and monitor your inverter quickly. It is a direct replacement part for your existing panel.

Why This Keypad Panel Stands Out

Instant readability: 4-digit LED gives clear frequency and parameter data.
Simple connection: Uses the FR-CB20X parameter unit cable.
Built for factory floors: Tolerates dust, oil mist, and non-corrosive gases.
No extra power supply: Draws power directly from the inverter.
Wide temperature range: Works from -10°C to +50°C.

Technical Data (Core Specs at a Glance)

Brand: Mitsubishi Electric
Model: FR-PA07
Product type: Keypad panel display
Compatible series: FR-E700 inverter
Monitor: 4-digit LED, shows frequency, parameter number, and more
Measurement range: Frequency and parameter monitoring as supported by the inverter
Frequency response: Matches FR-E700 inverter output signals
Sensitivity: Not applicable (digital display unit)
Linearity: Not applicable (digital readout)
Resolution: 4-digit LED resolution
Temperature range: -10°C to +50°C (non-freezing) for operation; -20°C to +60°C for storage
Humidity: 90%RH or less, non-condensing
Environment tolerance: Indoor use only. Free from corrosive gas, flammable gas, oil mist, dust and dirt.
Altitude: Max 1000m above sea level for standard operation
Vibration resistance: 5.9 m/s² or less
Power supply: Supplied from the inverter
Connection method: Parameter unit connection cable FR-CB20X

Installation Guide

Turn off inverter power before you start.
Plug the FR-CB20X cable into the panel and inverter.
Mount the panel indoors, away from oil mist and dust.
Keep ambient temperature between -10°C and +50°C.
Do not exceed 1000m altitude or 5.9 m/s² vibration.
Power up the inverter. The panel receives power automatically.

Debug and Maintenance Convenience

Use the 4-digit LED to check frequency and parameter numbers fast.
No separate power wiring saves time during setup.
Replace old panels without extra tools.
Keep the unit clean and dry for long service life.
Check cable connection if the display stays blank.

Compatibility Notes

Designed for Mitsubishi FR-E700 series inverters.
Works only with the FR-CB20X connection cable.
Not compatible with other inverter families without an adapter.
Indoor use only. Avoid corrosive or flammable gases.

Certifications and Standards

Mitsubishi Electric quality and safety standards apply.
RoHS and CE compliance as per original manufacturer documentation.
Contact us for specific certification documents.

Package List

1 x FR-PA07 keypad panel display
1 x Quick start guide (basic instructions)
Note: FR-CB20X cable sold separately.

Warranty and Shipping

12-month warranty against manufacturing defects.
12–24 hour dispatch for in-stock items.
FedEx, UPS, and DHL express options available.
Tracking number provided after shipment.

Expert Review

The FR-PA07 does one job well: it gives you a clear window into your FR-E700 inverter. The 4-digit LED is bright and easy to read. No extra power cable means less clutter. The unit feels solid and handles typical factory conditions. It is a smart, low-cost way to keep your inverter accessible. For maintenance teams, this panel cuts troubleshooting time. For system integrators, it is a drop-in spare part. If you run FR-E700 drives, keep one on the shelf.

Manager’s Insight

Downtime costs money. A failed keypad panel can stop your line. The FR-PA07 is a simple, proven fix. It ships fast and installs in minutes. We stock this unit because customers ask for it. It pairs with the FR-CB20X cable and works right out of the box. For plants with multiple FR-E700 inverters, this is a must-have spare. Buy two: one for now, one for backup.

Best Fit: Devices and Applications

FR-E700 series inverters in factory automation.
Conveyor systems, pumps, fans, and mixers.
Machine tools and packaging equipment.
Any indoor setup needing local frequency monitoring.
Maintenance kits for industrial repair teams.

FAQ

Q: Does this panel work with FR-E700 only?

A: Yes, it is made for the FR-E700 series. Other series may need a different panel.

Q: Do I need a separate power supply?

A: No. The inverter supplies power through the connection cable.

Q: What cable do I need?

A: Use the FR-CB20X parameter unit connection cable. It is not included.

Q: Can I use it outdoors?

A: No. It is for indoor use only. Keep it away from dust, oil mist, and corrosive gas.

Q: How fast will I get it?

A: We dispatch in 12–24 hours. FedEx, UPS, and DHL deliver worldwide.

Q: What if the display is blank?

A: Check the cable first. Also confirm the inverter is powered. If the problem persists, contact us for support.

Q: Is there a warranty?

A: Yes, 12 months against manufacturing defects.

Q: Experienced buyer tip: How many should I order?

A: If you run multiple FR-E700 drives, order one spare per 5 inverters. This cuts waiting time during a breakdown.

Q: Buying guide: What else should I check before ordering?

A: Confirm your inverter model is FR-E700. Also check you have an FR-CB20X cable. If you are unsure, send us a photo of your current panel. We will confirm fit.
