Product details
Product Overview

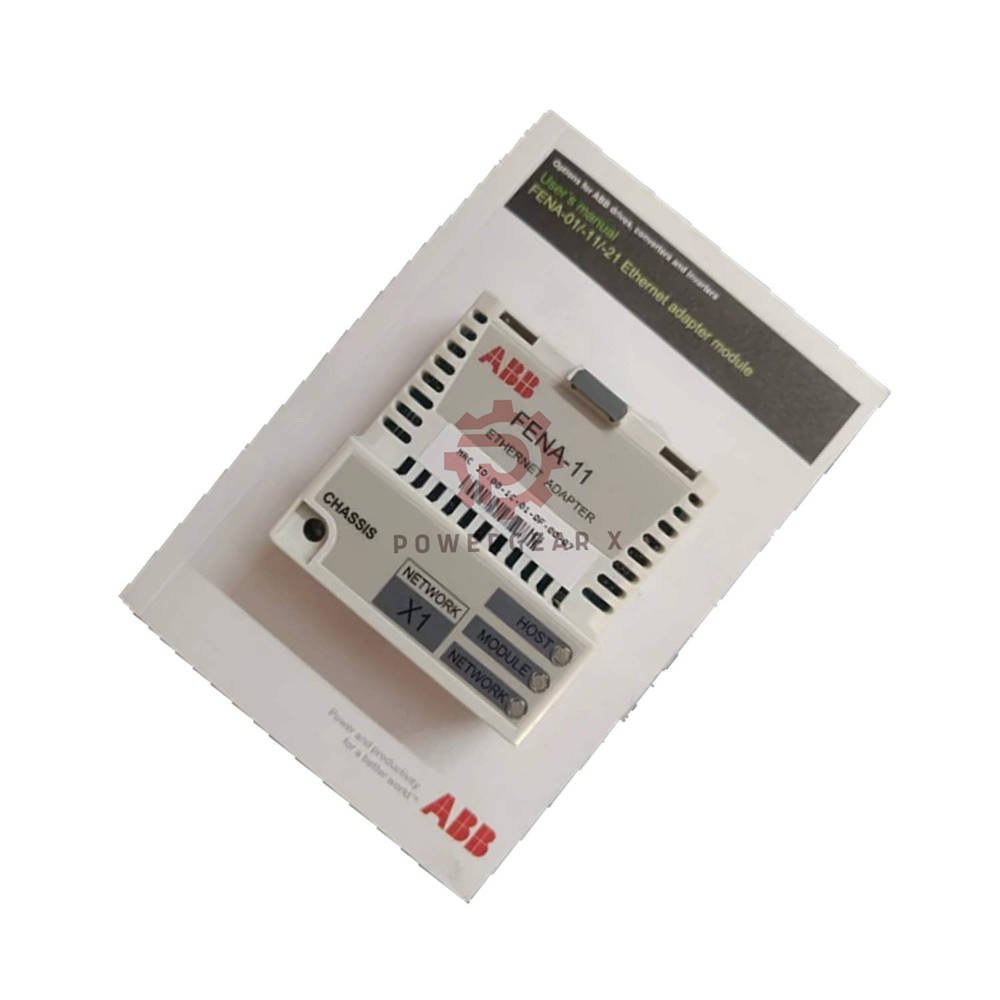

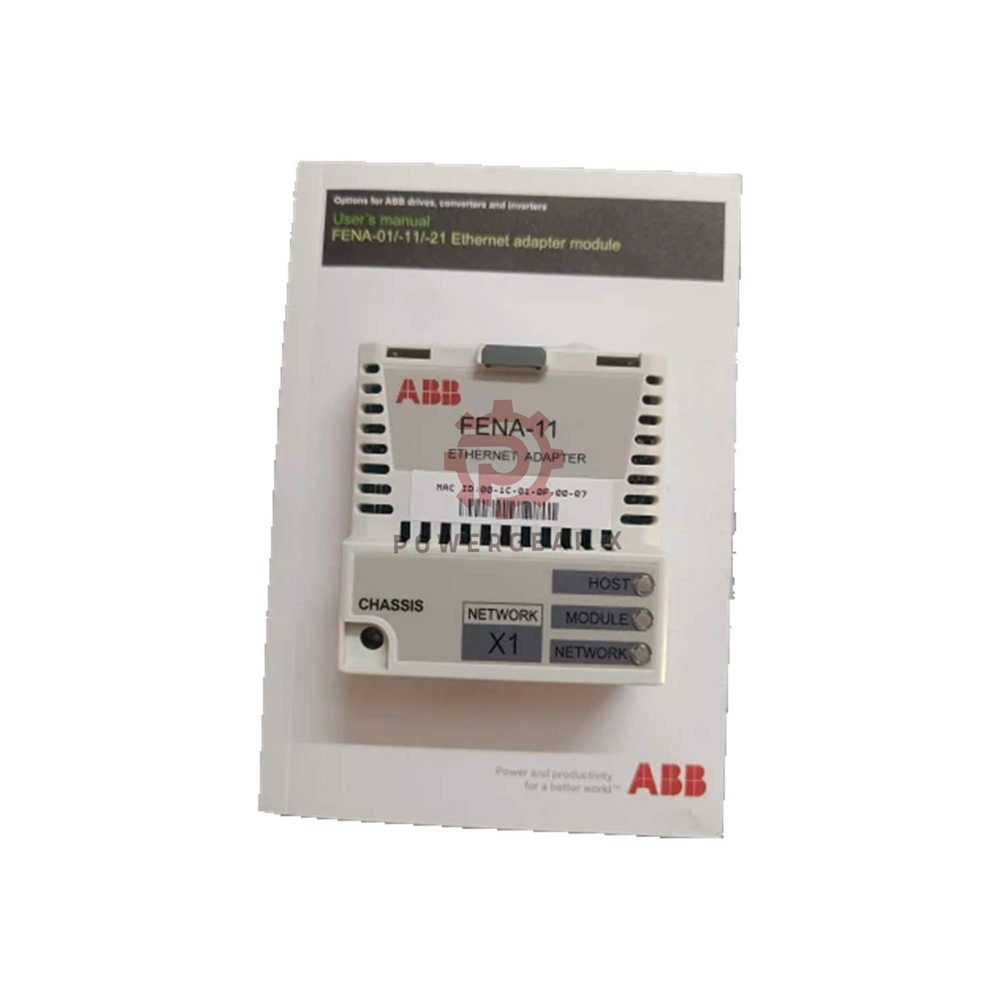

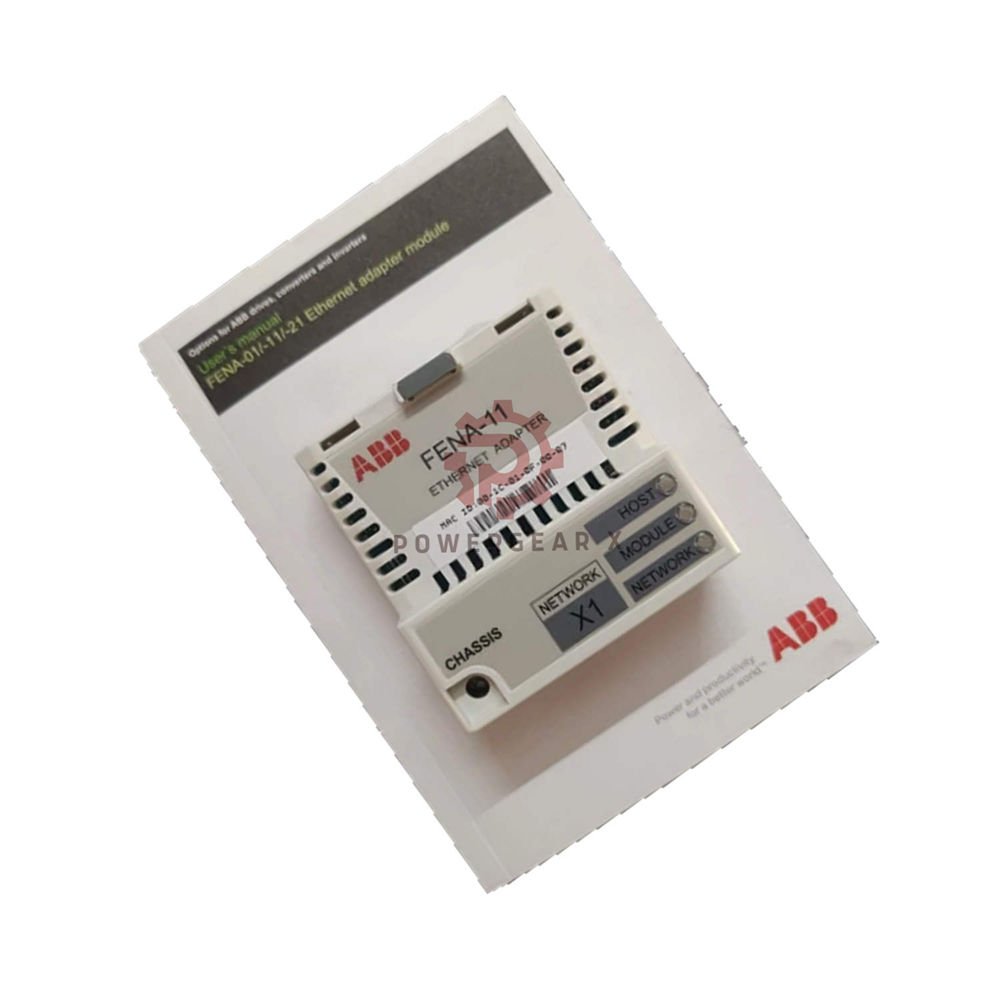

The ABB FENA-11 (3AUA0000089107) is a 1-port Ethernet adapter module. It works with ACS880 drives and other ABB drives. The module supports three protocols: PROFINET IO, EtherNet/IP, and Modbus TCP. Select the protocol with one drive parameter. It is part of the F-series fieldbus kits.
Model Number & Suffix Tree
- Ordering reference:
- 3AUA0000089107 (main ordering code)
- Compatible drives:
- ACS880 industrial drives
- ACS580, ACS380 series
- Other ABB drives with option slot
Key Technical Data
- Brand: ABB
- Model: FENA-11 (3AUA0000089107)
- Type: 1-port Ethernet adapter
- Protocols supported: PROFINET IO, EtherNet/IP, Modbus TCP
- Protocol selection: One parameter in drive
- PROFINET features: DP-V1, PROFIdrive or ABB profiles, transparent modes
- EtherNet/IP features: Server mode, ODVA AC/DC Drive profile, explicit and implicit messages
- Modbus TCP features: Server mode, ABB and Transparent profiles, read/write single and multiple registers
- Ports: 1 x Ethernet RJ45
- Mounting: Drive option slot
Protocol Details
- PROFINET IO:
- Supports DP-V1 communication
- PROFIdrive or ABB drive profile
- 16-bit and 32-bit transparent modes
- EtherNet/IP:
- Server mode operation
- ODVA AC/DC Drive profile
- ABB drive and Transparent profiles
- Explicit and implicit messaging
- Modbus TCP:
- Server mode operation
- ABB drive and Transparent profiles
- Read/write single and multiple registers
Installation & Mounting
- Mounting: Plugs into ABB drive option slot
- Connector: RJ45 on front plate
- Configuration: Set protocol via drive parameter
- LED indicators: Status for network and module
- Environment: Industrial drive cabinets
Applications
- Connect ACS880 to PROFINET networks
- Integrate drives into EtherNet/IP systems (Rockwell/Allen-Bradley PLCs)
- Use Modbus TCP with SCADA or PLCs
- Multi-vendor automation lines
- Process control with ABB drives
Package & Warranty
- Includes: FENA-11 module, documentation
- Condition: New original ABB
- Warranty: 12 months against defects
- Shipping: FedEx, UPS, DHL express (tracking provided)
Frequently Asked Questions (FAQ)
- Q: What is the difference between FENA-11 and FENA-21?A: FENA-11 has 1 Ethernet port. FENA-21 has 2 ports for ring/star topologies. Choose FENA-21 if you need device-level ring (DLR) support.
- Q: Can I change the protocol after installation?A: Yes. Simply change one parameter in the drive. No hardware change needed. The module stores all three protocols.
- Q: Does FENA-11 work with ACS355 or ACS550 drives?A: No. FENA-11 fits ACS880, ACS580, ACS380 series with option slots. For older drives, check separate fieldbus adapters.
- Q: What is transparent mode in PROFINET?A: Transparent mode lets you send raw 16-bit or 32-bit words. It is useful for custom data mapping not covered by standard profiles.
- Q: How do I know which profile to select?A: Use ABB profile for standard drive parameters. Use ODVA profile for EtherNet/IP with Rockwell PLCs. Use Transparent for custom applications.
Buying Guide & Selection Advice
- Need one protocol? FENA-11 covers PROFINET, EtherNet/IP, and Modbus TCP.
- Need ring topology? Choose FENA-21 (2-port) instead.
- Check drive compatibility: Works with ACS880, ACS580, ACS380.
- For Rockwell PLCs, use EtherNet/IP mode with ODVA profile.
- Order now for fast FedEx/UPS/DHL shipment from stock.
