FEIP-21 ABB EtherNet/IP Adapter Module for VariMax Drives, Tested, Fast Ship

FEIP-21 ABB EtherNet/IP Adapter Module for VariMax Drives

Need a price or lead time? Email sales@powergearx.com or chat on WhatsApp +86 180 3000 5825. We ship in 12 to 24 hours by FedEx, UPS, or DHL.

Product Overview

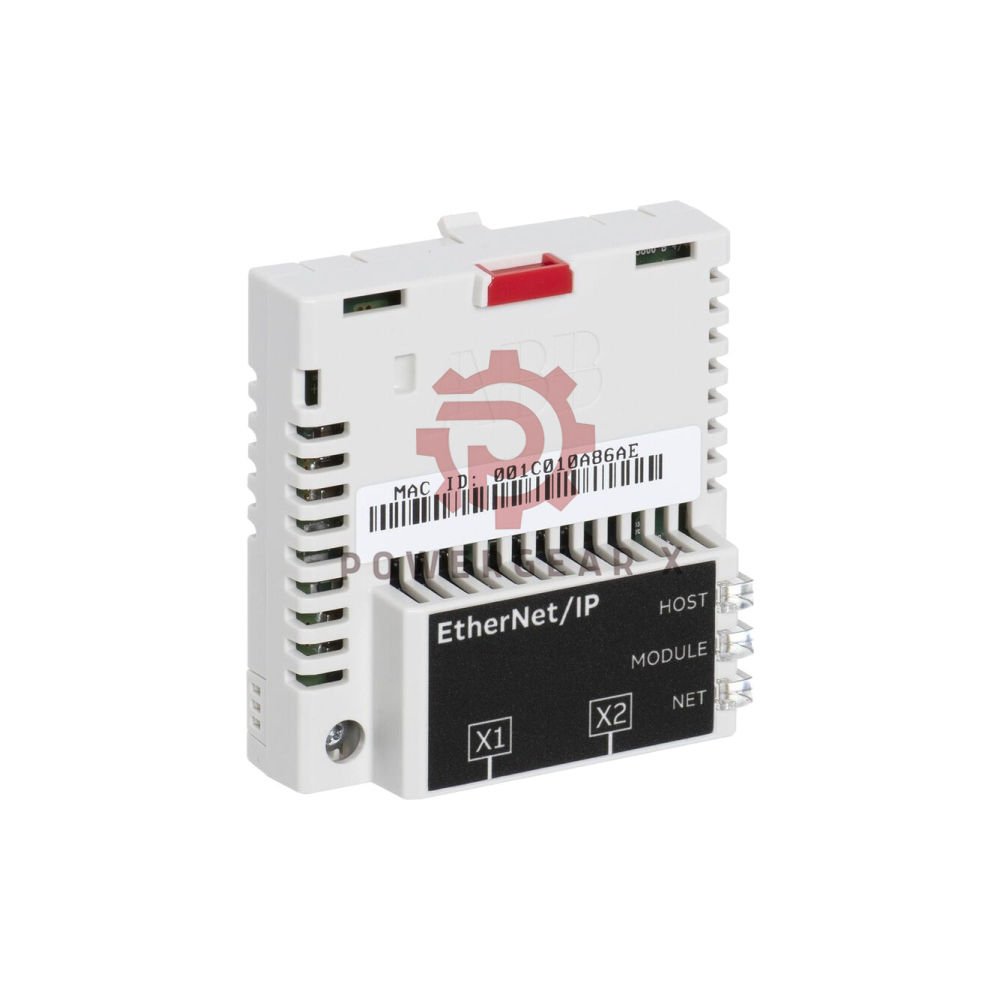

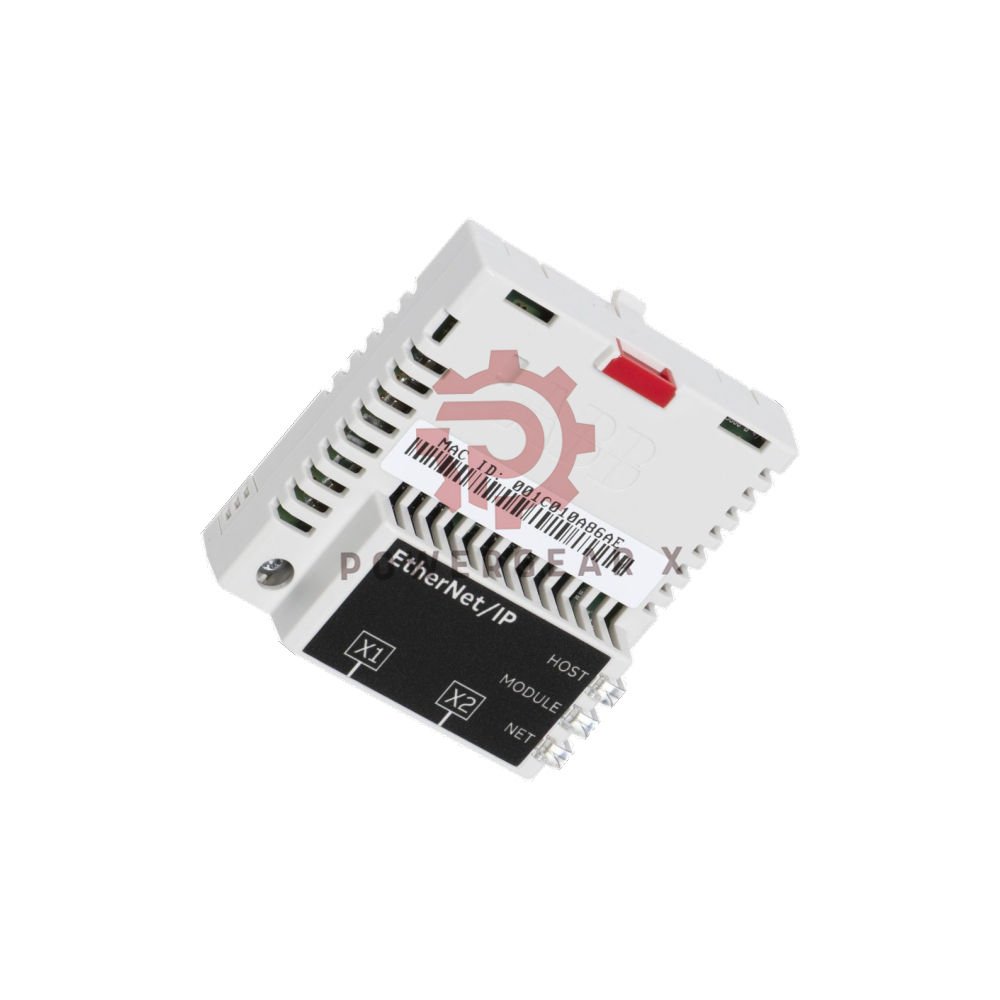

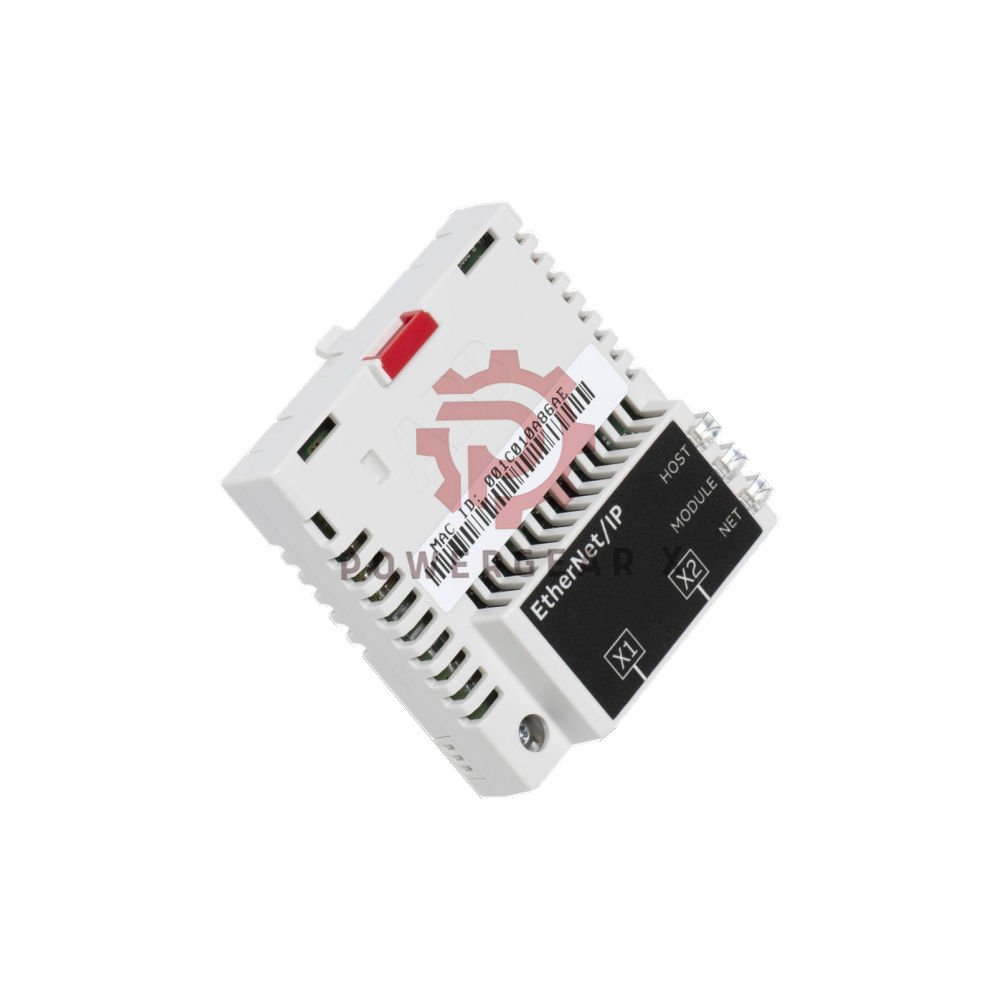

• The ABB FEIP-21 is an EtherNet/IP adapter module for VariMax drives.
• It plugs into an option slot on the drive control unit. No extra housing is needed.
• It links the drive to an EtherNet/IP network. The drive then joins your plant control system.
• You can send start, stop, and run enable commands through it.
• You can feed a speed or torque reference to the drive.
• You can read status, actual values, and faults from the drive.
• You can reset a drive fault over the network.
• You can read and write drive parameters.
• It also connects the Drive composer pro tool.
• It supports 10 Mbit/s and 100 Mbit/s rates. It detects the network rate on its own.

Technical Data

• Brand: ABB
• Model: FEIP-21
• Series: VariMax
• Type: EtherNet/IP adapter module
• Protocol: EtherNet/IP
• Connections: Three
• Transfer rate: 10 Mbps or 100 Mbps
• Serial type: Half or full duplex
• Supply: +3.3 V ±5%, 400 mA max, from the drive
• Protection: IP20
• Indicators: Three bicolor LEDs (HOST, MODULE, NETWORK/NET)
• PCB: Conformal coated
• EMC: EN 61800-3:2004
• Ambient: Same as the drive in its manuals
• Packaging: Cardboard, anti-static PE bubble wrap

Connector and Port Layout

• FEIP-21 ports
  • 20-pin connector to the drive
  • RJ-45 X1 to the Ethernet network
  • RJ-45 X2 for chaining another adapter module
  • HOST LED link to drive status
  • MODULE LED module health
  • NETWORK/NET LED network link and traffic

Network and Wiring

• Uses IEEE 802.3 and 802.3u devices.
• Medium is 10BASE-TX or 100Base-TX. Auto-negotiation and Auto-MDIX are on.
• Cable types: CAT5e/6 S/FTP, S/STP, or SF/FTP.
• Termination is internal. No external terminator is needed.
• Max segment length is 100 m / 328 ft.
• Topology: bus, star, or ring.
• Ring mode allows up to 50 nodes. Chain mode recommends up to 50.

Manager’s Insight

• Most setup faults are bad cables, not the module. Use S/FTP cable and check the shield.
• Check the three LEDs first. They cut fault-finding time in half.
• The X2 port makes daisy chains easy. Keep nodes near 50 in ring mode.
• Auto-MDIX removes the need for crossover cables.
• Keep one spare module per line. Swap takes seconds.

Expert Review

• The FEIP-21 is a clean fit for VariMax drives on EtherNet/IP.
• The slot install keeps the panel tidy.
• Conformal coating helps in dusty or damp cabinets.
• Three LEDs give fast, clear status.
• Ring support adds a useful redundancy path.

Typical Equipment and Applications

• VariMax drives on plant EtherNet/IP networks
• Conveyor and pump lines with PLC control
• Fan and compressor skids
• Process cells that need speed or torque reference from a PLC
• Retrofit panels that replace older fieldbus cards

Why Buy From Powergear X?

• Over 15 years in automation spares.
• Worldwide shipping by FedEx, UPS, and DHL.
• Tested surplus and refurbished parts in stock.
• Every part carries a 12-month warranty.
• We check each unit before dispatch.
• We support obsolete control systems.

FAQ

Q: The network LED is dark. Where do I start?

A: Check the X1 cable first. Use CAT5e/6 S/FTP. Confirm the switch port is live. Then check the LED again.

Q: Can I chain many drives on one line?

A: Yes, up to about 50 nodes. Keep the chain short and use good cable.

Q: Do I need a crossover cable?

A: No. Auto-MDIX handles cable type for you.

Q: How do I reset a drive fault over the network?

A: Send the reset command through the EtherNet/IP connection. The module passes it to the drive.

Q: What comes in the box?

A: The module, anti-static wrap, carton, and a 12-month warranty card. We ship in 12 to 24 hours.

Q: How do I confirm stock?

A: Email sales@powergearx.com or message WhatsApp +86 180 3000 5825.

Buying Guide

• Confirm your drive has a free option slot.
• Check the network rate. 10 or 100 Mbps both work.
• Plan your topology. Ring mode adds redundancy.
• Use shielded cable for noisy panels.
• Keep a spare module for fast swaps.
