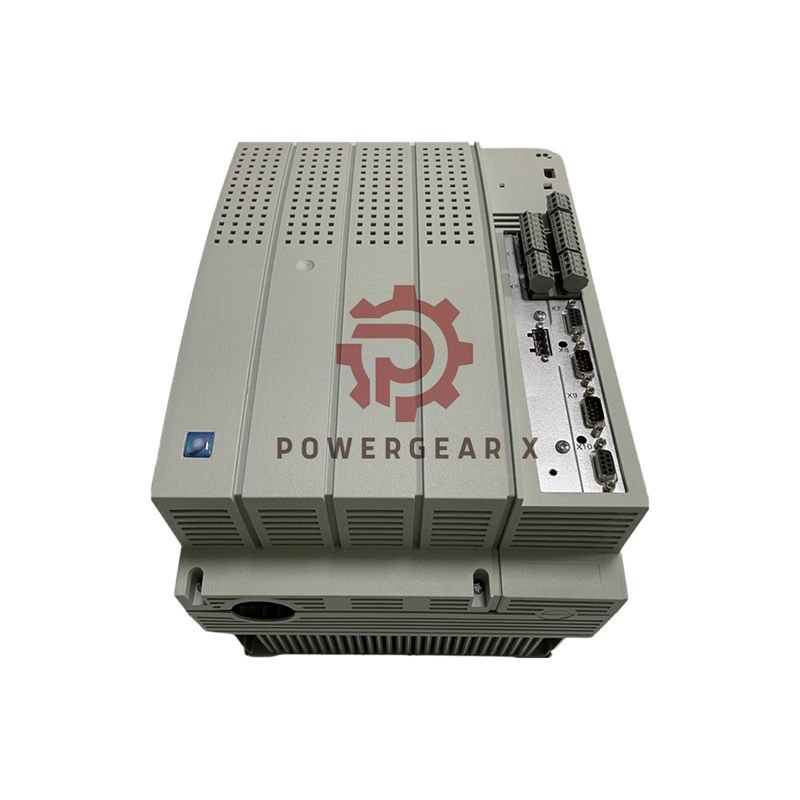

Name: EVS9328-ET Lenze 9300 Servo Inverter 22 kW Servo PLC CANopen
SKU: EVS9328-ET
Price: 214.00 USD
Availability: InStock

Product details

EVS9328-ET Lenze 9300 Servo Inverter: Product Introduction

Model EVS9328-ET is a Lenze Global Drive 9300 Servo Inverter.
It uses field-oriented servo control for synchronous and asynchronous motors.
Built-in Servo PLC technology supports flexible machine logic.
Rated motor power reaches 22.0 kW at 400 V.
Rated output current is 47.0 A at 8 kHz switching frequency.
Maximum output current reaches 70.5 A in overload mode.
The push-through design saves cabinet space.
It suits demanding automation tasks in industrial plants.
Legacy product with a clear migration path to the Lenze i950.
Contact sales@powergearx.com for stock and lead time.

Technical Data

Brand: Lenze
Model: EVS9328-ET
Series: Global Drive 9300 Servo Inverters
Module type: Servo inverter with built-in Servo PLC
Rated motor power: 22.0 kW (4-pole asynchronous motor, 400 V)
Rated output current: 47.0 A nominal at 8 kHz
Maximum output current: 70.5 A at 8 kHz (150% x In, overload mode)
Control: Field-oriented servo control (SC)
Program memory: 655 kByte flash (Servo PLC variants)
Analog inputs: 2, +/-10 V (switchable 0…20 mA), 11 bits + sign
Analog outputs: 2, 9 bits + sign
Digital inputs: 6 (1 controller enable + 5 freely assignable), PLC level per IEC 61131-2
Digital outputs: 4, 50 mA per output
Resolver input: Sub-D 9-pin
Encoder input: Multi-encoder input for TTL/SinCos incremental encoders and Hiperface absolute encoders
Digital frequency input/output: Two-track each, Sub-D 9-pin
Supply voltage: 3/PE AC 320…528 V nominal, 45…65 Hz
Alternative DC supply: DC 460…740 V
Power loss at 400 V: 640 W
Operating temperature: 0…+50 °C ambient (sizes 9327-9332, 15-75 kW)
Derating: 2.5%/°C above +40 °C output-current derating
Storage temperature: -25…+55 °C
Relative humidity: Average 85% RH, without condensation (climatic class 3K3 per EN 50178)
Protection rating: IP20
Dimensions (H×W×D): 350×250×250 mm (built-in/push-through design)
Weight: 12.5 kg

Communication and Compatibility

Built-in ports: CAN system bus (X4) and AIF automation interface (X1).
Protocols: CANopen on the integrated system bus.
Communication expansion: AIF slot accepts attachable modules.
PROFIBUS DP: EMF2133IB module.
DeviceNet: EMF2179IB module.
INTERBUS: EMF2113IB module.
LECOM A/B: EMF2102IB module.
Keypad or communication module: Connects through the AIF interface.
Legacy status: Official Lenze previous products page remains active.
Migration path: Lenze confirms the i950 replicates 9300 servo behaviour.
Migration tools: Compatibility switch, i950 PROFIBUS module and L_ICIP library.
Replacement note: No drop-in same-order-code replacement exists.
Last verified: 2026-10, audit status OFFICIAL_VERIFIED.

Installation Guide

Mount the unit with the built-in/push-through design.
Keep the IP20 cabinet clean and dry.
Connect 3/PE AC 320…528 V supply only.
Use the Sub-D 9-pin ports for resolver and encoder feedback.
Wire digital inputs to IEC 61131-2 PLC level.
Keep analog signal cables short and shielded.
Respect the 0…+50 °C ambient limit.
Apply 2.5%/°C derating above +40 °C.
Verify CANopen bus wiring before power-up.
Fit the AIF module before starting commissioning.
Ask +86 18030005825 for mounting support.

Commissioning and Maintenance Convenience

Servo PLC technology simplifies machine logic changes.
655 kByte flash stores programs on board.
Six digital inputs support fast signal checks.
Two analog inputs and two analog outputs speed up tuning.
The AIF interface allows quick module swaps.
CANopen supports fast network diagnostics.
Push-through mounting shortens service access time.
Encoder and resolver ports use standard Sub-D 9-pin plugs.
Keep spare AIF modules for fast replacement.
Log overload events to plan maintenance.
Email sales@powergearx.com for spare parts advice.

Environmental Resistance and Noise Immunity

Climatic class 3K3 per EN 50178 covers typical factory air.
Average 85% RH is allowed without condensation.
IP20 protection suits enclosed cabinets.
Storage from -25…+55 °C supports long shelf life.
Digital inputs follow IEC 61131-2 levels for stable signals.
Shielded encoder cables reduce electrical noise.
Separate power and signal routes to limit interference.
Short motor cables lower emission risk.
Check cabinet fans to hold the 0…+50 °C range.

Certification Information

Design follows EN 50178 climatic class 3K3.
Digital inputs meet IEC 61131-2 PLC level.
UL approval: Not UL-approved per official 9300 catalogue.
Audit status: OFFICIAL_VERIFIED.
Confirm local rules before installation.
Contact +86 18030005825 for document requests.

Expert Review

EVS9328-ET remains a strong choice for existing 9300 machines.
22.0 kW and 47.0 A cover many mid-size servo axes.
70.5 A overload helps with high starting torque.
Field-oriented control gives smooth motion at low speed.
The Servo PLC cuts extra controller cost.
CANopen and AIF modules fit most plant networks.
Plan migration to the i950 for new designs.
Keep spare units for critical legacy lines.

Manager’s Insight

Legacy 9300 stock is finite, so plan purchases early.
No drop-in same-order-code replacement exists.
The i950 migration path protects long-term support.
12-month warranty lowers buyer risk.
12-24 hour dispatch keeps projects on schedule.
Use FedEx, UPS or DHL for tracked delivery.
Confirm firmware and options before ordering.

Best Fit: Equipment and Applications

Packaging lines with synchronous servo axes.
Material handling and conveyor systems.
Textile and printing machines.
Woodworking and metal processing equipment.
Retrofit projects that already use Lenze 9300 drives.
Machines needing CANopen or PROFIBUS DP links.
Plants that require a proven 22.0 kW servo inverter.

Packing List and Warranty

1 x Lenze EVS9328-ET servo inverter.
1 x product documentation set.
1 x protective packing set.
Warranty: 12 months.
Dispatch: 12-24 hours after order confirmation.
Courier: FedEx, UPS or DHL, tracked.
Order via sales@powergearx.com or +86 18030005825.

FAQ

Is EVS9328-ET still available?
- Lenze lists it as a previous product. Stock depends on channel supply. Check availability before design freeze.
Can I replace it with the i950 directly?
- No drop-in same-order-code swap exists. Lenze confirms the i950 copies 9300 servo behaviour with a compatibility switch, an i950 PROFIBUS module and the L_ICIP library.
Which motors does it control?
- It drives synchronous servo motors, asynchronous servo motors and standard asynchronous motors.
What feedback devices does it accept?
- It takes resolver feedback plus TTL/SinCos incremental encoders and Hiperface absolute encoders.
Does it need extra cooling?
- Keep ambient air at 0…+50 °C. Derate output current by 2.5%/°C above +40 °C.
Is it UL-approved?
- No. The official catalogue states it is not UL-approved.
How fast do you ship?
- Orders leave in 12-24 hours by FedEx, UPS or DHL with tracking.
Experience-based question: what usually fails first?
- In the field, dust-blocked fans and loose Sub-D plugs cause most faults. Clean the cabinet and check connector locks at each service.
Experience-based question: how do I avoid noise trips?
- Run shielded encoder cables away from motor cables. Ground the shield at both ends. This stops most feedback noise alarms.
Buying guide: when should I choose this model?
- Pick EVS9328-ET when a 9300 machine needs a 22.0 kW axis and CANopen or AIF modules. Choose the i950 for new builds with long support needs.
Buying guide: what should I check before ordering?
- Confirm motor current, encoder type, AIF module and firmware. Ask for a test report and warranty terms.
