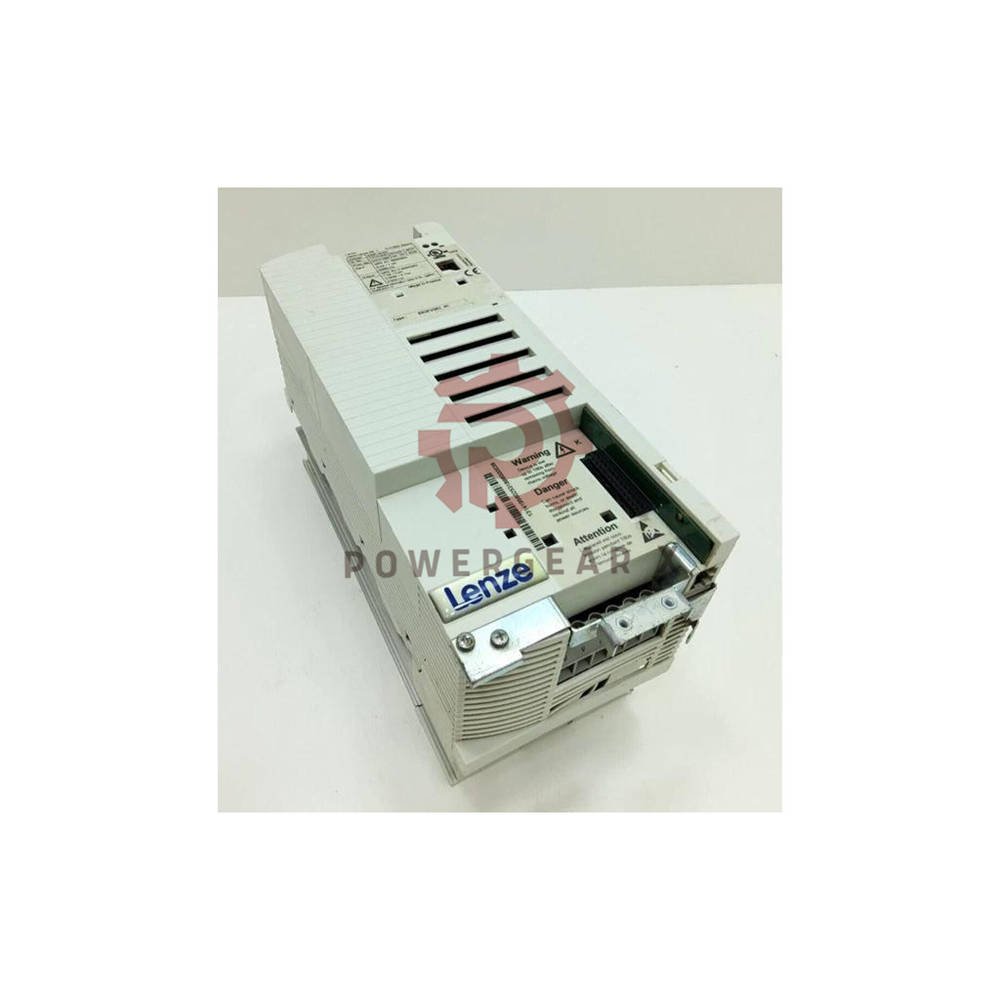

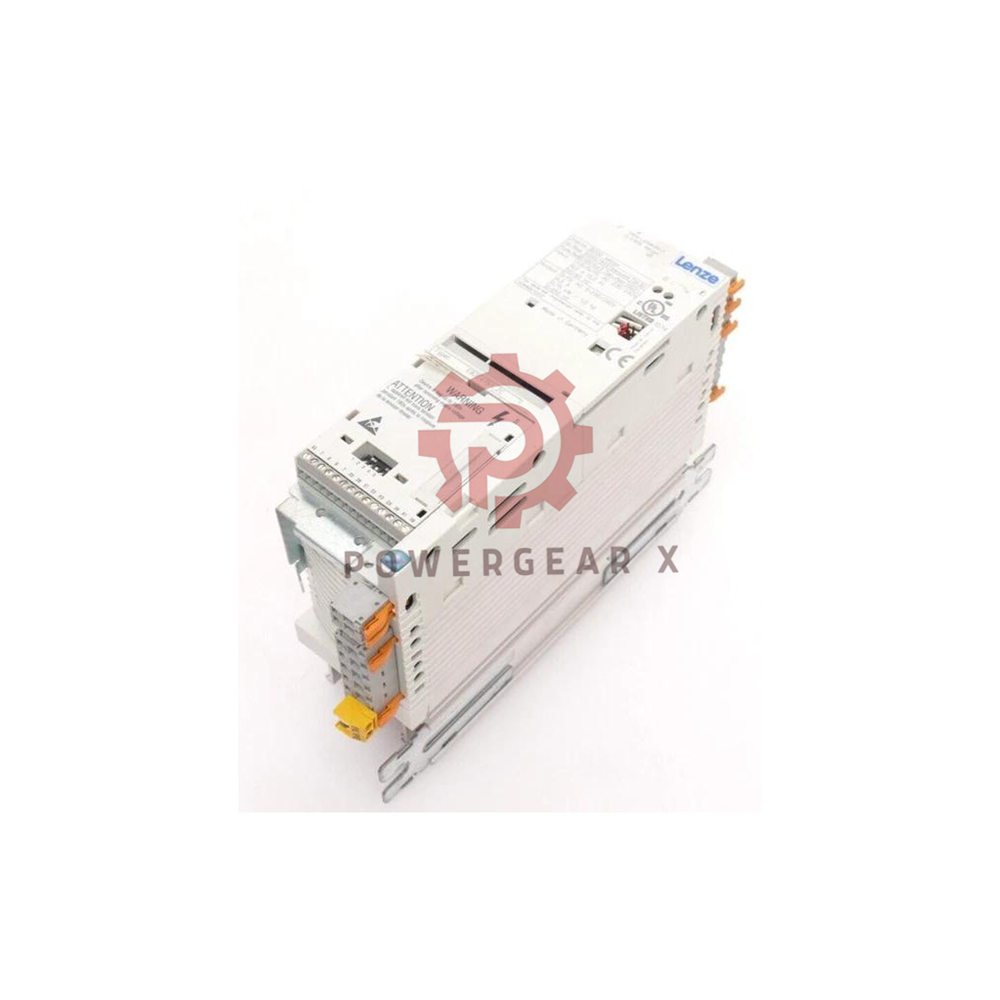

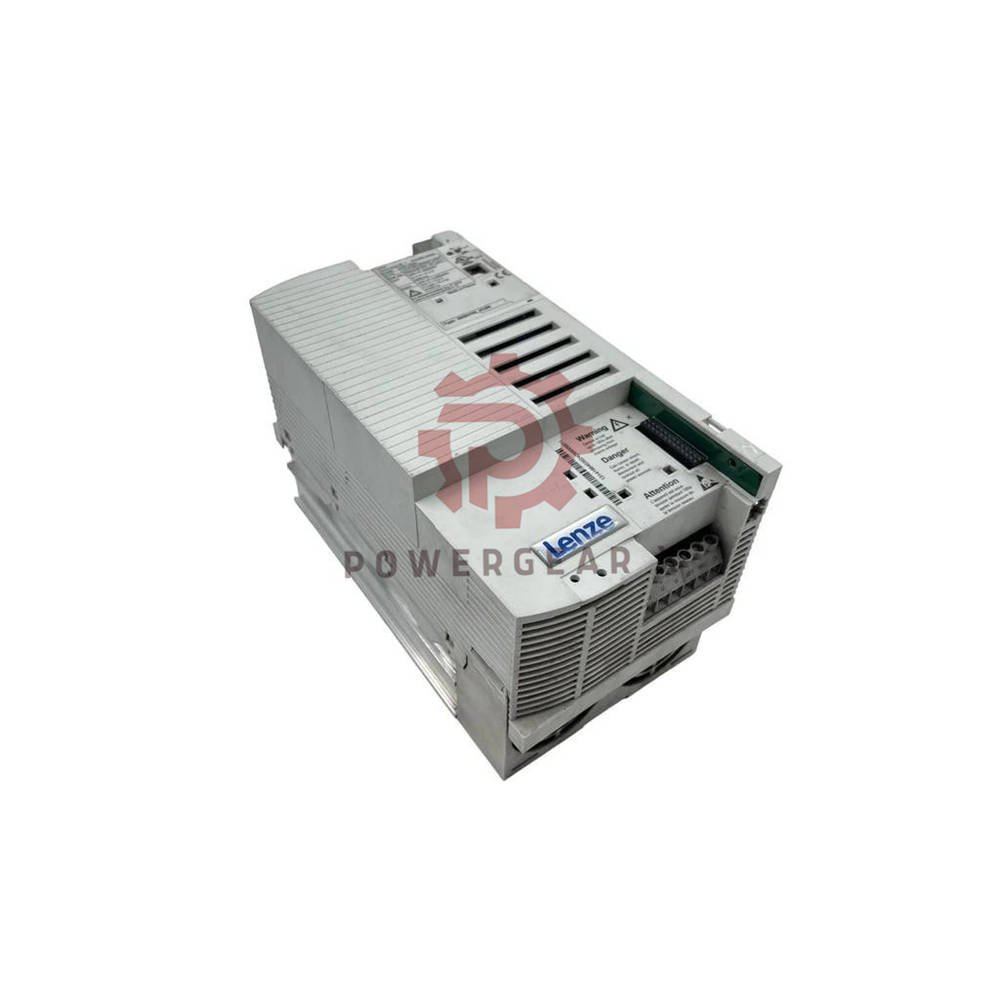

E82EV402K2C200 Lenze 8200 Vector 4.0 kW Inverter

Product Overview

• Model E82EV402K2C200 is a Lenze 8200 vector frequency inverter.
• It is a panel-mounted E design unit. It drives a 4.0 kW four-pole asynchronous motor.
• This variant ships without an integrated EMC filter (2xx design).
• Control modes: V/f linear and quadratic, vector control, sensorless torque control.
• Built for simple setup and steady performance in daily industrial duty.
• Legacy product. Lenze lists an official migration path to the i950 series.
• No drop-in same-order-code replacement exists. Plan migration with care.

Technical Specifications

• Brand: Lenze
• Model: E82EV402K2C200
• Series: 8200 vector
• Rated motor power: 4.0 kW typical (4-pole three-phase async motor)
• Rated output current: 16.5 A at 8 kHz switching frequency
• Increased rating: 19.8 A at 2 kHz or 4 kHz (per footnote 5)
• Max output current: 24.8 A for 60 s (periodic load cycle)
• Overload: 1.8 x rated torque for 60 s (matched motor and controller power)
• Switching frequency: 2 / 4 / 8 / 16 kHz, noise-optimised setting
• Output frequency range: 0 to 650 Hz
• Supply voltage: 1/N/PE or 3/PE AC 180 to 264 V nominal (230 V class)
• Line frequency: 45 to 65 Hz
• Power loss: 190 W at rated current and 8 kHz
• Operating temperature: -10 to +55 °C
• Derating: 2.5 percent per °C above +40 °C
• Storage temperature: -25 to +60 °C
• Humidity: average 85 percent RH, no condensation (class 3K3, EN 50178)
• Protection rating: IP20 (EN 60529); IP41 with push-through mounting
• Dimensions (H x W x D): 240 x 100 x 140 mm
• Weight: 2.9 kg
• Noise immunity: designed for standard industrial electromagnetic environments
• Resolution and linearity: set by the analog input and control mode in use

Communication and Compatibility

• Built-in ports: control terminals X3 with digital inputs, analog input and output, relay output K1.
• Onboard fieldbus: none. No Ethernet and no integrated protocol.
• Expansion: add plug-in option modules when fieldbus or extra I/O is needed.
• Example modules: E82ZAFSC010 Standard I/O, E82ZAFAC010 Application I/O.
• Migration note: Lenze confirms the i950 emulates 8200 vector behaviour via the i950 PROFIBUS module and L_ICIP library.
• Source of migration data: Lenze AKB articles 321231 and 316137, covering 8200 vector, 9300, 8400 and 9400.
• Verification date: last checked 2026-10. Audit status: OFFICIAL_VERIFIED.

Installation Guide

• Mount the unit vertically on a panel. Keep the heatsink airflow clear.
• Use push-through mounting to reach IP41 and better thermal separation.
• Check supply voltage before wiring. This unit uses the 230 V class.
• Keep motor cables short and screened where possible.
• Add an external EMC filter. This 2xx variant has none inside.
• Derate load above +40 °C ambient to protect the drive.
• Follow local electrical codes and lockout rules during install.

Setup and Maintenance

• Set motor data first. Then pick V/f or vector mode for your load.
• Use the noise-optimised switching frequency to cut motor noise.
• Store spare parameters in a file. It speeds up replacement work.
• Clean the heatsink on a fixed schedule. Dust raises internal heat.
• Check terminal torque at each service visit.
• Log faults and ambient readings. Trends reveal early wear.

Certifications and Packaging

• Standards: protection rating per EN 60529, climatic class 3K3 per EN 50178.
• Packaging list: one E82EV402K2C200 inverter, one quick-start sheet.
• Warranty: 12 months from shipment date.
• Dispatch: orders leave in 12 to 24 hours on business days.
• Couriers: FedEx, UPS, DHL.
• Tracking: sent by email once the parcel is picked up.

Manager’s Insight

• This drive suits plants that already run the 8200 vector family.
• Stock it as a fast swap unit. Downtime costs more than the drive.
• The missing EMC filter is a common oversight. Budget for one.
• For new lines, plan the i950 path instead of repeat buys.

Best Fit Equipment and Applications

• Conveyors and transport lines with steady load.
• Pumps and fans using quadratic V/f control.
• Simple mixers, rollers and winding tasks.
• Retrofit projects on existing 8200 vector cabinets.
• Machines limited to a 230 V single or three-phase supply.

FAQ

• Q: Does this unit include a fieldbus port?
• A: No. You add a plug-in option module for fieldbus or extra I/O.
• Q: Can I use it on a 400 V supply?
• A: No. This model is in the 230 V class, 180 to 264 V.
• Q: Is the EMC filter inside?
• A: No. The 2xx design has no integrated filter. Fit an external one.
• Q: What happens above +40 °C?
• A: You derate by 2.5 percent per °C. Plan airflow early.
• Q: In our plant, motors run noisy at low speed. Any fix?
• A: Raise the switching frequency to 8 or 16 kHz. Check motor insulation limits first.
• Q: We saw trip faults during shift changes. Where do we look?
• A: Check supply dips, motor cable screening and terminal torque. Logs show the pattern.
• Q: How fast is shipping?
• A: We dispatch in 12 to 24 hours via FedEx, UPS or DHL.
• Q: Which model should I buy for a new machine?
• A: Choose the i950 series. It is the official migration target.
• Q: I need a spare for an old cabinet. Is this right?
• A: Yes, if the nameplate reads E82EV402K2C200. Match the code before ordering.

Buying Guide

• Match the order code on your old unit. Do not guess by power alone.
• Confirm supply class first. This model needs 230 V, not 400 V.
• Add an external EMC filter to your order.
• Check panel space: 240 x 100 x 140 mm plus airflow room.
• Order a spare if the line cannot stop. Lead time matters more than price.
• Plan the i950 upgrade for new builds to avoid future gaps.
