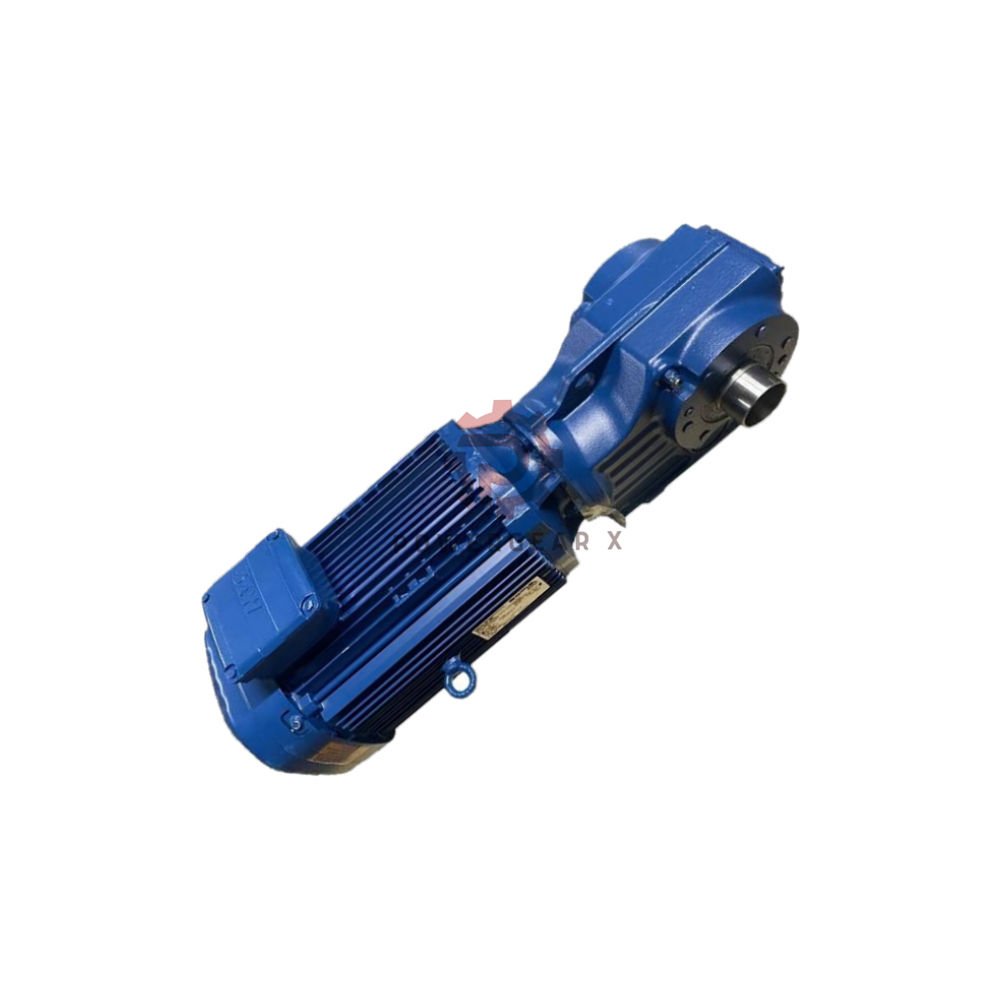

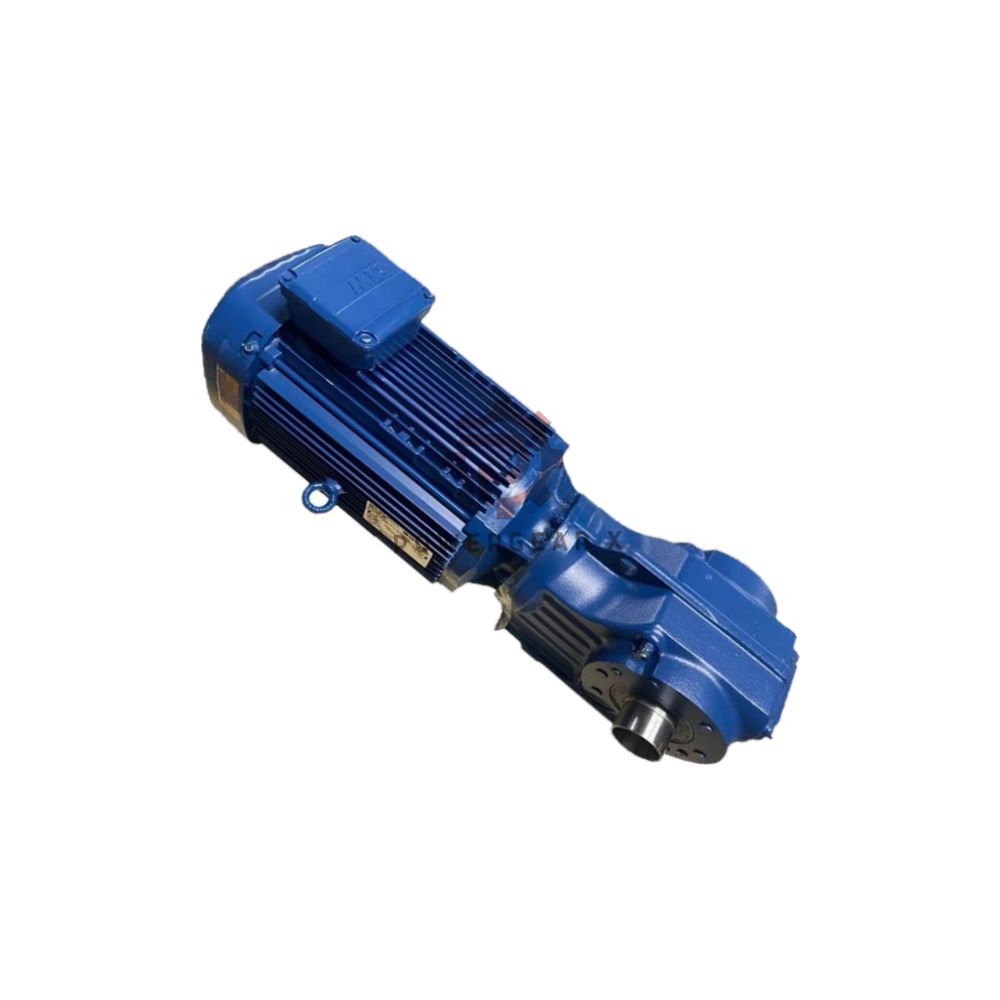

DRN132S4 SEW DRN Series IE3 5.5 kW Motor

Product Overview

• Model DRN132S4 is a SEW-EURODRIVE 4-pole three-phase asynchronous motor.
• It delivers 5.5 kW at 400 V, 50 Hz, with IE3 premium efficiency.
• This motor belongs to the DRN modular motor system.
• It runs continuously under S1 duty for industrial use.
• The design supports line and inverter operation.
• Typical users include conveyors, pumps, fans, and geared units.

Core Technical Data

• Brand: SEW-EURODRIVE
• Model: DRN132S4
• Series: DRN Three-Phase Asynchronous Motor
• Motor type: Squirrel-cage three-phase asynchronous, TEFC
• Poles: 4
• Rated power: 5.5 kW
• Rated voltage: 400 V, 3-phase, 50 Hz
• Connection: Δ connection; star/delta changeover available by size
• Rated current: 10.5 A at 400 V, 50 Hz
• Rated speed: 1461 min⁻¹ at rated load
• Rated torque: 36 Nm
• Efficiency: IE3 per IEC 60034-30-1
• Efficiency at 100% load: 89.6%
• Efficiency at 75% load: 90.6%
• Efficiency at 50% load: 90.6%
• Power factor: cos φ = 0.84
• Duty type: S1 continuous operation
• Insulation class: Thermal class 155 (F) per IEC 60034-1
• Optional insulation: Thermal class 180 (H) on request
• Cooling method: TEFC, IC 411 per IEC 60034-6
• Mounting: IM B35 standard; IM B3, IM B5, IM B14 available
• Protection rating: IP55 per IEC 60034-5; IP66 on request
• Ambient temperature: -20 to +40 °C
• Storage temperature: -15 to +70 °C
• Humidity: Non-condensing per IEC 60034-1 conditions
• Weight: 56 kg
• Dimensions: Not published as a numerical table; consult SEW dimension sheets

Installation Guide

• Mount the motor on a stable base or flange.
• Use IM B35 foot and flange mounting as standard.
• Keep the fan cover clear for proper cooling.
• Align the motor shaft with the driven equipment.
• Check rotation before coupling the load.
• Connect power according to the nameplate and local codes.
• Use the correct star or delta link for your supply.
• Ground the motor frame securely.
• Protect cables from heat, oil, and moving parts.
• For inverter use, follow VPWM requirements per IEC 60034.

Setup and Maintenance

• Commissioning is simple with standard three-phase connections.
• Check current, voltage, and speed after first start.
• Monitor temperature during the first run.
• Inspect terminals and fasteners after the first week.
• Clean cooling fins and fan cover regularly.
• Check bearings for noise or vibration.
• Lubrication needs follow SEW service guidance.
• Keep the motor dry and free from dust buildup.
• Record operating data for predictive maintenance.
• Replace worn parts with SEW-approved components.

Compatibility Notes

• Works with SEW DRN modular motor system accessories.
• Fits common gear units, pumps, fans, and conveyors.
• Supports line and inverter duty when configured correctly.
• Available mounting options cover many machine layouts.
• Star/delta changeover supports different supply voltages by size.
• IP55 protection suits dusty and wet industrial areas.
• IP66 option supports harsher washdown or outdoor use.
• IE3 efficiency helps meet energy-saving targets.
• Compatible with standard motor protection devices.
• Consult SEW documents for exact drive pairing.

Certifications and Standards

• IEC 60034-1 for rotating electrical machines.
• IEC 60034-5 for IP protection rating.
• IEC 60034-6 for cooling method.
• IEC 60034-30-1 for IE3 efficiency class.
• SEW-EURODRIVE official product line data applies.
• Last verified: 2026-09.
• Confirm final certification on the motor nameplate.
• Ask our team for project-specific documents.

Packing List

• 1 x SEW-EURODRIVE DRN132S4 motor
• 1 x motor nameplate and rating label
• 1 x terminal box cover and hardware
• 1 x fan cover and cooling fan
• 1 x shaft protection cap
• 1 x basic installation document set
• 1 x packing slip and order confirmation
• Accessories depend on selected mounting option.
• Please check the box before signing the delivery receipt.

Warranty and Shipping

• 12-month warranty covers manufacturing defects.
• Warranty starts from the delivery date.
• Keep the invoice for warranty claims.
• Normal wear parts are not covered.
• Damage from misuse or wrong wiring is not covered.
• 12-24 hour dispatch for ready stock items.
• Shipping by FedEx, UPS, or DHL.
• Tracking number is shared after dispatch.
• Delivery time depends on destination and customs.
• Contact us for urgent or bulk orders.

Expert Review

• The DRN132S4 balances power, size, and efficiency well.
• IE3 efficiency lowers energy costs over time.
• IP55 protection suits most factory floors.
• TEFC cooling supports reliable continuous operation.
• Inverter duty adds flexibility for speed control.
• Mounting options simplify machine integration.
• SEW modular design supports easy replacement.
• Best for steady loads, not extreme overload cycles.
• Check ambient limits before high-temperature use.
• Overall, a strong choice for industrial automation.

Manager’s Insight

• Buy this motor when uptime and energy savings matter.
• SEW-EURODRIVE parts and support are widely available.
• Stock units ship in 12-24 hours.
• Use FedEx, UPS, or DHL for fast delivery.
• Confirm voltage, mounting, and IP rating before ordering.
• Ask for IP66 or class H if your site needs it.
• Pair with a suitable inverter for speed control.
• Keep spare terminals and fan covers on site.
• Train staff on correct star/delta wiring.
• This model reduces downtime and long-term cost.

Best Applications

• Conveyor systems in warehouses and factories.
• Centrifugal pumps for water and process fluids.
• Industrial fans and blowers.
• Geared motor units for packaging lines.
• Material handling equipment.
• Food and beverage production lines with IP55.
• Automotive assembly and parts transfer.
• Water treatment and environmental systems.
• General machinery needing 5.5 kW output.
• Inverter-driven speed control applications.

FAQ

• Q: What does the model DRN132S4 mean?
• A: It is a SEW DRN series motor with a 132 frame size and 4 poles.
• Q: Is this motor IE3 rated?
• A: Yes, it meets IE3 premium efficiency per IEC 60034-30-1.
• Q: Can I run it with a VFD?
• A: Yes, it supports inverter duty with VPWM per IEC 60034.
• Q: What is the rated current?
• A: It draws about 10.5 A at 400 V and 50 Hz.
• Q: Which mounting is standard?
• A: IM B35 foot and flange mounting is standard.
• Q: What is the protection class?
• A: It is IP55 as standard, with IP66 available on request.
• Q: How much does it weigh?
• A: The motor weighs about 56 kg.
• Q: What is the ambient temperature range?
• A: It runs from -20 to +40 °C at rated output.
• Q: How fast do you ship?
• A: Ready stock ships within 12-24 hours.
• Q: Which couriers do you use?
• A: We use FedEx, UPS, and DHL.
• Q: What is the warranty period?
• A: It comes with a 12-month warranty.
• Q: Do you provide technical support?
• A: Yes, contact us for wiring, setup, and selection help.
• Q: How do I choose the right motor?
• A: Match power, speed, voltage, mounting, and IP rating to your machine.
• Q: What if my load needs higher torque?
• A: Check the gear ratio or choose a larger frame size.
• Q: Can I get IP66 or class H?
• A: Yes, both are available on request.
• Q: What should I check on delivery?
• A: Check the box, nameplate, shaft, and fan cover.
• Q: Do you offer bulk pricing?
• A: Yes, contact sales for project and volume quotes.

Buying Guide

• Confirm 5.5 kW matches your load demand.
• Check supply voltage and star/delta link.
• Pick mounting that fits your machine frame.
• Choose IP55 for normal factories.
• Choose IP66 for washdown or outdoor areas.
• Use IE3 for lower energy bills.
• Select inverter duty if you need speed control.
• Check ambient temperature at the install site.
• Order spare fan covers and terminals for uptime.
• Ask us for a free selection check before purchase.
