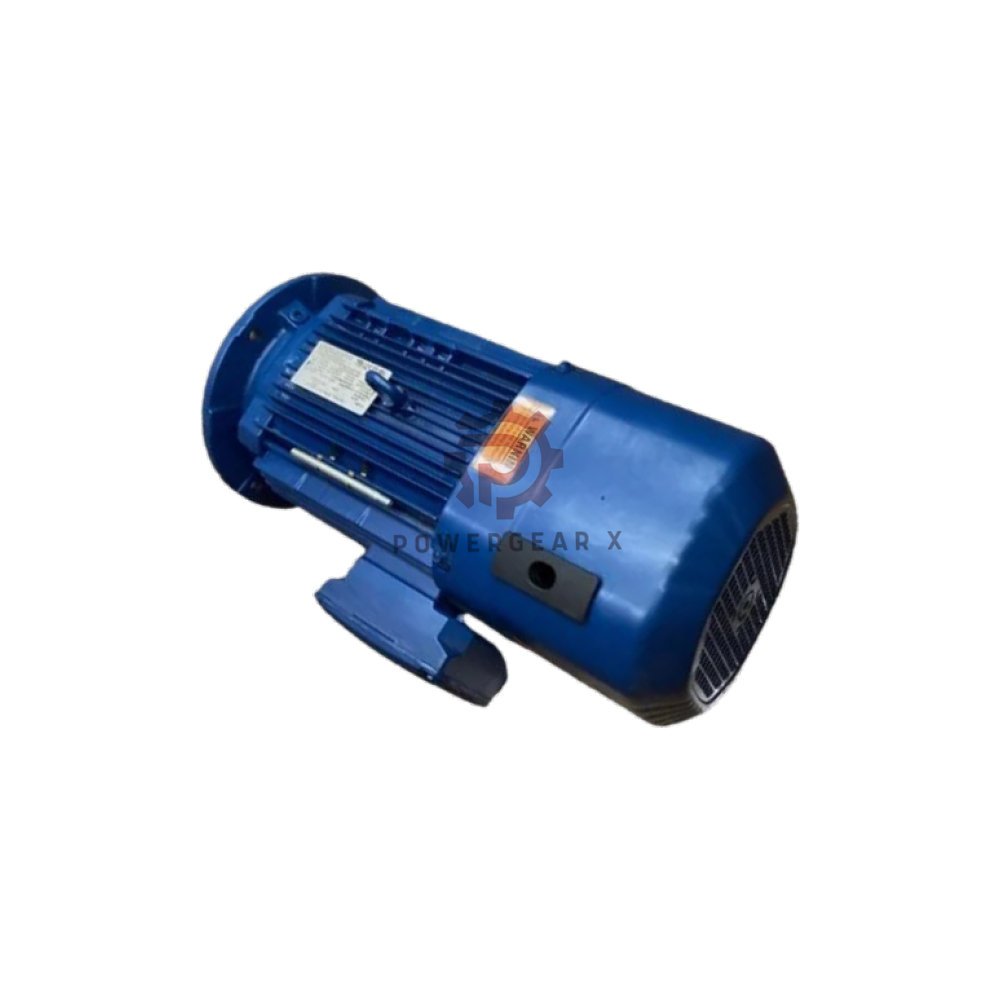

SEW DRN112M4 IE3 Three-Phase Motor – 4 kW, 400 V, 4-Pole

Model DRN112M4 from SEW-EURODRIVE is a premium efficiency IE3 motor. It delivers 4 kW at 400 V, 50 Hz. This 4-pole squirrel-cage motor runs at 1464 min⁻¹. It suits continuous duty S1 and inverter operation. The DRN series replaces the DRS and DR2S lines. It offers robust TEFC cooling and IP55 protection. Ideal for industrial automation, conveyors, mixers, and pumps.

• Brand: SEW-EURODRIVE
• Model: DRN112M4
• Series: DRN Three-Phase Asynchronous Motor
• Motor Type: Squirrel-cage, 4-pole, TEFC
• Insulation: Class 155 (F) per IEC 60034-1
• Cooling: IC 411 totally enclosed fan-cooled
• Mounting: IM B35 standard; IM B3, B5, B14 optional
• Duty: S1 continuous; inverter duty (VPWM)

Technical Data

• Rated Power: 4 kW
• Rated Voltage: 400 V, 3-phase, 50 Hz (Δ connection)
• Rated Current: 7.9 A
• Rated Speed: 1464 min⁻¹
• Rated Torque: 26 Nm
• Efficiency: IE3; η 88.7% at 100% load (89.4% at 75%, 88.6% at 50%)
• Power Factor: cos φ = 0.81
• Operating Temperature: -20 to +40 °C ambient
• Storage Temperature: -15 to +70 °C
• Protection Rating: IP55 (IP66 on request)
• Humidity: Non-condensing
• Weight: 45 kg

Key Features & Benefits

• IE3 Premium Efficiency: Saves energy and cuts operating costs.
• Modular DRN System: Fits many gearboxes and adapters.
• Inverter Ready: Works with VPWM drives for speed control.
• Robust TEFC Design: Protects against dust and water jets.
• Global Standards: Meets IEC 60034-1, 60034-5, 60034-6, 60034-30-1.

Installation Guide

• Mount the motor on a rigid base. Use IM B35 foot and flange mounts.
• Align the shaft carefully with the driven equipment.
• Keep ambient temperature below +40 °C for full power.
• Ensure non-condensing humidity. Avoid direct water spray.
• Connect power per nameplate. Use Δ for 400 V, 50 Hz.
• For inverter use, set VPWM and limit dv/dt per IEC 60034.
• Provide proper ventilation. Do not block the fan cover.

Commissioning & Maintenance

• Check rotation direction before coupling the load.
• Measure current draw. It should not exceed 7.9 A at full load.
• Lubricate bearings per SEW schedule. Usually every 10,000 hours.
• Inspect fan and cooling fins regularly. Clean dust buildup.
• Verify insulation resistance yearly. Use a 500 V megohmmeter.
• Listen for unusual noise. Vibration may indicate misalignment.

Compatibility Notes

• Works with SEW gear units and inverters. Fits MOVIGEAR and other systems.
• Star/delta changeover for 230/400 V or 400/690 V supplies per size.
• Optional IP66 upgrade for washdown areas.
• Thermal class 180 (H) available on request.
• Compatible with common VFDs. Use inverter-rated cable for long leads.

Certifications

• IEC 60034-1 (thermal class 155 F)
• IEC 60034-5 (IP55)
• IEC 60034-6 (IC 411 cooling)
• IEC 60034-30-1 (IE3 efficiency)
• CE marked. Other certifications may apply per region.

Package Contents

• 1 x SEW DRN112M4 motor
• 1 x terminal box cover and gasket
• 1 x mounting flange (IM B35 standard)
• 1 x key for shaft
• 1 x operation manual

Warranty & Shipping

• Warranty: 12 months from date of delivery.
• Dispatch: 12–24 hours after payment clears.
• Couriers: FedEx, UPS, DHL (express options available).
• Tracking number provided at dispatch.
• Bulk orders may need extra lead time. Contact us for details.

Expert Review

The DRN112M4 is a workhorse for industrial motion. Its IE3 rating cuts energy use. The TEFC housing handles dusty plants. Inverter duty makes it flexible for speed control. Users report smooth operation and long bearing life. The 45 kg weight is manageable for most mounts. This motor shines in continuous processes. It is not for explosive areas unless specially ordered. For standard factory floors, it is a reliable choice.

Manager’s Insight

We see strong demand for the DRN series. It replaces older DRS motors without rewiring changes. The 4 kW size fits many conveyor and pump duties. Buyers like the IP55 rating and IE3 savings. Stock is steady. Order now for fast dispatch. For urgent projects, call our team. We ship same day with FedEx, UPS, or DHL.

Best Applications

• Conveyor systems in warehouses and factories.
• Mixers and agitators in food and chemical lines.
• Pumps for water treatment and HVAC.
• Packaging machines and palletizers.
• Material handling equipment and cranes.
• Any continuous duty S1 application up to 4 kW.

FAQ

Q: What does IE3 mean for my energy bill?

A: IE3 motors use less power for the same output. You save on electricity over time.

Q: Can I run this motor with a VFD?

A: Yes. It is inverter duty rated. Use VPWM and follow IEC 60034 guidelines.

Q: Is the mounting flange included?

A: Yes. IM B35 foot and flange mount comes standard. Other mounts are available.

Q: How fast do you ship?

A: We dispatch in 12 to 24 hours. We use FedEx, UPS, or DHL.

Q: What if the motor arrives damaged?

A: Contact us within 48 hours. We will arrange a replacement or refund.

Q: Do you offer a warranty?

A: Yes. 12 months from delivery. Keep your invoice for claims.

Q: How do I choose between DRN and DRS?

A: DRN is the newer IE3 line. It replaces DRS and DR2S. Check mounting and power.

Q: Can I use this motor outdoors?

A: Yes, with IP55 it handles dust and water jets. Avoid direct flooding.

Q: What is the ambient temperature limit?

A: -20 to +40 °C. Full power up to +40 °C and 1000 m altitude.

Q: Do you provide bulk pricing?

A: Yes. Email us your quantities. We respond within one business day.

Q: How do I wire the motor for 400 V?

A: Use delta connection. Follow the diagram inside the terminal box.

Q: What maintenance does it need?

A: Check bearings, clean fins, and verify insulation yearly. No grease nipples on standard.

Buying Guide

• Check your supply voltage. This motor is 400 V, 50 Hz.
• Confirm mounting. IM B35 is standard. Measure your flange pattern.
• Match speed. 1464 min⁻¹ is 4-pole at 50 Hz.
• Consider inverter use. Add a VFD for speed control.
• Verify duty cycle. S1 continuous is for constant loads.
• Check ambient conditions. IP55 is fine for most factories.
• Order spare fuses and contactors rated for 7.9 A.
• For outdoor use, add a rain shield or upgrade to IP66.
