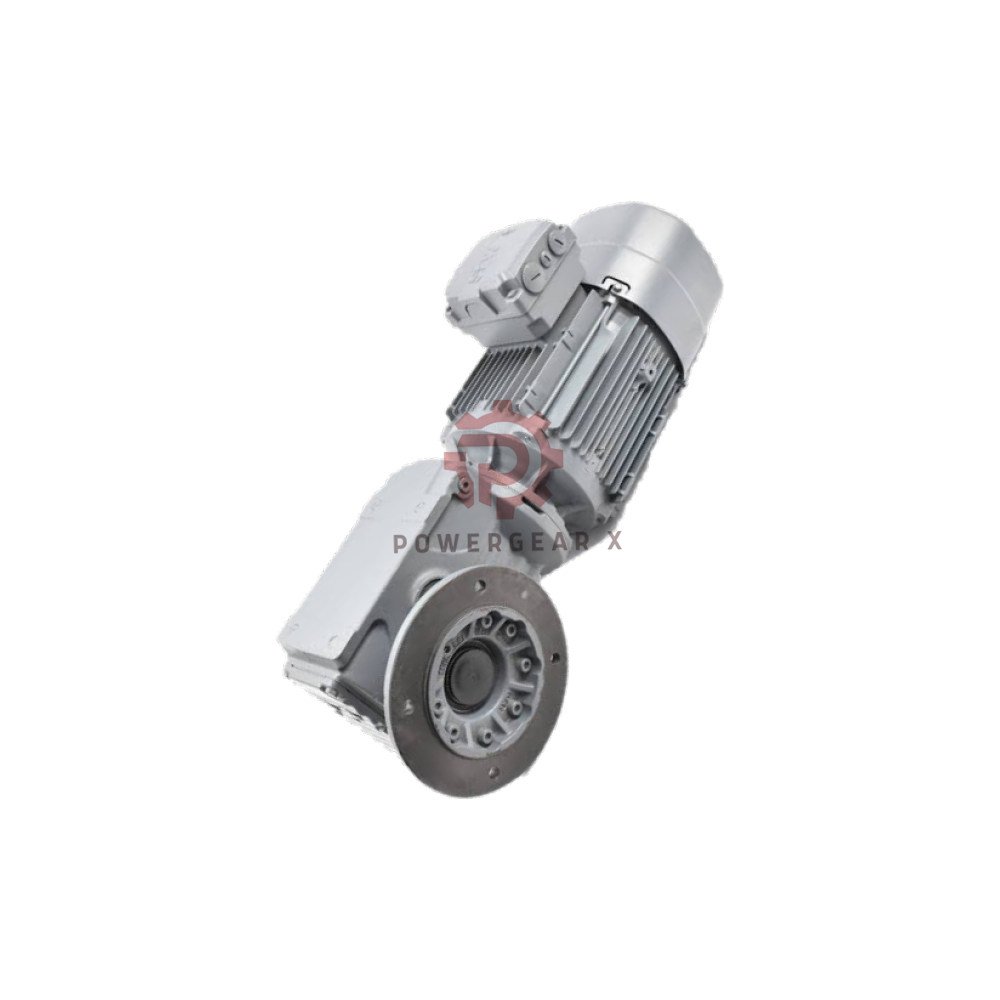

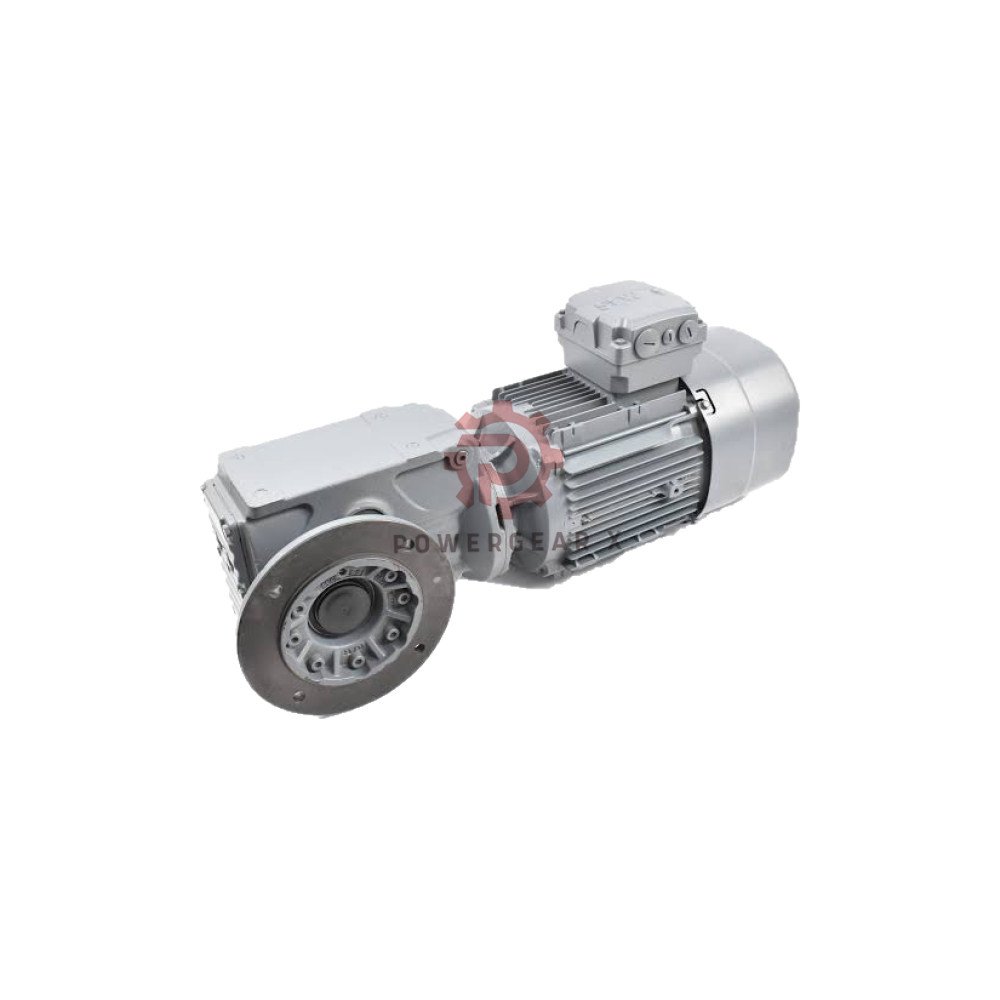

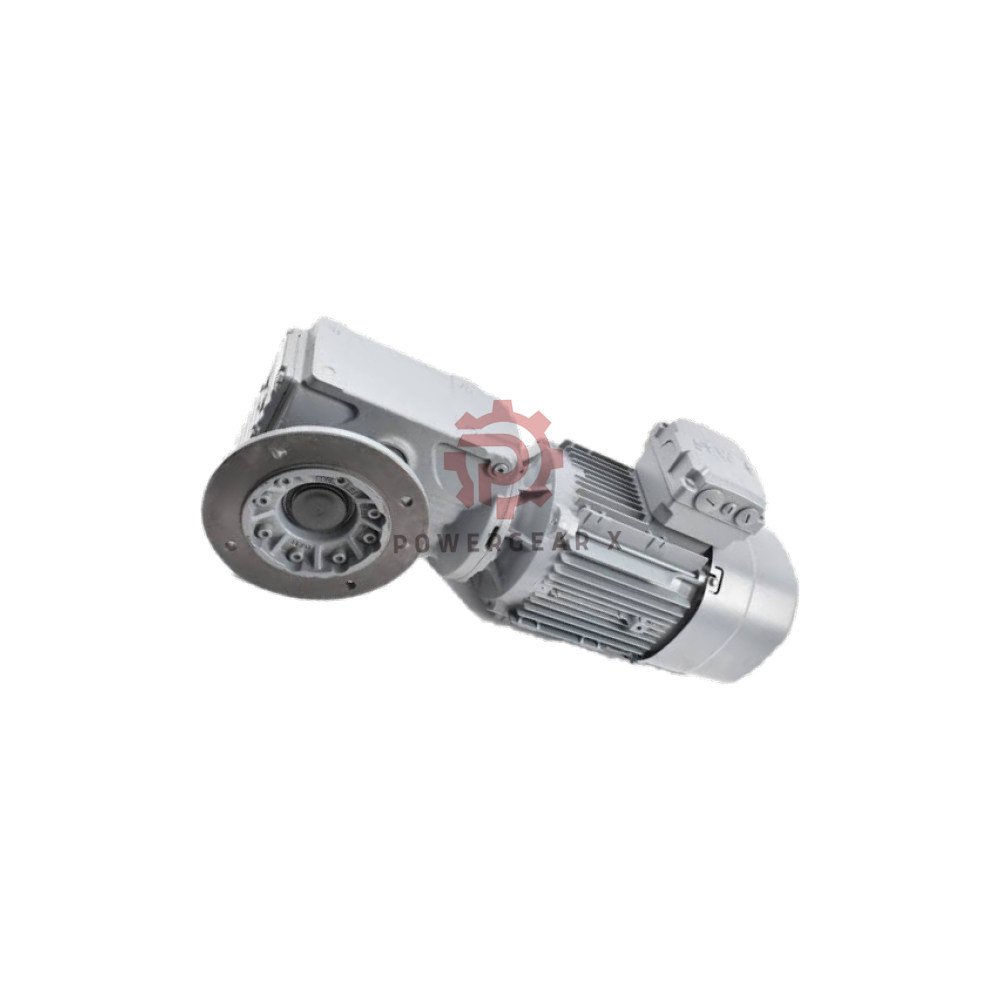

DRN100LS4 SEW-EURODRIVE IE3 Three-Phase Asynchronous Motor
Model DRN100LS4 is a 4-pole IE3 three-phase asynchronous motor from SEW-EURODRIVE. This unit delivers 2.2 kW at 400 V, 50 Hz. It runs continuously under S1 duty. Moreover, it belongs to the modular DRN motor system. As a result, this motor suits industrial automation, conveyors, pumps, fans, and gearmotor assemblies.
Key highlight: High efficiency, rugged TEFC housing, and wide inverter compatibility. In addition, it is the IE3 successor to the DRS and DR2S series.
Technical Data
- Brand: SEW-EURODRIVE
- Model: DRN100LS4
- Series: DRN Three-Phase Asynchronous Motor
- Motor type: Squirrel-cage three-phase asynchronous, TEFC, 4 poles
- Rated power: 2.2 kW
- Rated voltage: 400 V nominal, 3-phase, 50 Hz
- Connection: Δ connection; star/delta changeover for 230/400 V or 400/690 V supply per size
- Rated current: 4.75 A at 400 V, 50 Hz
- Rated speed: 1450 min⁻¹ at rated load
- Rated torque: 14.5 Nm
- Efficiency: IE3 Premium Efficiency per IEC 60034-30-1
- Efficiency at 100% load: 86.9 %
- Efficiency at 75% load: 87.5 %
- Efficiency at 50% load: 86.4 %
- Power factor: cos φ = 0.76
- Insulation class: Thermal class 155 (F) per IEC 60034-1; thermal class 180 (H) on request
- Cooling method: TEFC, IC 411 per IEC 60034-6
- Duty type: S1 continuous operation; line and inverter duty, VPWM per IEC 60034
- Mounting arrangement: IM B35 standard; IM B3, IM B5, IM B14 available per order option
- Operating temperature: -20 to +40 °C ambient
- Rated output condition: Max +40 °C and ≤1000 m above sea level
- Storage temperature: -15 to +70 °C per SEW official technical data doc 31974465
- Protection rating: IP55 per IEC 60034-5; up to IP66 on request
- Relative humidity: Non-condensing; no specific %RH value published by manufacturer
- Weight: 27 kg motor weight mMot per SEW official rated-data table
- Dimensions: Overall envelope dimensions not published as numerical table; consult SEW dimension sheets
- Lifecycle: Current SEW-EURODRIVE product line; listed on the official SEW global DR product page
- Last verified: 2026-09
Installation Guide
- Check the nameplate before wiring. Also, match voltage and frequency to your supply.
- Use the IM B35 foot and flange mount as standard. However, choose IM B3, IM B5, or IM B14 if needed.
- Align the motor carefully with the driven machine. Otherwise, poor alignment causes vibration and bearing wear.
- Keep the cooling fan and fins clean. In addition, blocked airflow reduces motor life.
- Protect the motor from moisture and dust. IP55 is standard. For harsh areas, order IP66.
- For inverter operation, follow VPWM settings per IEC 60034. Consequently, you avoid drive faults.
Setup and Maintenance Convenience
- Terminal box access is simple. Therefore, wiring changes are quick.
- Star/delta changeover supports 230/400 V or 400/690 V supply per size. As a result, you gain flexible supply options.
- Class 155 (F) insulation handles heat well. Class 180 (H) is available on request.
- Check bearings and lubrication at regular intervals. Also, inspect fan cover and cooling channels during service stops.
- Store between -15 and +70 °C in a dry, non-condensing place. In short, keep the motor protected before installation.
Compatibility Notes
- Works with SEW DRN modular motor system components.
- Fits standard gearmotor assemblies and industrial drive trains.
- Suitable for line operation and inverter operation.
- Compatible with 400 V, 50 Hz three-phase supply as standard.
- Can be ordered with different mounting arrangements for flexible installation.
- IE3 efficiency supports energy-saving drive designs.
Certifications and Standards
- IEC 60034-1 for thermal class and rating
- IEC 60034-5 for IP55 protection
- IEC 60034-6 for IC 411 cooling
- IEC 60034-30-1 for IE3 efficiency
- SEW-EURODRIVE official rated-data and technical documentation
Packing List
- 1 x SEW-EURODRIVE DRN100LS4 motor
- 1 x motor nameplate and rating label
- 1 x terminal box cover and hardware
- 1 x fan cover and cooling fan assembly
- 1 x basic installation and safety document
Warranty and Shipping
- Warranty: 12 months
- Dispatch time: 12 to 24 hours
- Courier options: FedEx, UPS, DHL
- Order support: sales@powergearx.com
- WhatsApp: +86 18030005825
Expert Review
The DRN100LS4 is a strong choice for continuous industrial duty. Its IE3 efficiency cuts energy loss. Moreover, the TEFC design resists dust and moisture. The motor pairs well with SEW gearboxes and inverter drives. However, it is not a high-overload motor for extreme shock loads. For heavy starts, check the duty cycle and thermal margin. Overall, it is a reliable workhorse for plant automation.
Manager’s Insight
Buyers often ask for IE3 motors that fit existing SEW systems. The DRN100LS4 meets that need. In addition, it replaces older DRS and DR2S units in many cases. Stock is moving fast because 2.2 kW is a common size. If you need IP66 or class H insulation, order early. Meanwhile, use the 12 to 24 hour dispatch window for urgent line repairs. Contact sales@powergearx.com or +86 18030005825 for stock checks.
Best Suited Equipment and Applications
- Conveyor systems
- Pumps and fans
- Gearmotor assemblies
- Packaging machines
- Material handling lines
- General industrial automation
- Inverter-driven drive systems
FAQ
Q: What makes the DRN100LS4 different from older SEW motors?
A: It uses IE3 efficiency. It also fits the current DRN modular system. That makes replacement and system design easier.
Q: Can I run this motor on an inverter?
A: Yes. It supports line and inverter duty. Use VPWM settings per IEC 60034 for best results.
Q: Is the mounting position fixed?
A: No. IM B35 is standard. You can order IM B3, IM B5, or IM B14 based on your machine.
Q: What should I check before buying?
A: Check voltage, frequency, mounting, and load torque. Also confirm the ambient temperature and altitude.
Q: How fast can you ship?
A: We dispatch in 12 to 24 hours. We use FedEx, UPS, and DHL.
Q: What if I need IP66 protection?
A: IP66 is available on request. Order it early because lead time may be longer.
Q: Does it come with a warranty?
A: Yes. It includes a 12-month warranty.
Q: Who do I contact for urgent stock?
A: Email sales@powergearx.com or message +86 18030005825 on WhatsApp.
Buying Guide
- Confirm the supply voltage and frequency first.
- Match the motor power to the driven load.
- Choose the mounting style that fits your machine.
- Check ambient temperature and altitude limits.
- Select IP55 for normal factory use. Choose IP66 for washdown or dusty areas.
- Order class H insulation only if high heat is a real risk.
- Use an inverter if you need speed control.
- Ask for stock and shipping details before you order.
