Product details

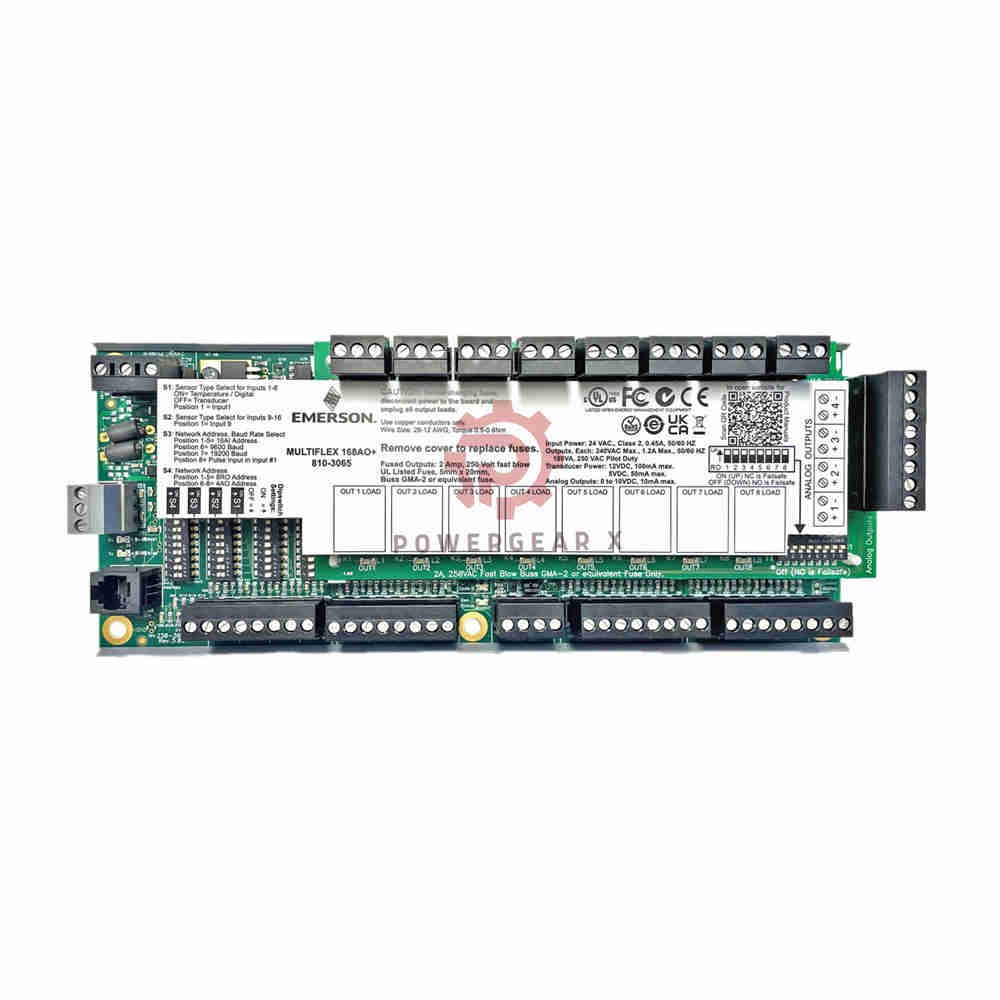

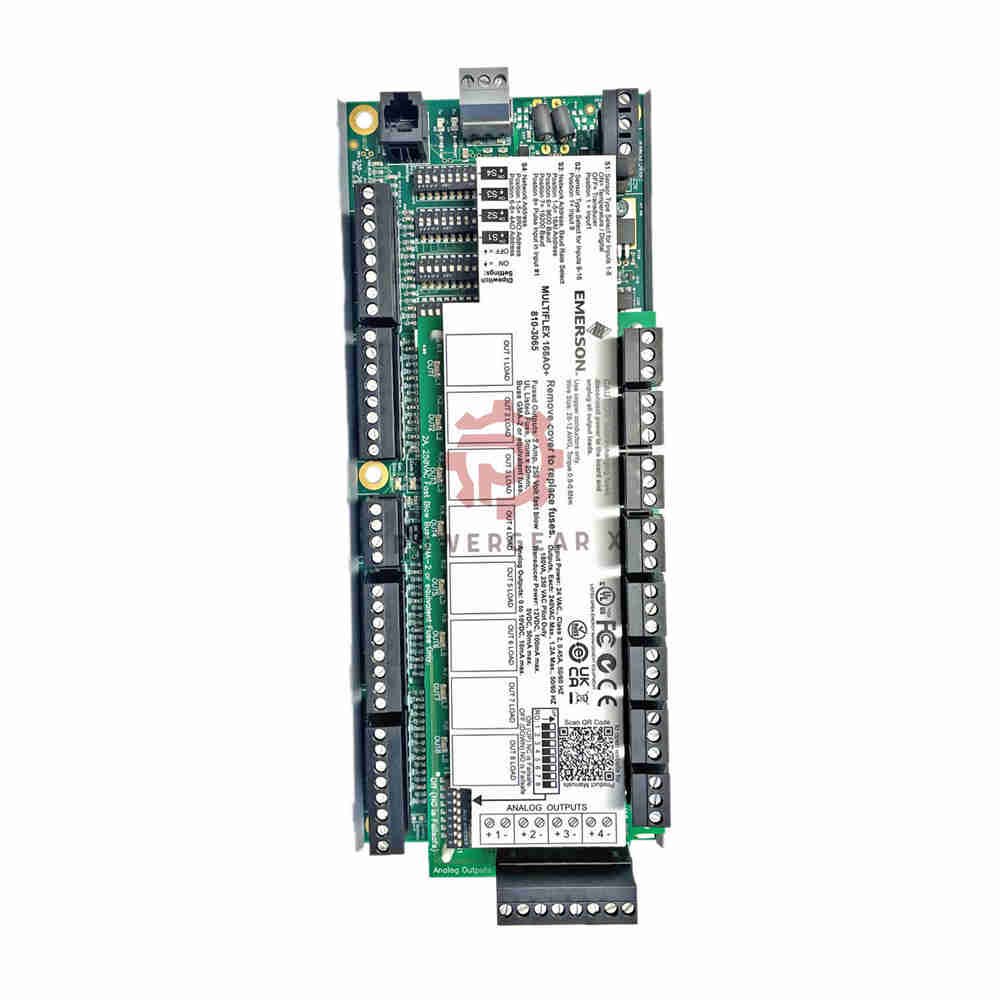

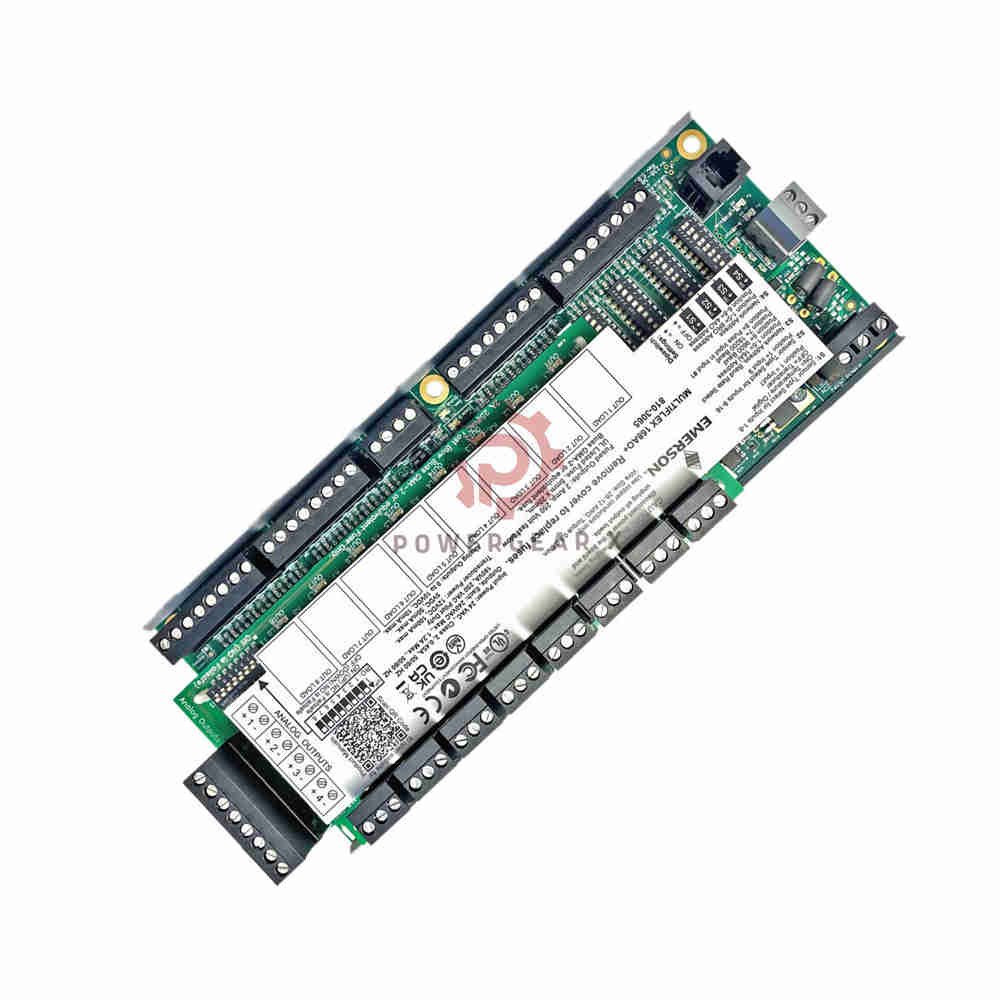

CPC810-3065 – MULTIFLEX 168+AO I/O Board
CPC810-3065 is an I/O board from Emerson. It belongs to the MULTIFLEX 168+AO series. This board offers 16 combination analog/digital inputs. It also provides 8 relay outputs and an analog output. The board works with Einstein and REFLECS control systems.
Key Features
- 16 multi-purpose inputs – analog or digital
- 8 relay outputs – for direct load control
- 1 analog output – for modulating devices
- RS485 communication – connects to REFLECS or Einstein networks
- Hand-held terminal interface – view readings without a voltmeter
- Power outputs: +5V DC and +12V DC for transducers
- DIP switches – set network ID and baud rate
Technical Specifications
- Brand: Emerson
- Model: CPC810-3065
- Series: MULTIFLEX 168+AO
- Type: I/O Board (Analog/Digital)
- Inputs: 16 combination analog/digital
- Outputs: 8 relay + 1 analog (AO)
- Communication: RS485 (REFLECS COM A&D or Einstein I/O network)
- Network ID: Configurable via DIP switches
- Baud rate: DIP switch selectable
- Power outputs: +5V DC and +12V DC (for field devices)
- Interface: Hand-held terminal (for diagnostics)
- Compatibility: 100% backward compatible with 16AI boards
Installation & Mounting
- Mounting: DIN rail or panel (screw holes provided)
- Wiring: Use screw terminals for I/O and power
- Network setup: Set DIP switches for board number and baud rate
- Maintenance: No regular maintenance required
Manager’s Insight
This Emerson board is a reliable drop-in replacement for the older 16AI. The hand-held terminal makes troubleshooting quick and easy. The combination inputs reduce the number of spare parts needed. We recommend it for supermarket and refrigeration control. The 12-month warranty and fast shipping add confidence.
Applications
- Supermarket refrigeration: temperature monitoring, defrost control
- HVAC systems: air handling units, chillers
- Cold storage: freezer and cooler management
- Process cooling: industrial refrigeration
- Building automation: environmental monitoring
Comparison with Similar Models
- CPC810-3065 – 16 combo I/O, 8 relay, 1 AO
- CPC810-3060 – 16 combo I/O, 8 relay, no AO
- 16AI – older model, no hand-held terminal
- CPC810-3065-CC – with conformal coating
Selection Guide
- Choose CPC810-3065 if: you need combo inputs, relay outputs, and an AO.
- Consider this board for: retrofits or new refrigeration systems.
- Avoid if: you don’t need the analog output.
- Best paired with: Emerson Einstein or REFLECS controllers.
- Warranty: 12 months from invoice date.
Shipping & Delivery
- Dispatch: 12-24 hours after order confirmation.
- Carriers: FedEx, UPS, DHL (tracking provided).
- Packaging: Anti-static bag in a sturdy box.
Frequently Asked Questions (FAQ)
- Q: Is this board compatible with the old 16AI?
- A: Yes, it is 100% backward compatible with 16AI boards.
- Q: What is the hand-held terminal for?
- A: It lets you view input values without a voltmeter or front panel.
- Q: Can I use this board with Einstein controllers?
- A: Yes, it works with both Einstein and REFLECS systems.
- Q: How do I set the board address?
- A: Use the DIP switches on the board.
- Q: Does it provide power for sensors?
- A: Yes, it outputs +5V and +12V for transducers.
