191736-01 EMERSON Encoder SCS-2 SDC50 Valve Position Feedback

Product Brief

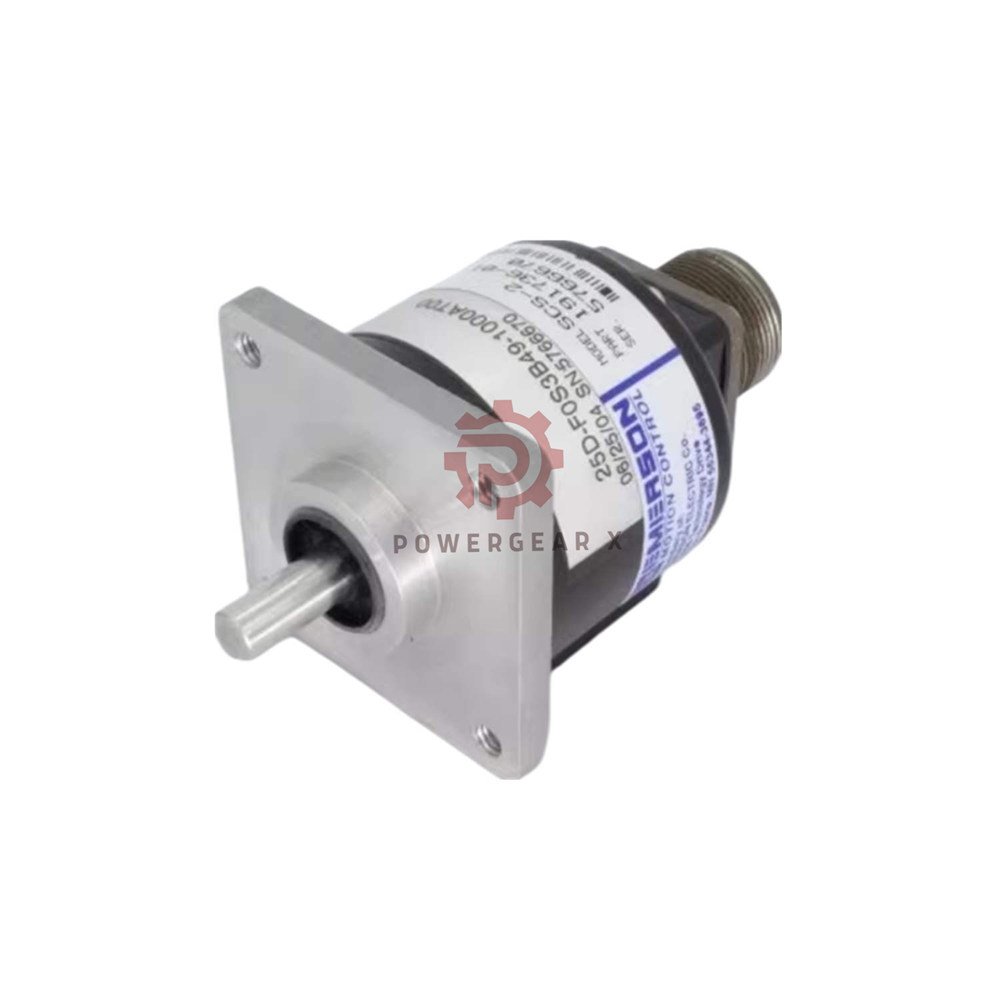

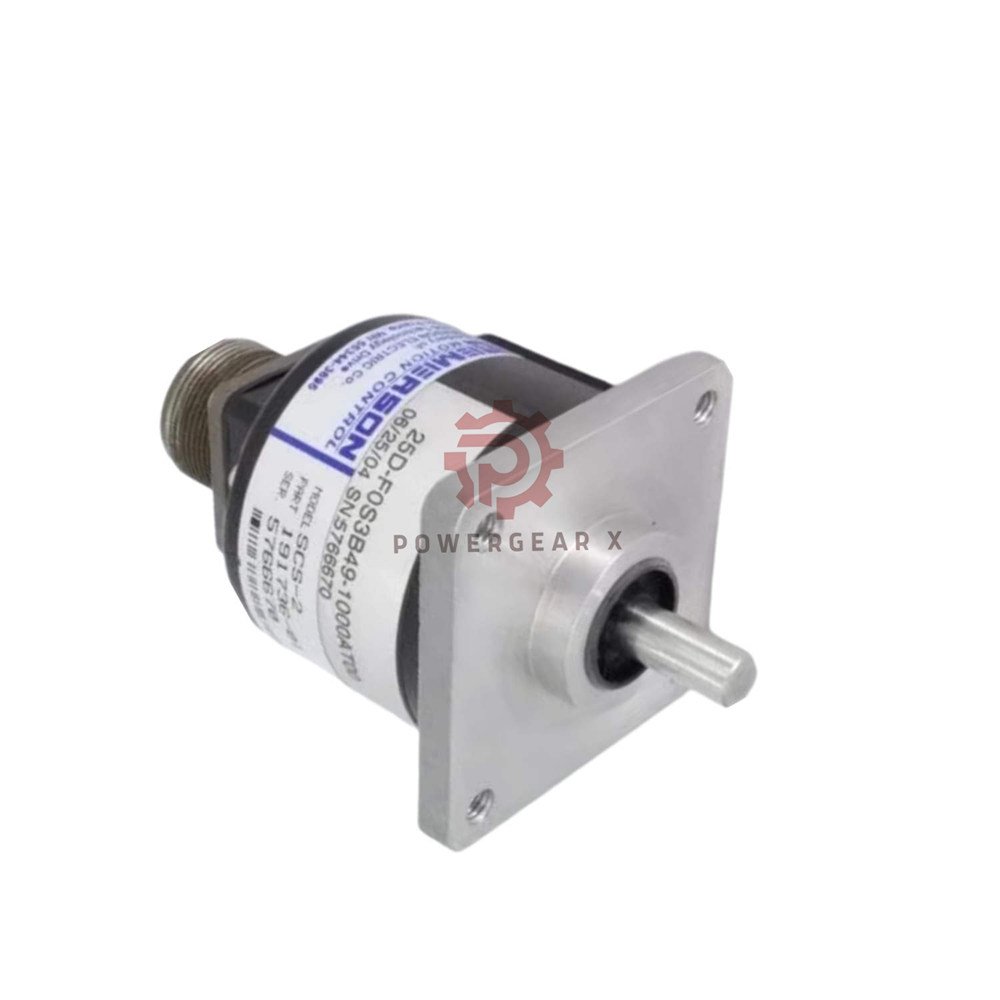

EMERSON 191736-01 is a flange mount rotary encoder. It operates on 5 VDC and uses a 10-pin connection. The device signals valve stem end positions via cam-operated contacts. It suits SCS-2 and SDC50-2-7 systems.

Key Features & Highlights

• Robust Construction – Glass fiber filled PA body, stainless steel stem, PEEK cams.
• Wide Temperature Range – Mechanical contacts: -20 °C to +80 °C.
• High Protection – IP66 (EN 60529), vibration resistance up to 1 g.
• Flexible Contact Options – Mechanical or inductive (PNP/NPN).
• Certified Safe – SIL2 Capable per IEC 61508:2010.

Technical Specifications

• Brand: EMERSON
• Model: 191736-01
• Series: SCS-2 / SDC50-2-7 compatible
• Type: Rotary Encoder, Flange Mount
• Supply Voltage: 5 VDC
• Connector: 10-pin terminal block
• Contact Ratings (Mechanical):
  • Voltage: 24 V AC/DC
  • Breaking capacity: 0.5 A (max. 1 A)
• Contact Ratings (Inductive PNP/NPN):
  • Voltage: 10 to 30 V DC
  • Power: 0.95 W max.
  • Current: 100 mA
• Measurement Range: End-of-travel (open/closed) position detection
• Frequency Response: Mechanical switching speed dependent
• Sensitivity: Cam-actuated contact trigger
• Linearity: Mechanical precision, no electrical drift
• Resolution: Discrete end-position switching
• Ambient Temperature:
  • Mechanical: -20 °C to +80 °C
  • Inductive: -20 °C to +70 °C
• Environmental Protection: IP66 (EN 60529)
• Vibration Resistance: Max. 1 g (EN 60068-2-6)
• Interference Immunity: Built for industrial EMC environments

Installation & Mounting

• Mounting: Flange mount with valve adaptor (brass or stainless steel)
• Stem & Cams: Stainless steel and PEEK
• Guiding & Bearing: POM
• Seals: NBR, interface gasket NBR
• Cable Gland: M16x1.5, PA + NBR
• Wire Strip Length: 5 mm (0.2 in)
• Stranded Wire: 0.14 mm² (25 AWG) to 2.5 mm² (14 AWG)
• Cable Diameter: 4 to 8 mm (0.16 to 0.31 in)

Commissioning & Maintenance

• Simple cam adjustment for open/closed positions.
• Transparent PA cover for visual inspection.
• Terminal block with 4 positions for easy wiring.
• No special tools required for routine checks.

Compatibility

• Directly replaces or upgrades SCS-2 and SDC50-2-7 systems.
• Works with mechanical or inductive control circuits.
• Complies with RoHS and REACH.

Certifications

• RoHS compliance
• REACH compliant
• SIL2 Capable – IEC 61508:2010

Package Contents

• EMERSON 191736-01 Rotary Encoder (1 unit)
• Mounting flange gasket
• Quick start guide

Warranty & Shipping

• 12-month warranty against manufacturing defects.
• 12-24 hour dispatch from order confirmation.
• Shipping via FedEx, UPS, or DHL (tracking provided).

Expert Review

Manager’s Insight: “The 191736-01 is a workhorse for valve position feedback. Its rugged PA body and PEEK cams ensure long life in harsh environments. The SIL2 rating gives peace of mind for safety loops. A reliable choice for critical process control.”

Applications

• Industrial valve position monitoring (open/close)
• Actuator feedback in oil & gas, water treatment
• Power generation and chemical plants
• Automated production lines

FAQ

• Q: What voltage does this encoder use?
  A: It operates on 5 VDC.
• Q: Can I use it with a PNP controller?
  A: Yes, the inductive version supports PNP/NPN.
• Q: What is the max ambient temperature?
  A: For mechanical contacts: 80 °C; inductive: 70 °C.
• Q: How do I adjust the cam positions?
  A: Loosen the cam screws, set to desired open/close point, then retighten.
• Q: Is this encoder explosion-proof?
  A: Not rated as explosion-proof, but IP66 provides dust/water resistance.
• Q: What cable size fits the gland?
  A: 4 to 8 mm diameter cables.
• Q: How long is the warranty?
  A: 12 months from purchase.
• Q: Which shipping carriers do you use?
  A: FedEx, UPS, or DHL.
• Q: Can I get technical support?
  A: Contact our team – we respond within 24 hours.
• Q: What if I need a different contact type?
  A: Choose mechanical or inductive based on your system voltage.

Selection Guide

• Use mechanical contacts – if your system uses 24 V AC/DC and higher current (up to 1 A).
• Use inductive PNP/NPN – for 10‑30 V DC, low current (100 mA) and solid‑state reliability.
• Check ambient temperature: mechanical allows +80 °C, inductive +70 °C.
