Product details
Product Overview

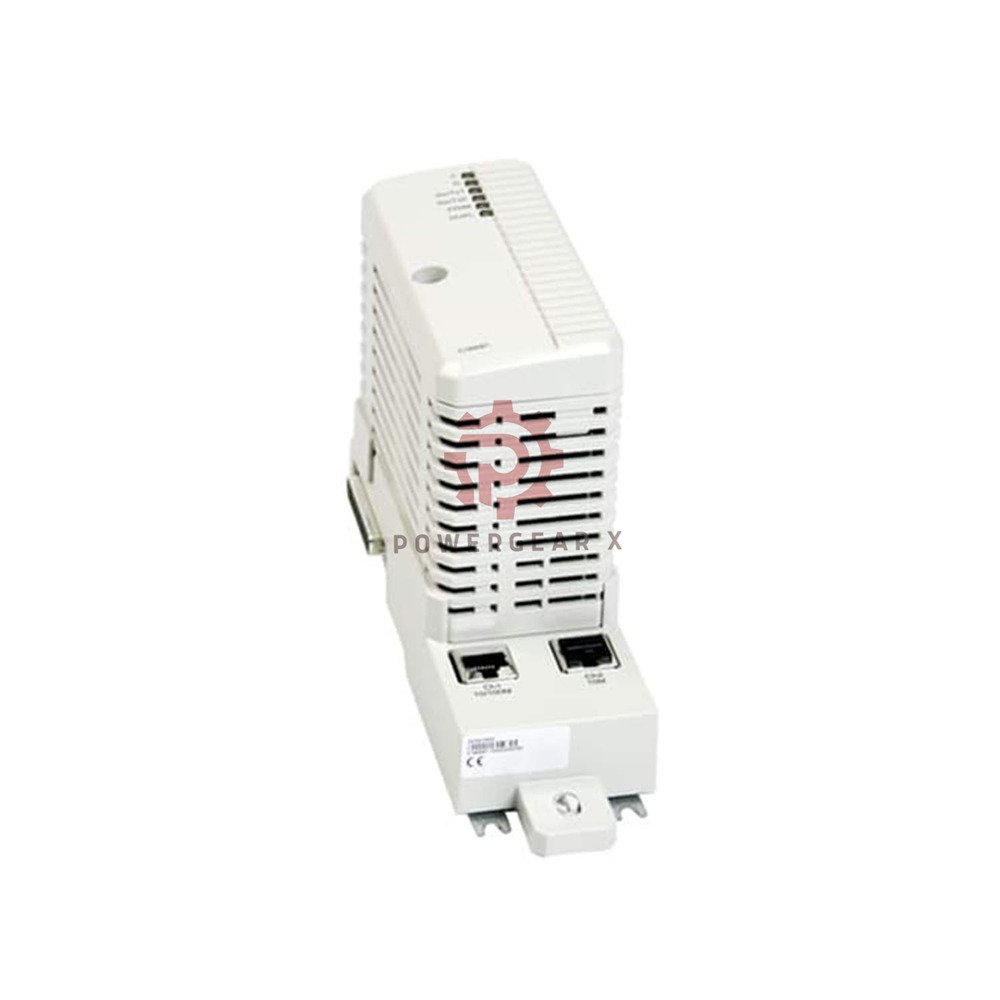

- ▸ ABB CI868A 3BSE092691R1 – an IEC 61850 communication module for AC 800M controllers.Connects process automation with electrical control in one system.
- ▸ Supports IEC 61850 Edition 2 standard – MMS client and GOOSE publisher/subscriber.Ideal for substation automation and smart grid integration.
- ▸ Mounts on TP868 baseplate with code lock to prevent wrong installation.Two RJ45 Ethernet ports, 10/100 Mbit/s speed.
- ▸ Hot swap capable – replace without shutting down the controller.Works with 800xA 6.0.3.3, 6.1.1 and later.
Model Decoder – CI868A
- ▸ CI = Communication Interface module
- ▸ 868 = IEC 61850 protocol family
- 8 = CEX‑Bus generation
- 68 = Substation automation focus
- ▸ A = Edition 2 compliant, supports MMS & GOOSE
- ▸ Article number 3BSE092691R1 – full identification
Key Technical Data
- ▸ Communication protocolIEC 61850 Edition 2
MMS client, GOOSE publisher & subscriber
Transmission speed: 10/100 Mbit/s auto‑negotiating
- ▸ Device capacityUp to 120 IEDs for GOOSE
Up to 40 IEDs for MMS
Mixed protocol use allowed
- ▸ Power24 V DC via CEX‑Bus
Typical consumption: 160 mA
Power dissipation: 3.8 W
- ▸ System integrationUp to 12 modules per AC 800M controller
Hot swap supported
Works with High Integrity controllers
- ▸ Connectivity2× RJ45 Ethernet ports on TP868 baseplate
Connect via external Ethernet switch
Environmental & Certifications
- ▸ Operating conditionsTemperature: +5 to +55 °C
Storage: -40 to +70 °C
Humidity: 5‑95% non‑condensing
Pollution degree 2, IP20 protection
Altitude up to 2000 m
- ▸ ApprovalsCE marked
Electrical safety: UL 61010‑1, UL 61010‑2‑201
Hazardous location: cULus Class 1 Zone 2, AEx nA IIC T4
Marine: DNV‑GL (ABS, BV, LR pending)
RoHS, WEEE compliant
- ▸ MechanicalDimensions: 59×185×127.5 mm (W×H×D)
Weight: 700 g
TP868 baseplate with code lock
Installation & Setup
- ▸ MountingSnap onto TP868 baseplate (included)
Code lock prevents wrong module installation
- ▸ Ethernet connectionUse CH1 or CH2 ports, 10/100 Mbit/s
Always connect through managed Ethernet switch
- ▸ Software requirementsSystem 800xA 6.0.3.3, 6.1.1 or newer
Configure with 800xA Control Builder
- ▸ CEX‑BusPlug into any CEX slot in AC 800M
Hot swap allowed – no controller restart needed
Diagnostics & Indicators
- ▸ LED status lightsRun, Error, Ethernet link/activity
- ▸ GOOSE monitoringCheck subscription status via 800xA diagnostics
- ▸ MMS client statusView connected IEDs and data exchange
Package Contents & Warranty
- ▸ In the box1× ABB CI868A communication module
1× TP868 baseplate with code lock
1× quick start guide
- ▸ Warranty12 months against defects
- ▸ ShippingFedEx, UPS, DHL worldwide express
Typical Applications
- Substation automation systems
- Smart grid integration
- Power distribution monitoring
- Renewable energy plants (solar, wind)
- Industrial microgrid control
Frequently Asked Questions
- Q: What does the “A” in CI868A mean compared to older versions?A: “A” stands for Edition 2 compliance. It supports both MMS and GOOSE together. Older versions may only support one protocol.
- Q: Can I mix MMS and GOOSE devices on one CI868A?A: Yes. Maximum 40 IEDs total if using both. For example 20 MMS + 20 GOOSE works fine.
- Q: Do I need special software version to use this module?A: Yes. Requires 800xA 6.0.3.3, 6.1.1 or newer. Older versions won’t recognize CI868A.
- Q: What is the code lock on TP868 baseplate?A: It physically prevents inserting wrong modules (like CI867) into the baseplate. Protects your hardware from damage.
- Q: How many CI868A modules can I use in one controller?A: Up to 12 modules per AC 800M. That gives up to 480 IEDs total (40 each ×12) for large substations.
- Q: Is fiber optic connection possible?A: CI868A has copper RJ45 ports. For fiber, use external media converters between switch and module.
