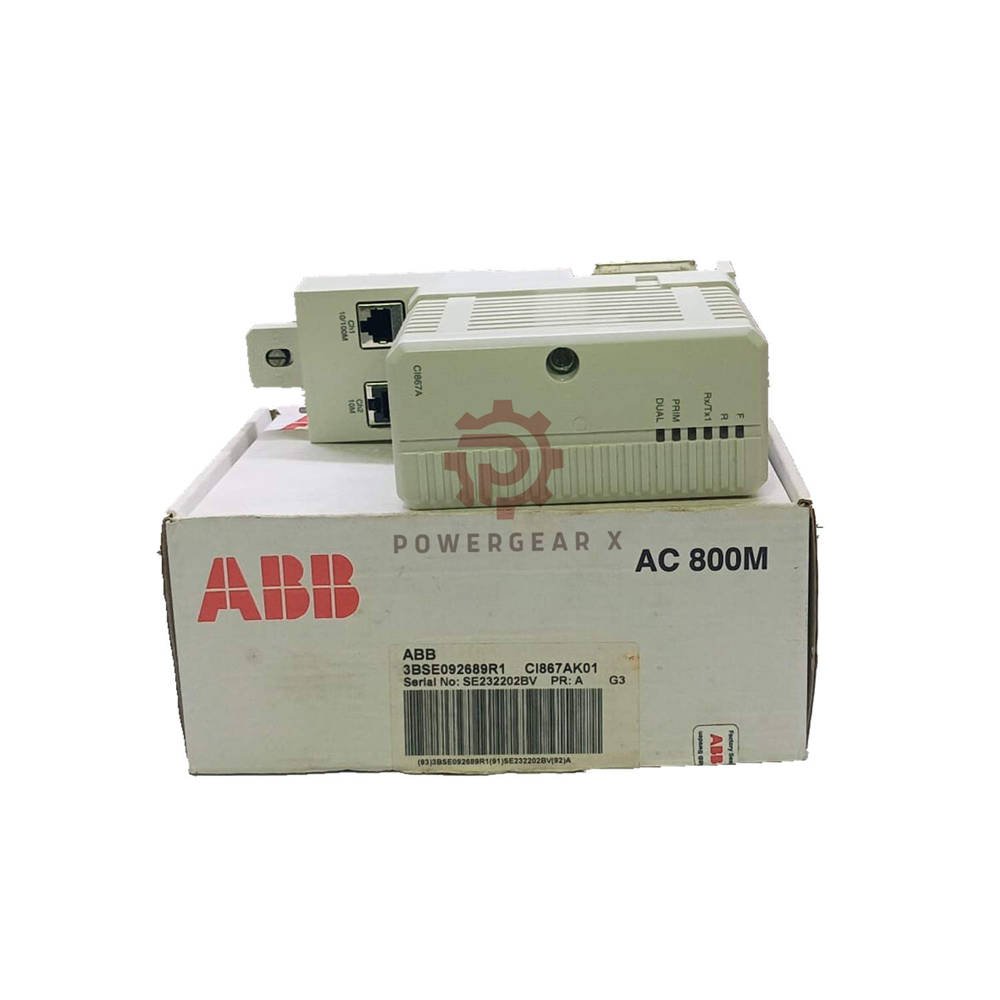

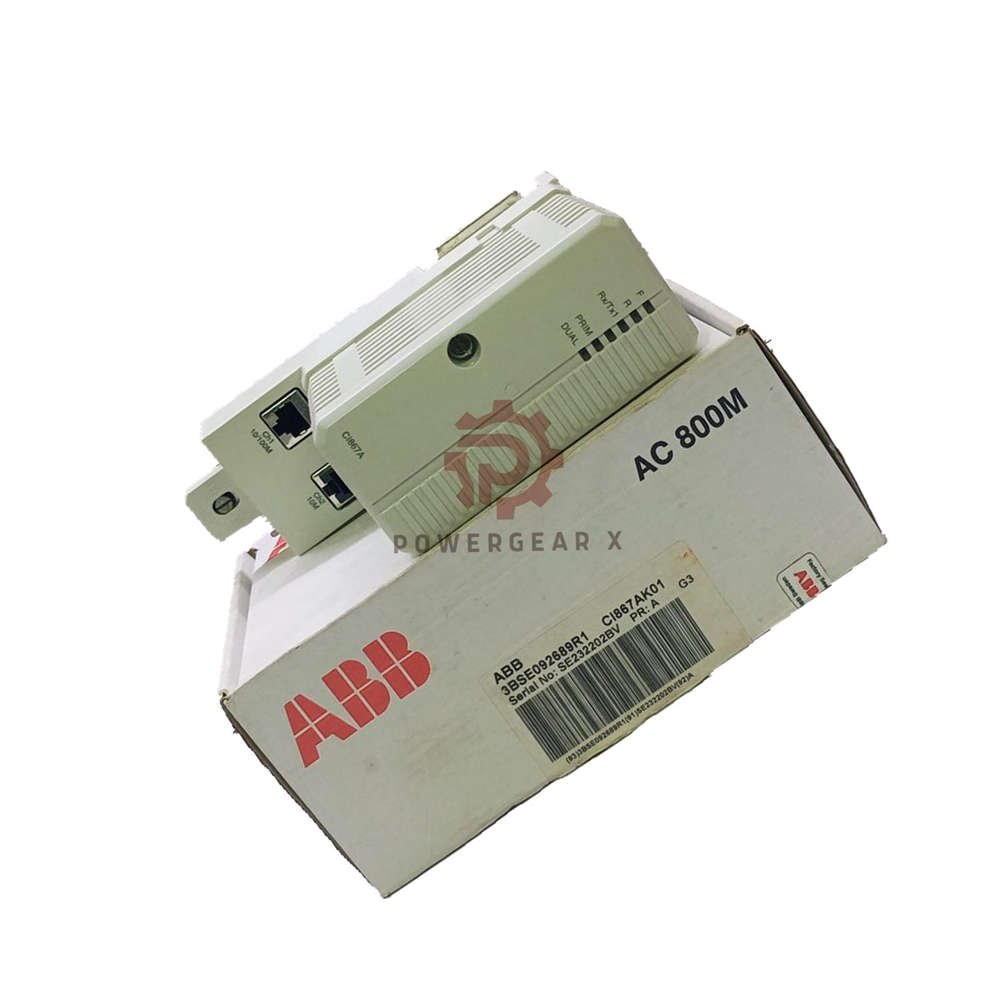

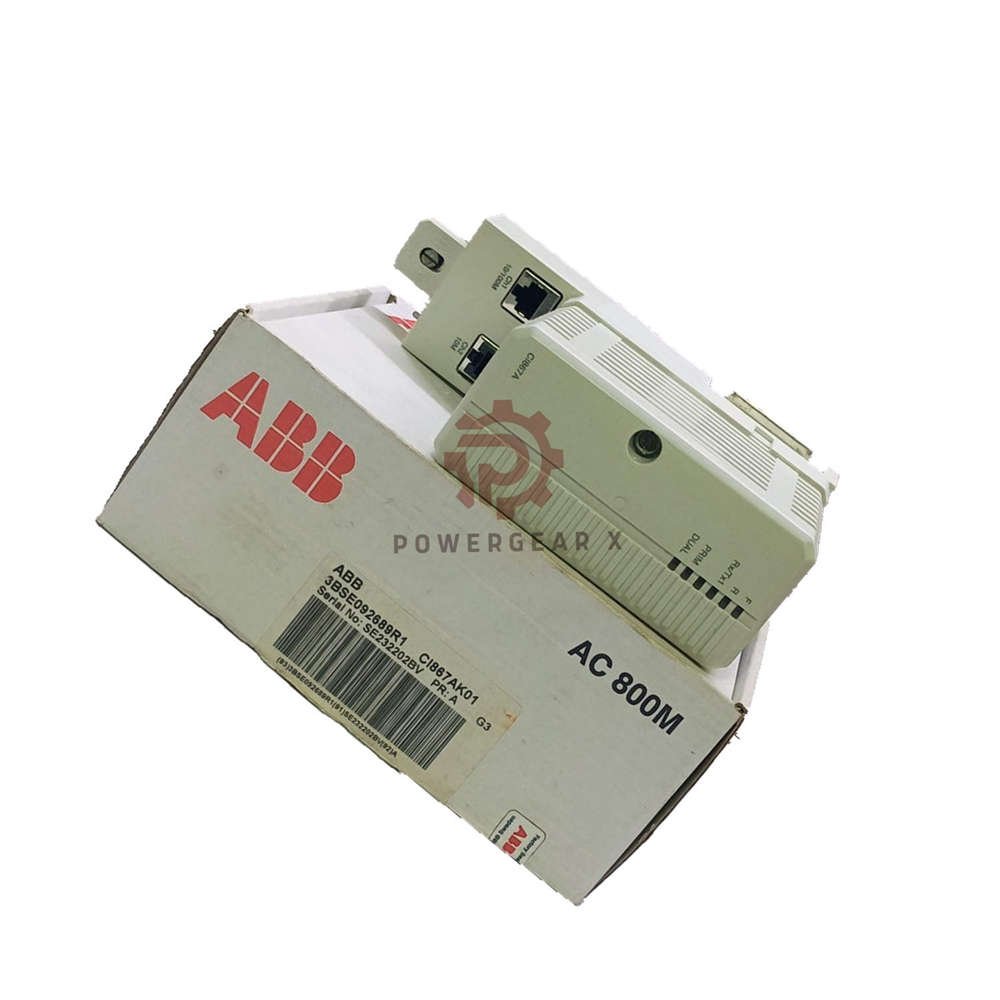

CI867A ABB Modbus TCP Communication Module 3BSE092689R1 for AC 800M

Product Brief

The ABB CI867A (3BSE092689R1) is a Modbus TCP communication interface. It connects AC 800M controllers to Ethernet devices. This module supports both master and slave functions. It is the improved version of CI867 with faster 100 Mbit/s speed. Ideal for integrating industrial equipment using the popular Modbus TCP protocol.

Technical Specifications (hierarchical tree structure)

• Brand & Series
  • ABB · AC 800M · CI867A
• Model Number
  • CI867A (3BSE092689R1)
• Communication Protocol
  • Modbus TCP · application layer (OSI level 7)
  • Combines Modbus RTU with Ethernet TCP
• Functionality & Channels
  • Master / Slave operation
  • Single channel (Ch1) · 100 Mbit/s full duplex
  • Max 70 slaves and 8 masters per module
• Redundancy & Flexibility
  • Module redundancy: Yes (can set redundant)
  • Hot Swap: Yes
  • Line redundancy: No
• Hardware Interface
  • Connector: RJ‑45 female (8‑pin)
  • CEX‑Bus logic integrated
  • DC/DC converter powered from +24V via CEX‑Bus
• Power & Consumption
  • Supply: 24V DC via CEX‑Bus
  • Max units on CEX bus: 12
• Environment & Protection
  • Operating temp: +5 to +55 °C
  • Storage temp: -40 to +70 °C
  • Protection: IP20 · Pollution degree 2
  • Corrosion: G3 (ISA 71.04) · Marine certified
• Dimensions & Weight
  • HxWxD: 185 x 59 x 127.5 mm
  • Weight: 700 g (1.5 lb)
• Suffix breakdown (hierarchical)
  • CI – Communication Interface series
    • 867 – Modbus TCP family
      • A – Enhanced version (single 100 Mbit/s port, requires 800xA 6.0.3.3+)
        • (3BSE092689R1) – Full article number including TP867 base plate (included)

Installation & Mounting

• Mounting: Plugs onto TP867 base plate (included).
• Connection: Use standard Ethernet switch (100 Mbit/s recommended).
• CEX‑Bus: Connects to AC 800M controller via backplane.
• Hot Swap: Replace without powering down the system.

Setup, Maintenance & Diagnostics

• Configuration: Use Compact Control Builder (800xA 6.0.3.3 or later).
• Diagnostics: LED indicators for status and activity.
• Firmware: Updated via CEX‑Bus.
• Maintenance: No moving parts; minimal upkeep.

Compatibility & Certifications

• System version: Requires 800xA 6.0.3.3, 6.1.1 or later.
• Certifications: CE, UL, cULus Class 1 Zone 2, Marine (DNV-GL pending ABS/BV/LR).
• Safety: UL 61010-1, UL 61010-2-201.
• Hazardous location: UL 60079-15, Ex nA IIC T4.
• RoHS/WEEE: Compliant with 2011/65/EU and 2012/19/EU.

Package Contents & Warranty

• Includes: CI867A module, TP867 base plate.
• Warranty: 12 months against manufacturing defects.

Shipping & Delivery

• Courier options: FedEx, UPS, DHL – fast global shipping.
• Weight: 0.7 kg · securely packed.

Typical Applications

• Connecting AC 800M to PLCs, drives, and intelligent devices.
• Process automation, water treatment, power plants.
• Marine and offshore systems requiring Modbus TCP.

Diagnostic Capabilities

• LED for channel status and link activity.
• Communication statistics via Control Builder.
• Redundancy status monitoring.

Frequently Asked Questions (FAQ)

• Q: What is the main difference between CI867 and CI867A?
• A: CI867A has a single 100 Mbit/s port. The older CI867 had two ports (10 and 100 Mbit/s). CI867A also requires newer 800xA versions.
• Q: Can I use two CI867A modules for redundancy?
• A: Yes, the CI867A supports module redundancy. You can install two modules and configure them as a redundant pair.
• Q: How many Modbus slave devices can I connect?
• A: You can connect up to 70 slave devices per CI867A. Each slave is addressed via Modbus TCP.
• Q: What software version do I need to use CI867A?
• A: You need System 800xA 6.0.3.3, 6.1.1, or any later version. Older versions are not compatible.
• Q: Is the CI867A suitable for marine applications?
• A: Yes, it has DNV-GL marine certification. Approvals from ABS, BV, and LR are pending.

Buying Guide & Selection Tips

• Protocol match: Choose CI867A if your field devices speak Modbus TCP. For Profibus, choose a different module.
• Redundancy needed? If your system requires high availability, buy two CI867A modules and configure redundancy.
• Network speed: Use a 100 Mbit/s Ethernet switch for best performance. The module runs at 100 Mbit/s full duplex.
• System version check: Verify your 800xA version is 6.0.3.3 or higher before ordering.
• Environment: IP20 rated, so install in a clean cabinet. It is G3 corrosion resistant for harsh areas.
