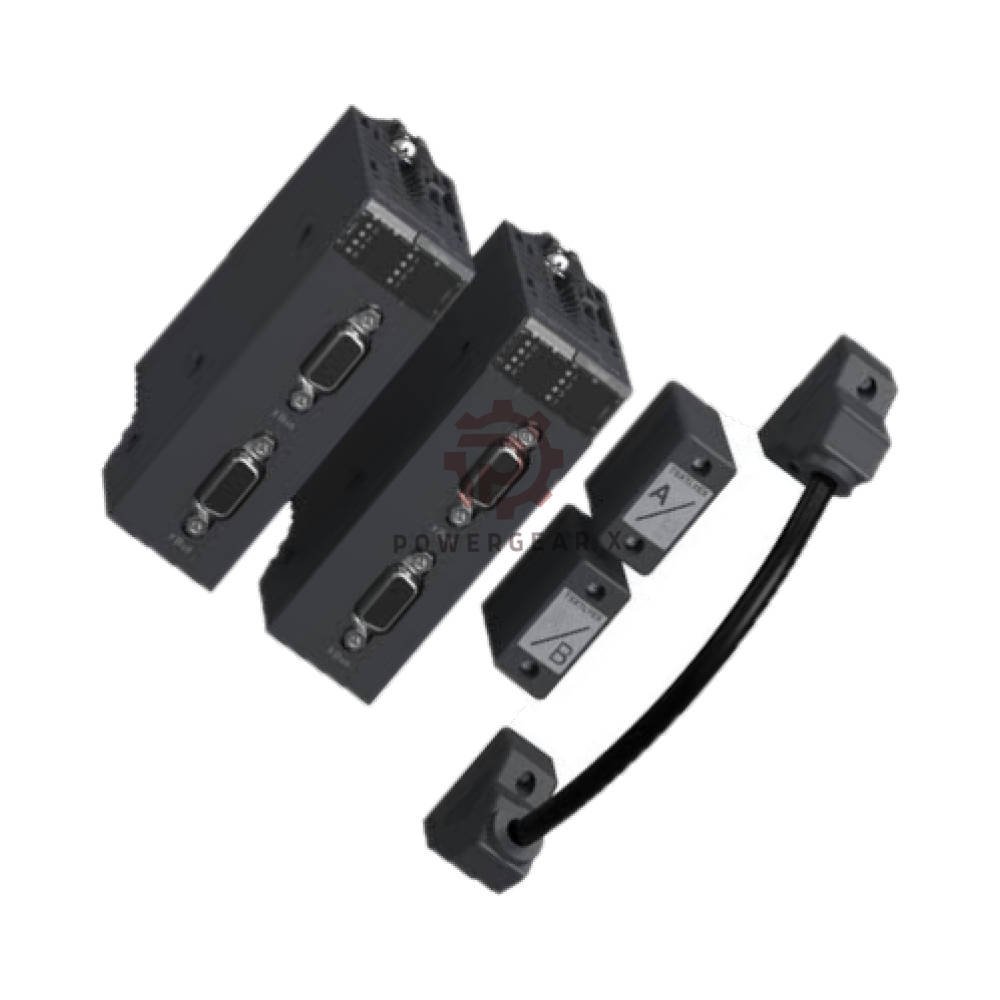

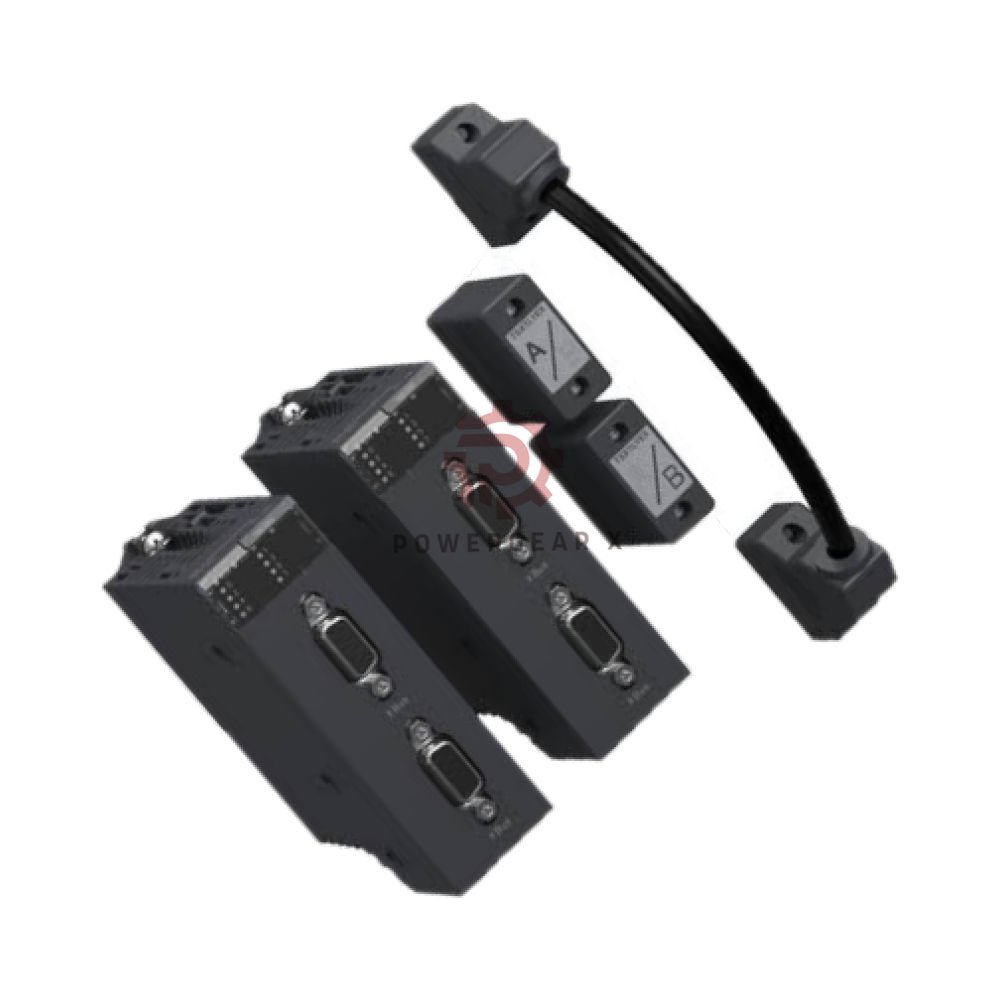

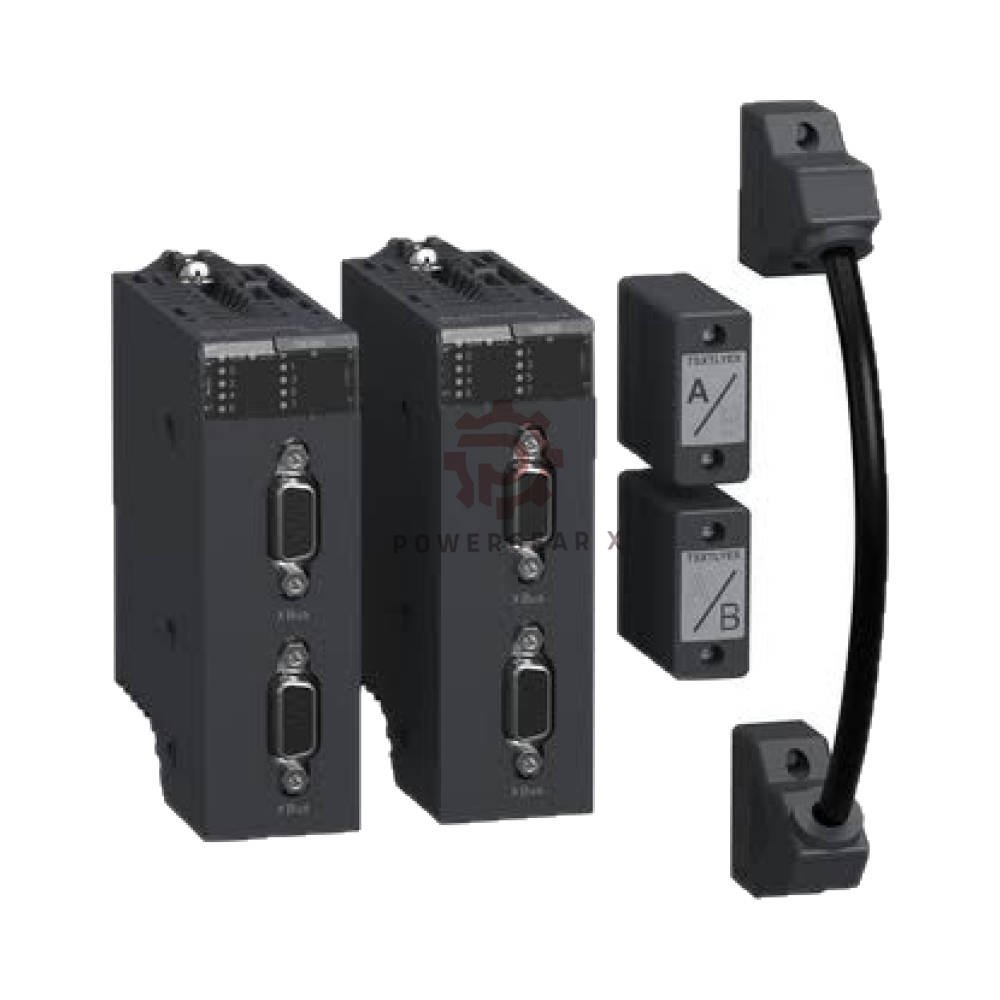

BMXXBE2005 Schneider Modicon X80 X-bus Expansion Module

Product Overview

• BMXXBE2005 is a Schneider Electric X-bus expansion module.
• It belongs to the Modicon X80 series.
• This module connects multiple racks with enhanced capability.
• It fits the right-end XBE slot.
• It supports shared I/O for M340 and M580 platforms.
• Lifecycle status: Active. Last verified: 2026-09.

Why It Matters

• Expands your control system without replacing the main rack.
• Keeps X-bus communication stable between racks.
• Saves panel space with a compact 28 mm width.
• Works in standard industrial cabinets with IP20 protection.
• Suits both new builds and existing Modicon X80 setups.

Technical Specifications

• Brand: Schneider Electric
• Model: BMXXBE2005
• Series: Modicon X80
• Type: X-bus expansion module, enhanced
• Function: X-bus connection between multiple racks
• Installation: Right-end XBE slot
• Slot occupation: 1 XBE slot
• Operating temperature: 0°C to +60°C
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 95%, non-condensing
• Protection rating: IP20
• Dimensions (H×W×D): 100 × 28 × 93 mm
• Weight: 0.12 kg
• Measurement range: Not applicable for this expansion module
• Frequency response: Not applicable for this expansion module
• Sensitivity: Not applicable for this expansion module
• Linearity: Not applicable for this expansion module
• Resolution: Not applicable for this expansion module
• Temperature range: 0°C to +60°C operating
• Environmental tolerance: Handles 5% to 95% RH, non-condensing
• Anti-interference: Designed for industrial X-bus environments

Installation Guide

• Power down the rack before you start.
• Place the module in the right-end XBE slot.
• Align the module with the rack guide rails.
• Push it in until the connector seats fully.
• Tighten the fixing screw to secure it.
• Connect the X-bus cable between racks.
• Check that all racks share the same ground.
• Power up and verify bus communication.

Commissioning and Maintenance

• Check bus status LEDs after power-up.
• Confirm each rack appears in the PLC project.
• Keep the module free from dust and moisture.
• Inspect connectors during routine shutdowns.
• Replace the module if bus errors persist.
• No special calibration is needed.
• Hot-swap only if your system design allows it.

Compatibility

• Works with Modicon M340 racks.
• Works with Modicon M580 racks.
• Fits the X80 shared I/O platform.
• Uses the X-bus backplane connection.
• Not for use with non-X80 racks.
• Check rack firmware and CPU support before use.

Certifications and Standards

• Schneider Electric product quality system applies.
• Designed for industrial control cabinet use.
• IP20 rated for indoor protected areas.
• Follow local electrical codes during installation.
• Contact us for specific certificate copies.

Packing List

• 1 × BMXXBE2005 expansion module
• 1 × protective packaging
• 1 × quick reference document
• Factory box and label

Warranty and Shipping

• Warranty: 12 months
• Dispatch: 12–24 hours
• Couriers: FedEx, UPS, DHL
• Tracking number sent after dispatch.
• Packaging protects against shock and static.
• Contact sales@powergearx.com for urgent orders.
• Call or WhatsApp +86 18030005825 for stock checks.

Expert Review

• The BMXXBE2005 is a focused X-bus expansion part.
• It does one job well: linking racks.
• Build quality matches Schneider Electric industrial standards.
• The enhanced version gives more headroom for larger systems.
• It is not a signal converter or I/O module.
• Buy it when you need reliable rack-to-rack X-bus links.
• For M340 and M580 users, it is a practical spare.

Manager’s Insight

• Keep one spare in stock for critical lines.
• This module prevents long downtime from bus faults.
• It is cost-effective compared with a full rack change.
• Order with other X80 parts to save freight.
• Confirm slot position before you order.
• Email sales@powergearx.com for bulk pricing.

Best Fit Applications

• Modicon M340 distributed control panels.
• Modicon M580 process control systems.
• Factory automation with multiple racks.
• Water treatment and pump stations.
• Power generation auxiliary controls.
• Packaging and material handling lines.
• Any X80 system needing rack expansion.

FAQ

• Q: What does this module do?
• A: It links multiple racks through the X-bus.
• Q: Which PLC platforms support it?
• A: It supports Modicon M340 and M580.
• Q: Where does it install?
• A: It fits the right-end XBE slot.
• Q: Is it an I/O module?
• A: No. It is an expansion connection module.
• Q: What is the operating temperature?
• A: It runs from 0°C to +60°C.
• Q: How many slots does it use?
• A: It uses one XBE slot.
• Q: Can I hot-swap it?
• A: Only if your system design permits it.
• Q: What is the warranty?
• A: It comes with a 12-month warranty.
• Q: How fast do you ship?
• A: Orders ship in 12–24 hours.
• Q: Which couriers do you use?
• A: We use FedEx, UPS, and DHL.
• Q: How do I choose the right expansion module?
• A: Match your rack type, slot, and bus needs.
• Q: What if I am unsure about compatibility?
• A: Send your rack model to sales@powergearx.com.
• Q: Can I get help fast?
• A: Yes. Message +86 18030005825 on WhatsApp.

Buying Guide

• Check your rack series first: M340 or M580.
• Confirm you need an XBE slot module.
• Count the racks you want to connect.
• Choose the enhanced version for larger setups.
• Order spare units for critical processes.
• Ask us for a compatibility check before payment.
• Contact sales@powergearx.com for a quote.
