Name: BMXDDO1612 Schneider Modicon X80 Discrete Output Module – 16-Channel
SKU: BMXDDO1612
Price: 234.00 USD
Availability: InStock

Product details

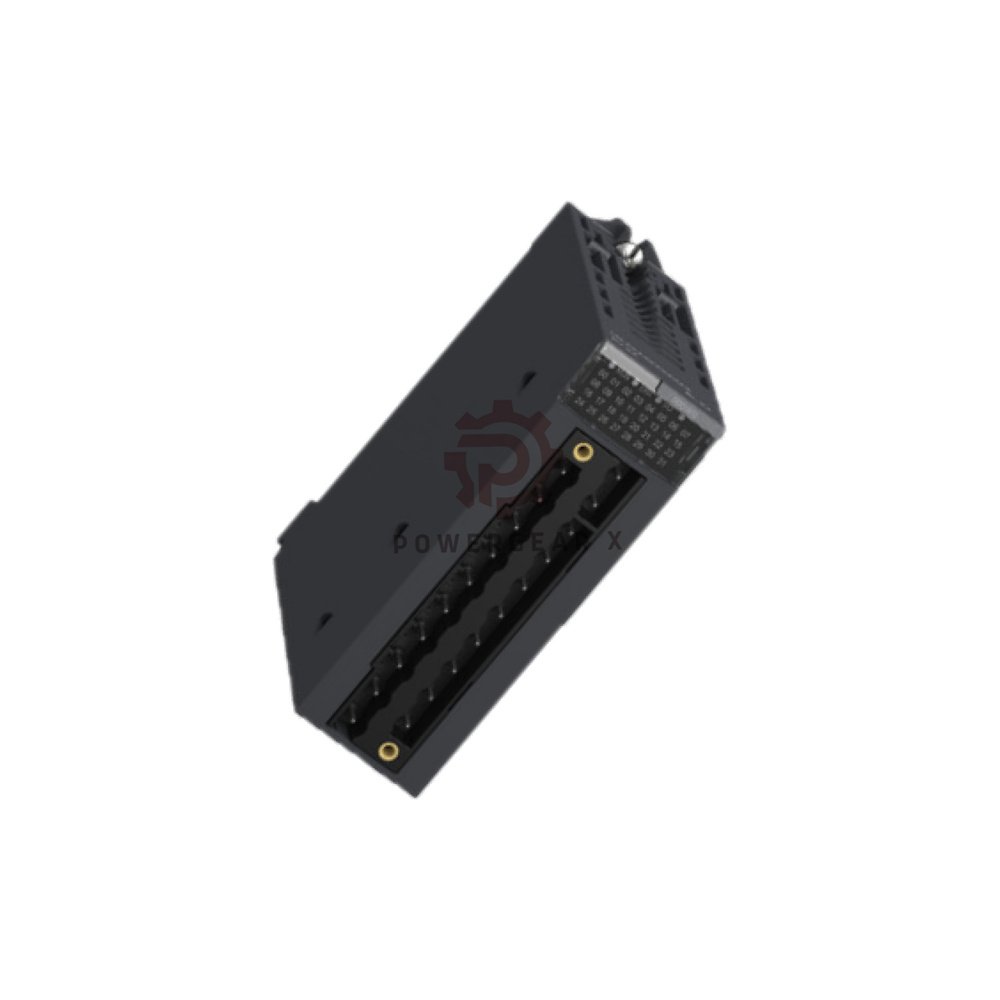

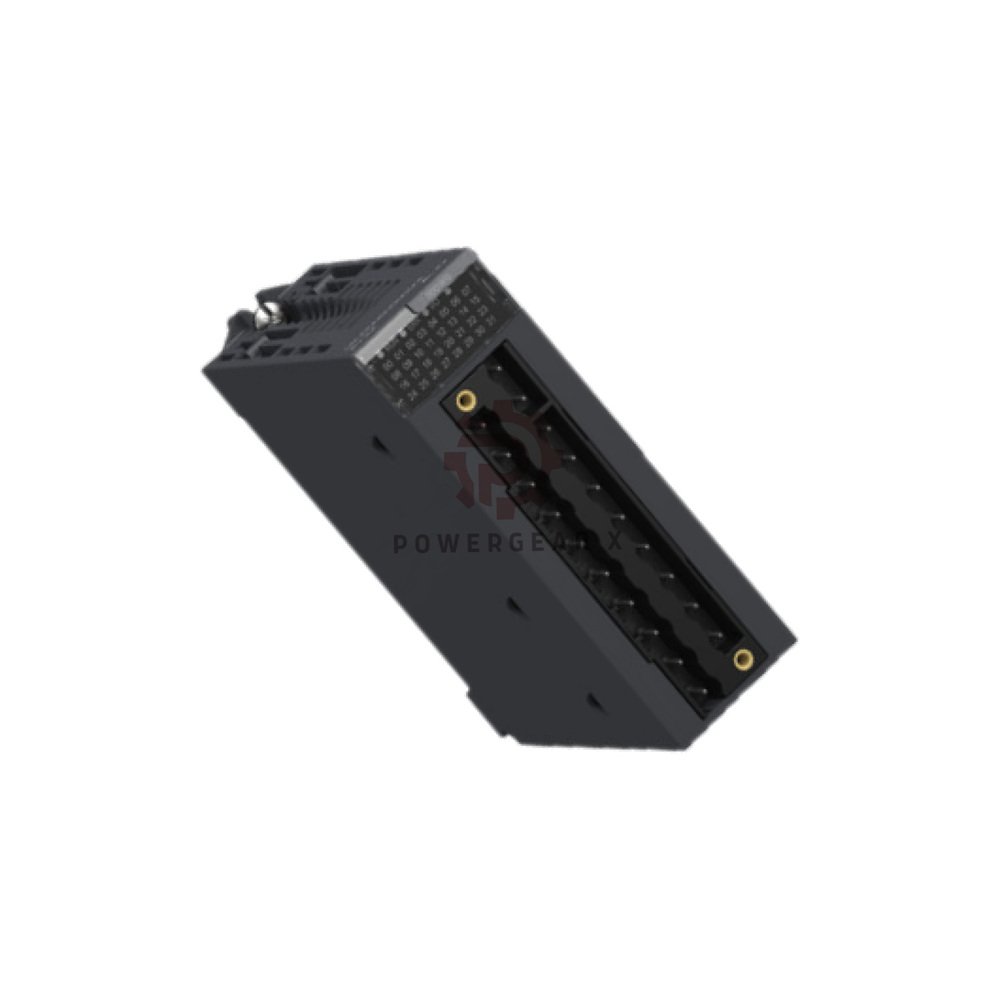

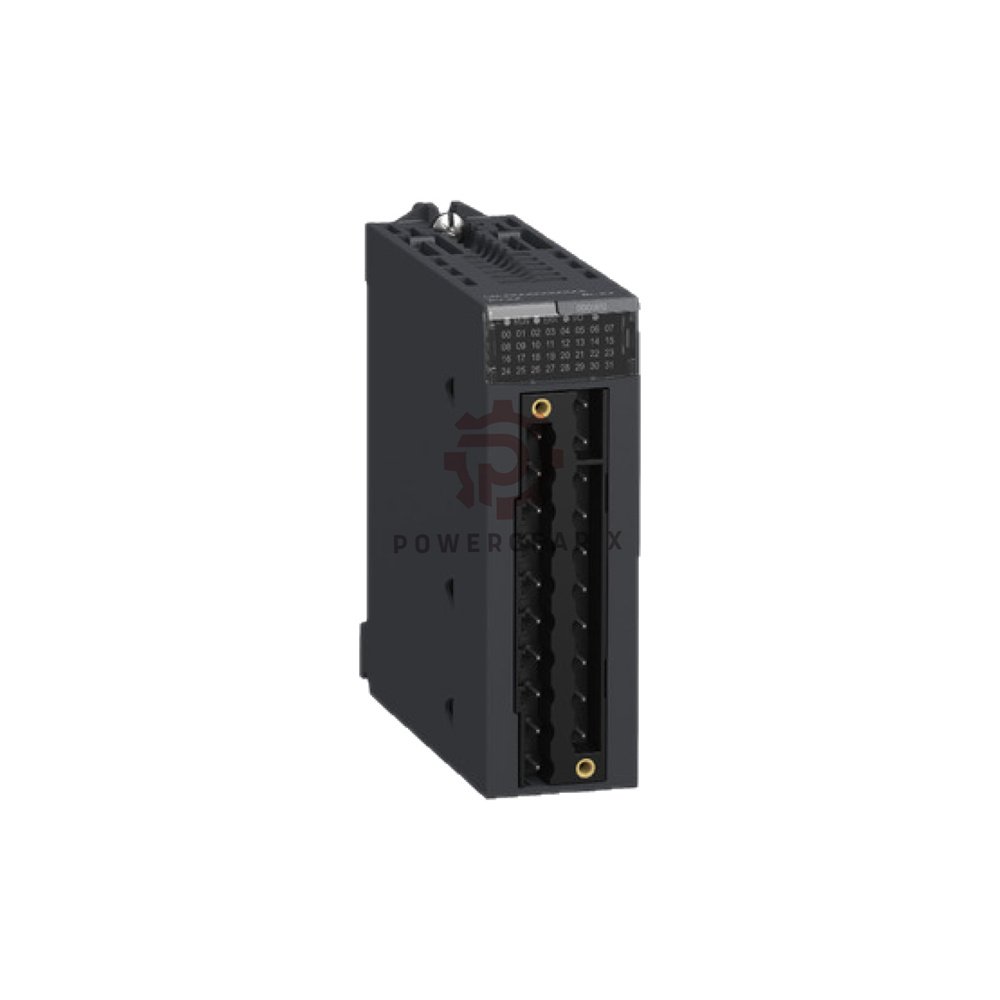

BMXDDO1612 – Schneider Electric Modicon X80 Discrete Output Module

BMXDDO1612 is a 16-channel discrete output module from Schneider Electric. It belongs to the Modicon X80 series. It uses 24 V DC transistor source outputs. This module is active and shared across M340 and M580 platforms. Last verified: 2026-09.

I/O Specifications

Channels
- 16 output channels
Signal type
- Transistor output
- Source type
Range
- 24 V DC per channel
- 0.625 A per channel
- 10 A max per module
Resolution
- Not applicable (discrete)
Accuracy
- Not applicable (discrete)
Isolation
- Output-to-logic isolation
Diagnostics
- Module status LED
- Per-channel LED
Response time
- 1.2 ms
Parallel operation
- Up to 2 channels
Connection
- 20-pin terminal block

Electrical Data

Supply voltage
- 24 V DC (field)
Power consumption
- 1.8 W
Bus current
- 75 mA at 24 V DC

Environmental Data

Operating temperature
- 0 °C to +60 °C
Storage temperature
- -25 °C to +70 °C
Relative humidity
- 5% to 95% (non-condensing)
Protection rating
- IP20

Physical Data

Dimensions (H×W×D)
- 100 × 28 × 93 mm
Weight
- 0.15 kg

Lifecycle Status

Status
- Active
- Shared I/O platform for M340 and M580
- Last verified: 2026-09

Expert Review / Manager’s Insight

Strong pick for M340 and M580 users.
16 channels cut panel space and wiring.
Source output suits many DC loads.
Per-channel LEDs speed up troubleshooting.
1.2 ms response fits most machine tasks.
Active lifecycle means easy long-term supply.

Best Devices and Applications

Modicon M340 and M580 PLCs.
Relay, lamp, and valve control.
Packaging and assembly lines.
Water and wastewater panels.
Material handling systems.
Factory retrofit jobs with 24 V DC loads.

FAQ

Q: Can I parallel two outputs for more current?
A: Yes. Up to 2 channels can work in parallel. Keep total module current under 10 A.
Q: What terminal block does it use?
A: A 20-pin terminal block. Order it separately if you do not have one.
Q: Does it work with both M340 and M580?
A: Yes. It is a shared Modicon X80 I/O module for both platforms.
Q: What warranty and shipping do you offer?
A: 12-month warranty. Ships in 12–24 hours via FedEx, UPS, or DHL.
Q: How do I choose between source and sink outputs?
A: Check your load wiring. Source outputs supply positive voltage to the load. Sink outputs pull the load to ground. Match your existing panel design.
