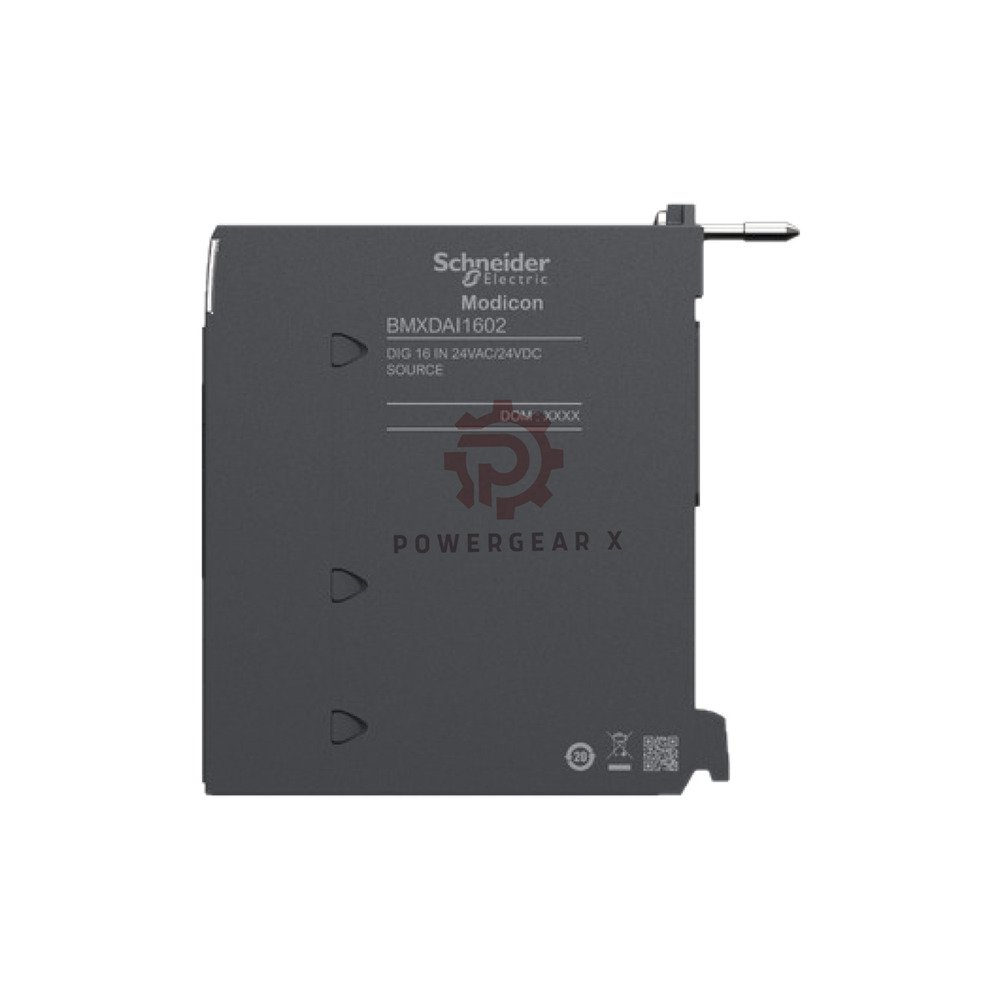

BMXDAI1602 Discrete AC Input Module by Schneider Electric | Modicon X80
BMXDAI1602 is a 16-channel discrete AC input module. It comes from Schneider Electric. It is part of the Modicon X80 series. The module reads 100-120 V AC signals. It uses a 20-pin terminal block. Group-to-group isolation protects your signals. This is an active product.
Use BMXDAI1602 to read push buttons, limit switches, and relay contacts. It fits M340 and M580 controllers. It is a shared I/O platform. That means one module works across both families. This cuts spare parts stock.
Technical Data
- Brand: Schneider Electric
- Model: BMXDAI1602
- Series: Modicon X80
- Type: Discrete AC input module
- Channels: 16
- Signal type: Discrete AC input
- Range: 100-120 V AC
- Resolution: Not applicable (discrete)
- Accuracy: Not applicable (discrete)
- Isolation: Group-to-group
- Diagnostics: Module status LED
- Connection: 20-pin terminal block
- Supply voltage (field): 100-120 V AC
- Power consumption: 2.4 W
- Bus current: 100 mA @ 24 V DC
- Operating temperature: 0 to +60 °C
- Storage temperature: -25 to +70 °C
- Relative humidity: 5% to 95% (non-condensing)
- Protection rating: IP20
- Dimensions (H×W×D): 100 × 28 × 93 mm
- Weight: 0.15 kg
- Lifecycle: Active
- Last verified: September 2026
Platform Tree
- Modicon X80 shared I/O
- M340 controller
- Discrete AC input
- M580 controller
- Discrete AC input
- 20-pin terminal block
- Fast wiring
- Group-to-group isolation
- Noise blocking
- M340 controller
Expert Review
The BMXDAI1602 fills a clear gap. Many panels still use 120 V AC control circuits. This module reads those signals without extra relays. Sixteen channels in a 28 mm body is dense. Group-to-group isolation stops cross-talk. The 20-pin block speeds up wiring. The status LED helps with quick checks. It draws only 2.4 W. That keeps heat low. For M340 and M580 users, it is a smart pick. If your site runs 24 V DC logic, choose a DC input module instead. For AC control voltage, this one works well.
Manager’s Insight
Stock BMXDAI1602 for M340 and M580 service teams. One module covers two PLC families. That lowers your stock count. It sells well to plants with older AC control panels. The 12-month warranty and 24-hour dispatch help win urgent orders. Bundle it with a 20-pin terminal block. Customers often forget the block. Offer a kit to boost order value. It is an active part, so demand stays steady. Keep a few units on the shelf.
Best Uses and Equipment
- Modicon M340 control racks.
- Modicon M580 process systems.
- Push button panels.
- Limit switch circuits.
- Relay contact monitoring.
- AC pilot device feedback.
- Water treatment plants.
- Food and beverage lines.
- Legacy AC control cabinets.
- Machine retrofit projects.
FAQ
Q: What voltage does this module read?
A: It reads 100 to 120 V AC signals. Do not feed it 24 V DC.
Q: How many inputs does it have?
A: It has 16 discrete input channels. They are grouped for isolation.
Q: Does it work with both M340 and M580?
A: Yes. It is a shared Modicon X80 I/O module. Both families accept it.
Q: What connector do I need?
A: You need a 20-pin terminal block. It is not always included. Check before you buy.
Q: My panel uses 24 V DC. Can I still use this?
A: No. Pick a DC input module instead. This one is for AC only.
Q: What warranty and shipping do you offer?
A: We give a 12-month warranty. Orders leave in 12 to 24 hours. We ship by FedEx, UPS, and DHL.
Q: How do I order or ask about stock?
A: Email sales@powergearx.com or message us on WhatsApp at +86 18030005825.
