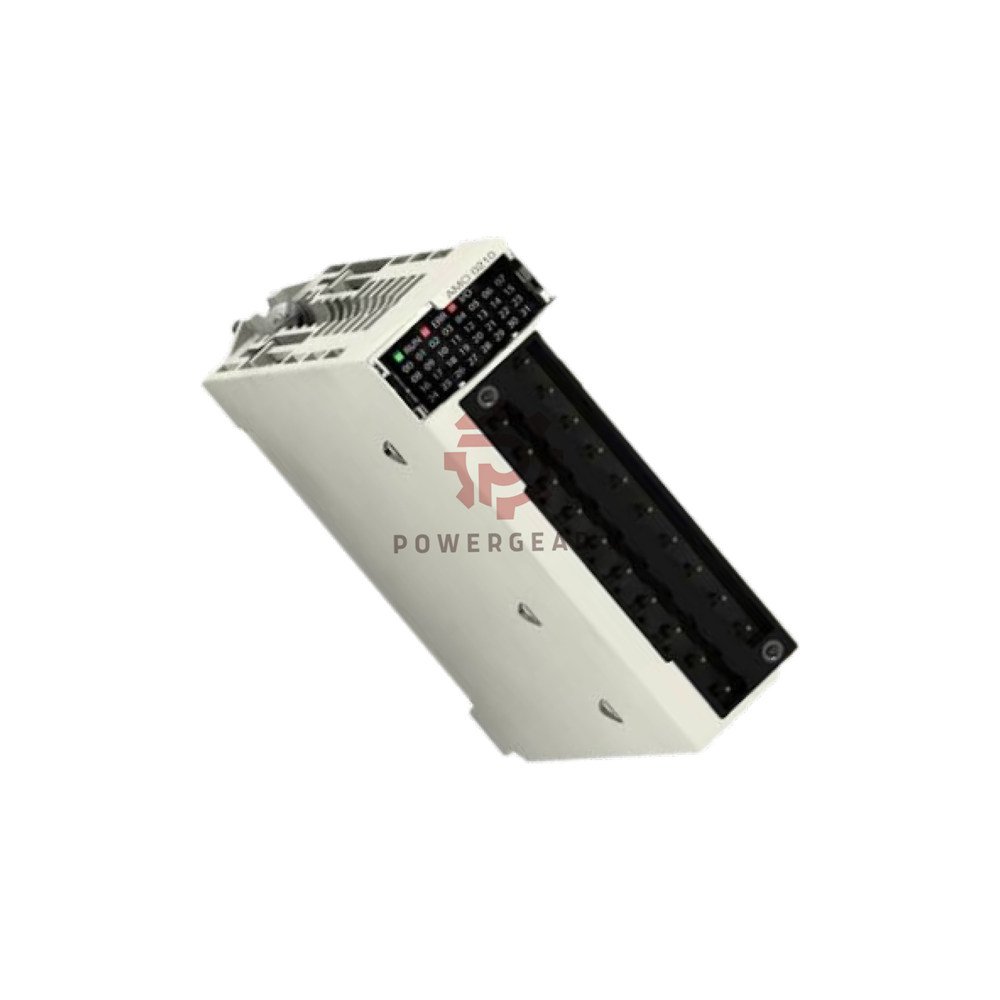

BMXAMI0810 Schneider Modicon X80 8-Channel Analog Input Module

BMXAMI0810 Schneider Modicon X80 Analog Input Module

• BMXAMI0810 is an 8-channel analog input module from Schneider Electric.
• It belongs to the Modicon X80 series.
• This module reads voltage and current signals at high speed.
• Each channel is isolated for stable, clean measurement.
• It fits both M340 and M580 control systems.
• Use it for fast, accurate process data acquisition.

Key Highlights

• 8 input channels in one compact module.
  • Voltage: ±10 V, ±5 V, 0-10 V, 0-5 V, 1-5 V.
  • Current: ±20 mA, 0-20 mA, 4-20 mA.
• 16-bit resolution with sign for fine detail.
  • 15-bit plus sign.
  • Accuracy ≤ 0.1% full scale.
• Channel-to-channel isolation blocks noise.
  • 300 V DC between channels.
  • 1400 V DC channel to ground.
• Fast conversion keeps scans tight.
  • 1 ms + 1 ms per channel.
  • About 9 ms for all 8 channels.
• High reliability with 900,000 h MTBF.
• Active lifecycle on a shared M340 and M580 platform.

Technical Data

• Brand: Schneider Electric
  • Model: BMXAMI0810
  • Series: Modicon X80
  • Type: Analog input module, high speed, isolated
• Input channels: 8
  • Signal ranges: ±10 V, ±5 V, 0-10 V, 0-5 V, 1-5 V
  • Current ranges: ±20 mA, 0-20 mA, 4-20 mA
  • Resolution: 16-bit, 15-bit plus sign
  • Accuracy: ≤ 0.1% full scale
• Isolation:
  • 300 V DC channel to channel
  • 1400 V DC channel to ground
• Conversion time:
  • 1 ms plus 1 ms per channel
  • 9 ms for 8 channels
• Input impedance:
  • 10 MΩ for voltage
  • 250 Ω for current
• Temperature drift:
  • 30 ppm/°C for voltage
  • 50 ppm/°C for current
• Diagnostics:
  • Module status LED
  • Per-channel status
• Connection: 20-pin terminal block
• MTBF: 900,000 h

Electrical Data

• Supply voltage: 24 V DC via backplane
  • Power use: 1.06 W at 24 V
  • Power use: 0.32 W at 3.3 V
  • Bus current: 130 mA at 24 V DC

Environment and Physical

• Operating temperature: 0°C to +60°C
• Storage temperature: -25°C to +70°C
• Humidity: 5% to 95%, non-condensing
• Protection: IP20
• Size: 100 × 28 × 93 mm
• Weight: 0.165 kg
• Lifecycle: Active, last verified 2026-09

Installation Guide

• Mount the module on a Modicon X80 rack.
• Keep the cabinet within 0°C to +60°C.
• Use 24 V DC from the backplane.
• Wire signals to the 20-pin terminal block.
• Use shielded cable for analog lines.
• Ground the shield at one end only.
• Keep analog wires away from power cables.
• Check the module LED after power-up.

Setup and Maintenance

• Set each channel range in the programming software.
• Match the range to your sensor output.
• Use 4-20 mA for long cable runs.
• Use voltage input for short, clean runs.
• Check per-channel status during commissioning.
• Log drift values during planned checks.
• Replace the terminal block only with power off.
• Keep a spare module for critical lines.

Compatibility Notes

• Works with Modicon M340 racks.
• Works with Modicon M580 racks.
• Fits the shared X80 I/O platform.
• Pairs with X80 analog output modules.
• Uses standard 20-pin terminal blocks.
• No extra power supply is needed.
• Runs in the same rack as digital I/O.

Certifications and Warranty

• Built for industrial automation use.
• IP20 rating for cabinet install.
• Meets Schneider Electric quality rules.
• Warranty: 12 months.
• Dispatch: 12 to 24 hours.
• Couriers: FedEx, UPS, DHL.

Packing List

• 1 × BMXAMI0810 analog input module.
• 1 × Documentation set.
• 1 × ESD-safe factory box.
• Terminal block may ship separately. Please ask first.

Expert Review

• The BMXAMI0810 is a solid 8-channel analog input card.
• Isolation per channel is a big plus in noisy plants.
• 16-bit resolution suits most process loops.
• 9 ms full-module scan time is fast enough for many tasks.
• Multi-range setup cuts spare-part variety.
• It is not the cheapest X80 analog card.
• But it saves time when channels need true isolation.
• Best value for mixed voltage and current sensors.

Manager’s Insight

• Buy this module when channel isolation matters.
• It fits plants that already run M340 or M580.
• Use one part number for many signal types.
• This lowers stock and training cost.
• Check channel count before you order.
• Keep one spare in the cabinet.
• Plan wiring and shielding before install.
• Confirm stock with us for fast delivery.

Best Fit Devices and Applications

• Pressure and flow transmitters.
• Temperature sensors with 4-20 mA output.
• Level probes and load cells.
• Valve position feedback.
• Water and wastewater plants.
• Food and beverage lines.
• Chemical and pharmaceutical process skids.
• Machine builders using M340 or M580 racks.
• Test benches with mixed voltage and current signals.

FAQ

• Q: Can I mix voltage and current channels on one module?
• A: Yes. You set the range per channel in software.
• Q: Do I need an external power supply?
• A: No. The module draws 24 V DC from the backplane.
• Q: How do I pick between 4-20 mA and 0-10 V?
• A: Use 4-20 mA for long runs and noisy areas.
• Q: What should I check before buying?
• A: Check channel count, signal type, and rack type.
• Q: How fast can you ship, and what is covered?
• A: We dispatch in 12 to 24 hours by FedEx, UPS, or DHL. Warranty is 12 months.

Buying Guide

• Count your analog points first.
• List each signal type and range.
• Check if you need channel isolation.
• Confirm your rack is M340 or M580.
• Order the 20-pin terminal block if not included.
• Ask us for stock and lead time.
