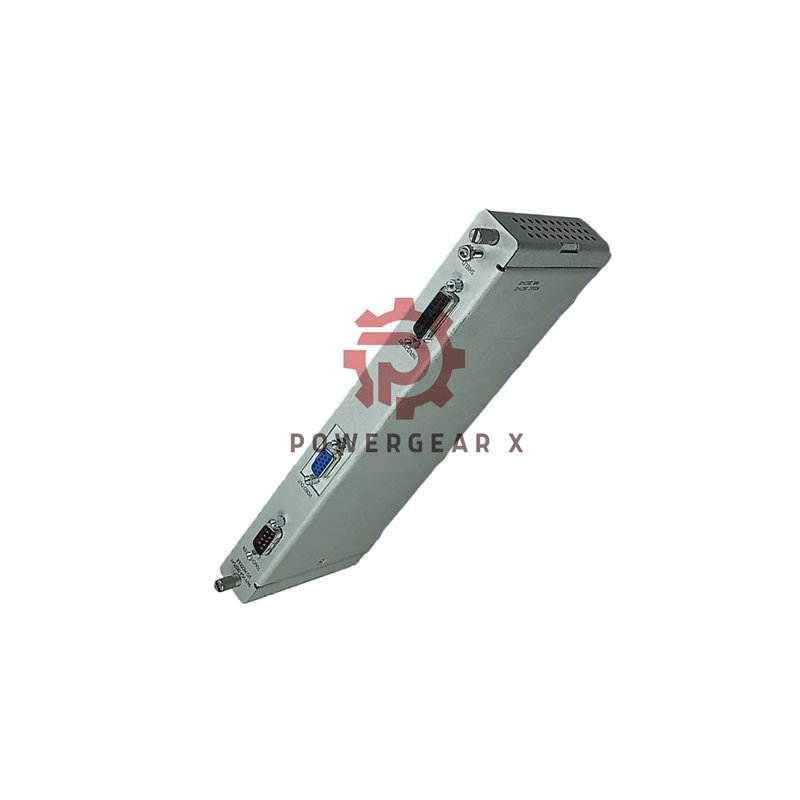

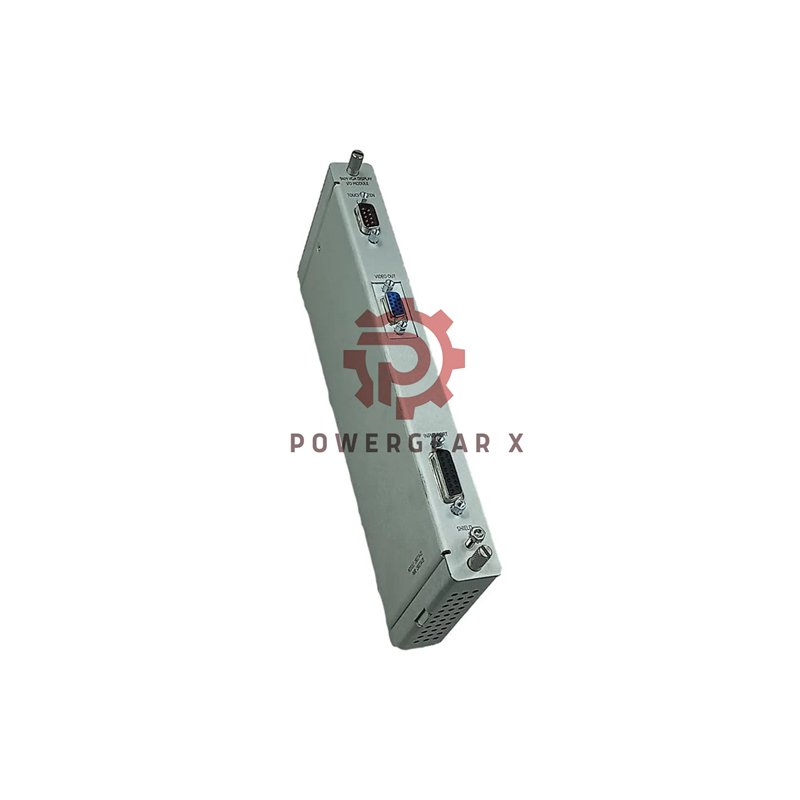

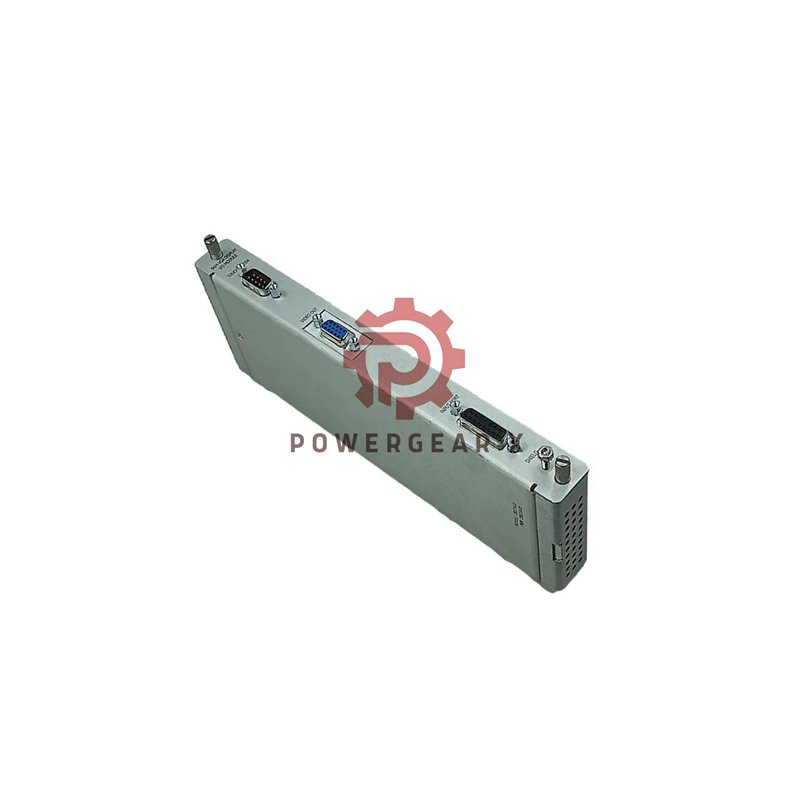

Bently Nevada 3500/94M 190214-01 Normal I/O Module

Bently Nevada 3500/94M 190214-01 Normal I/O Module

Bently Nevada 3500/94M 190214-01 Normal I/O Module provides fast data transfer, low power use, and stable communication. Designed for long-term reliability in industrial systems with 12-month factory warranty.

• Manufacturer: Bently Nevada
• Model: 3500/94M Normal I/O Module
• Part Number: 190214-01
• Condition: New & Original, factory sealed
• Warranty: 12 months

Main Performance

• Power Use: 4.6 W max ensures efficient operation
• Input: RS232 port for touch controller data
• Output: 24 Vdc power, VGA signal, and touch input
• Network: High-speed communication for monitoring data
• Indicators: OK LED and TX/RX LED for module health and communication

Technical Data

• Operating Temp: -20°C to 65°C (-22°F to 149°F)
• Storage Temp: -40°C to 85°C (-40°F to 185°F)
• Humidity: 95% non-condensing
• Dimensions (H×W×D): 241.3 × 24.4 × 99.1 mm (9.5 × 0.96 × 3.9 in)
• Weight: 0.34 kg (0.75 lb)
• Rack Space: 1 full-height rear slot

Suffix Details

• 3500/94M – Normal I/O Module
• 190214-01 – Standard configuration
• CN – Country-specific option (if required)

Product Highlights

• Designed for harsh environments and 24/7 operation
• Compact rear-slot design saves panel space
• Stable VGA signal for precise display output
• Simple LED feedback for real-time diagnostics
• Low power draw reduces system heat load

Shipping Options

• Worldwide delivery via FedEx, UPS, or DHL
• All products shipped in original factory packaging
• Quick dispatch and traceable tracking provided

FAQ

• Q: How do I install the 3500/94M 190214-01 module?
• A: Slide it into the rear rack slot until locked and secure, then connect cables.
• Q: Can this module be used with older 3500 systems?
• A: Yes, it supports backward compatibility with the same firmware generation.
• Q: What does the TX/RX LED indicate?
• A: It shows active communication between system modules during data transfer.
• Q: What are the best conditions for long-term use?
• A: Keep temperature stable and humidity below 95% to extend service life.
• Q: How should the module be stored before use?
• A: Store in dry areas between -40°C and 85°C in original packaging.
