Product details

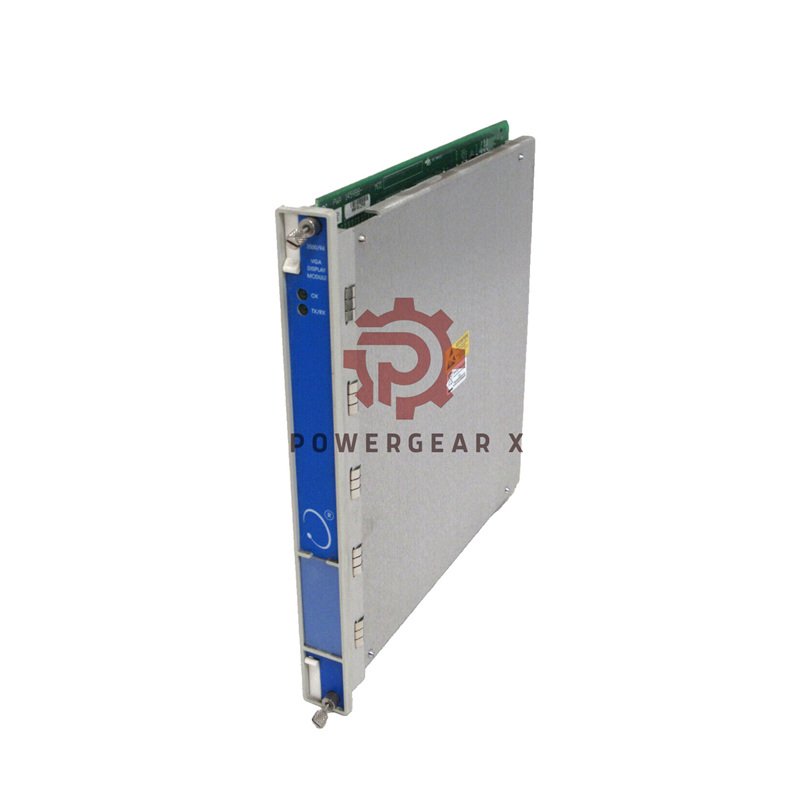

Bently Nevada 3500/94M-07-00-00 VGA Display Module
- Manufacturer: Bently Nevada
- Product No.: 3500/94M-07-00-00
- Product Type: VGA Display Module
- Origin: Made in U.S.A
- Condition: New & Original Factory Packing
- Warranty: 12 Months
- Shipping: FedEx / UPS / DHL Worldwide Delivery
Technical Details
- Display & Mounting: 07 = Router box, no display
- KVM Extender & Router Cables: 00 = None
- Agency Approval: 00 = None
Electrical Specifications
- Power Input: +24 Vdc ±6%
- Power Range: 22.5 – 25.5 Vdc
- Power Consumption: 4.7 W max
- Inputs: 4 × VGA video, 4 × RS232 touch control data
- Outputs: 1 × VGA video, 1 × RS232 touch control data
- Status LED: OK LED indicates proper operation
Ordering Guidance
- Each rack requires a 3500/94M VGA module and I/O card.
- To connect multiple racks with one display:
- 1st Rack: Router box + router cable (P/N 3500/94M-07-12-XX)
- 2nd Rack: Display + router cable (P/N 3500/94M-02~06-12-XX)
- 3rd & 4th Racks: Router cables only (P/N 3500/94M-00-12-XX)
- Use option 3500/94MAA-07 for Display Router Box orders.
Key Features
- Reliable VGA signal management for multi-rack systems
- Simple RS232 data routing for touch control synchronization
- Low 4.7 W power draw ensures energy efficiency
- LED indicators simplify system status checks
- Designed for long-term industrial use with easy installation
FAQ
- Q: What does the “07” suffix mean in 3500/94M-07-00-00?A: It identifies the version with a router box but no display.
- Q: Can I connect more than two racks with one display?A: Yes, use 3500/94M-00-12-XX router cables for each additional rack.
- Q: What is the required power input for the router box?A: The module operates at +24 Vdc ±6%, with 4.7 watts maximum draw.
- Q: How do I know if the module is functioning properly?A: The front OK LED confirms normal operation status.
- Q: Do you provide global shipping and support?A: Yes, we ship worldwide via FedEx, UPS, and DHL. Support is available at
sales@powergearx.com or
+86 18030005825.
