Product details
Long-Case Vibration Probe for Deep Applications

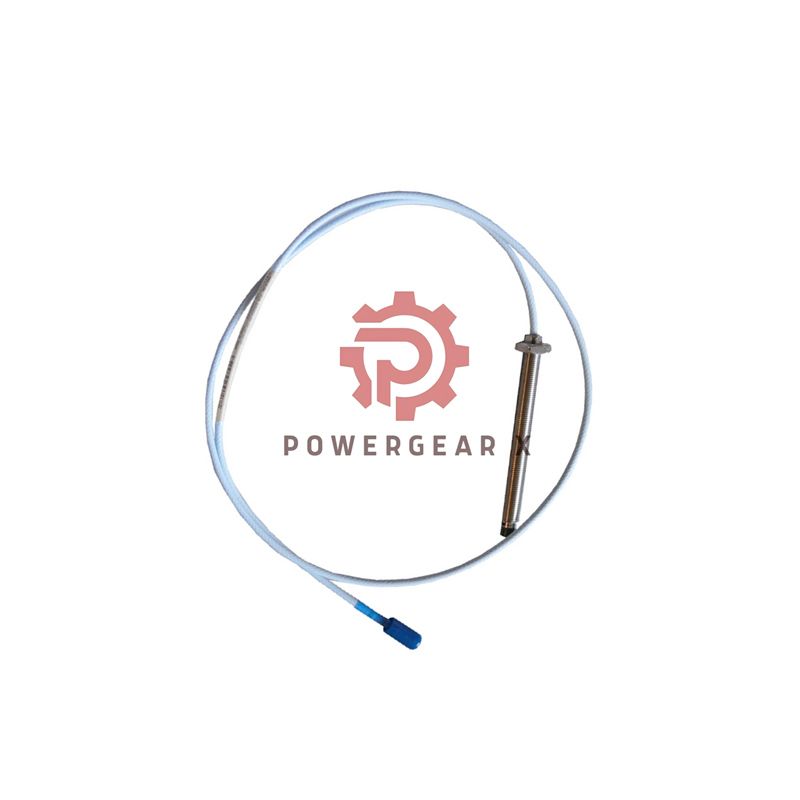

Introducing the Bently Nevada 330901-00-40-10-02-00. This is a 3300 NSv series probe with a 4-inch case. It is fully threaded for deep mounting holes. It provides stable vibration measurement. This model is for standard industrial environments.
Product Quick Facts
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Your Model Code: 330901-00-40-10-02-00
Decode Your Part Number
- Core Product (330901)Identifies: 3300 NSv Probe, 1/4-28 UNF Thread, Basic Version.
- Your Custom Build Details
- Suffix -00: Unthreaded Length = 0.0 Inch (Fully Threaded)
- Suffix -40: Overall Case Length = 4.0 Inches
- Suffix -10: Attached Cable = 1.0 Meter
- Suffix -02: Connection = ClickLoc, Standard Cable
- Suffix -00: Safety Approvals = Not Required / None
Key Technical Data
- Thread Standard: 1/4-28 UNF (Unified Fine Thread).
- Case Length: 4.0 inches (101.6 mm).
- Thread Engagement: Do not exceed 0.563 inches.
- Installation Torque: Apply 100 in-lb (11.3 N•m) maximum.
- Construction: 304 Stainless Steel body with PPS tip.
- Cable Type: 75 Ohm coaxial with FEP insulation.
- Electrical Value: DC Resistance is 4.2 Ohms ± 0.5.
- Operating Temp: Wide range from -52°C to +177°C.
- Internal Seal: Viton O-ring. Not pressure tested.
Important Application Note
This 330901-00-40-10-02-00 has suffix ‘-00‘ for approvals. It is not certified for hazardous locations. Use only in non-explosive, standard factory areas.
Frequently Asked Questions
Configuration & Use Case
Q: What does “00” unthreaded length mean for installation?
A: It means the entire 4-inch case is threaded. There is no smooth section. It is designed to screw directly into a deep, tapped hole.
Q: When should I choose this 4-inch long probe?
A: Select this model when you need to mount through a thick bracket, insulation jacket, or deep machine casing to reach the measurement point.
Technical Specifications
Q: What is the maximum depth I can screw this probe in?
A: The maximum thread engagement is 0.563 inches (about 14.3mm). Even with a 4-inch case, do not screw it in more than this limit.
Q: Can this probe handle high temperatures?
A: Yes. Its standard operating range goes up to +177°C (350°F). This suits most industrial machinery like pumps and motors.
Purchasing & Support
Q: What is covered when I buy the 330901-00-40-10-02-00?
A: You receive the probe, full technical specs, and a 12-month warranty. We ship worldwide using reliable partners like FedEx, UPS, and DHL.
Package & Service Commitment
- Delivery Contents: One Bently Nevada 3300 NSv long-case probe.
- Quality Assurance: Protected by a 12-month manufacturer’s warranty.
- Shipping Options: Express delivery available via FedEx, UPS, and DHL.
- Order Fulfillment: We aim for fast processing and dispatch.
