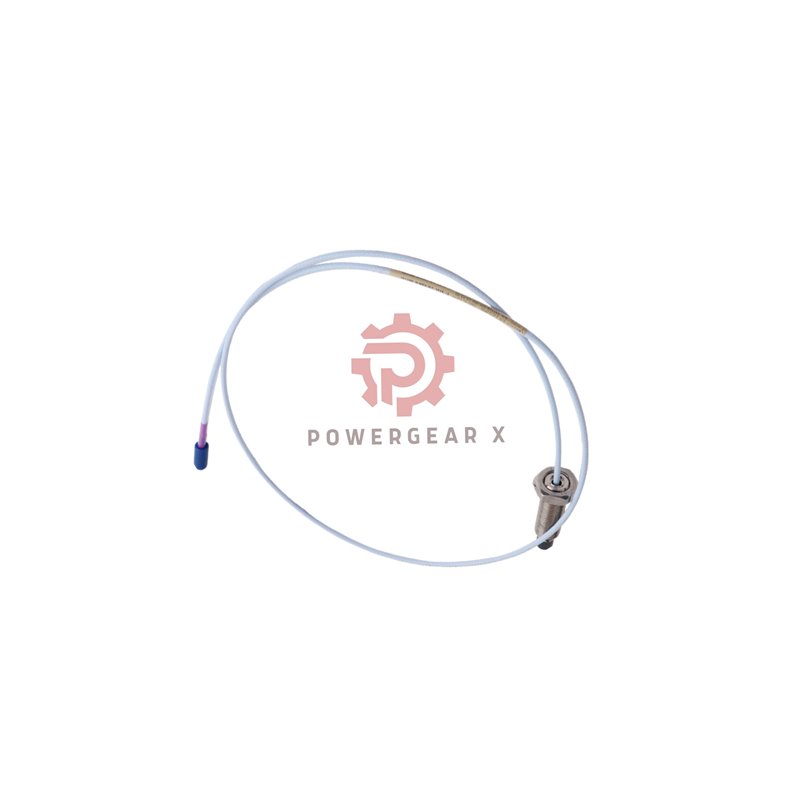

Economical Long-Reach Vibration Monitoring Probe
This Bently Nevada probe provides extended reach at a standard configuration price. The 330709-000-230-50-02-00 combines a 230mm long case with standard 5-meter cable. It is designed for deep penetration applications in non-hazardous industrial environments. Offers reliable performance without extra certification costs.
Cost-Effective Long Probe Solution
- Extended Accessibility: 230mm housing reaches through thick insulation and deep mounting points.
- Standard Industrial Cable: 5.0 meters of reliable FEP cable suitable for most factory environments.
- Simple Connection: ClickLoc connector ensures quick and secure mating with monitoring systems.
- Durable Construction: Full stainless steel body provides strength and corrosion resistance.
- Broad Temperature Compatibility: Operates from -52°C to +177°C in various conditions.
Complete Product Configuration
- Brand: Bently Nevada
- Series: 3300 XL 11mm Proximity Probes
- Full Model Structure: 330709-000-230-50-02-00
- ▷ 330709: 11mm Probe, M16x1.5 Thread
- ▷ 000: Zero Unthreaded Length
- ▷ 230: Extra-Long Case = 230 mm
- ▷ 50: Cable Length = 5.0 Meters
- ▷ 02: ClickLoc Connector, Standard Cable
- ▷ 00: No Special Certifications Required
- Technical Specifications
- Electrical Resistance: 7.2 ± 0.8 Ohms
- Cable Type: 75Ω Triaxial, FEP Insulated
- Minimum Target: 30.5 mm Flat Surface
- Recommended Shaft: 152 mm Diameter Minimum
- Mechanical Installation Data
- Mounting Thread: M16 x 1.5
- Maximum Thread Depth: 24 mm
- Installation Torque: 21.1 N•m (187 in-lb)
- Cable Bend Radius: Minimum 25.4 mm
- Storage Limit: Protect from temperatures below -34°C
Installation Best Practices
Mounting Preparation: Ensure the mounting hole is straight and clean. The long housing requires proper alignment.
Cable Routing: Plan the 5-meter cable route to avoid sharp edges and heat sources. Use cable ties for secure management.
System Compatibility: Connect only to 5-meter 3300 XL Proximitor systems for accurate calibration.
Purchase & Support Information
- Warranty Coverage: Full 12-month manufacturer warranty against defects.
- Shipping Options: Fast delivery available via FedEx, UPS, and DHL worldwide services.
- Environmental Suitability: Rated for EPL Ga/Gc and EPL Dc temperature classifications.
Application-Specific FAQs
- What applications use this long probe without certifications?The 330709-000-230-50-02-00 is ideal for power generation plants, water treatment facilities, and manufacturing plants where deep penetration is needed but hazardous area certifications are not required.
- What is the main advantage of option “02” connector?Option “02” provides the standard ClickLoc connector without a protective cap. This reduces cost while maintaining reliable electrical connection in controlled environments.
- Can this probe be used in outdoor applications?The standard FEP cable offers basic environmental protection. For permanent outdoor exposure, consider additional conduit or protective sleeving for the cable run.
- How does installation differ from standard length probes?The 230mm length requires careful handling. Installers should support the probe body during insertion to prevent bending. Ensure the mounting thread area (first 24mm) is properly engaged.
- What if my application needs a smaller diameter probe?For applications with shafts smaller than 152mm diameter, the long 11mm probe may not be optimal. Consider long-case options in the Bently Nevada 3300 XL 8mm Proximity Probe series for better accuracy on smaller shafts.
