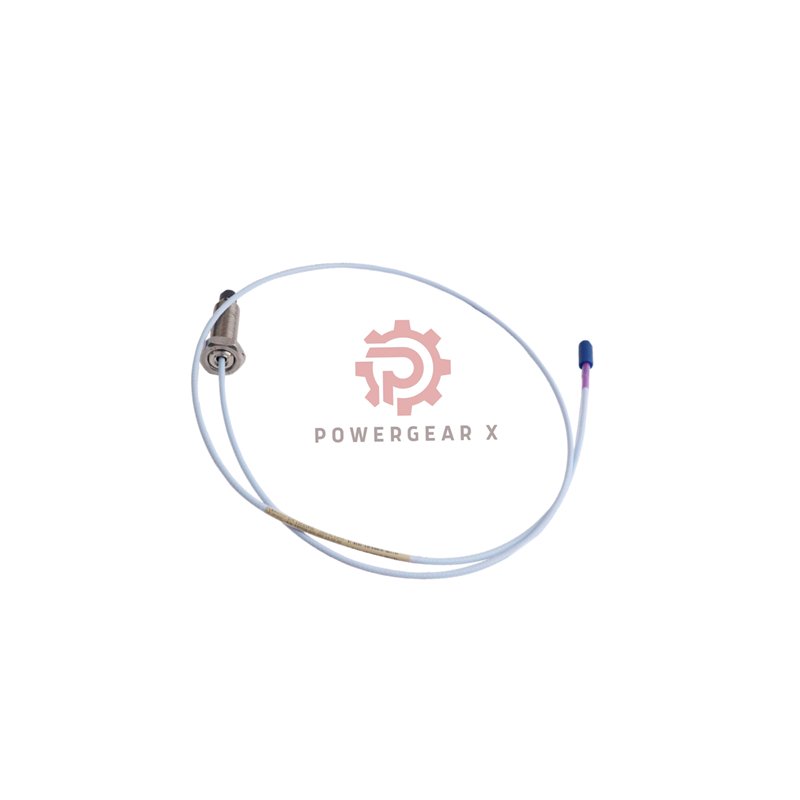

Bently Nevada 330709-000-050-10-12-05 Proximity Probe | M16x1.5 Thread

Heavy-Duty Thread, Premium Performance: 330709-000-050-10-12-05

This Bently Nevada 3300 XL probe is built for the largest industrial applications. It features a robust M16 x 1.5 mm thread for secure mounting. The probe is new, original, and made in the USA. It includes a FluidLoc cable and multiple global approvals, backed by a 12-month warranty.

Designed for Large-Scale Machinery

• Largest Standard Thread: M16 x 1.5 mm for ultimate mounting security in heavy equipment.
• Fluid-Resistant Cable: Premium FluidLoc triaxial cable for harsh environment reliability.
• Global Project Certified: Holds Multiple Approvals (-05) for worldwide compliance.
• Optimized for Large Shafts: Recommended for shafts with a minimum 152 mm (6 inch) diameter.
• Superior Signal Integrity: Excellent immunity to electromagnetic and crosstalk interference.

Complete Technical Specifications

Product & Certification Details

• Brand: Bently Nevada
• Full Part Number: 330709-000-050-10-12-05
• Series: 3300 XL 11 mm Proximity Probes
• Origin: Made in U.S.A.
• Approvals: Multiple Agency Approvals (-05)

Mechanical Configuration

• Mounting Thread: M16 x 1.5 mm
• Case Length: 50.0 mm
• Thread Engagement: Maximum 24 mm
• Cable Length & Type: 1.0 meter FluidLoc Triaxial Cable
• Connector: Miniature Coaxial ClickLoc
• Mounting Torque: Recommended 21.1 N·m (187 in-lb)

Electrical & Target Specifications

• Probe DC Resistance: 5.9 ± 0.5 Ohms
• Recommended Target Size: Flat surface min. 30.5 mm (1.2 in) diameter.
• Recommended Shaft Size: For axial measurement, min. 152 mm (6.0 in) diameter.
• Crosstalk Limitation: Designed to minimize interference from adjacent probes on large machinery.

Environmental & Durability Ratings

• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Humidity Rating: 100% condensing (non-submersible).
• Materials: 304 SST Case, PPS Tip, Viton Seal.
• Cable Bend Radius: Minimum 25.4 mm (1.0 in).
• Seal Note: Avoid prolonged exposure below -34°C (-29°F) for pressure seal.

Package & Warranty

• One (1) Bently Nevada 330709-000-050-10-12-05 proximity probe.
• Original factory packaging and compliance documentation.
• 12-Month Manufacturer Warranty.
• Express global shipping via FedEx, UPS, or DHL.

Primary Application

This probe is specifically engineered for large rotating equipment like heavy-duty gas turbines, large steam turbines, and major centrifugal compressors. The M16 thread provides a robust mechanical connection, while the specifications ensure accurate vibration measurement on large-diameter shafts.

Expert FAQs

Q: What is the main reason to choose an M16 thread over an M14 thread?

A> The M16 x 1.5 mm thread is larger and stronger. It is used on the biggest, most critical machinery where maximum mechanical security and resistance to vibration loosening are essential. Always follow your machine’s original design specifications.

Q: Why are the recommended target and shaft sizes so large for this probe?

A> The 11mm probe tip has a larger electromagnetic field. To ensure accurate, linear output and to minimize “crosstalk” from nearby probes, it requires a larger target area. Using it on small shafts can change the scale factor and cause measurement errors.

Q: Can I use this probe on a shaft that is smaller than 152mm (6 inches)?

A> It is not recommended for axial position measurement on small shafts. The output may be non-linear. For radial vibration on smaller shafts, consult the technical manual’s “Target Effect” curves, but performance is not guaranteed.

Q: What is the advantage of the FluidLoc cable in this configuration?

A> On large critical machinery, cable reliability is paramount. The FluidLoc cable offers enhanced protection against moisture and chemical ingress over the long term, which is crucial for maintenance intervals and overall system uptime.

Q: How quickly can you ship this model and what are the payment terms?

A> The 330709-000-050-10-12-05 is typically available for quick shipment. We accept major credit cards and bank transfers. For confirmed stock status and to arrange expedited air freight via DHL/FedEx, please contact our sales team directly.

Need to verify thread size or discuss an application for large turbines? Our experts are here to help.
