Bently Nevada 330104-13-20-10-02-00 3300 XL 8mm Proximity Probe

Product Overview

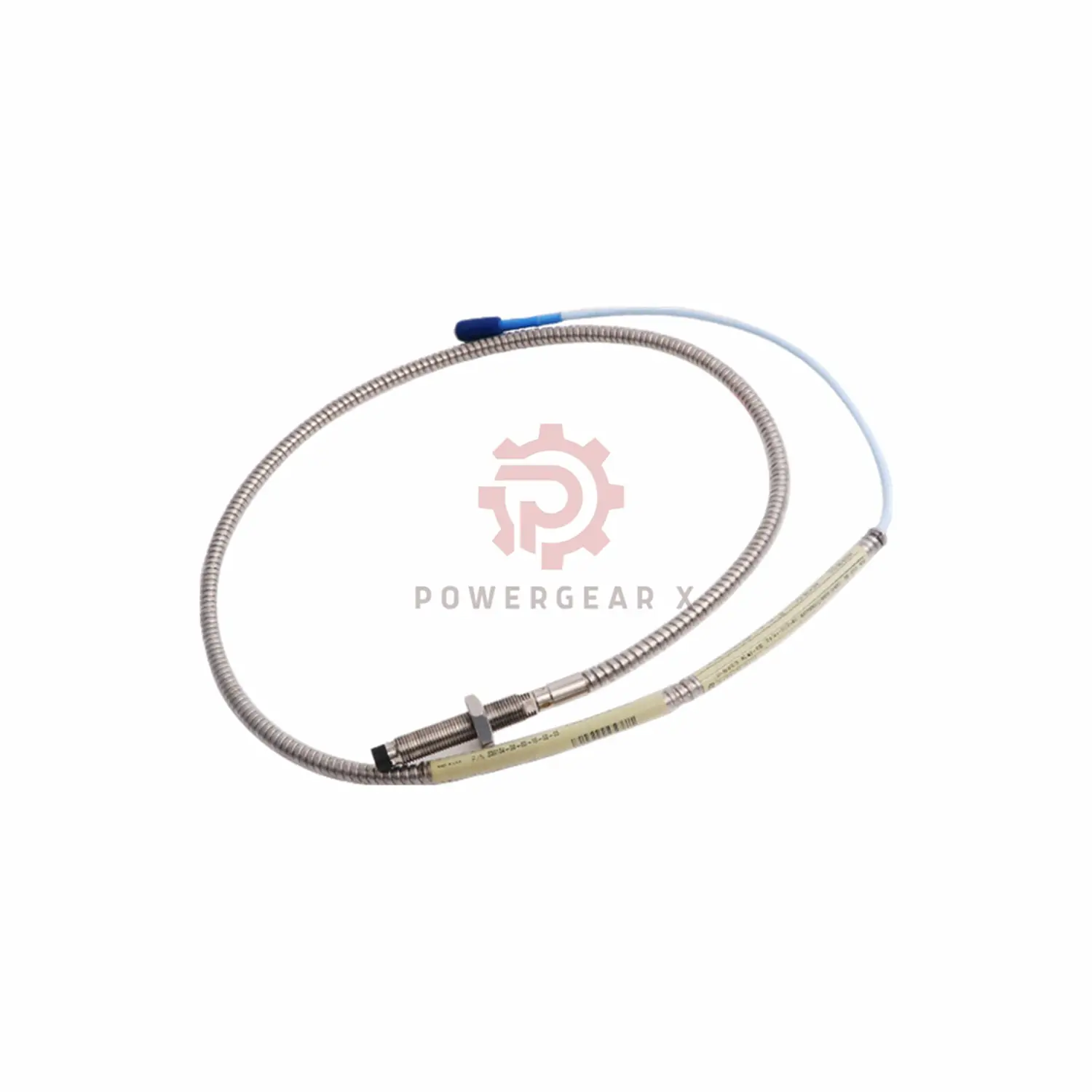

330104-13-20-10-02-00 is the 3300 XL 8 mm Proximity Probe, a high-performance metric sensor from Bently Nevada. Designed for precise radial vibration and position monitoring in industrial machinery, it ensures reliable operation in demanding environments. The probe features a robust stainless steel case and a durable PPS tip for long service life.

Key Features & Benefits

• Precise Measurement: Delivers accurate gap voltage for vibration and position data.
• Robust Construction: Stainless steel case and PPS tip resist corrosion and physical damage.
• Easy Integration: Standard M10x1 thread and ClickLoc connector simplify installation.
• Wide Temperature Range: Operates reliably from -52°C to +177°C.
• Long-Distance Signal: Supports field wiring up to 305 meters to the monitor.

Technical Specifications

• Brand & Model: Bently Nevada 330104-13-20-10-02-00
• Series & Type: 3300 XL 8 mm Proximity Probe (Metric)
• Measurement Range: Linear range 0.25 to 2.3 mm (-1 to -17 Vdc).
• Recommended Gap: Set at -9 Vdc (~1.27 mm) for radial vibration.
• Frequency Response: Dependent on cable length. Consult manual graphs.
• Sensitivity & Linearity: Defined by probe electrical characteristics.
• Nominal DC Resistance: 7.59 Ω ± 0.50 for the 1.0m length probe.
• Temperature Range:
  • Standard: -52°C to +177°C
  • Extended Tip: Up to +218°C
• Environmental Durability:
  • Case Material: AISI 303/304 Stainless Steel
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Seal: Viton® O-ring
  • Humidity: <3% ASF change at 93% for 56 days.
• Noise Immunity: Uses shielded coaxial cable for stable signal transmission.
• Physical Dimensions:
  • Unthreaded Length: 130 mm
  • Overall Case Length: 200 mm
  • Total Cable Length: 1.0 meter
  • Thread: M10 x 1
• Electrical Connection: Miniature coaxial ClickLoc connector.
• Weight: Approximately 323 grams per meter.

Installation Guide

• Machine a mounting hole with M10x1 thread.
• Do not exceed 15 mm of thread engagement.
• Connect the ClickLoc connector to the proximitor cable.
• For proper sealing, ensure the Viton O-ring is clean and intact.
• Use the recommended gap setting of -9 Vdc (~1.27 mm) for vibration.
• Use 0.2 to 1.5 mm² (16-24 AWG) shielded triad cable for field wiring.

Setup & Maintenance

• Calibration is typically done at the monitoring system.
• Verify gap voltage after installation.
• Regularly inspect the cable and connector for damage.
• Check the probe tip for wear or buildup.
• This probe requires no routine internal maintenance.

Compatibility

• Works with Bently Nevada 3300 XL Proximitor Sensors.
• Compatible with monitoring systems accepting 3300 XL probe input.
• Fits standard M10x1 threaded mounting holes.
• Uses universal miniature coaxial ClickLoc interface.

Certifications & Safety

• Intrinsic Safety (ia): Class I, Zone 0 with approved barriers.
• Non-Incendive (nA, ec): Class I, Zone 2 / Division 2.
• Multiple temperature classifications available (T1 to T5).

What’s in the Box & Warranty

• One (1) Bently Nevada 3300 XL 8mm Probe.
• Standard protective packaging.
• All products include a 12-month warranty against defects.

Shipping

We ship worldwide via FedEx, UPS, and DHL. Contact us for specific shipping options and costs.

Typical Applications

• Radial vibration monitoring on turbines, compressors, and motors.
• Shaft position and eccentricity measurement.
• Condition monitoring in power generation and oil & gas industries.
• Predictive maintenance programs for critical rotating assets.

Diagnostic Capability

This probe provides the essential gap voltage signal for diagnostics. Connected monitoring systems analyze this signal to detect:

• Unbalance
• Misalignment
• Bearing wear
• Rotor cracks
• Pre-failure conditions

Frequently Asked Questions (FAQ)

General Questions

• What is the purpose of this probe?
• It measures the distance (gap) to a metal shaft to monitor vibration and position.

• Is this probe pressure-proof?
• It has an O-ring seal but is not factory pressure tested. Contact us for high-pressure applications.

Installation & Setup

• What gap should I set?
• Aim for -9 Vdc, which is roughly 1.27 mm from the target shaft.

• Can I use a longer cable?
• The standard is 1m. For longer runs to the monitor (up to 305m), use proper field wiring.

Selection & Compatibility

• How do I choose the right probe length?
• Consider your mounting hole depth and required standoff from the shaft. Our 130mm unthreaded length is common.

• Will this work with my GE/Bently Nevada monitor?
• Yes, it is compatible with systems designed for the standard 3300 XL 8mm probe input.

From Our Experts’ Experience

• Why does my gap voltage drift over time?
• Check for debris on the probe tip or a loose connector. Environmental factors like extreme cold can also affect the seal and cable.

• What’s the most common installation mistake?
• Overtightening the probe or damaging the O-ring. Hand-tighten plus a quarter-turn with a wrench is usually sufficient.
