Product Summary: Shorter Case, Long Reach

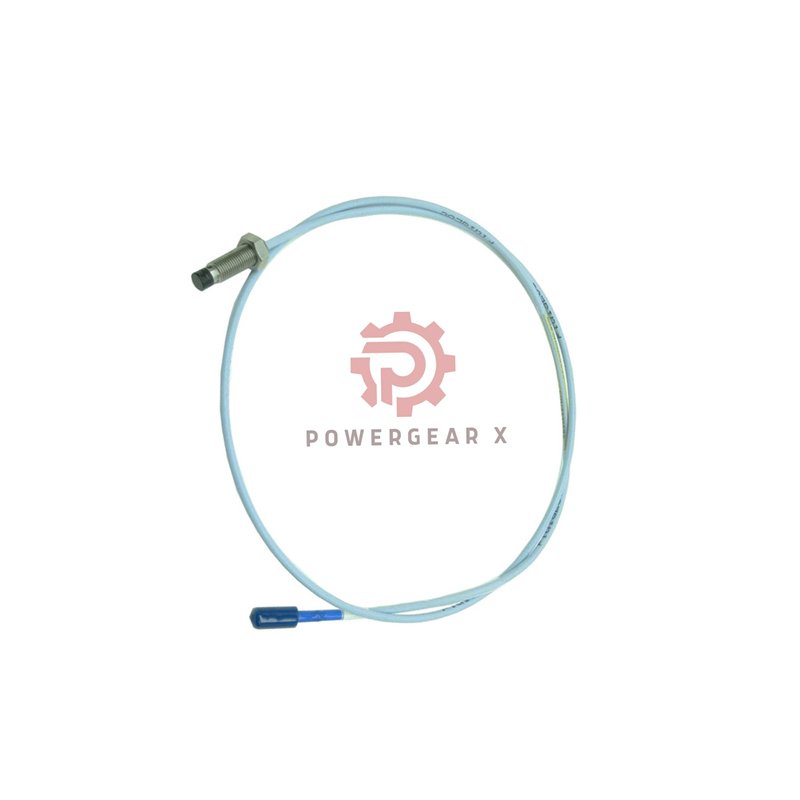

Introducing the Bently Nevada 330707-00-25-50-01-00. This is a compact 3300 XL 11mm proximity probe. It has a shorter 2.5-inch case but a long 5-meter cable. The probe is perfect for tight spaces. It gives you flexible installation options. Use it for precise vibration and position monitoring on critical machinery.
Why Choose This Model?
- Compact Design: Short 2.5-inch case fits where longer probes cannot.
- Extended Reach: 5-meter cable allows remote monitor placement.
- Armored Protection: Stainless steel armor guards the cable against damage.
- Wide Temp Operation: Works reliably from -51°C to +177°C.
- Standard Connectivity: Easy-to-use ClickLoc connector for quick setup.
Complete Product Specifications
Model Breakdown: 330707-00-25-50-01-00
- Base Model: 330707 (3300 XL 11mm Probe, 1/2-20 UNF, with Armor)
- Unthreaded Length [00]: 0.0 inches
- Case Length [25]: 2.5 inches
- Cable Length [50]: 5.0 meters (16.4 feet)
- Connector Type [01]: Miniature Coaxial ClickLoc, Standard Cable
- Agency Approval [00]: Not Required
Technical Details
- Brand: Bently Nevada
- Series: 3300 XL
- Type: 11mm Proximity Probe
- Thread: 1/2-20 UNF
- Max Thread Engagement: 0.750 inches
- Probe Resistance (5m): 7.2 Ω ± 0.8 Ω
- Cable Type: 75 Ω Triaxial, FEP Insulated
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Seal: Viton O-ring
- Connector Torque: Finger Tight (Max 0.565 N•m)
- Case Torque (Rec.): 15.2 N•m (133 in•lb)
- Min Bend Radius: 25.4 mm (1.0 inch)
- Shipping Weight: 0.17 kg
Temperature & Environment
- Operating Temperature: -51°C to +177°C (-60°F to +351°F)
- Important Note: Avoid long-term exposure below -34°C to protect the internal seal.
- Temperature Classifications: Suitable for various T1 to T5 ratings as per system requirements.
Installation & Use Guide
- This 5-meter probe must pair with a 5-meter Proximitor sensor.
- Use a torque wrench. Tighten the case to 15.2 N•m maximum.
- Hand-tighten the ClickLoc connector. Never use tools on it.
- Keep cable bends gentle. Always maintain over a 1.0-inch radius.
- The short case is ideal for mounting in cramped machinery locations.
Expert Q&A: Your Questions Answered
Model Specifics & Selection
- Q: What is the key feature of the “25” case length option?
- A: The “25” means a very short 2.5-inch case. It is designed for installations where physical space around the mounting hole is severely limited.
- Q: Does the “01” cable option mean it’s not good for wet areas?
- A: Correct. The “01” suffix indicates a standard cable. For wet or oily environments, choose the “11” option which has a FluidLoc cable.
Compatibility & Application
- Q: Can I use this 5m probe with a 9m extension cable?
- A: No. You should not extend the factory cable. For longer distances, select the correct probe model with a 9-meter integrated cable.
- Q: Is this probe suitable for hazardous locations?
- A: The base model (330707-00-25-50-01-00) has no special approvals. For hazardous areas, you need a model with an agency approval suffix (like -02, -05). Contact us for guidance.
Practical Experience Tip
- Q: I need to mount the probe in a very hot area. What should I check?
- A: First, confirm your local ambient temperature. This probe is rated up to 177°C (T2). For higher temperatures up to 232°C, ensure your system is certified for T1 classification.
Order with Confidence
We back this product with a solid 12-month manufacturer warranty.
