Product details
Long-Body 11mm Probe for Secure Machinery Monitoring

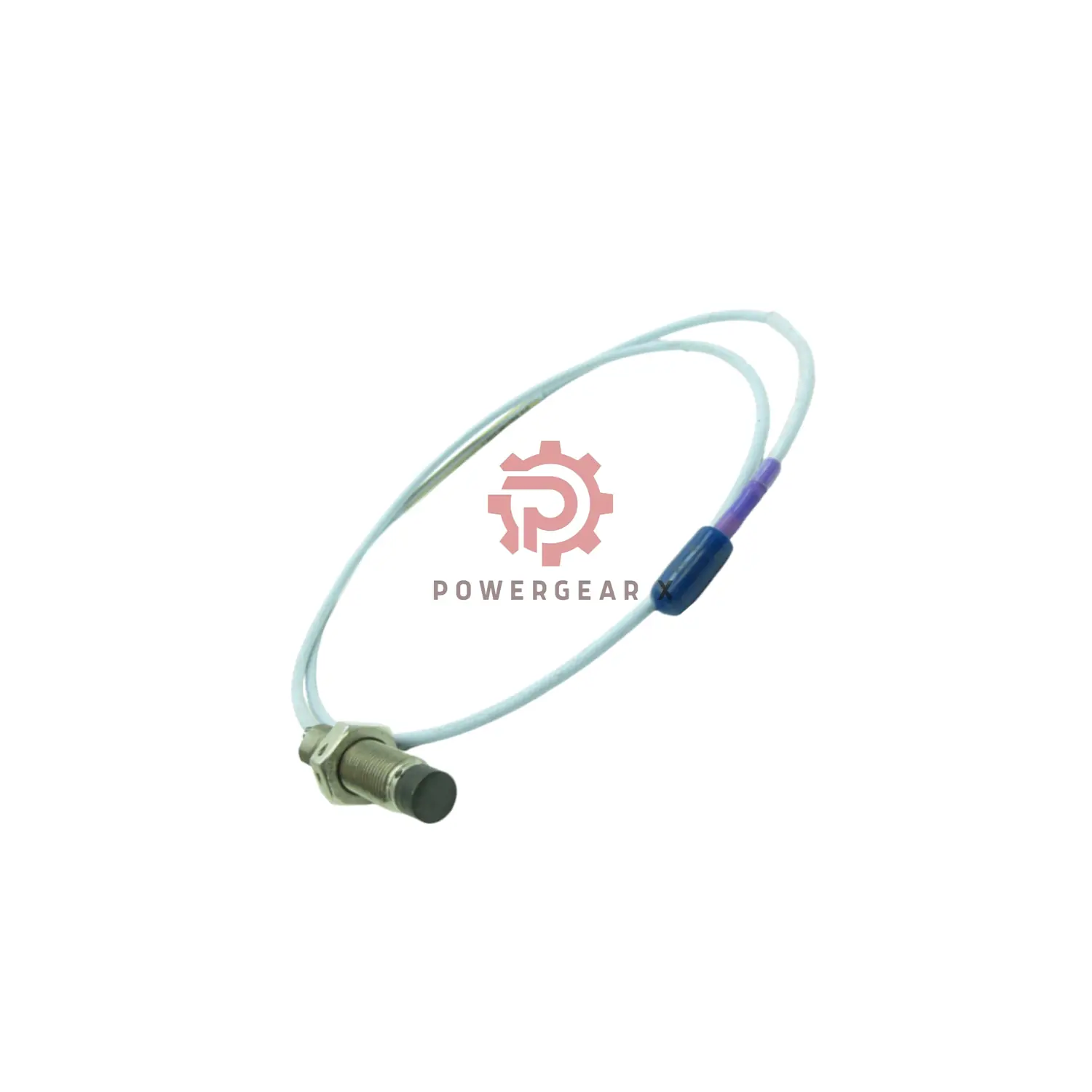

This is the Bently Nevada 330703-000-100-10-11-00. It belongs to the high-performance 3300 XL series. The probe has a long 100mm stainless steel case for stable mounting. It uses a special FluidLoc cable to block moisture and oil. Ideal for critical vibration measurement on turbines and large compressors. The product is new, original, and in factory packing. It is covered by a complete 12-month manufacturer warranty.
Get Pricing & Lead Time: Contact: sales@powergearx.com | +86 18030005825 (WhatsApp)
Why Select This 100mm Long Probe?
- Extended 100mm Body: Provides greater stability and thread engagement in thick mounting blocks.
- FluidLoc Sealing Technology: Prevents fluid ingress at the critical cable-probe connection point.
- Superior Magnetic Immunity: Minimally affected by strong electromagnetic interference (EMI).
- Large M14 Mounting Thread: Ensures a robust and secure mechanical installation.
- Wide Operational Window: Functions reliably across a vast temperature range.
Complete Technical Parameters
- Manufacturer & Series: Bently Nevada 3300 XL
- Product Code: 330703-000-100-10-11-00
- Probe Diameter: 11 mm.
- Mounting Thread: M14 x 1.5 mm pitch.
- Case Length: 100 mm (Overall). Unthreaded Length: 0 mm.
- Cable System: 1.0 meter, Triaxial, FluidLoc sealed.
- Electrical Characteristics: DC Resistance: 5.9 Ω ± 0.5 Ω.
- EMI Performance: Output variation < 0.001 mil/gauss at 20 mil gap.
- Connector: ClickLoc with protective boot.
- Construction: 304 SST body with PPS (Polyphenylene Sulfide) tip.
- Installation Torque: Apply 21.1 N·m (187 in·lb). Maximum: 63.3 N·m.
- Thread Engagement Limit: Do not exceed 21 mm.
- Key Temp. Note: Prolonged exposure below -34°C may compromise seal integrity.
Simple Installation Best Practices
- Verify Hole Depth: Ensure your mounting hole is deep enough for the full 100mm probe length.
- Torque Correctly: Use a torque wrench to achieve the recommended 21.1 N·m. Avoid over-tightening.
- Protect the Connector: Keep the ClickLoc connector and its protector clean before mating.
- Mind the Temperature: Install or store the probe in conditions above -34°C when possible.
Order & Delivery Information
- Item: One Bently Nevada 330703-000-100 Probe.
- Quality: 100% new and genuine, in unopened factory packaging.
- Customer Assurance: Protected by a 12-month international warranty.
- Shipping Options: Express worldwide delivery via FedEx, DHL, or UPS.
- Support: We provide datasheets and application guidance with every order.
In-Depth FAQs: 3300 XL 100mm Probe
Design & Selection
Q: When should I choose the 100mm case over the shorter 50mm version?
A: Choose the 330703-000-100 when you need maximum mounting stability, have a deep mounting hole, or require extra rigidity in high-vibration applications.
Q: What does “000” unthreaded length mean for installation?
A: “000” means the threads start immediately at the probe base. There is no smooth shaft for adjustment. The probe will begin threading into the hole as soon as you start installation.
Performance & Durability
Q: How does the FluidLoc cable differ from a standard cable?
A: The FluidLoc design includes a special seal at the cable entrance. This actively prevents oils and other liquids from creeping inside, which a standard cable cannot always stop.
Q: Can this probe be used in areas with very strong electrical fields?
A: Yes. Its design offers high immunity to 60 Hz magnetic fields up to 300 Gauss. This makes it suitable for installation near large power cables or electrical equipment.
Procurement & Service
Q: What is your process for warranty claims?
A> All new and original products include a 12-month warranty. In the rare event of a defect, contact us with your order details. We will guide you through the manufacturer’s return process promptly.
