Extended Case System Integration Probe

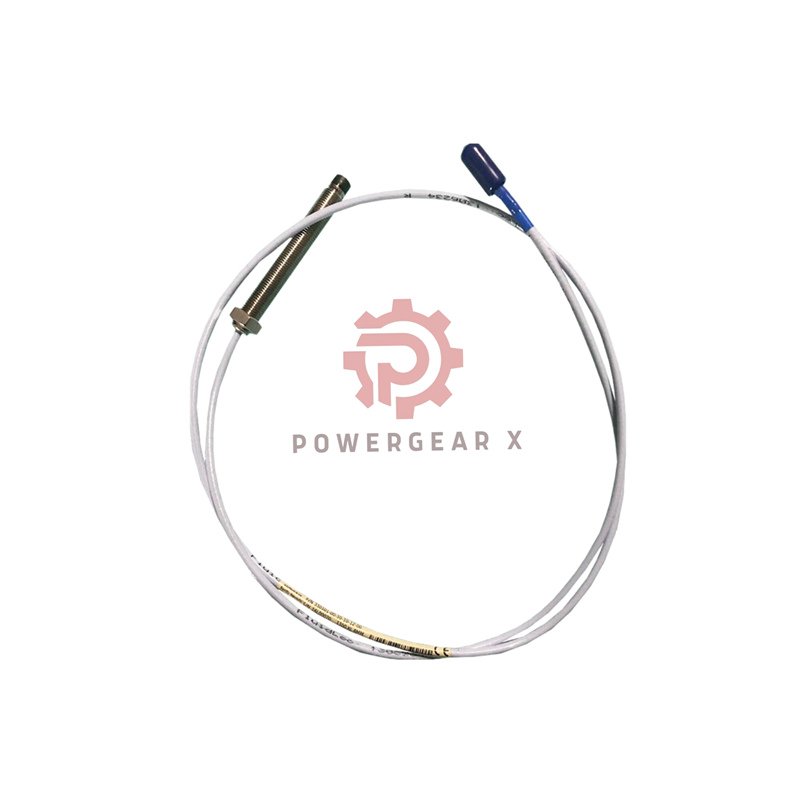

The Bently Nevada 330702-00-30-50-01-05 combines extended reach with connector protection. This 11mm vibration probe features a 3-inch case and 5-meter cable. It includes a connector protector for added durability. Certified for use in hazardous industrial environments.
Product Configuration Structure
- Brand: Bently Nevada
- Series: 3300 XL Monitoring System
- Type: 11mm Proximity Vibration Sensor
- Complete Part Number: 330702-00-30-50-01-05
- 330702 – 11mm Armored Probe, 1/2-20 UNF Thread
- 00 – Unthreaded Length: 0.0 inches
- 30 – Extended Case: 3.0 inches
- 50 – System Cable: 5.0 meters (16.4 feet)
- 01 – ClickLoc with Connector Protector
- 05 – Multiple Safety Approvals
- System Requirement: For use with 5-meter Proximitor Sensor only
- Origin: Made in U.S.A.
Technical Specifications
- Physical Design
- Primary Thread: 1/2-20 UNF Standard
- Alternative Thread: M16x1.5 Available
- Max Thread Engagement: 0.750 inch
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Sealing: Viton® O-ring Pressure Seal
- Electrical Properties
- Cable Type: 75 Ohm Triaxial, FEP Insulation
- DC Resistance (5m): 7.2 Ω ± 0.8 Ω
- Cable Length: 5.0 meters (16.4 feet)
- Connector Type: Protected ClickLoc Design
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Installation Guidelines
- Recommended Torque: 15.2 N•m (133 in-lb)
- Maximum Torque: 45.2 N•m (400 in-lb)
- Connector Installation: Finger Tight Method
- Connector Max Torque: 0.565 N•m (5 in-lb)
- Environmental Ratings
- Temperature Range: -52°C to +177°C
- Low Temp Warning: Avoid below -34°C
- Safety Certifications: Multiple EPL Ratings
- Temperature Classes: T1 through T5 Available
- Additional Information
- Shipping Weight: 0.17 Kg
- Pressure Testing: Available upon request
- Cable Options: Standard 1, 5, or 9 meter lengths
Key Features & Benefits
- Connector Protection: Built-in protector prevents damage during handling
- Extended Case: 3-inch length suits deep mounting applications
- System Integration: Optimized for 5-meter Proximitor Sensor systems
- Hazardous Area Certified: Approved for explosive atmospheres
- Durable Construction: Stainless steel ensures long-term reliability
Professional FAQ Section
Design & Application
- What is the purpose of the connector protector?
It shields the electrical contacts from dust, moisture, and physical damage during installation and operation. - Why is this probe specifically for 5-meter Proximitor Sensors?
The electrical calibration and system design assume this exact cable length for accurate measurement performance.
Technical Specifications
- Can I use this probe in high-vibration areas?
Yes, the armored design and connector protector make it suitable for high-vibration industrial environments. - What mounting situations require the 3-inch case length?
Applications where the mounting surface is thick, or where extra clearance is needed behind the mounting point.
Ordering & Service
- What is included with my order?
The 330702-00-30-50-01-05 comes with a 12-month warranty. We ship worldwide via FedEx, UPS, and DHL express carriers.
Purchasing Information
Order the Bently Nevada 330702-00-30-50-01-05 for integrated monitoring systems. This configuration offers both extended reach and connection protection.
Need verification of system compatibility? Our technical team can assist. Contact sales@powergearx.com or message via WhatsApp: +86 18030005825.
