Product details
Product Snapshot

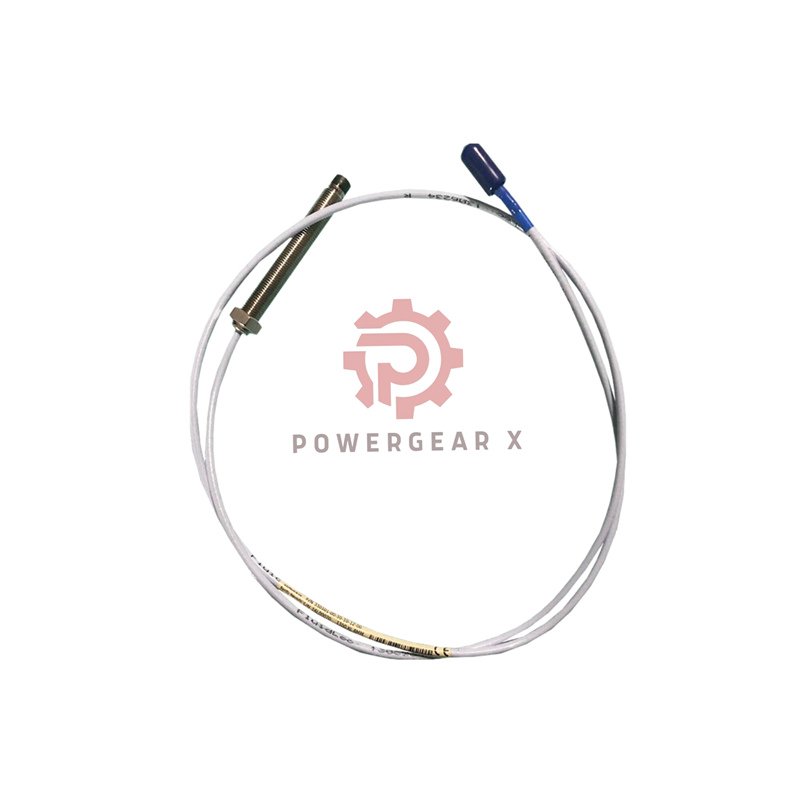

The Bently Nevada 330702-00-26-90-11-00 is a long-range 11mm probe. It has a 9-meter cable with a protective connector. Made in the USA, it is built for durability in standard plant conditions. It measures shaft vibration and position accurately.
Complete Product Configuration
- Core Product Identity
- Brand: Bently Nevada
- Exact Model: 330702-00-26-90-11-00
- Product Line: 3300 XL 11 mm Proximity Probes
- Model Suffix Analysis: -00-26-90-11-00
- -00: Unthreaded Length = 0.0 inch
- -26: Case Length = 2.6 inches
- -90: Cable Length = 9.0 meters (Long Reach)
- -11: Connector = ClickLoc with Protector, FluidLoc Cable
- -00: Approvals = Not Required (Standard Use)
- Key Performance & Build Specs
- Mounting: 1/2-20 UNF Thread
- Thread Limit: Max 0.750 inch engagement
- Install Torque: 15.2 N•m recommended
- Temp. Range: -51°C to +177°C operating
- Probe Resistance (9m): 8.5 Ω ± 1.1
- Cable Spec: 75Ω Triaxial, FluidLoc (FEP insulated)
- Cable Care: Min. 25.4mm (1-inch) bend radius
- Tip: PPS Polymer
- Case: 304 Stainless Steel
- Connector Torque: Hand-tight only
Critical Installation Note
This 9m probe requires careful cable management. Plan the route to avoid sharp bends, pinching, or high heat sources to ensure long-term signal integrity.
Professional FAQ
What is the benefit of the connector protector (Option 11)?
The protector shields the ClickLoc connector from physical impact and dust during handling and installation. This feature is useful in congested or harsh mechanical spaces.
How does the 9m cable length affect system setup?
The 330702-00-26-90-11-00 is designed for long distances. It eliminates intermediate splices. Ensure your monitor and Proximitor are calibrated for the full 9-meter integrated cable length.
Is this probe suitable for outdoor use?
Yes. The FluidLoc cable and stainless steel case offer good environmental resistance. However, Option 00 means it lacks formal hazardous area certification for explosive atmospheres.
Why is the electrical resistance specified, and why does it change?
Resistance (8.5Ω for 9m) is a key parameter for system calibration. Longer cables have naturally higher resistance. The monitor uses this value for accurate measurement scaling.
When should I choose Option 00 (No Approvals) vs. Option 05 (Multiple Approvals)?
Choose this 330702-00-26-90-11-00 (Option 00) for general industrial areas without explosive gases. Choose an Option 05 model if your plant requires ATEX/IECEx certificates for hazardous zones.
Purchase & Service Guide
- Item: Bently Nevada 330702-00-26-90-11-00
- Warranty Coverage: Full 12-month warranty against defects.
- Global Shipping: Express options include FedEx, UPS, and DHL.
- Compatibility: Verify your system supports 9-meter probe integration.
For technical support or to order: Reach out via email or WhatsApp at +86 18030005825.
