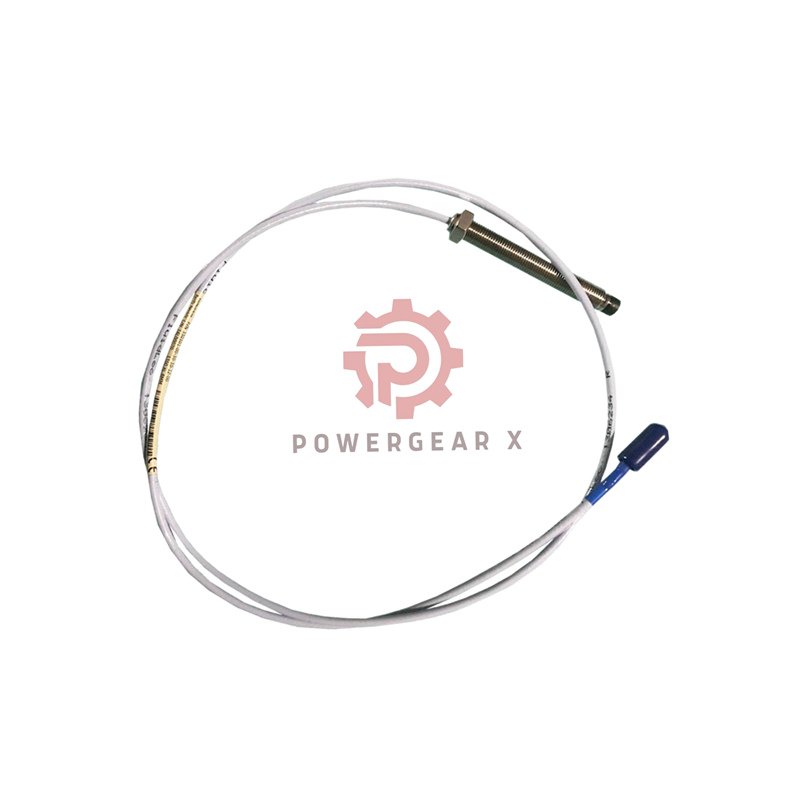

Name: Bently Nevada 330702-00-26-90-01-05 Probe | 9m Cable with Connector Protector
SKU: 330702-00-26-90-01-05
Price: 258.00 USD
Availability: InStock

Product details

Protected Connection Long-Cable Probe

This is the Bently Nevada 330702-00-26-90-01-05. It combines a long 9-meter cable with a protective connector cover. This design guards against physical damage in busy plants. The probe carries full safety certifications for global project use.

Part Number Configuration Guide

System: Bently Nevada 3300 XL Vibration Monitoring
Your Model: 330702-00-26-90-01-05
- 330702: 11mm Diameter, Armored, 1/2-20 UNF Thread
- 00: Unthreaded Section = 0 inch
- 26: Housing Length = 2.6 inches
- 90: Total Length = 9.0 meters of Cable
- 01: Connection = ClickLoc with Protective Cover
- 05: Certifications = Multiple (e.g., CSA, ATEX, IECEx)
Enhanced Durability: The connector protector prevents breakage and contamination during handling and operation.
Project Ready: Safety approvals are included, simplifying compliance for international installations.
Long Reach: 9m integrated cable accommodates distant monitor mounting.

Primary Technical Details

Electrical Property: Resistance (9m cable): 8.5 Ω ± 1.1.
Installation Specs:
- Mounting: 1/2-20 UNF thread.
- Torque: Apply 15.2 N·m (133 in·lb).
- Bending: Keep radius above 25.4 mm (1.0 in).
Robust Construction: 304 Stainless Steel case, PPS tip, Viton seal.
Operating Limits: Temperature range: -51°C to +177°C.

Expert FAQs & Selection Support

Features & Benefits

What is the advantage of the ‘-01-‘ connector option?
The ‘-01-‘ suffix means the ClickLoc connector has a screw-on plastic protector. This is highly recommended for harsh environments to prevent connector damage.
Does the long 9m cable affect performance?
The system is designed for this length. The slightly higher resistance (8.5 ohms) is normal for 9m and is factored into the 3300 XL system’s calibration.

Certifications & Use

Are the safety certifications valid worldwide?
Yes. The 330702-00-26-90-01-05 with ‘-05-‘ approvals meets CSA (North America), ATEX (Europe), and IECEx (International) standards for hazardous locations.
Can I use this in a Division 2 / Zone 2 area?
Absolutely. This probe is certified for use in Class I, Division 2 and Zone 2 hazardous areas when installed per the referenced drawings.

Purchasing & Logistics

What is included with my order?
You receive the probe and our standard 12-month manufacturer’s warranty. We ship using express services like FedEx, UPS, and DHL for timely delivery.
