Product details
Compact Fluid-Resistant Vibration Sensor

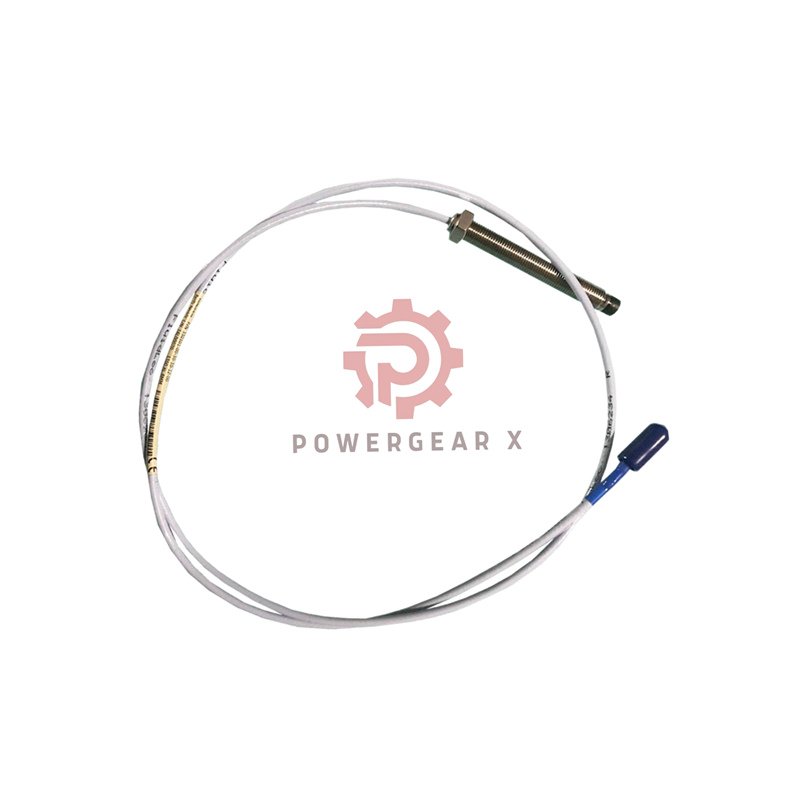

Introducing the Bently Nevada 3300 XL 11 mm Proximity Probe. Model 330702-00-26-10-12-00 is a short-reach solution for tough spots. It has a 1-meter FluidLoc cable and armored body. This probe fights off oils and moisture in tight spaces. It gives you precise machine health data. It is U.S. made for reliable performance.
Need a sensor for a cramped or wet location? Talk to our team: sales@powergearx.com or +86 18030005825.
Top Benefits
- Space-Saving Design: 1-meter cable is perfect for short runs near the monitor.
- Sealed Against Fluids: FluidLoc cable protects against oil, coolant, and water spray.
- Rugged Build: Stainless steel armor shields the cable from cuts and crushing.
- Quick Connect: Miniature ClickLoc connector allows for fast, tool-free installation.
- Low Electrical Noise: Short cable length ensures strong, clean signal transmission.
Detailed Product Specifications
- Product Identity
- Brand: Bently Nevada
- Series: 3300 XL 11mm Proximity Probes
- Full Model: 330702-00-26-10-12-00
- 330702: Core Model (11mm, 1/2-20 UNF, Armored)
- 00: Unthreaded Section = 0.0 in
- 26: Case Length = 2.6 in
- 10: Cable Length = 1.0 metre
- 12: Features = ClickLoc Connector, FluidLoc Cable
- 00: Safety Certs = Not Required
- Mechanical Data
- Housing: AISI 304 Stainless Steel
- Sensing Tip: PPS (Polyphenylene Sulfide)
- Mounting: 1/2-20 UNF Thread
- Max Install Depth: 0.750 in
- Install Torque: 15.2 N•m (133 in-lb)
- Pressure Seal: Viton® O-Ring
- Electrical & Cable Info
- Cable Type: 75 Ω Triaxial, FEP Insulation
- Standard Length: 1.0 metre (3.3 feet)
- Probe Resistance (RPROBE): 5.9 Ω ± 0.5
- Connector: Miniature Coaxial ClickLoc
- Cable Bend Radius: Minimum 25.4 mm (1.0 in)
- Operating Limits
- Working Temperature: -51°C to +177°C
- Fluid Resistance: Excellent against industrial fluids (FluidLoc).
- Storage Warning: Keep above -34°C to prevent seal damage.
Practical FAQs & Buying Tips
- When should I choose a 1-meter cable?Use a 1m cable when your monitoring system is very close to the measurement point. It minimizes excess cable management and signal loss.
- Is the FluidLoc cable more flexible than standard cable?No, FEP insulation can make it slightly stiffer. However, it still meets the 1-inch minimum bend radius for easy routing in panels.
- Can this model 330702-00-26-10-12-00 be used in food & beverage plants?The materials (304 SST, PPS, FEP) are corrosion-resistant. However, for direct food contact or high-pressure washdown, verify specific sanitary certifications are not needed.
- What happens if I exceed the recommended case torque?Over-torquing can strip threads or crush the O-ring, breaking the pressure seal. Always use a torque wrench set to 15.2 N•m.
- Do you offer different connector types for this probe?This specific model comes only with the ClickLoc connector. Other 3300 XL models may offer different terminations. Contact us to explore options.
Ordering, Shipping & Support
- Warranty Promise: We back this product with a full 12-month warranty.
- Global Logistics: We ship internationally using FedEx, UPS, and DHL carriers.
- Selection Guide: Pick this model for short, fluid-exposed applications. Ensure your proximitor is nearby. Confirm you don’t need ATEX/CSA markings.
- Ready to Purchase? Inquire for stock levels and bulk pricing.
For quotes or technical details, contact us. Email sales@powergearx.com or message on WhatsApp: +86 18030005825.
