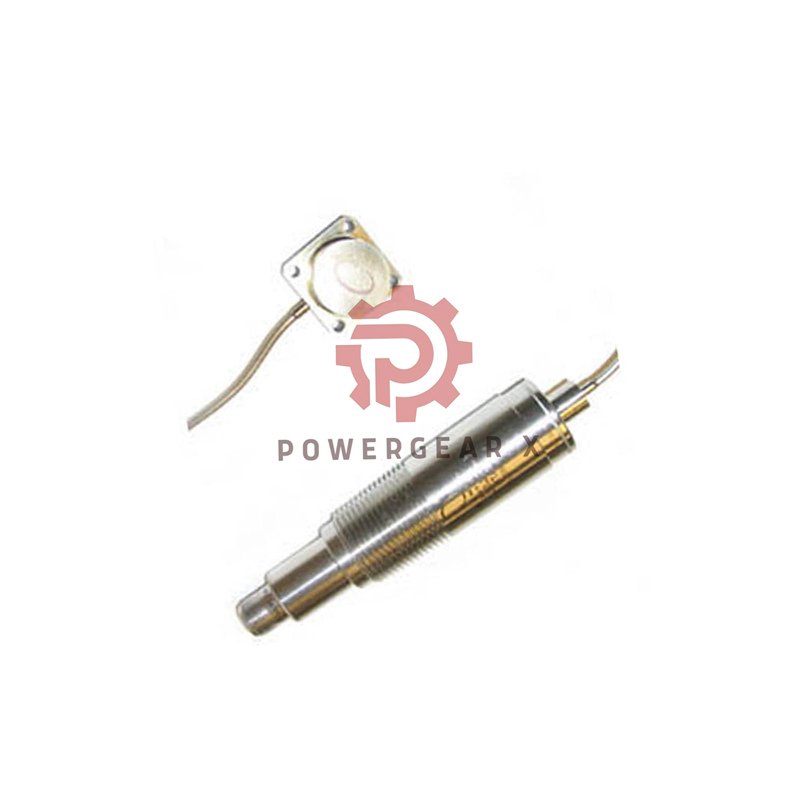

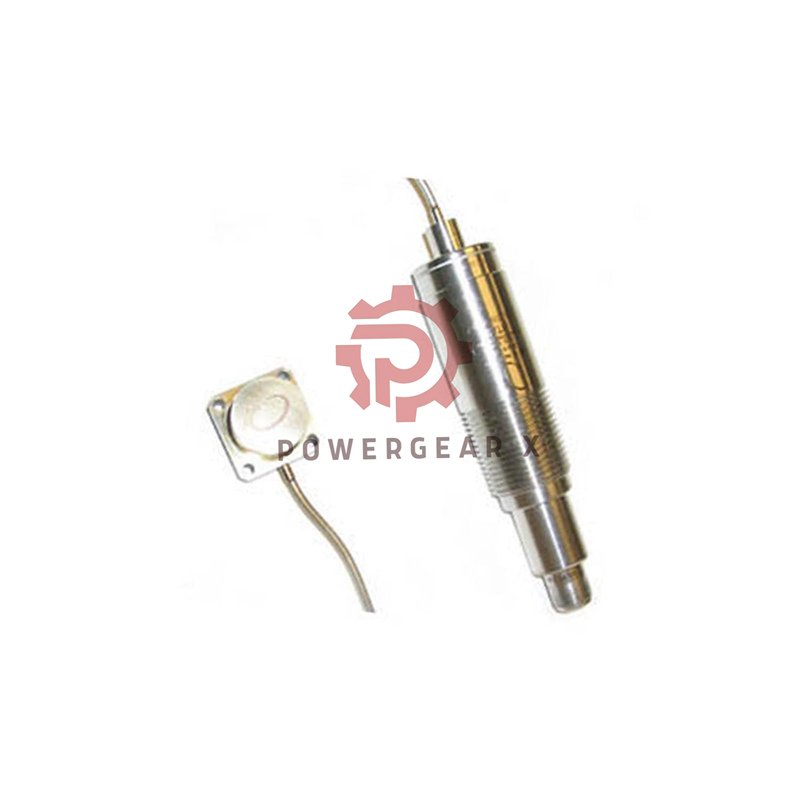

Bently Nevada 330450-60 Industrial Accelerometer
Monitor critical machinery vibration with precision. The Bently Nevada 330450-60 is a rugged accelerometer built for extreme conditions. It delivers reliable data from -55°C to +400°C. This sensor is essential for predictive maintenance in harsh industrial environments.
Core Performance Advantages
- Extreme Temperature Range: Operates reliably from -55°C to +400°C.
- High Shock Survivability: Withstands up to 2500g for durability.
- Wide Frequency Response: Accurately measures from 15 Hz to 10,000 Hz.
- Hazardous Area Certified: Multiple approvals for safe use in classified zones.
- Hermetically Sealed: 100% humidity rating, ideal for wet or washdown areas.
Complete Technical Specifications
- Manufacturer & Model: Bently Nevada 330450-60
- Product Type: IEPE Accelerometer (Vibration Sensor)
- Sensitivity: 100 mV/g ±5% (10.2 mV/m/s²)
- Measurement Range: ±80 g peak (785 m/s²)
- Amplitude Linearity: ±2% up to 80 g
- Frequency Response: 15 Hz to 10 kHz (±3 dB)
- Broadband Noise: 0.006 g rms (10 Hz – 15 kHz)
- Mounted Resonant Frequency: > 15 kHz
- Transverse Sensitivity: < 5%
- Power Requirements: Constant Current, 2-20 mA
- Supply Voltage (IEPE): 18-30 VDC
- Bias Voltage: 12 VDC ± 0.5 V
- Output Impedance: < 100 Ω
- Maximum Cable Length: 1000 ft (305 m) without signal loss
- Operating Temperature (Sensor): -55°C to +400°C (-67°F to +752°F)
- Operating Temperature (Electronics): -55°C to +100°C
- Shock Survivability: 2500 g peak
- Case Material: 300 Series Stainless Steel
- Connector: 3-pin Mil-C-5015, Hermetically Sealed
- Weight: 2.1 lbs (953 grams)
- Ingress Protection: Hermetically Sealed
- Cable Type: Integral Hardline, 6-meter length (standard)
Hazardous Area Certifications
- ATEX, IECEx: Ex ia IIC T4
- FM, CSA: Class I Div 1, Groups A,B,C,D; Class II Div 1, Groups E,F,G; Class III Div 1
- General Purpose: Ex nL IIC T4, Ex ec IIC T4
- Enclosure Rating: Type 4X
Model Number Decoder
- 330450: Base Model (Accelerometer with integral cable)
- –: Separator
- 60: Cable Length Code (60 = 6 meters)
- Other available lengths: 05 (0.5m), 10 (1m), 20 (2m), 30 (3m)
Warranty & Global Shipping
This product is covered by a 12-month manufacturer’s warranty. We ship worldwide via express carriers: FedEx, UPS, and DHL. Tracking information is provided immediately after dispatch.
Expert Questions & Answers
What type of output signal does this accelerometer provide?
It provides a standard IEPE (ICP®) voltage output signal, compatible with most data acquisition systems and vibration monitors.
Can the integral cable be repaired or replaced in the field?
No. The cable is hermetically sealed to the sensor body. If damaged, the entire unit must be returned for factory service or replacement.
What is the main advantage of the hermetic seal?
It prevents moisture ingress, allowing reliable operation in environments with high humidity, condensation, or where washdowns occur.
How do I power this sensor?
Use a constant current power source (typically 2-20 mA) with an 18-30 VDC supply. Most compatible conditioners or data collectors provide this.
From a reliability engineer’s experience, what ensures longest service life?
Ensure the mounting surface is clean, flat, and free of paint. Use the correct thread locker and torque to prevent loosening from vibration, which is a common failure point.
Is this sensor suitable for measuring low-frequency vibration?
Its lower frequency limit is 15 Hz (900 CPM). For very low-speed machinery (below 900 RPM), a different sensor with a lower frequency range is recommended.
What is the significance of the T4 temperature rating?
T4 means the sensor’s surface temperature will not exceed 135°C in operation, making it safe for use in hazardous areas with gases having an ignition temperature above that.
Can it be used with wireless vibration monitoring systems?
Yes, if the wireless node provides IEPE constant current power and accepts a voltage input signal within the sensor’s output range.
