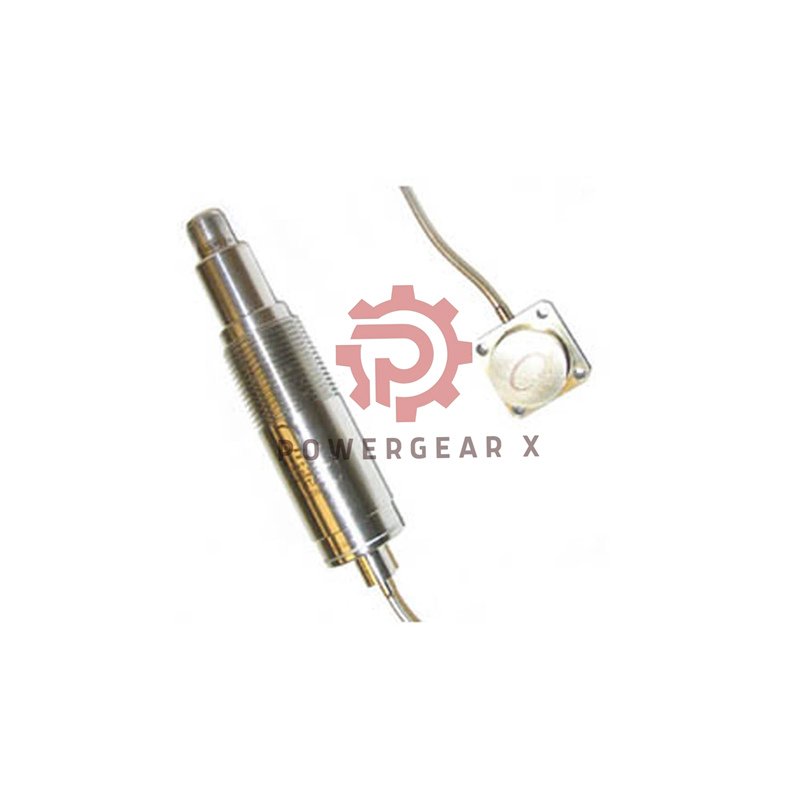

Bently Nevada 330450-40 Industrial Accelerometer
This sensor monitors machine vibration. It is built for harsh and hazardous industrial areas. The 330450-40 offers reliable performance. It helps prevent downtime by spotting problems early.
Complete Technical Specifications
- Manufacturer: Bently Nevada
- Model Number: 330450-40
- Sensitivity: 100 mV/g ±5% (10.2 mV/m/s²)
- Measurement Range: 80 g peak (785 m/s²)
- Frequency Response: 15 Hz to 10 kHz (±3 dB)
- Broadband Noise: < 0.006 g rms
- Amplitude Linearity: ±2% up to 80 g
- Resonant Frequency: > 15 kHz
- Power Supply: -24 Vdc ±0.5V
- Output Bias Voltage: -12 Vdc ±0.5V
- Integral Cable Length: 4 meters
- Max Cable Length: 305 meters (1000 ft)
- Connector: 3-pin Mil-C-5015, Hermetically Sealed
- Case Material: 300 Series Stainless Steel
- Weight: Approximately 1.75 lbs (794 g)
Environmental & Safety Ratings
- Operating Temperature (Head): -55°C to +400°C
- Operating Temperature (Electronics): -55°C to +100°C
- Shock Survivability: 2500 g peak
- Ingress Protection: Hermetically Sealed
- Hazardous Area Certifications:
- ATEX & IECEx: Ex ia IIC T4
- UL/cUL: Class I, Div 1, Groups A-D; Class II, Div 1, Groups E-G; Class III, Div 1
- Enclosure Rating: Type 4X
Ordering Information: Model 330450-40
- 330450: Base model for this accelerometer type.
- -40: Specifies the integral cable length is 4 meters.
Package & Support
- Product includes the sensor with a 4-meter cable.
- Backed by a 12-month warranty against defects.
- Fast global shipping via FedEx, UPS, and DHL is available.
- Full tracking is provided for every order.
Frequently Asked Questions
Q: What type of machines is this sensor used on?
A: It is ideal for turbines, compressors, pumps, and fans in oil & gas, power generation, and chemical plants.
Q: Can the cable be replaced if damaged?
A: No. The cable is permanently fixed (integral) to the hermetically sealed sensor. The entire unit must be replaced.
Q: What is the difference between “Ex ia” and “Ex d” certification?
A: “Ex ia” is an intrinsic safety rating for Zone 0/1 (high risk). “Ex d” is a flameproof enclosure rating, typically for Zone 1. This sensor is Ex ia.
Q: How do I mount this accelerometer correctly?
A: Clean the mounting surface. Use a stud or adhesive mount. Tighten to the specified torque to ensure good frequency response.
Q: From your experience, what is a key factor for sensor longevity?
A> Proper cable routing is critical. Use clamps and avoid sharp bends. Stress on the cable exit point is a common failure cause.
