Bently Nevada 330192-00-28-05-00 | 3300 XL 8 mm Proximity Probe with Armor

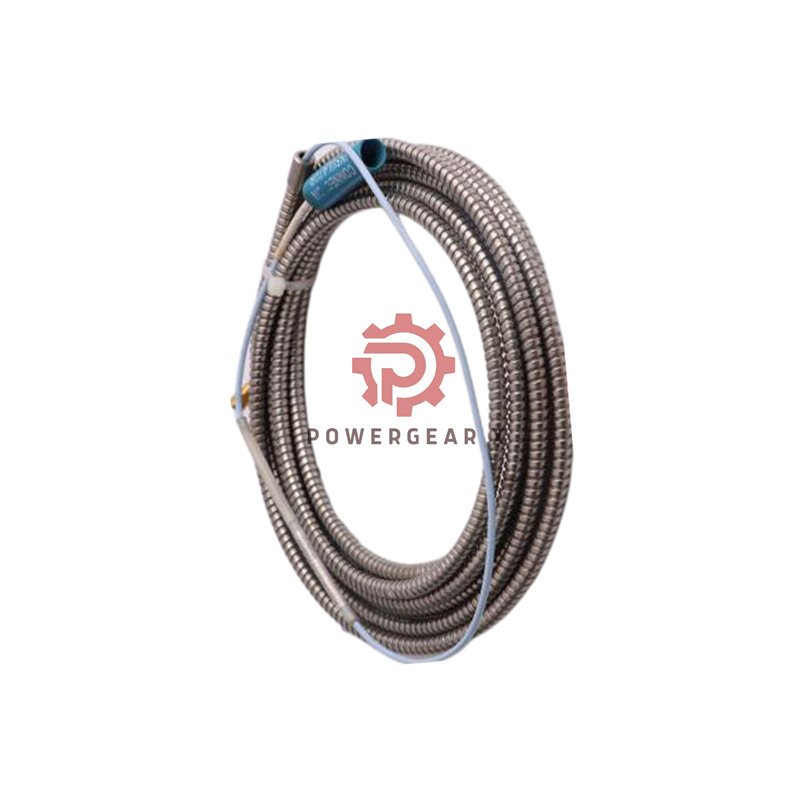

Bently Nevada 330192-00-28-05-00 3300 XL 8 mm Armored Probe

Brand: Bently Nevada
Model: 330192-00-28-05-00
Warranty: 12-month factory warranty

Compact Armor-Enhanced Sensor

• The 330192-00-28-05-00 probe is in the 3300 XL series with 8 mm tip and armor.
• Case length option “28” equals 2.8 in overall case length.
• Total cable length “05” means 0.5 m (1.6 ft) for tight installations.
• Armor offers extra protection in harsh or high-vibration fields.

Key Technical Specs

• Thread: 3/8-24 UNF with max engagement 0.563 in.
• DC resistance (RPROBE) for 0.5 m length: 7.45 Ω ±0.50.
• Probe tip material: PPS (polyphenylene sulfide). Case material: AISI 303 or 304 stainless steel.
• Relative humidity tolerance: <3% change in scale factor after 56-day humidity test (93% RH, IEC 68-2-3).
• Standard temperature range: -52 °C to +177 °C (-62 °F to +350 °F). Extended tip range up to -52 °C to +218 °C; cable/connector up to -51 °C to +260 °C.

Performance & Benefits

• Armored build protects probe body in demanding environments and improves longevity.
• Compact 0.5 m cable allows mount near machine shaft with minimal routing complexity.
• Low DC resistance ensures strong signal fidelity and minimal noise across cable length.
• High temperature tolerance makes this probe suitable for turbine, compressor, and engine monitoring.
• Standard 8 mm tip size means thicker encapsulation and better mechanical robustness vs smaller probes.

Ordering Structure

• Model: 330192 → 3300 XL 8 mm ETR probe, armored.
• Unthreaded length “00” = 0 in (cut to spec minimum unthreaded section).
• Case length “28” = 2.8 in.
• Total length “05” = 0.5 m (1.6 ft).
• Agency approval “00” = none required.

Installation Notes

• Install using the 3/8-24 UNF thread, ensure full engagement without excessive torque.
• Avoid exposing the probe below -34 °C (-30 °F) to maintain seal integrity.
• Use compatible electronics and barrier circuits per Bently Nevada guidelines for linear range.
• Allow some slack in the armored cable to prevent strain on connector during vibration.

Shipment & Packaging

• Each probe ships in original factory packing with protective cap and installation sheet.
• Global shipping available via FedEx, UPS, or DHL.

Support & Contact

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• Visit: Powergear X
• Partner: Ubest Automation Limited

FAQ

• Q: What benefit does the armor provide?
  A: It gives extra mechanical protection for probe body and cable in tough settings.
• Q: Is this probe compatible with my 3300 series electronics?
  A: Yes — it works with the 3300 XL electronics when wiring and supply are correct.
• Q: What is the smallest mounting space it fits?
  A: With 2.8 in case length and 0.5 m cable this unit fits compact installations.
• Q: Can I use it at very low ambient temperatures?
  A: Yes, but avoid exposure below -34 °C to protect the pressure seal.
• Q: What humidity conditions can it handle?
  A: It maintains <3% change in scale factor after 56 days at 93% RH.
