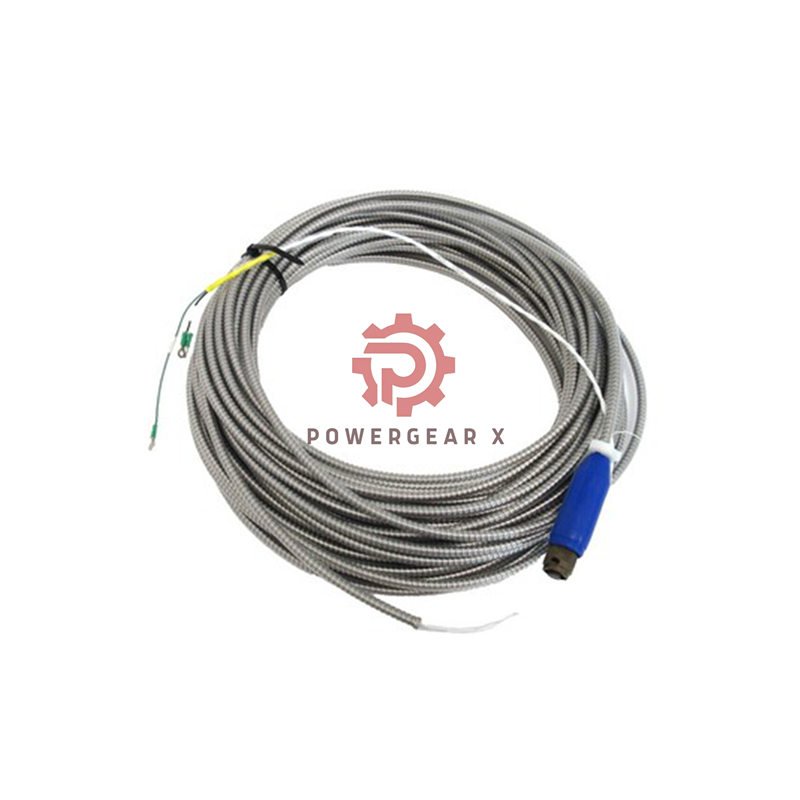

Bently Nevada 330192-10-95-90-CN 3300 XL 8 mm ETR Probe with Armor

Bently Nevada 330192-10-95-90-CN 3300 XL 8 mm ETR Probe (With Armor)

Manufacturer: Bently Nevada
Product No.: 330192-10-95-90-CN
Product Type: 3300 XL 8 mm ETR Probe, 3/8-24 UNF Thread, With Armor
Condition: New & Original Factory Sealed
Warranty: 12 Months
Shipping: FedEx, UPS, DHL Available
Contact: sales@powergearx.com |
+86 18030005825
Made in: U.S.A

• Thread Type: 3/8-24 UNF
• Unthreaded Length: 1.0 in (Min. 0.8 in less than case length)
• Case Length: 9.5 in
• Total Cable Length: 9.0 m (29.5 ft)
• Pressure Seal: Viton® O-ring (contact for pressure testing options)
• Probe Resistance: 9.87 ± 0.50 Ω at 9 m
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 Stainless Steel
• Thread Engagement: Max 0.563 in
• Humidity Resistance: ≤3% ASF change at 93% humidity (IEC 68 2 3)

Temperature Ratings:

• Standard Range: -52°C to +177°C (-62°F to +350°F)
• Extended Range: -52°C to +218°C for probe tip; -51°C to +260°C for cable
• Temperature Classification (EPL Ga/Gc):
  • T1: -55°C to +232°C
  • T2: -55°C to +177°C
  • T3: -55°C to +120°C
  • T4: -55°C to +80°C
• Temperature Classification (EPL Dc):
  • T2: +225°C @ Ta -55°C to +177°C
  • T1: +280°C @ Ta -55°C to +232°C

Suffix Structure:

• 330192: Probe Series (ETR Type, with Armor)
• 10: Unthreaded Length (1.0 inch)
• 95: Overall Case Length (9.5 inch)
• 90: Total Cable Length (9.0 meters)
• CN: Country Specific Approval

Product Highlights:

• High-accuracy proximity measurement with 8 mm tip.
• Enhanced vibration monitoring for critical rotating machinery.
• Durable armored cable for harsh industrial conditions.
• Reliable temperature and humidity tolerance for extreme environments.
• Compatible with Bently Nevada 3300 monitoring systems.

Technical Parameters (Additional)

• Capacitance: 87 pF/m typical
• Output Sensitivity: 7.87 V/mm (200 mV/mil)
• Linearity: ±1% over linear range
• Frequency Range: 0 to 10 kHz
• Weight: Approx. 0.6 kg

Frequently Asked Questions (FAQ)

• Q1: What system is the 330192-10-95-90-CN compatible with?
• A1: It’s designed for Bently Nevada 3300 and 3500 vibration monitoring systems.
• Q2: Does this probe include an extension cable and proximitor?
• A2: No, these components are sold separately for flexible installation options.
• Q3: Can it operate in high-humidity environments?
• A3: Yes, it’s tested up to 93% humidity with minimal performance change.
• Q4: What is the main difference between ETR and standard probes?
• A4: ETR probes feature extended temperature range and armored protection for rugged use.
• Q5: How do I verify compatibility with my existing Bently Nevada system?
• A5: Check your system’s probe type and proximity channel settings or contact our technical support at
  sales@powergearx.com.
