Bently Nevada 330192-00-08-05-00 | 3300 XL 8mm ETR Probe with Armor

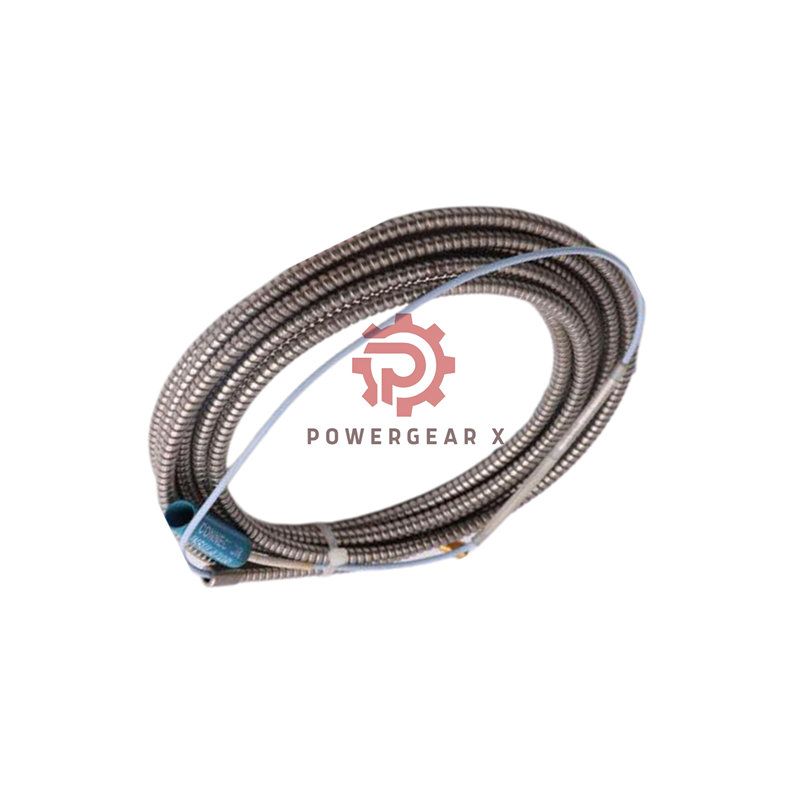

Bently Nevada 330192-00-08-05-00 | 3300 XL 8 mm ETR Probe with Armor

• Manufacturer: Bently Nevada
• Product Type: 3300 XL 8 mm ETR Probe, 3/8-24 UNF Thread, With Armor
• Country of Origin: Made in U.S.A
• Condition: 100% New & Original
• Warranty: 12 Months Factory Warranty
• Shipping: FedEx, UPS, DHL Worldwide

Ordering Breakdown:

• Model: 330192 – 3300 XL 8 mm ETR Probe
• Unthreaded Length: 0 = 0 in
• Case Length: 08 = 0.8 in
• Total Length: 05 = 0.5 m (1.6 ft)
• Agency Approval: 00 = Not Required

Probe Details:

• Pressure Seal: Viton® O-ring between probe tip & case (not pressure-tested)
• Nominal DC Resistance: 7.45 ± 0.50 Ω at 0.5 m
• Thread Engagement: 3/8-24, 0.563 in maximum
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Case Material: AISI 303 / 304 Stainless Steel
• Relative Humidity: <3% ASF change after 56 days at 93% humidity

Temperature Range:

• Standard Probe: -52°C to +177°C (-62°F to +350°F)
• Extended Range: -52°C to +218°C (Tip) / +260°C (Cable)
• Low Temperature Warning: Below -34°C (-30°F) may affect seal life

Temperature Classification:

• T1: -55°C to +232°C
• T2: -55°C to +177°C
• T3: -55°C to +120°C
• T4: -55°C to +80°C
• T5: -55°C to +40°C
• For EPL Dc: up to 280°C @ Ta -55°C to +232°C

Product Highlights:

• Strong stainless steel probe for industrial durability
• High resistance to vibration and corrosion
• Compact 0.5 m design with armored protection
• Ideal for turbine and compressor monitoring
• Supports stable operation in extreme temperature zones
• Quality guaranteed with 12-month warranty

Contact Information:
Email: sales@powergearx.com
WhatsApp: +86 18030005825

Frequently Asked Questions (FAQ)

• Q1: What is the standard operating range of the 330192 probe?
  A: It works between -52°C to +177°C and can handle up to +260°C with extended cable.
• Q2: Does this probe include a pressure test certificate?
  A: Standard units are not pressure tested, but custom tests are available upon request.
• Q3: Can the probe be used in high-vibration areas?
  A: Yes, its stainless steel body and armored cable are designed for such environments.
• Q4: What is the maximum thread engagement?
  A: 0.563 inches for 3/8-24 UNF thread types.
• Q5: How is the product shipped?
  A: Orders ship via FedEx, UPS, or DHL with tracking provided.
