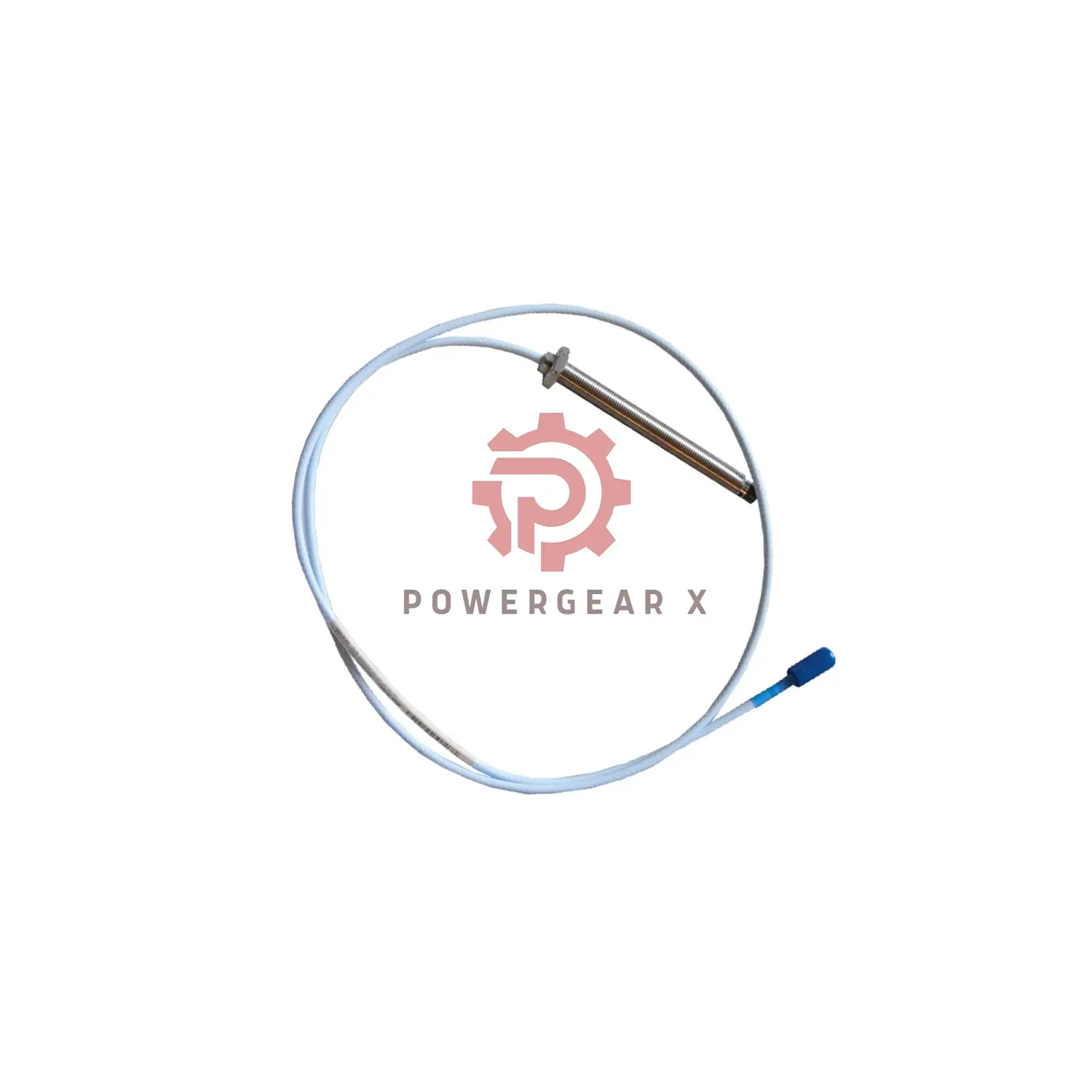

Bently Nevada 330103-12-16-10-02-05 | Long Body 8mm Vibration Probe with ATEX

Product Summary

This is the Bently Nevada 330103-12-16-10-02-05. It is a unique 8mm vibration sensor. It has a long unthreaded body section. This design allows flexible mounting in tight spaces. It provides reliable data on machine health.

Understanding Your Model Code

• 330103 – Base 3300 XL 8mm Probe
  • 12 – Unthreaded Shaft: 120 mm
  • 16 – Total Case Length: 160 mm
  • 10 – Integrated Cable: 1.0 Meter
  • 02 – Connector Type: ClickLoc
  • 05 – Safety Approvals: CSA, ATEX, IECEx

Critical Specifications

• Working Range: 2.0 mm (linear). Start at 0.25 mm gap.
• Calibration Gap: Set to 1.27 mm for -9 Vdc output.
• Probe Resistance: Measures 7.59 Ω ± 0.50 Ω.
• Build Quality: PPS tip, stainless steel case.
• Sealing: Viton O-ring protects internals.
• Temperature: Operates from -52°C to +177°C.
• Mounting: M10x1 thread. Engage no more than 15mm.

5 Important Questions & Answers

Design & Application

• What is the benefit of the 120mm unthreaded length?
• It lets you pass the probe through a panel or thick bracket before threading it in. This is useful for complex installations.

Measurement Accuracy

• Does the long unthreaded section affect measurement stability?
• No, the measuring tip is still rigidly mounted. The unthreaded part is just the body. It does not change the signal.

System Integration

• Can I connect this probe to any 3300 XL monitor system?
• Yes. It works with all 3300 XL monitors and the matching 3300 XL Proximitor sensor. The setup is standard.

On-Site Advice

• We have high humidity in our plant. Will this probe work?
• Yes. It is tested for up to 93% humidity for 56 days with very little change in performance.

Ordering Process

• How do I get this probe and what support is included?
• Order online or contact us. It comes with a 12-month warranty. We ship via FedEx, UPS, or DHL. Technical support is available.

Is This the Right Probe for You?

1. You need a standard 8mm vibration probe.
2. Your installation requires a long, smooth body (120mm) before the threads.
3. The total probe length needed is 160mm with a 1m cable.
4. Your facility requires CSA, ATEX, or IECEx certified equipment.
5. If yes, then model 330103-12-16-10-02-05 is your solution.

For pricing, stock checks, or technical support, please contact us.
