Product details
Heavy-Duty Sealed Probe for Demanding Environments

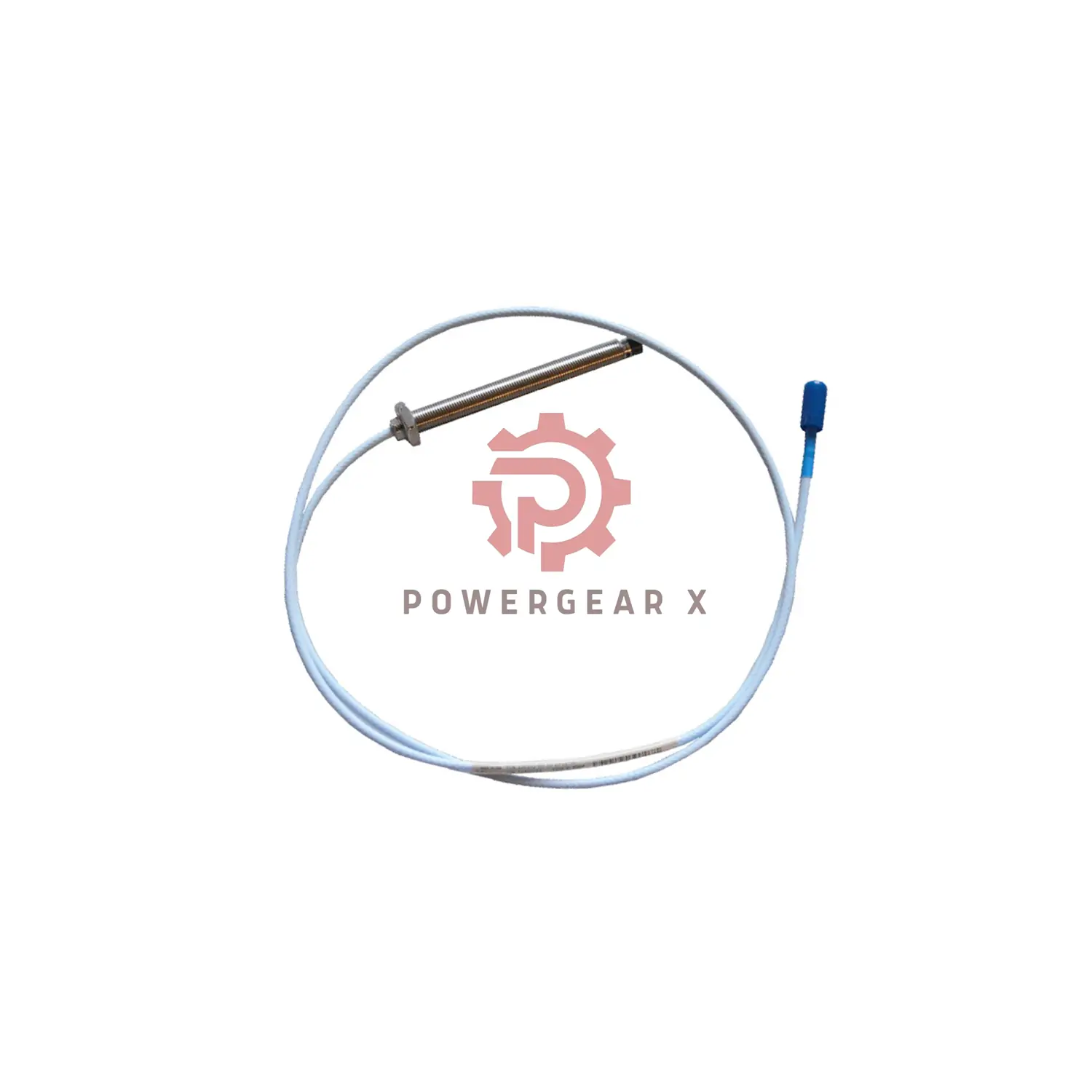

The Bently Nevada 330103-00-21-05-11-05 is a premium industrial sensor. This 3300 XL 8mm probe features a special sealed cable. It is built for wet, oily, or harsh conditions. The probe also carries full hazardous area certifications. Protect your critical machinery with this robust solution.
For application support contact: sales@powergearx.com or +86 18030005825 (WhatsApp).
Technical Configuration & Build Details
- Product Profile
- Brand: Bently Nevada
- Full Model Code: 330103-00-21-05-11-05
- Series: 3300 XL Vibration Monitoring
- Function: 8mm Proximity / Displacement Probe
- Part Number Decoder
- 330103: Core 8mm Probe Design
- -00: Unthreaded Length = 0 mm
- -21: Probe Case Length = 210 mm
- -05: Cable Length = 0.5 meter (1.6 ft)
- -11: Connector/Cable = ClickLoc with Protector & FluidLoc Jacket
- -05: Approvals = CSA, ATEX, IECEx Certified
- Critical Specifications
- Measurement Span: 2.0 mm linear range.
- Set Point: 1.27 mm gap for -9 Vdc.
- Electrical Data: Resistance = 7.45 Ω ± 0.50 Ω.
- Robust Cable: FluidLoc sheath resists fluids and oils.
- Connector Guard: Includes a protective boot.
- Mounting: M10x1 thread, 15mm max engagement.
- Materials: PPS Tip, SST Case, Viton® Seal.
- Temperature: -52°C to +177°C operation.
Expert FAQ & Purchasing Guide
Special Features Explained
- Q: What is the key benefit of the “FluidLoc” cable (suffix -11)?
- A: The FluidLoc cable has a tough outer jacket. It resists degradation from oils, coolants, and chemicals. This extends probe life in messy industrial environments.
- Q: Why choose the 0.5-meter cable length (suffix -05)?
- A: The short 0.5m cable is perfect for tight spaces. It connects directly to a junction box or extension cable near the machine, reducing clutter.
Certification & Application
- Q: Are both the probe and cable certified for hazardous areas?
- A: Yes. The entire assembly, including the special FluidLoc cable, is covered by the ATEX, IECEx, and CSA certifications (suffix -05).
- Q: When should I use the 210mm case version?
- A: The 210mm case (suffix -21) is ideal when you need to reach through a deep mounting bore or need extra stiffness for stability.
Ordering & Support
- Q: What is the delivery and warranty for this specialized probe?
- A: The 330103-00-21-05-11-05 ships fast via FedEx/UPS/DHL. It is backed by a solid 12-month manufacturer warranty for your peace of mind.
Interested in this sealed, certified probe? Reach out to our team for stock availability and competitive pricing.
