Product Introduction: Hazardous Area Ready

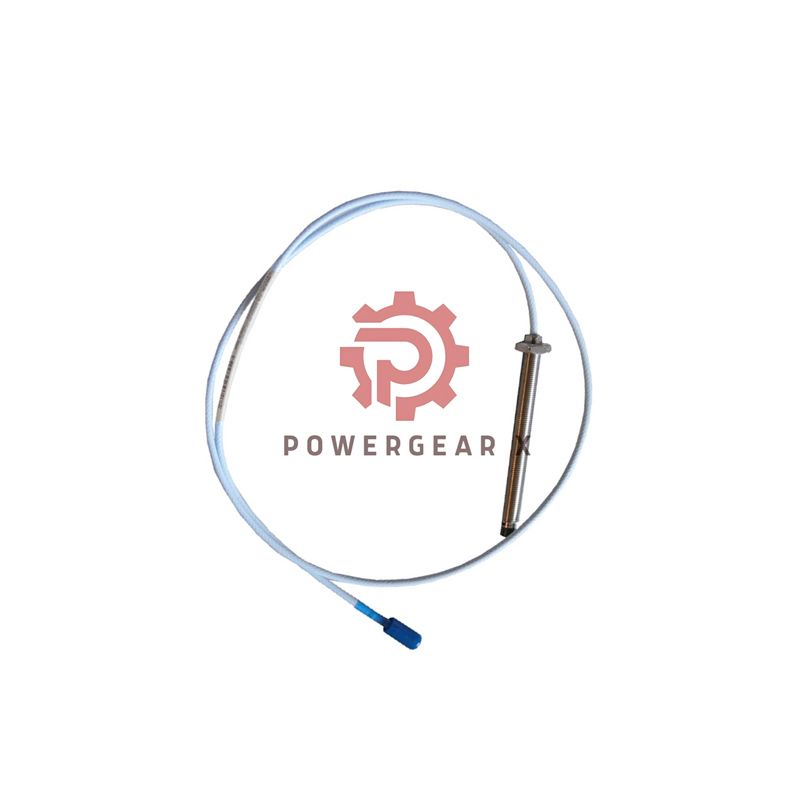

Meet the Bently Nevada 330103-00-05-20-02-05. This is a certified 8mm vibration probe. It has a 2-meter cable for flexible routing. It carries important safety approvals for risky areas. Trust it to monitor pumps, fans, and compressors safely.
Part Number Configuration Guide
- 330103 – Base Model: 3300 XL 8mm Probe, M10x1
- -00 – Unthreaded Length: 0 mm (Fully Threaded)
- -05 – Case Length: 50 mm Total Length
- -20 – Cable: 2.0 Meters Integrated
- -02 – Connection: Standard ClickLoc Connector
- -05 – Safety: CSA, ATEX, IECEx Certifications Included
Complete Product Specifications
- Full Product Code: Bently Nevada 330103-00-05-20-02-05
- Core Performance Data:
- Measuring Range: 0.25 mm to 2.3 mm linear.
- Optimal Gap: 1.27 mm from target surface.
- Probe Resistance (2m): 7.88 Ω ± 0.50 Ω.
- Output: Approximately -9 Vdc at the set gap.
- Construction & Materials:
- Housing: Solid 303/304 Stainless Steel.
- Sensing Tip: Durable PPS (Polyphenylene Sulfide).
- Thread Size: M10 x 1.0 mm.
- Case Size: Compact 50 mm overall length.
- Operating Limits:
- Wide Temperature: -52°C to +177°C operation.
- Internal Seal: Reliable Viton® O-ring design.
- Humidity: Minimal signal change in damp air.
- Cold Warning: Avoid below -34°C for seal life.
- Cable & Output: 2.0 meter fixed cable with standard ClickLoc connector.
Top Reasons to Choose This Probe
- Safety Certified: Approved for use in hazardous locations (ATEX/IECEx).
- Versatile Length: 2-meter cable offers great installation freedom.
- Compact Design: Shorter 50mm case fits in tight spaces.
- Proven Reliability: Built with industrial-grade materials for long life.
- Global Standard: Direct plug-in for 3300 XL monitoring systems.
Frequently Asked Questions
Specifications & Usage
- What is the difference between a 50mm and 60mm case?
- The 50mm case (-05) is shorter. It is useful where space is limited behind the mounting point. The performance is the same.
- Why is the resistance 7.88Ω for the 2-meter version?
- The resistance increases slightly with cable length. 7.88Ω is the correct and healthy value for this 2-meter Bently Nevada 330103 probe.
Certifications & Applications
- What do the ATEX/IECEx approvals allow?
- They permit installation in areas with explosive gas or dust atmospheres. This is common in oil, gas, and chemical plants.
- Is this the right probe for general factory use?
- Yes. Its 2-meter cable and hazardous area certification make it a very flexible and safe choice for both standard and regulated plants.
Ordering & Support
- How do I know this is the correct part?
- Check your machine’s manual for an 8mm probe requirement with M10 thread. The 330103-00-05-20-02-05 code ensures you get this exact 2m, certified version.
- What support comes with my order?
- You receive full manufacturer quality with a 12-month warranty. We dispatch using FedEx, UPS, or DHL for reliable, trackable delivery.
