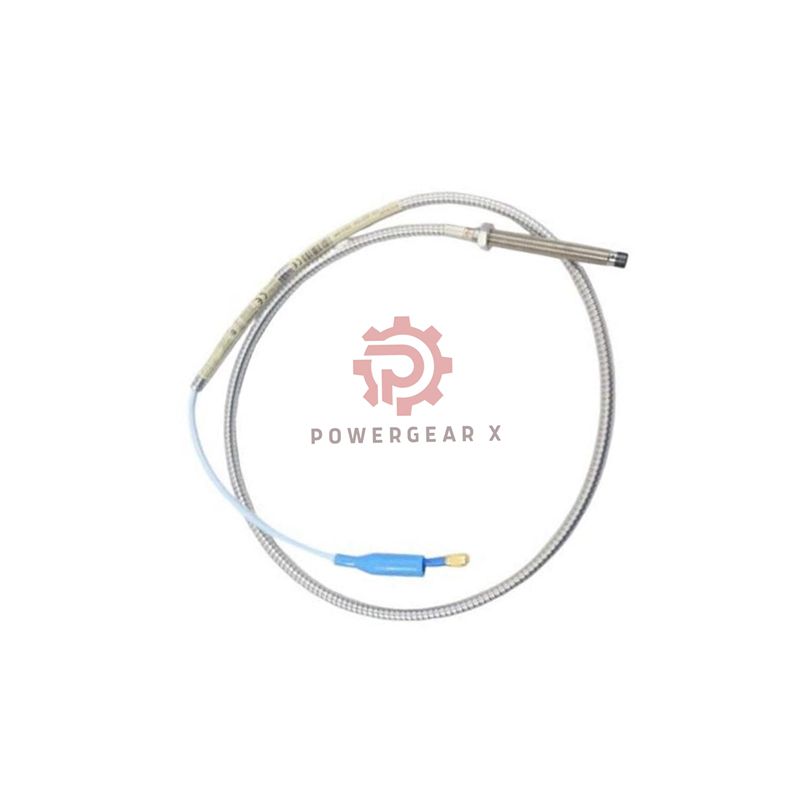

Bently Nevada 330102-00-20-10-01-05 | 2-Inch Compact Armored Probe with ATEX

Compact Armored & Certified Vibration Sensor

Designed for space-limited and hazardous environments, this 3300 XL 8mm Proximity Probe, model 330102-00-20-10-01-05, offers a unique combination of a short 2-inch armored body, a protected connector, and full global safety certifications for reliable monitoring in critical applications.

Product Code Specification Breakdown

• Complete Model Identifier: 330102-00-20-10-01-05
  • 330102 — Armored Probe (3/8-24 UNF)
    00 — Unthreaded Length: 0.0 in

    20 — Case Length: 2.0 in (50.8 mm)

    10 — Cable Length: 1.0 m (3.3 ft)

    01 — Connector: ClickLoc with Protector

    05 — Approvals: CSA, ATEX, IECEx

Core Features & Technical Data

• Robust & Compact Design
  • 2.0-inch (51mm) armored stainless steel case for tight spaces.
  • Full 3/8-24 UNF thread for direct mounting.
  • Connector protector guards against physical damage and contamination.
• Global Hazardous Area Compliance
  • Certified for CSA (North America), ATEX (Europe), and IECEx (International).
  • Approved for use in Zone 0/2 and Division 2 hazardous locations with proper safety barriers.
• Precision Measurement
  • Linear Range: 2.0 mm (80 mils).
  • Optimal Gap: 1.27 mm (50 mils) for -9 Vdc.
  • DC Resistance (1.0m cable): 7.59 Ω ± 0.50 Ω.
• Environmental Durability
  • Operating Temperature: -52°C to +177°C.
  • Sealed with a Viton® O-ring (not pressure tested by default).
  • Stable in high humidity (93% RH).

Expert Q&A for This Model

Configuration & Application

• Why combine a short 2-inch case with armor and a connector protector?
• This design is ideal for hazardous areas with limited space, such as crowded panels on compressors or turbines. The armor protects the cable, and the connector protector safeguards the electrical interface during handling and before final connection.
• Is this probe suitable for temporary or portable monitoring setups?
• Yes, its compact size, armored cable, and connector protector make it robust enough for temporary installations or frequent movement in test cell applications, while still meeting hazardous area requirements.

Installation & Certification

• How should the connector protector be handled during installation?
• The protector should remain in place until you are ready to connect the probe to the proximitor cable. This prevents damage to the pins from debris or accidental impact during the mounting process.
• What documentation is needed for audits in a certified plant?
• We provide the manufacturer’s certification documents (CSA, ATEX, IECEx) with the probe. Retain these for your safety compliance records to prove the device is approved for use in the specified hazardous area.

Procurement & Support

• Is this specific configuration readily available?
• As a specialized item combining compact size, armor, and full certifications, please contact us for current stock status and lead time. We ensure prompt global delivery via FedEx, UPS, or DHL, backed by a 12-month warranty.

Ordering & Service Information

• Package Contents:
  • One Bently Nevada 3300 XL 8mm Probe (Model 330102-00-20-10-01-05).
  • ClickLoc connector with attached protector.
  • Full certification documentation.
• Our Guarantee:
  • All products are covered by a comprehensive 12-month manufacturer’s warranty.
• Global Logistics:
  • We ship worldwide using reliable, trackable services from FedEx, UPS, and DHL.
