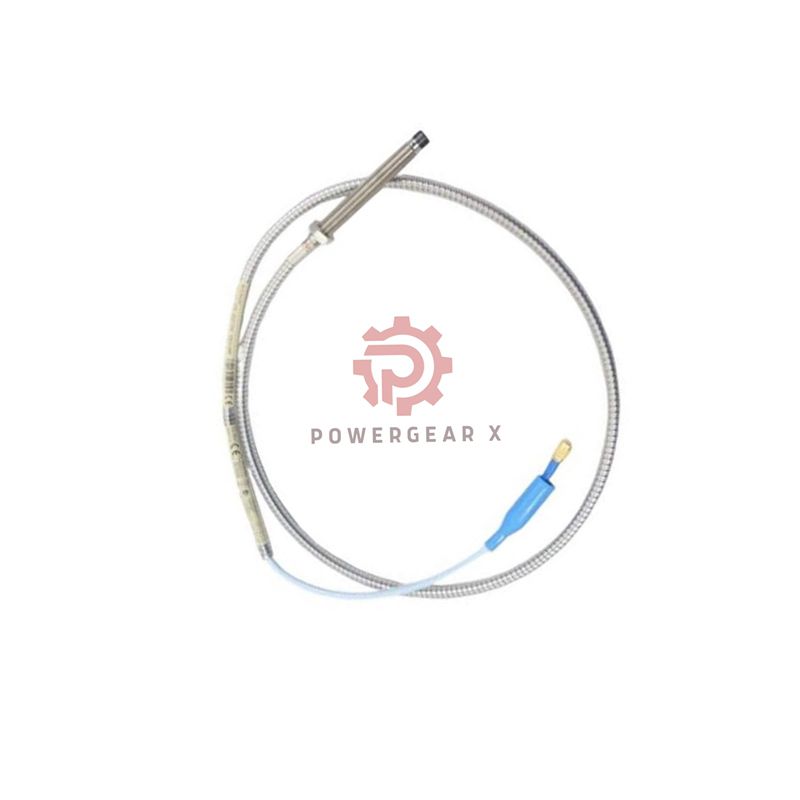

Bently Nevada 330102-00-16-10-02-00 | 1.6-Inch Short Armored 8mm Vibration Probe

Ultra-Short Armored Probe for General Industry

This Bently Nevada 3300 XL 8mm Proximity Probe delivers robust protection in a minimal package. With a very short 1.6-inch armored body and no unthreaded length, it’s engineered for the most space-constrained, non-hazardous applications. It provides essential physical defense where certification is not required but durability is key.

Maximized Protection, Minimized Size

• Extremely Compact: 1.6-inch armored case for ultimate space savings.
• Cost-Effective Safety: Armored protection without hazardous area certification costs.
• Direct Flush Mount: Threads start immediately for shallow installations.
• Practical Cable Length: 1.0 meter cable for versatile routing near the machine.
• Industrial Toughness: Armored sleeve resists impact in busy mechanical spaces.

Model Configuration: 330102-00-16-10-02-00

• Brand: Bently Nevada
• Series: 330102 (3300 XL 8mm, Armored, 3/8-24 UNF)
• Option Code Breakdown:
  • -00: Unthreaded Length = 0.0 inch
  • -16: Case Length = 1.6 inch (40.6 mm)
  • -10: Cable Length = 1.0 Meter
  • -02: Connector = Standard ClickLoc
  • -00: Agency Approval = Not Required

Core Technical Specifications

• Linear Range: 2.0 mm (80 mils).
• Target Gap: 1.27 mm (50 mils) from the shaft surface.
• DC Resistance: 7.59 Ω ± 0.5 Ω (for 1.0m cable).
• Operating Temperature: Standard range -52°C to +177°C.
• Build: Armored stainless steel housing, PPS tip, Viton® seal.
• Mounting: 3/8-24 UNF thread. Maximum engagement 0.563 inch.

Package & Warranty Assurance

• One Bently Nevada 330102-00-16-10-02-00 ultra-short armored probe.
• New and in original manufacturer packaging.
• Backed by a 12-Month Comprehensive Warranty.
• Fast shipping options: FedEx, UPS, or DHL.

Practical FAQ & Selection Guide

Configuration & Application

• Q: What is the primary use for a 1.6-inch armored probe?
• A: It is ideal for small to medium-sized pumps, compressors, or gearboxes where space behind the mounting point is extremely limited, but the environment is physically rough and requires probe protection.
• Q: Why choose the “00” approval option?
• A: Select “-00” when installing in a safe, non-hazardous area (e.g., a general factory floor). This avoids the cost of unnecessary explosion-proof certifications while still providing armored physical protection.

Installation & Considerations

• Q: How do I handle gap setting with such a short probe?
• A: Due to the lack of an unthreaded shoulder, gap setting is purely electrical. Screw the probe in while monitoring the output voltage with a meter until you achieve the target -9 Vdc.
• Q: Is the armored sleeve on this model as strong as on longer ones?
• A: Yes, the armor provides the same level of impact and abrasion resistance. The shorter length simply means there is less overall body to protect, making it ideal for tight spots.

Ordering & Support

• Q: How quickly can I get this item and what support do you offer?
• A: For the 330102-00-16-10-02-00, contact us for stock and lead time. Every unit is covered by our 12-month warranty and can be shipped via DHL, FedEx, or UPS. Get in touch at sales@powergearx.com or +86 18030005825 on WhatsApp for prompt service.
