Product Introduction

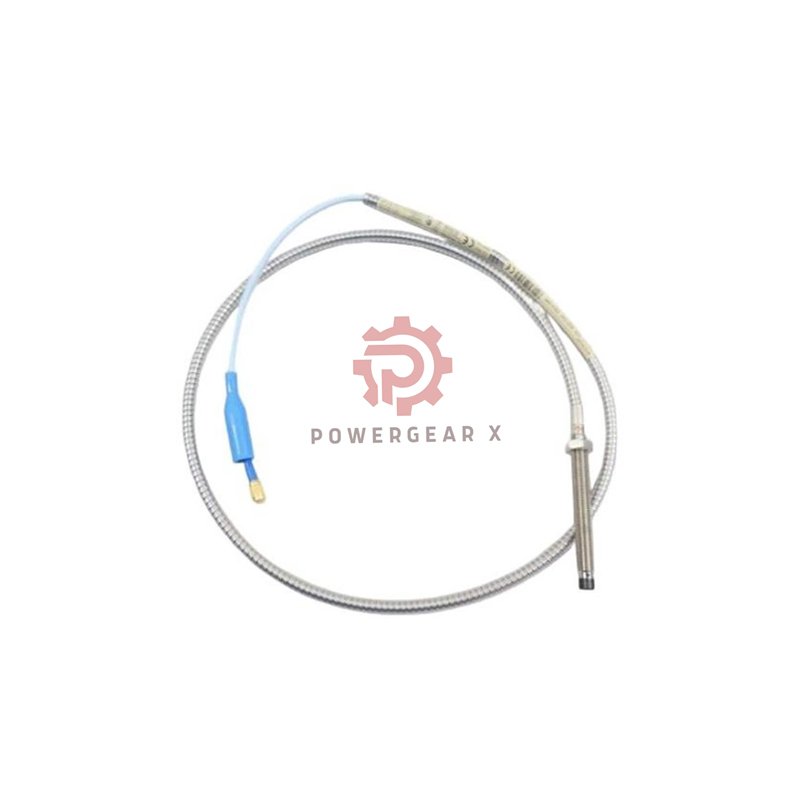

This is the genuine Bently Nevada 3300 XL 8mm Proximity Probe. It is the core sensor for machinery health monitoring. The complete part number 330102-00-18-90-02-00 details its exact configuration for your application.
Part Number Breakdown
- 330102 – 3300 XL 8mm Probe, 3/8-24 UNF thread, with armor
- 00 – Unthreaded Length: 0 inches
- 18 – Overall Case Length: 1.8 inches
- 90 – Total Cable Length: 9.0 meters
- 02 – Connector: Miniature coaxial ClickLoc
- 00 – Agency Approval: Not required
Key Features
- Accurate Measurement: Essential for predictive maintenance programs.
- Robust Design: Stainless steel case withstands tough plant conditions.
- Easy Setup: Pre-attached cable and ClickLoc connector save time.
- Wide Temperature Range: Operates from -52°C to +177°C reliably.
- Long Integrated Cable: 9 meters allows flexible sensor placement.
Technical Specifications
- Brand: Bently Nevada
- Model: 330102-00-18-90-02-00
- Type: 3300 XL 8 mm Proximity Probe
- Measuring Range: 0.25 to 2.3 mm (Linear)
- Recommended Gap: 1.27 mm (for -9 Vdc)
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 303/304 Stainless Steel
- Cable Length: 9.0 meters (Integrated)
- Connector: Miniature Coaxial ClickLoc
- Thread: 3/8-24 UNF
- Temperature Range: -52°C to +177°C
- DC Resistance: 9.87 Ω ± 0.50 Ω
Installation Guide
- Clean the mounting hole thoroughly before installation.
- Do not exceed 0.563 inches of thread engagement.
- Set the probe gap to achieve -9 Vdc bias voltage.
- Secure the ClickLoc connector firmly.
- Use shielded cable for field wiring up to 305 meters.
Setup & Maintenance
This probe is ready to use. No user calibration is needed. Check the gap voltage after installation. Inspect the cable periodically. Clean the probe tip from debris.
Compatibility
Works with Bently Nevada 3300 XL Proximitor Sensors. Ensure your system accepts 8mm probes and ClickLoc connectors.
Certifications
For use in hazardous areas with proper safety barriers. Complies with standards for Class I, Zone 0/2 and Division 2.
Package & Warranty
- One (1) Bently Nevada 8mm Proximity Probe.
- 12-month warranty against defects.
Shipping
We ship via FedEx, UPS, and DHL worldwide.
Applications
- Steam and Gas Turbines
- Centrifugal Compressors
- Large Electric Motors
- Critical Pumps and Fans
Diagnostic Use
Measures shaft vibration and radial position. Detects imbalance, misalignment, and bearing wear early.
FAQ
General Questions
- What does the part number ’90’ suffix mean?
- It specifies the integrated cable length is 9.0 meters.
- What is the correct gap setting?
- Adjust to 1.27 mm (50 mils) for standard -9 Vdc operation.
Selection & Experience
- The ’02’ connector doesn’t match my old cable. What now?
- You may need a junction box adapter. Contact us with your system model for help.
- How do I choose based on the suffix codes?
- Match the ’00-18′ for physical size and ’90’ for cable reach to your machine layout.
Purchase Guidance
Verify your system uses an 8mm probe. Confirm the thread size (3/8-24 UNF). Ensure the 9-meter cable length (’90’) meets your needs. For custom pressure seals or extreme temperatures, contact us first. Our partners Oiltech Controls and PLCDCS HUB provide expert support.
