Product details
Long-Reach Probe with Customizable Safety Approvals

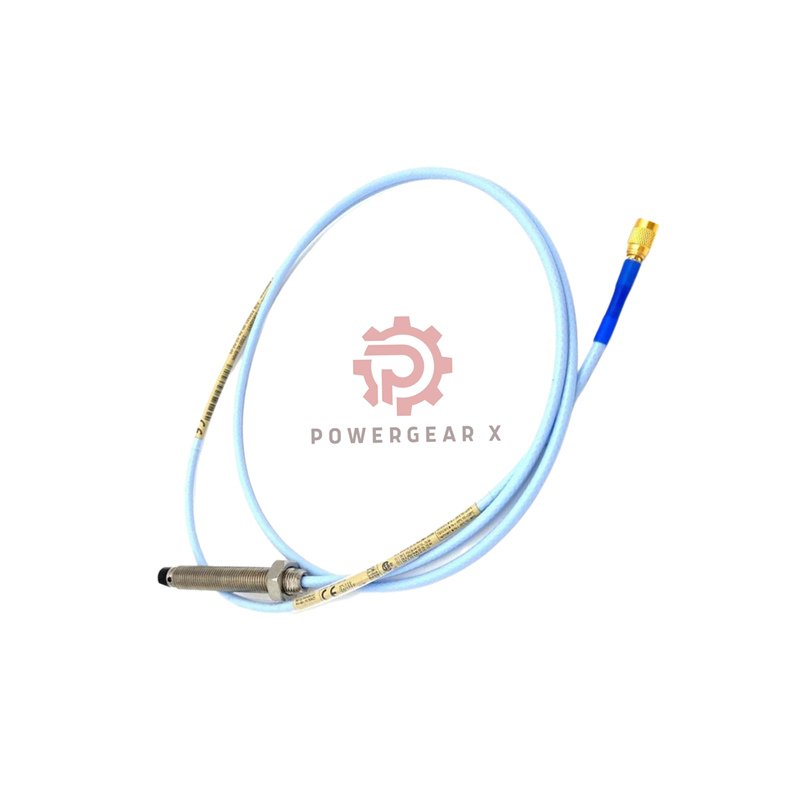

This Bently Nevada 3300 XL 8mm Probe combines extended reach with certification flexibility. Model 330101-30-63-10-02-CN features a 3.0-inch unthreaded shaft and 6.3-inch total length for deep installations. It is configured for country-specific safety approvals (CN) to meet local regulations. This robust sensor is ideal for monitoring critical turbines and compressors in regulated markets worldwide.
Part Number Decoder: Understand Your Configuration
- BASE: 330101
- 3300 XL 8mm Probe, 3/8-24 UNF, No Armor
- OPTION 1 [-30]: Unthreaded Length
- 3.0 inches – Slides through deep bushings
- OPTION 2 [-63]: Overall Case Length
- 6.3 inches – Total probe body length
- OPTION 3 [-10]: Cable Length
- 1.0 meter (3.3 feet) – Integral cable
- OPTION 4 [-02]: Connector Type
- Miniature Coaxial ClickLoc
- OPTION 5 [-CN]: Agency Approval
- Country Specific – Specify your required standard
Core Performance Specifications
- Brand: Bently Nevada
- Series & Type: 3300 XL 8mm Proximity Probe
- Key Dimension: 3.0″ Unthreaded, 6.3″ Overall Case
- Measurement Range: 2.0 mm (80 mils) linear
- Sensitivity (Scale Factor): 7.87 V/mm ±5%
- Linearity (DSL): < ±0.025 mm (±1 mil)
- Recommended Gap: 1.27 mm (50 mils) / -9 Vdc
- Probe Resistance: 7.59 Ω ± 0.50 Ω
- Operating Temp: -52°C to +177°C (-62°F to +350°F)
- Approval Status: Configurable for local certifications.
- Build Quality: Stainless Steel Case, PPS Tip, Viton Seal.
Installation Best Practices
- Ensure the 3.0-inch unthreaded section clears your mounting bushing.
- Only engage the threaded end (max 0.563 inches) into the tapped hole.
- Apply the correct installation torque: 11.2 N•m (100 in•lbf).
- Verify no internal obstructions contact the long probe body.
- Route and secure the 1.0-meter cable properly to avoid strain.
Key Features & Applications
- Deep Machine Access: Penetrates thick housings to reach the measurement point.
- Regulatory Compliance: Can be supplied with approvals for specific countries/regions.
- Exceptional Durability: 8mm rugged design resists physical damage.
- Reliable Data: Stable output ensures accurate condition monitoring.
- Global Application: Perfect for power generation, oil & gas, and heavy industry.
Ordering, Warranty & Shipping
- Product Includes: One long-reach 8mm vibration probe.
- Quality Guarantee: Backed by a reliable 12-month warranty.
- Fast Delivery: Choose from FedEx, UPS, or DHL for international shipping.
- Technical Consultation: Contact us to discuss your approval requirements.
Email: sales@powergearx.com
WhatsApp for Quotes: +86 18030005825
Specialist FAQ: Long Probes & Certifications
What countries are covered by the “CN” country-specific approval?
The -CN suffix is a placeholder. It means the probe can be certified for your local market, such as INMETRO (Brazil), NEPSI (China), or EAC (Eurasia). You must specify the exact standard when ordering.
Why would I need both a long unthreaded section and a long case?
This combination is for very deep installations. The 3.0″ unthreaded part passes through a bushing, and the 6.3″ total length ensures the tip reaches the shaft target deep inside the machine.
Is the probe performance affected by local certifications?
No. The electrical and mechanical specifications remain identical. The certification process involves additional testing and documentation, not design changes.
How long does it take to get a country-specific approved probe?
Lead time varies. Standard models ship quickly. Probes requiring specific certifications like NEPSI or INMETRO may need additional weeks for testing and documentation.
Can I use this in a non-hazardous area if it has a certification?
Yes. A probe with a safety certification (like one ordered under -CN) is perfectly safe and functional for use in standard industrial areas. The certification is an added feature.
