Long-Reach Certified Probe for Hazardous Areas

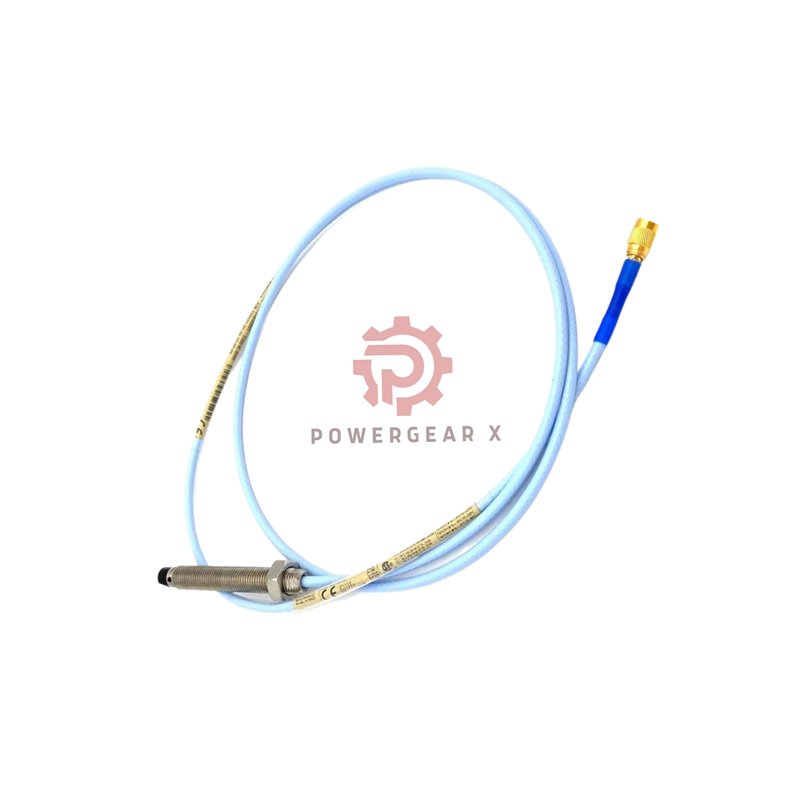

This is the 3300 XL 8mm Proximity Probe, model 330101-00-16-50-02-05. Made by Bently Nevada in the USA, it combines a short 1.6-inch case with a long 5.0-meter integrated cable and full hazardous area certifications. This probe is specifically designed for use with 5-meter Proximitor systems where the monitoring point is far from the machine.
Product Specifications & Details
- Core Product Information
- Brand: Bently Nevada
- Series: 3300 XL Monitoring System
- Full Model Number: 330101-00-16-50-02-05
- Model Number Configuration Tree
- 330101 – 8mm Probe, 3/8-24 UNF Thread
- 00 – Unthreaded Length: 0.0 in (Fully Threaded)
- 16 – Case Length: 1.6 inches
- 50 – Cable Length: 5.0 meters (16.4 ft)
- 02 – Connector: ClickLoc Coaxial
- 05 – Approvals: CSA, ATEX, IECEx
- Key Technical Parameters
- Linear Range: 2.0 mm (80 mils).
- Gap Setting: 1.27 mm (50 mils) for -9 Vdc.
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil).
- Linearity: Better than ±0.025 mm (±1 mil).
- Probe Resistance (5.0m): 8.73 Ω ± 0.50 Ω.
- Build & Compliance
- Temperature Range: -52°C to +177°C.
- Construction: Stainless Steel case, PPS plastic tip.
- Seals: Viton® O-ring pressure seal.
- Important Note: For use with 5-meter Proximitor sensor only.
- Certifications: Approved for CSA, ATEX, and IECEx hazardous locations.
Expert FAQ & Guidance
Application & Compatibility
- Why does this 5-meter probe only work with a 5-meter Proximitor?
The electrical system is tuned for a specific total cable length. Using this 5m probe with a 5m Proximitor ensures correct calibration, sensitivity, and system performance.
- What is a typical use for a 1.6-inch short case probe?
The short 1.6-inch case is perfect for mounting in tight spaces or on machinery with limited clearance around the mounting hole.
Technical Specifications
- The resistance is 8.73 Ohms. Is that normal for a long cable?
Yes. Longer cables have higher resistance. The specified 8.73 Ω for this 5-meter model 330101-00-16-50-02-05 is correct and expected.
- Can I cut the 5-meter cable shorter if I don’t need all the length?
No. You must not cut the integrated cable. It will change the electrical characteristics and make the probe incompatible with the system. Order the correct cable length you need.
Ordering & Logistics
- Do you provide calibration certificates for certified probes?
This model ships with the manufacturer’s certifications (ATEX/IECEx/CSA). For an individual calibration certificate, please request this before ordering, as it may affect lead time and cost.
Secure Your Long-Reach Monitoring Solution
This probe is essential for remote monitoring in classified areas. Contact us for pricing and to confirm it matches your system.
