Premium Machinery Health Monitor

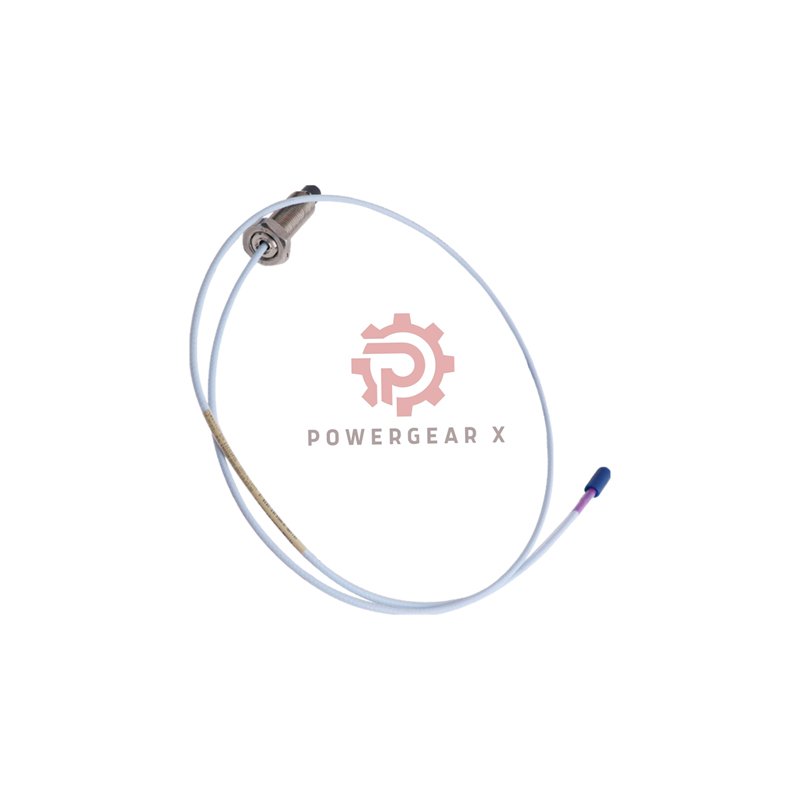

This is the Bently Nevada 3300 XL 11 mm Proximity Probe. It is a genuine sensor for vibration and position. It offers reliable performance for protecting expensive equipment. Its design ensures accurate measurements in tough industrial environments.
Core Advantages
- Ready to Use: Includes a connector protector for safe transport and handling.
- Short Cable Option: 1.0 meter length is ideal for compact installations.
- Robust Build: Stainless steel body and durable PPS tip resist wear and chemicals.
- Precision Sensing: Provides a stable signal for accurate machine health data.
- Global Safety Standards: Designed to support various hazardous area certifications.
Detailed Product Configuration
- Manufacturer: Bently Nevada
- Full Model Number: 330709-000-230-10-11-00
- 330709: 11 mm Probe, M16x1.5 thread, no armor
- 000: 0 mm unthreaded section
- 230: 230 mm overall case length
- 10: 1.0 meter total cable length
- 11: Mini ClickLoc connector with protector, FluidLoc cable
- 00: No agency approval pre-marked
- Probe Type: 3300 XL 11 mm Proximity Probe
- Origin: Made in U.S.A.
Key Technical Data
- Electrical Specs:
- Cable Type: 75Ω Triaxial, FEP insulated FluidLoc
- Probe Resistance (RPROBE @ 1.0m): 5.9 Ω ± 0.5 Ω
- Mechanical Specs:
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Thread: M16 x 1.5
- Max Thread Engagement: 24 mm
- Case Torque (Recommended): 21.1 N·m (187 in·lb)
- Connector Torque: Finger tight only (Max 0.565 N·m)
- Min. Cable Bend Radius: 25.4 mm (1.0 in)
- Target Requirements:
- Minimum Flat Surface Diameter: 30.5 mm (1.2 in)
- Minimum Shaft Diameter: 152 mm (6.0 in)
- Temperature Performance:
- Operating & Storage Range: -52°C to +177°C
- Note: Avoid below -34°C to protect pressure seals.
- Complies with multiple EPL Ga, Gc, Dc temperature schedules.
Simple Installation Notes
- Mount in an M16x1.5 hole. Engage no more than 24 mm of thread.
- Tighten the case to 21.1 N·m. Do not exceed the maximum rated torque.
- Connect the ClickLoc connector by hand until snug. Tools can damage it.
- Plan cable routing. Avoid sharp bends below 25.4 mm radius.
Perfect Fit & Compatibility
This 11mm probe works with Bently Nevada 3300 XL monitor systems. It is a direct replacement part. The connector protector keeps it clean before use. Need an 8mm version for smaller shafts? View our 3300 XL 8mm Proximity Probes.
Package & Promise
- One (1) Bently Nevada 330709-000-230-10-11-00 Probe.
- Connector protector installed.
- 12-Month Quality Warranty.
- Fast Shipping: Available via FedEx, UPS, and DHL.
Expert Questions & Answers
- Q: Why choose the 1.0 meter cable version?
- A: It’s perfect for tight spaces. It reduces cable clutter near the measurement point. Use it where the monitor is very close to the probe.
- Q: What does the connector protector do?
- A: It shields the electrical contacts from dust, moisture, and physical damage during storage and installation. Remove it only when ready to connect.
- Q: How do I know if my shaft is big enough for this 11mm probe?
- A: Your shaft must be at least 152 mm (6 inches) in diameter. For smaller shafts, consider an 8mm probe.
- Q: Can I use this in a very hot location?
- A: Yes. It works up to +177°C continuously. For specific hazardous area temperature codes (like T2, T3), consult the detailed temperature schedule in the specs.
- Q: What is your delivery and warranty policy?
- A: We ship globally with reliable carriers like FedEx. Your purchase is protected by a full 12-month warranty against manufacturing defects.
